Date of Design
1990
Product
IR Audio Volume Control

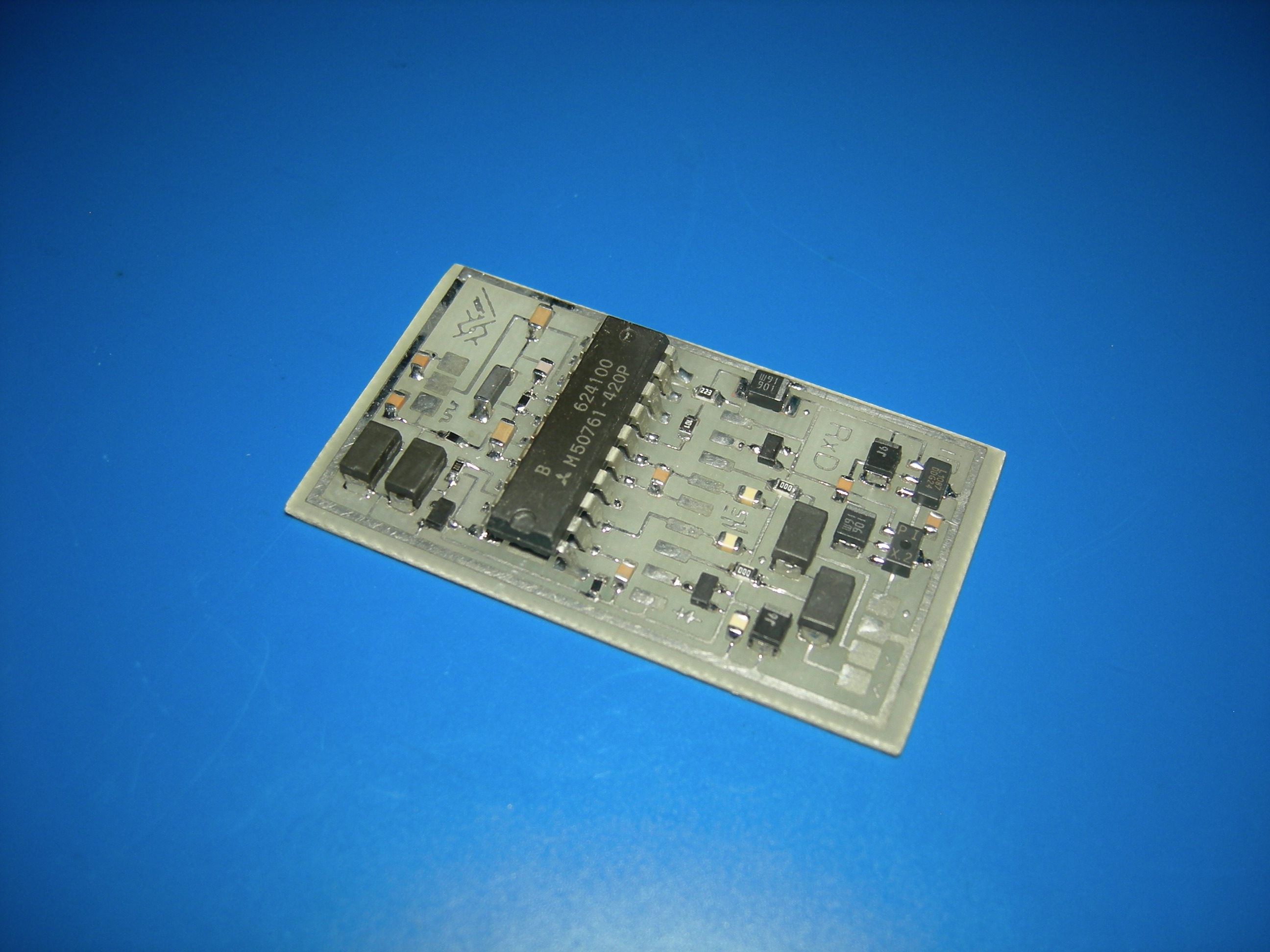

Assembly ID
IRAudioMod
Company
Automatic Music Co.
Function
Bar Staff Juke Box Control
Primary Device
Mitsubishi M50767 MCU
Technology
12 track/12 space (no via)

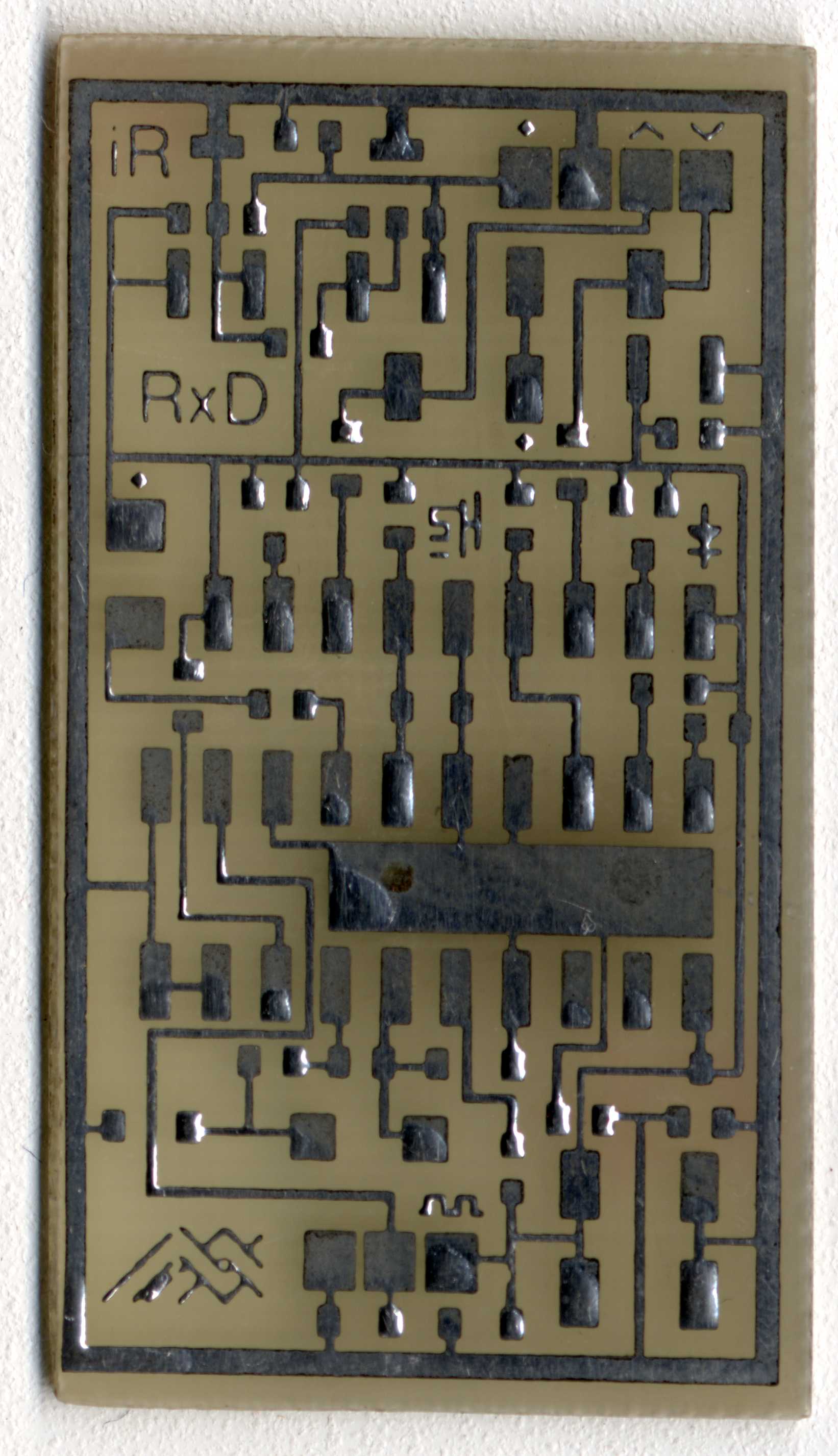

PCB Build Specification
Single Layer, 1.6mm, HASL, FR4
Design Compliance
None
Contract Manufacturer
Critech (TAS)
CAD Application

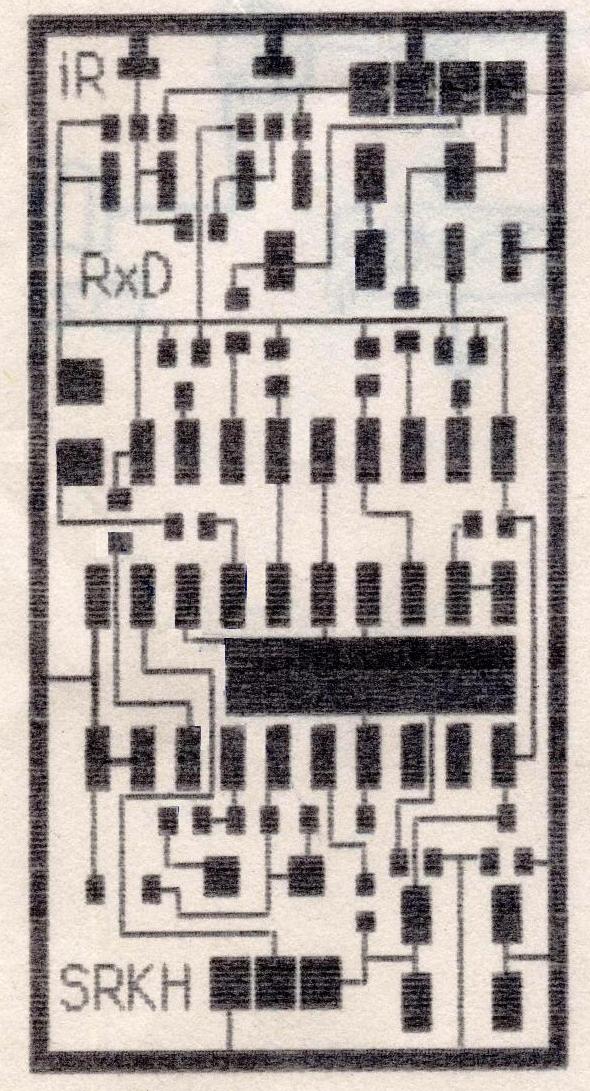

Macintosh Paint (SE30)
Prototype Availability
Yes
