Date of Design
2002
Product
Wet End Controller Card
Assembly ID
WECC
Company
Function
Acoustic Imaging Controller
Primary Device
PPC MPC860 + Virtex II
Technology
5 track/5 space/22 via

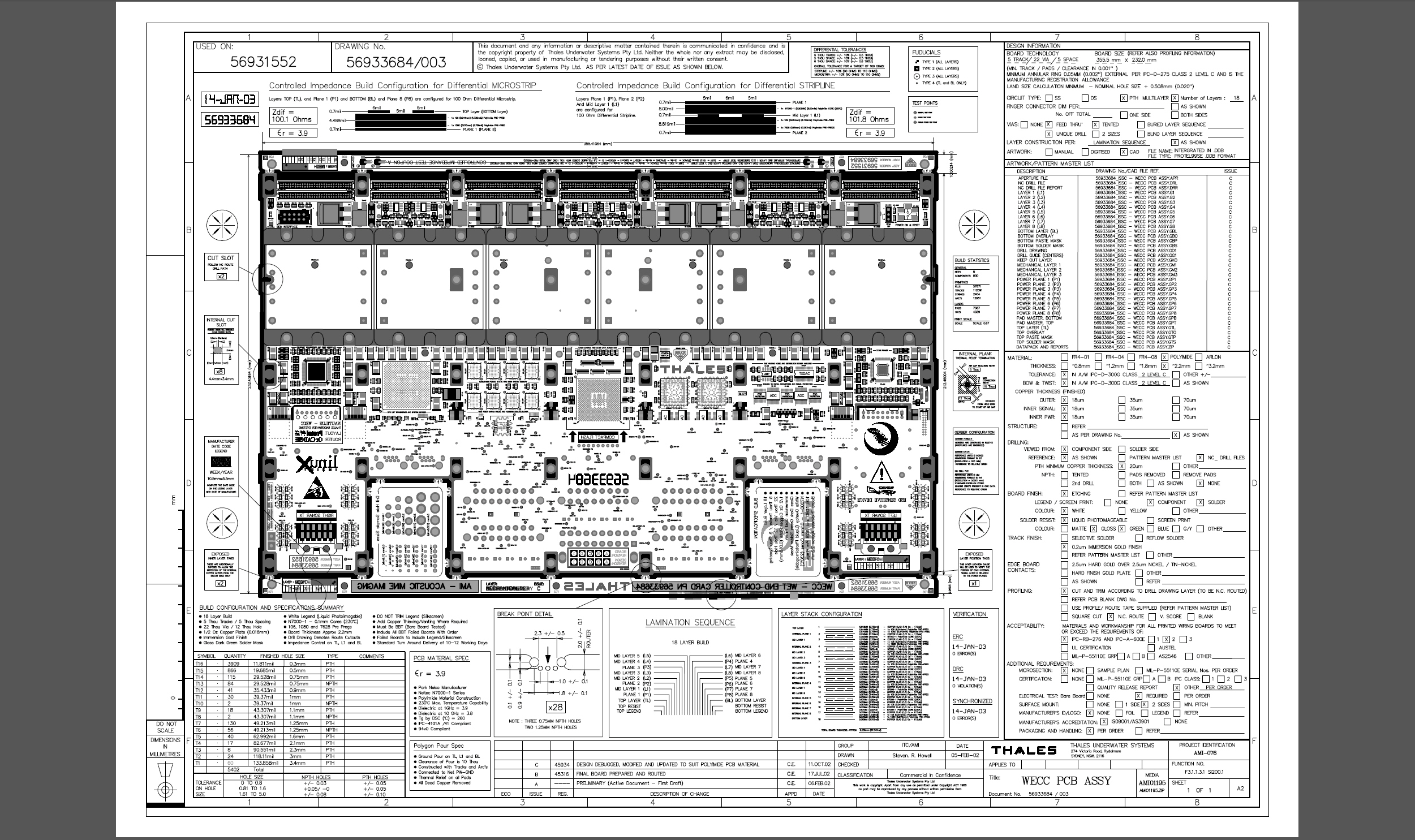

PCB Build Specification
22 Layer, 1/2oz, MASK, ENIG, Polymide
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
MHA Logistics (UK)
CAD Application
Protel 99SE
Prototype Availability
No
