Date of Design
2000
Product

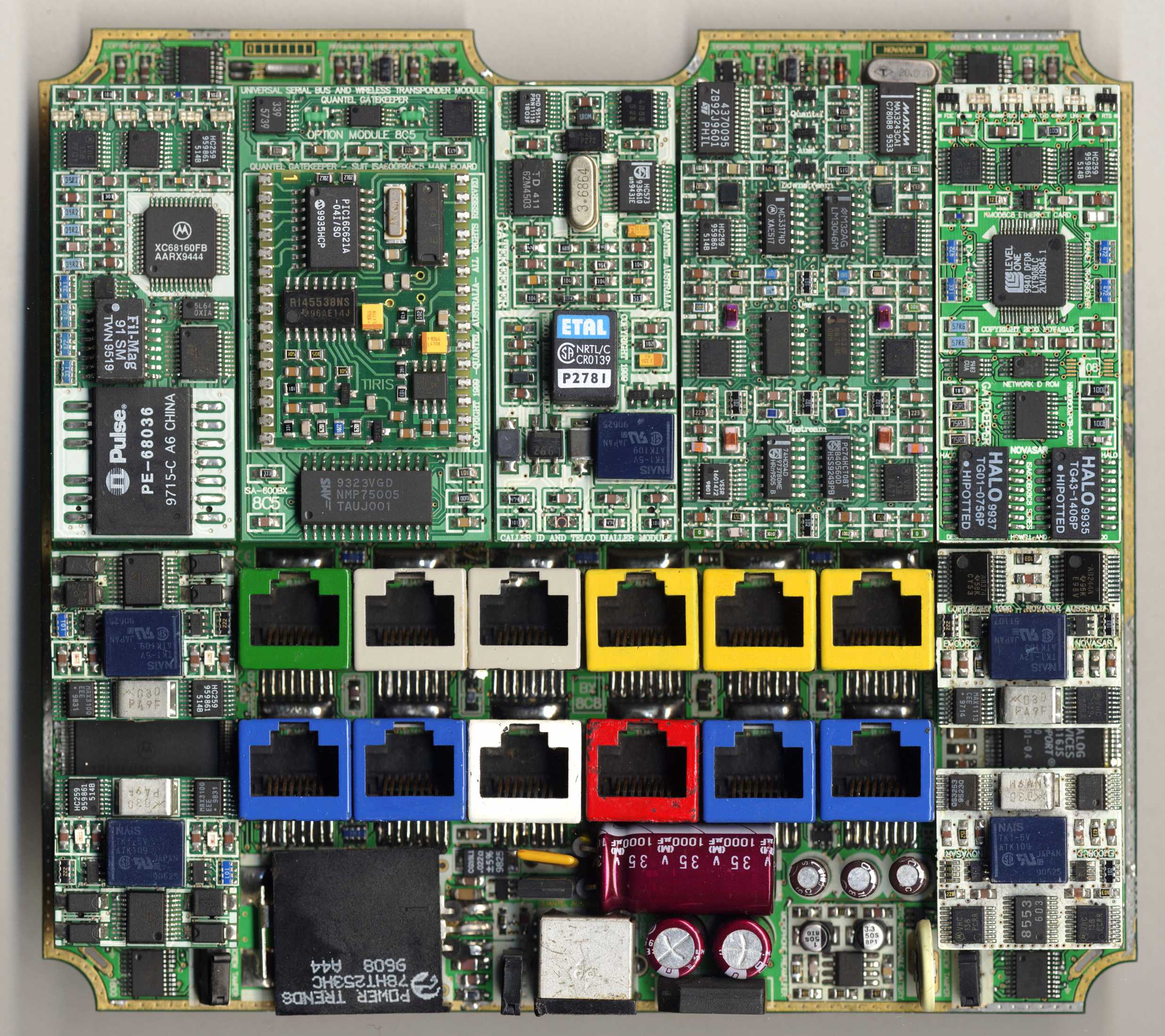

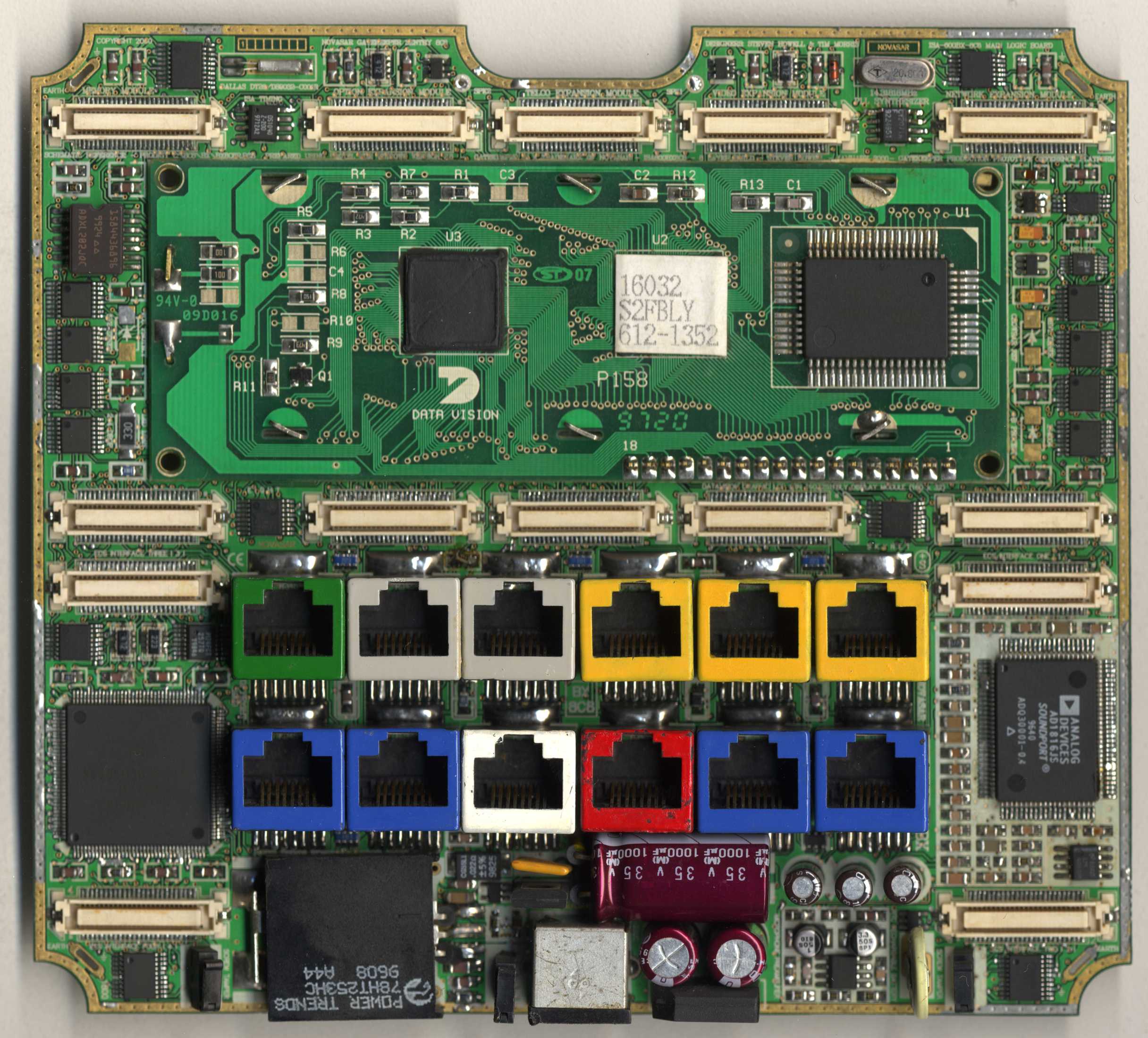

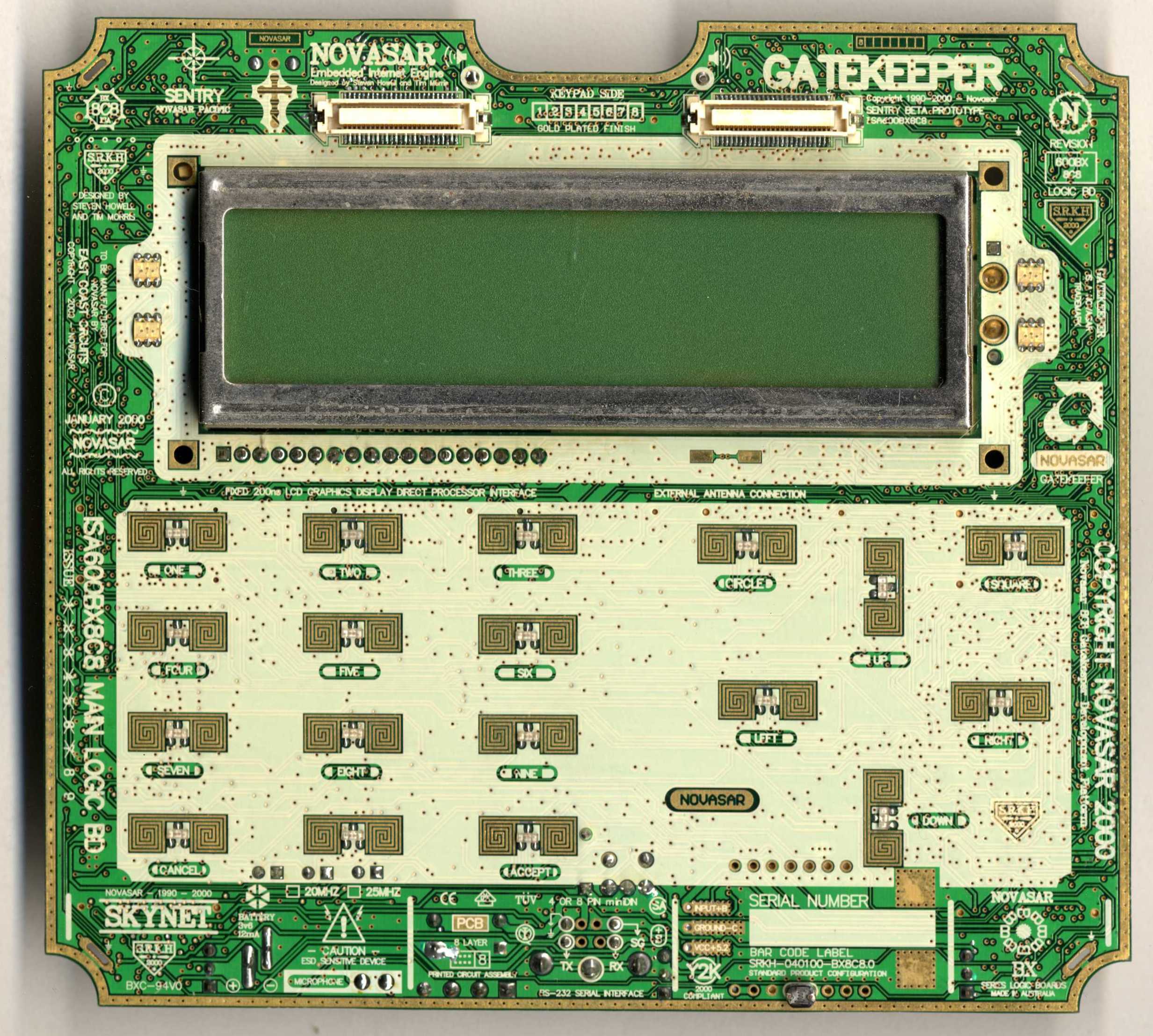

Motorola 68000 Version of Gatekeeper
Assembly ID
600-BX8C8 (nexgen to 600-AX6/BX6)
Company
Novasar (Lockwood/Inner range)
Function
Gatekeeper Security Network System
Primary Device
Technology
5 Track/5 Space/30 Via
PCB Build Specification
8 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
94V0
Contract Manufacturer
East Coast Circuits (QLD)
CAD Application
Protel Schematic+PFW2.8
Prototype Availability
Yes
Downloads
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
