Date of Design
1999
Product

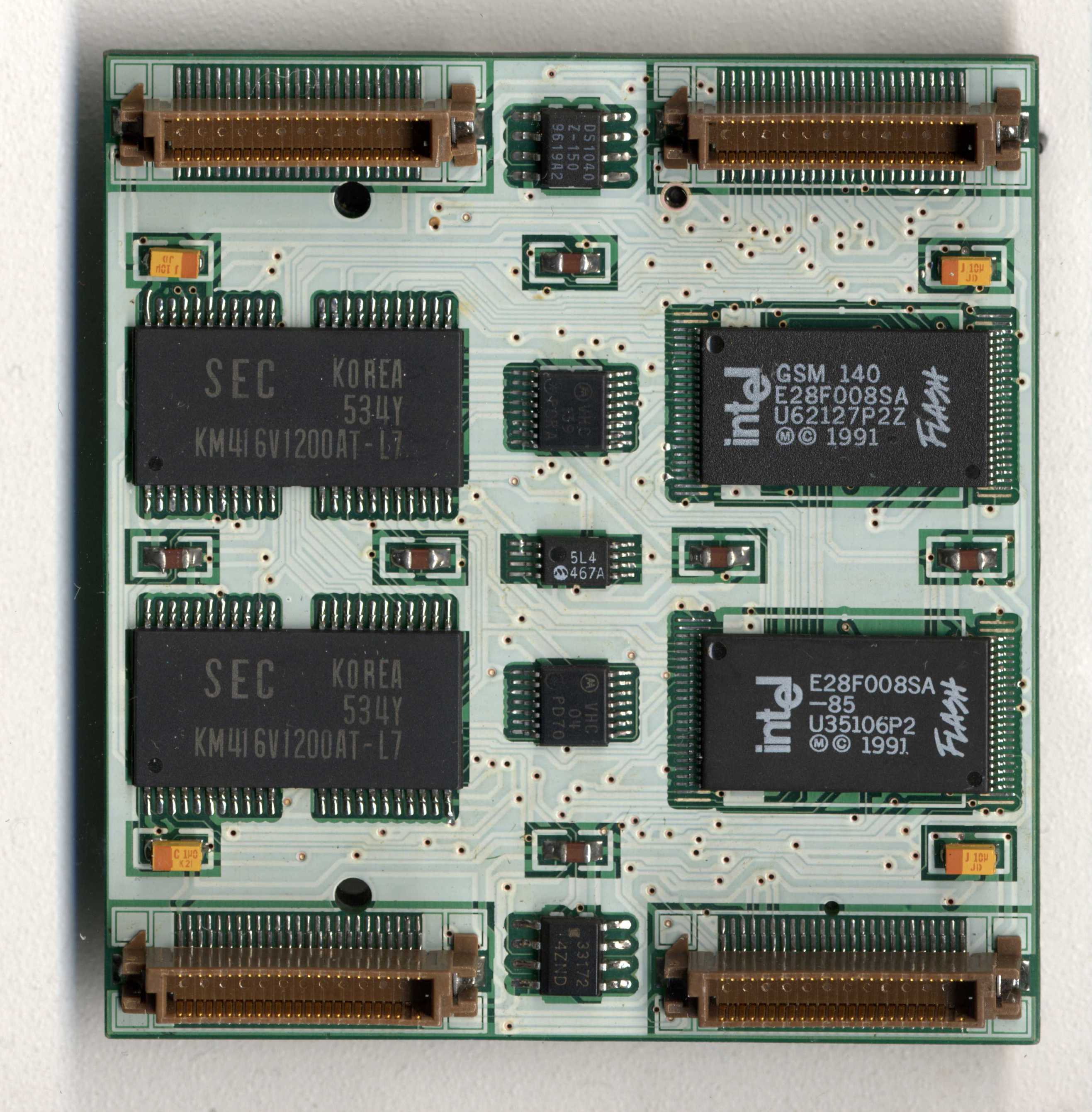

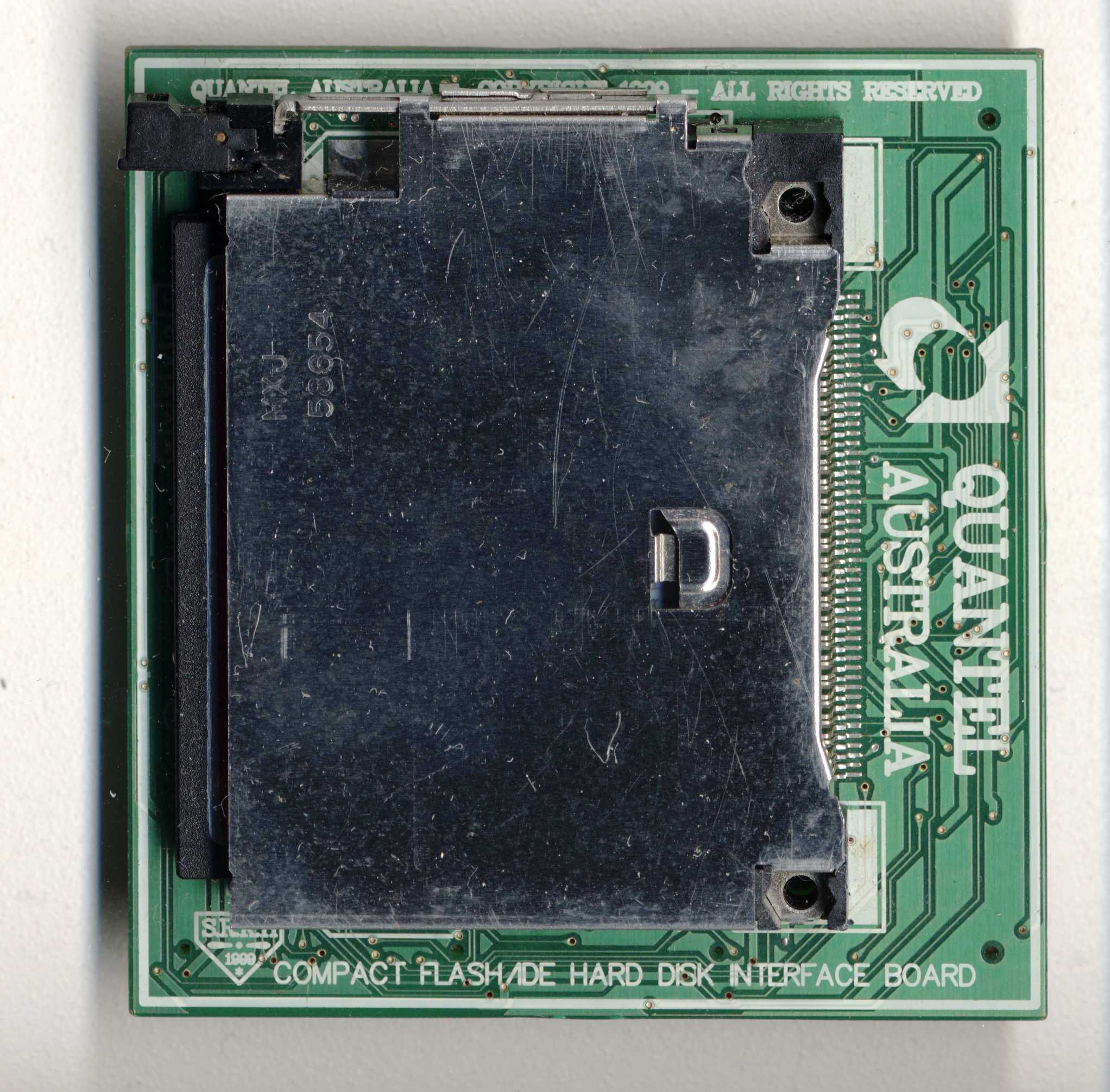

IDE/Flash/Dram Module w CF
Assembly ID
IMOD8C5
Company
Novasar (Lockwood)
Function
Mixed Memory Technology Card
Primary Device
Technology
6 Track/6 Space/24 Via
PCB Build Specification
4 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
94V0
Contract Manufacturer
Precision Circuits (VIC)
CAD Application
Protel Schematic+PFW2.8
Prototype Availability
Yes
