Date of Design
1999
Product

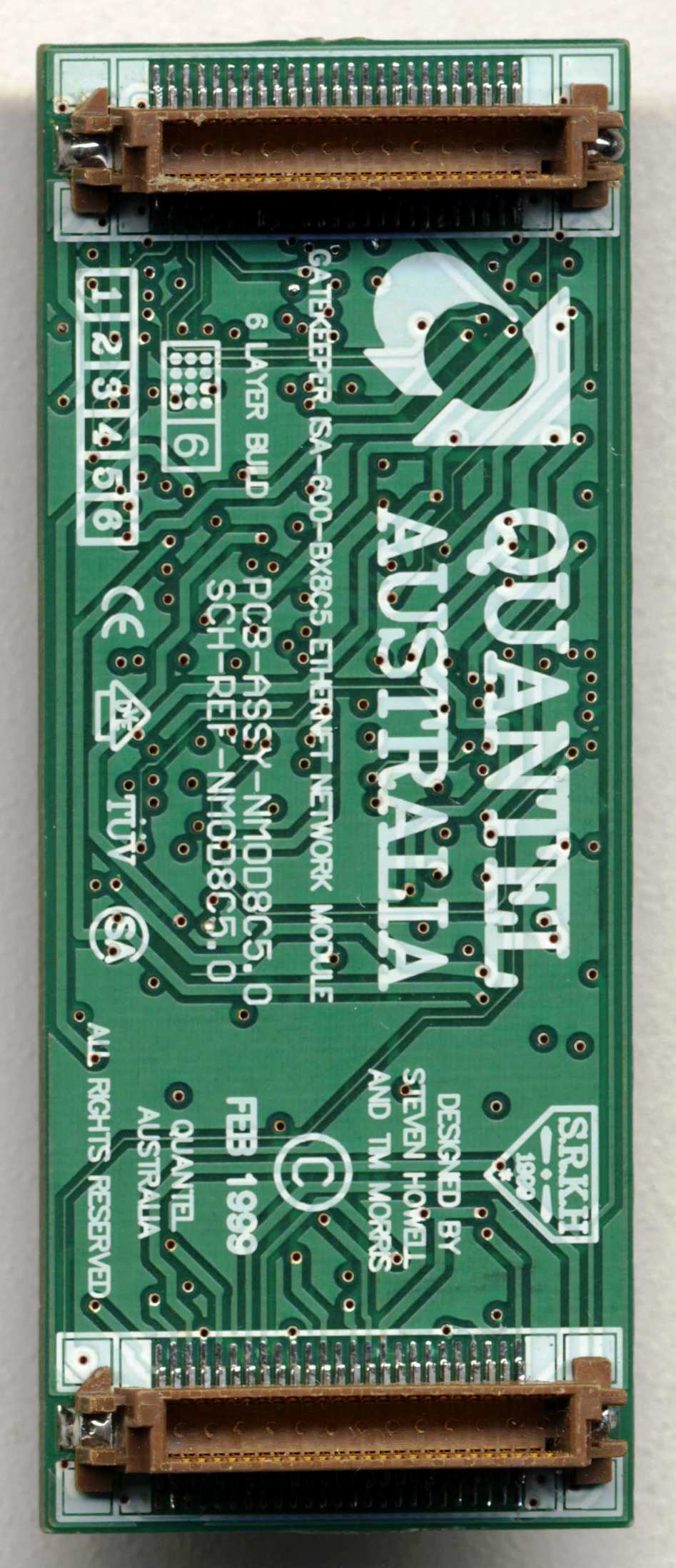

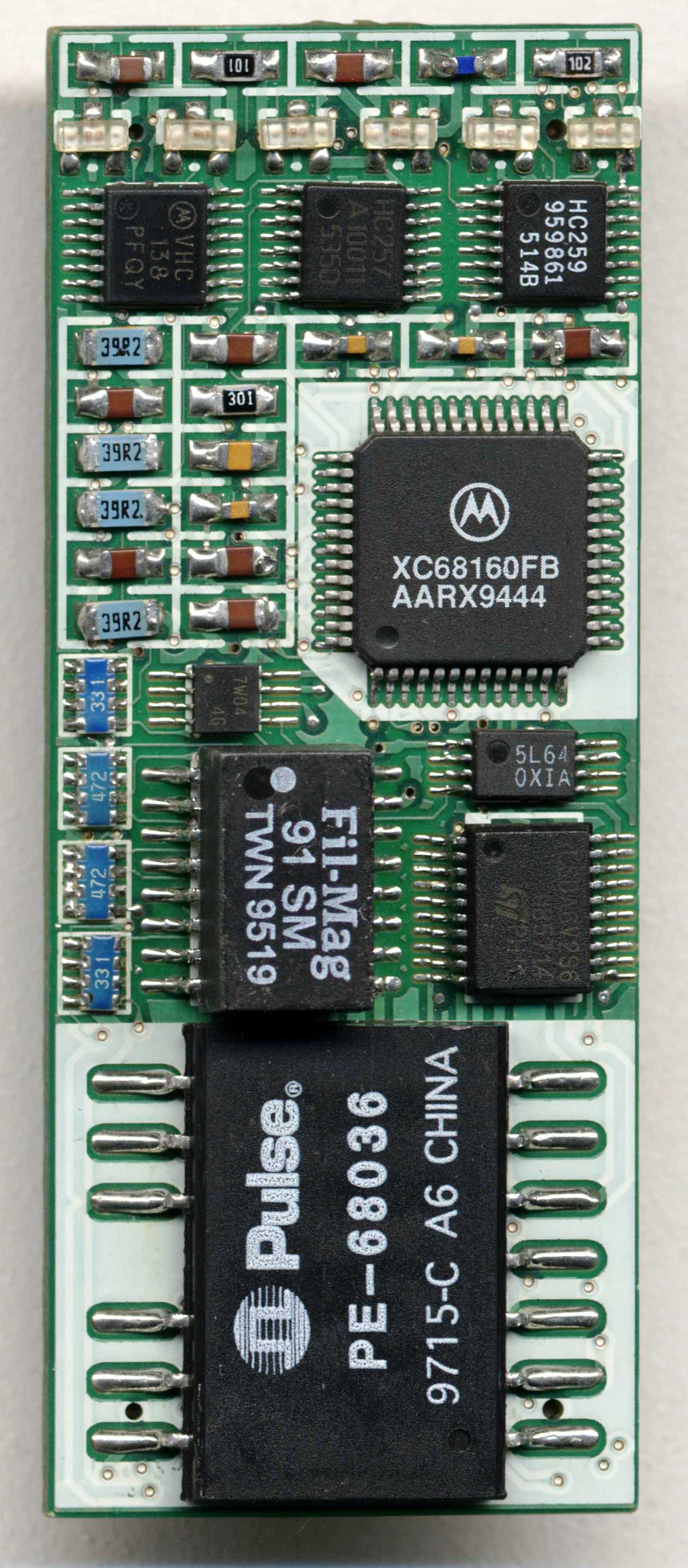

Network (Ethernet) Module
Assembly ID
NMOD8C5
Company
Novasar (Lockwood)
Function
UTP Ethernet Network Card w/AUI
Primary Device
Technology
6 Track/6 Space/24 Via
PCB Build Specification
4 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
94V0
Contract Manufacturer
Precision Circuits (VIC)
CAD Application
Protel Schematic+PFW2.8
Prototype Availability
Yes
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
