Date of Design
1991
Product
Mac Classic Memory Board
Assembly ID
CLASSIC1MB
Company
Function

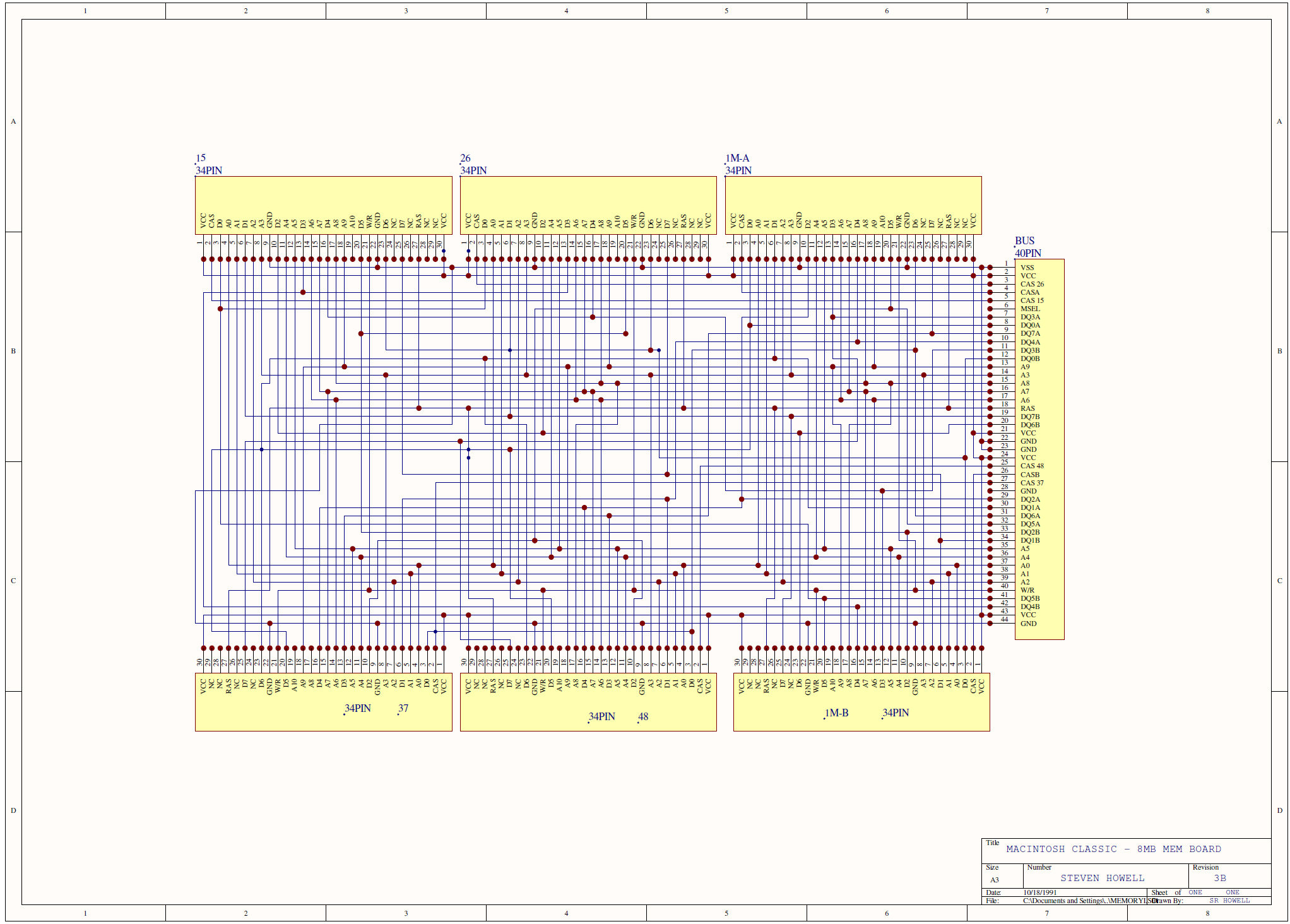

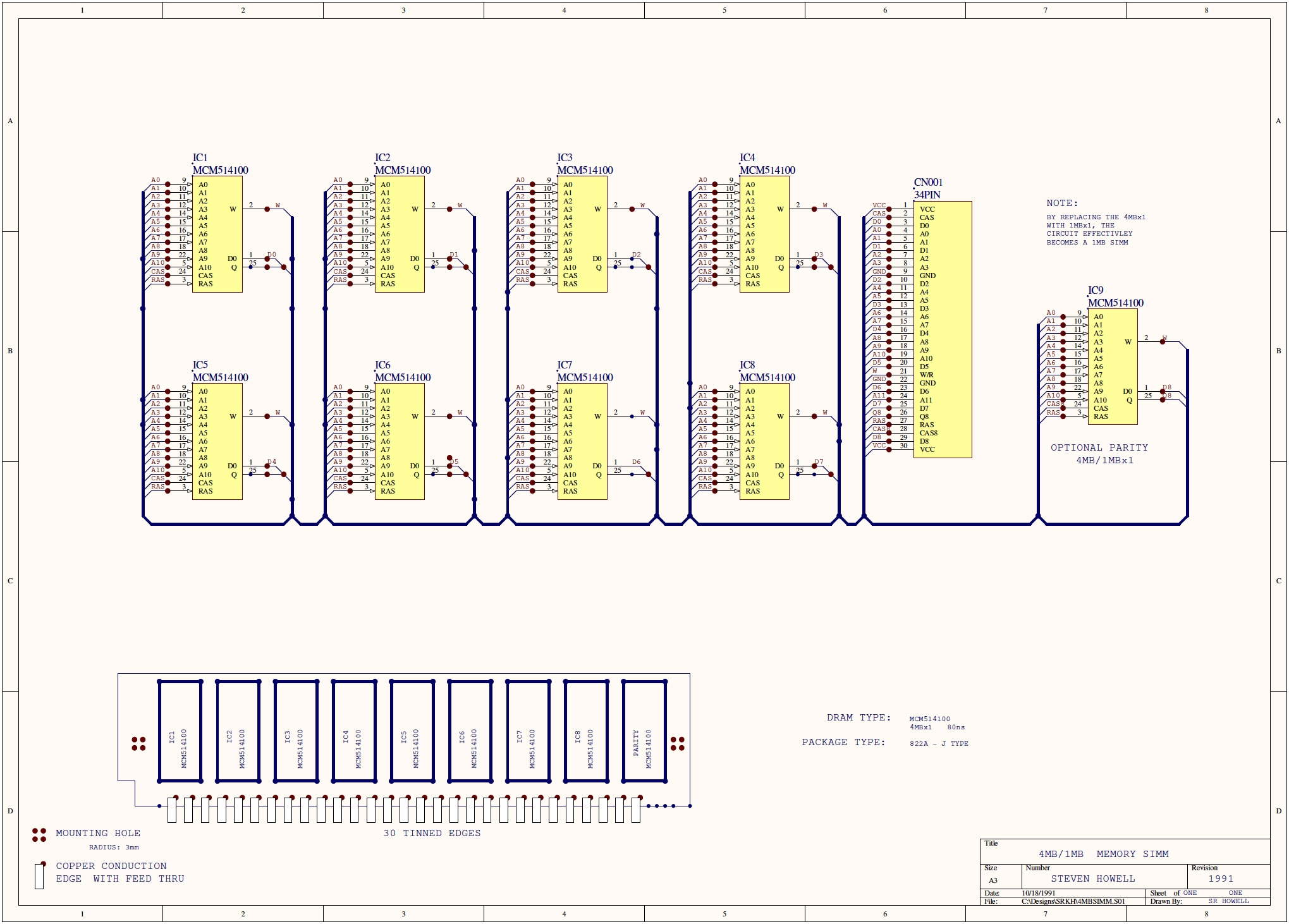

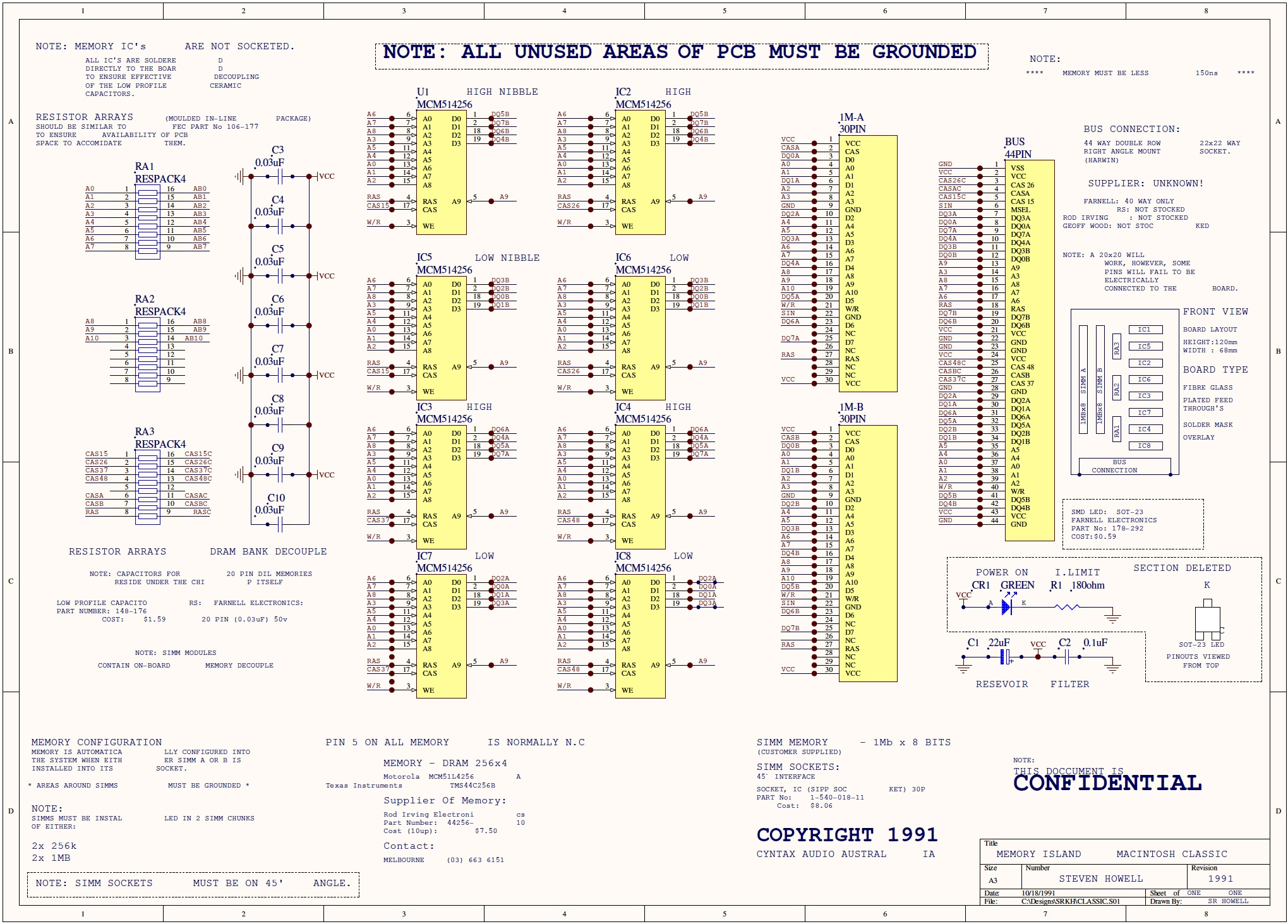

Macintosh Classic Memory Expansion
Primary Device
TMS44C256DJx8+SIMM30x2
Technology
8 track/8 space/30 via
PCB Build Specification
2 Layer, 1.6mm, MASK, HASL, FR4
Design Compliance
94V0
Contract Manufacturer
Zelcon Technic (TAS)
CAD Application
Protel Schedit+Traxedit (Macintosh)
Prototype Availability
No
