Date of Design
1991
Product

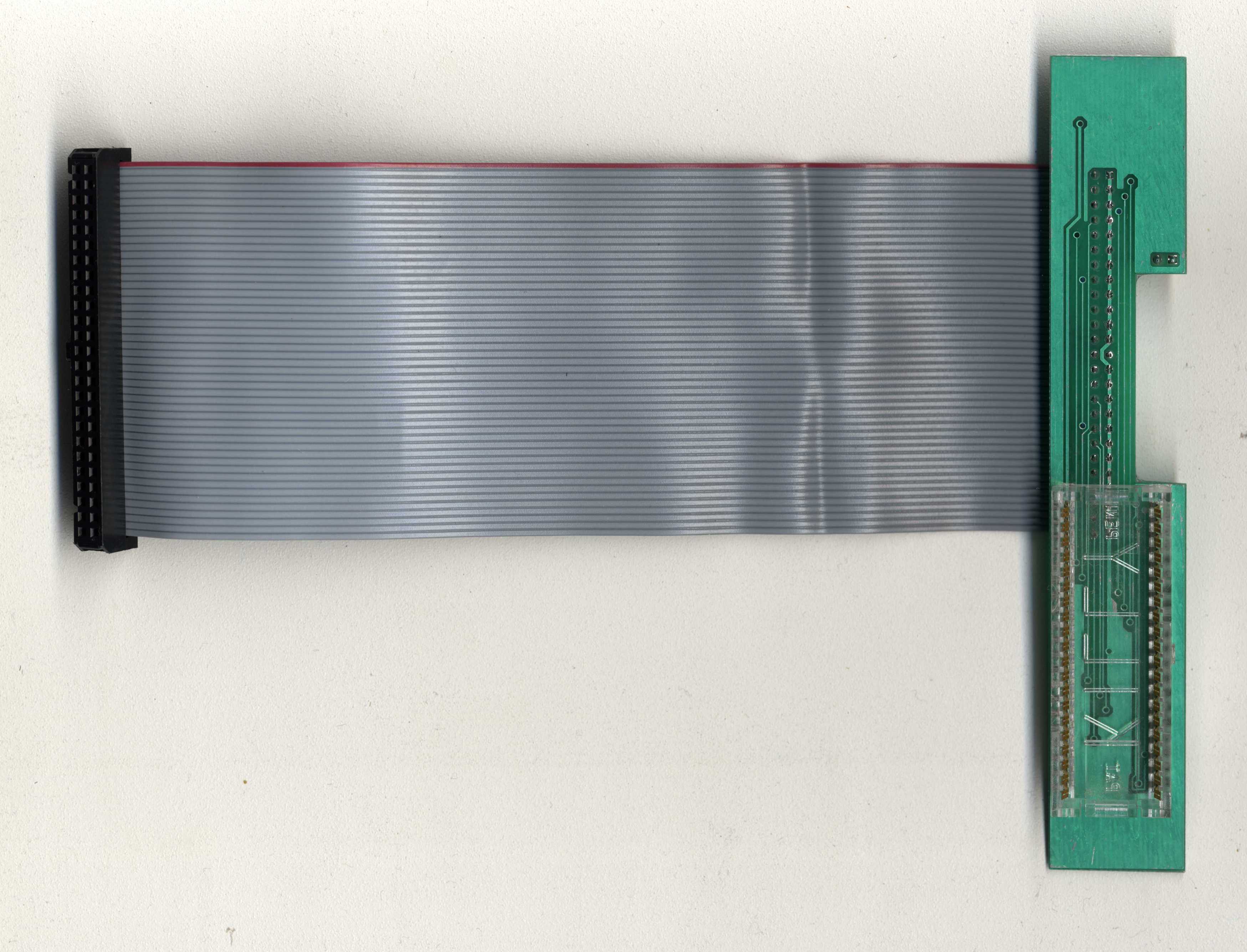

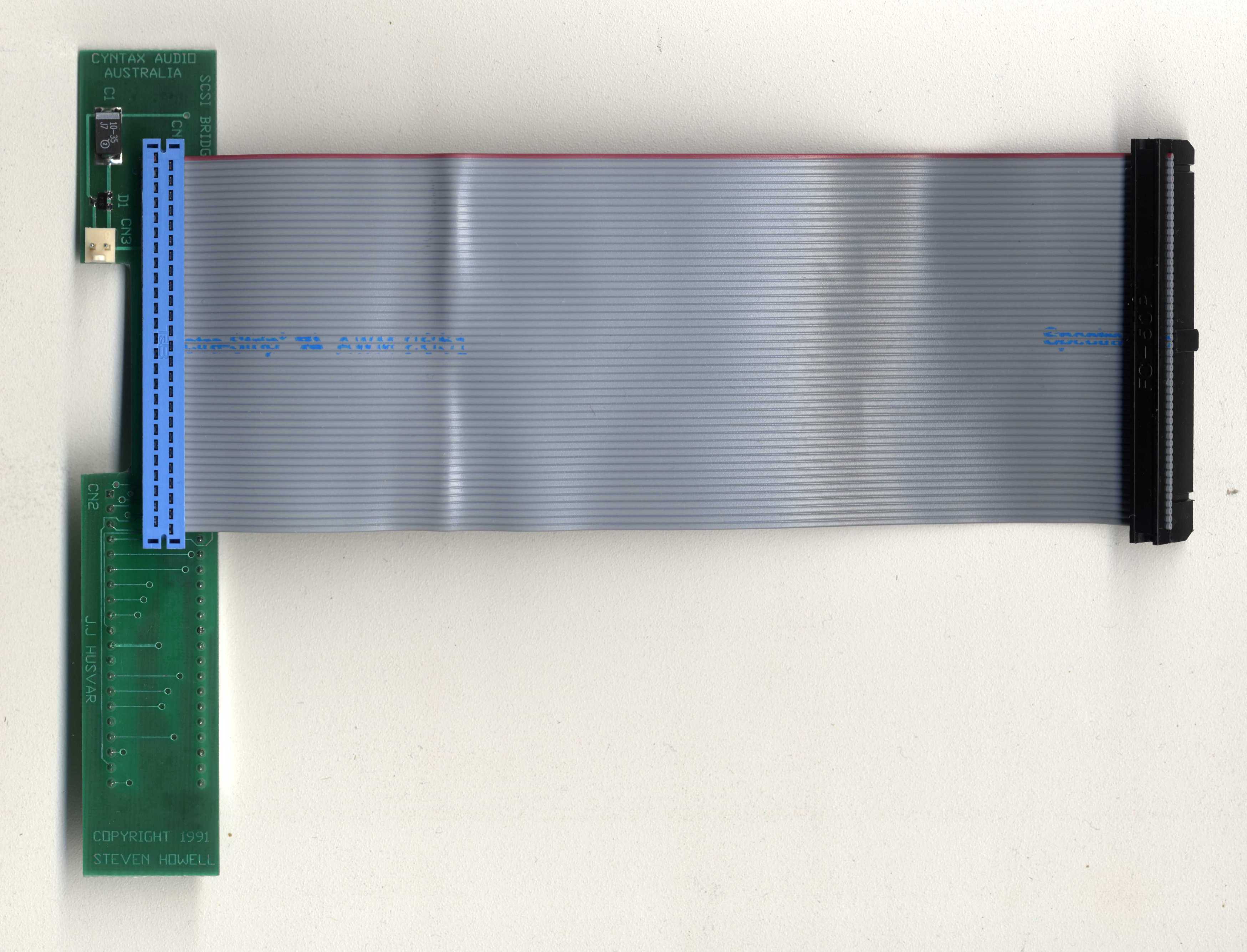

Mac Plus SCSI Hard Disk Card
Assembly ID
SCSIBRIDGE
Company
Function
Provide Internal SCSI HD Interface
Primary Device
KILLY - KZC040 - 12
Technology
8 track/8 space/50 via
PCB Build Specification
2 Layer, 1.6mm, MASK, HASL, FR4
Design Compliance
None
Contract Manufacturer
Zelcon Technic (TAS)/HUSVAR (US)
CAD Application
Protel Schedit+Traxedit
Prototype Availability
Yes
