Date of Design
2006
Product
Nanoboard Series
Assembly ID
NBVME64
Company
Novasar
Function

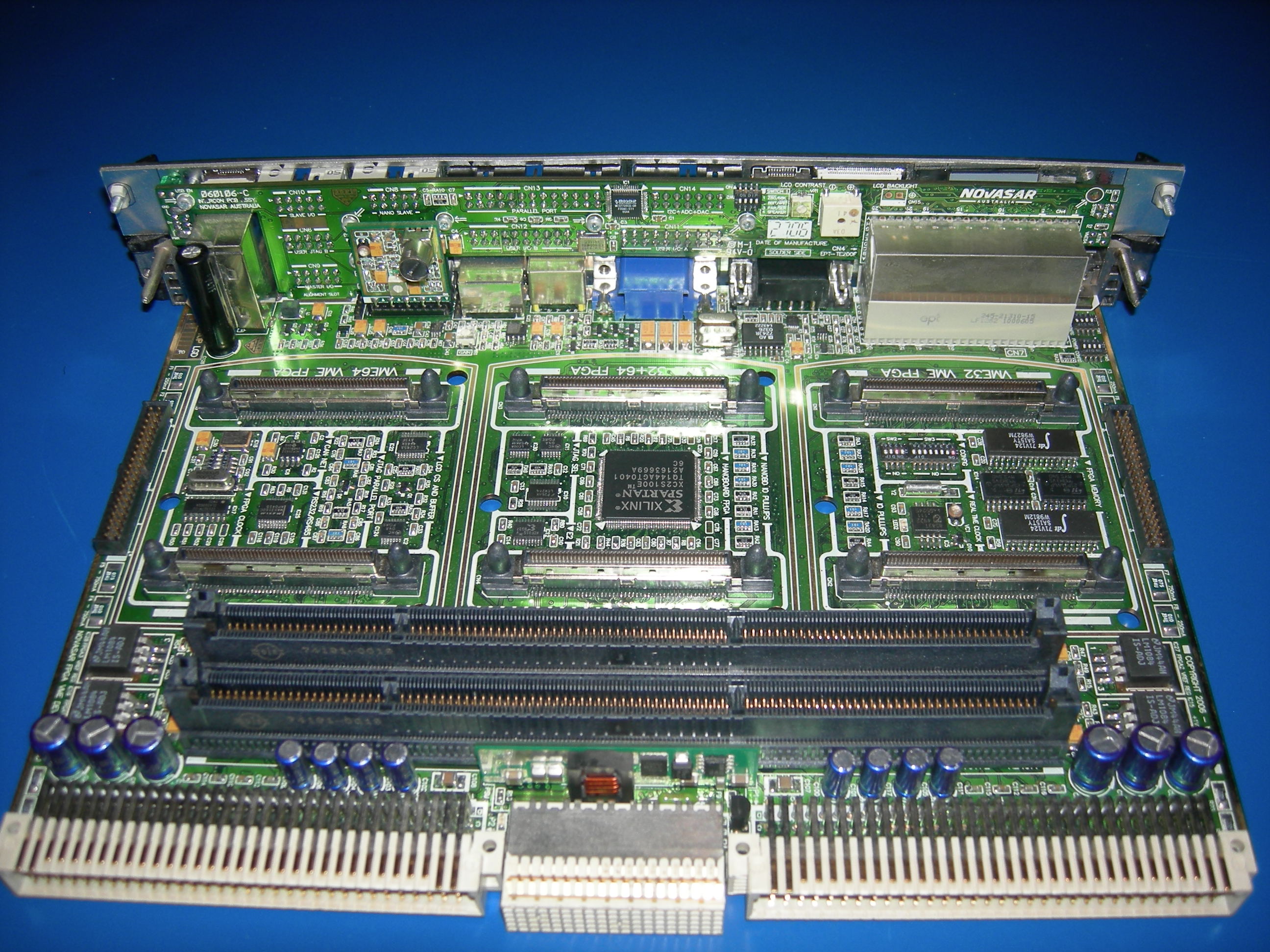

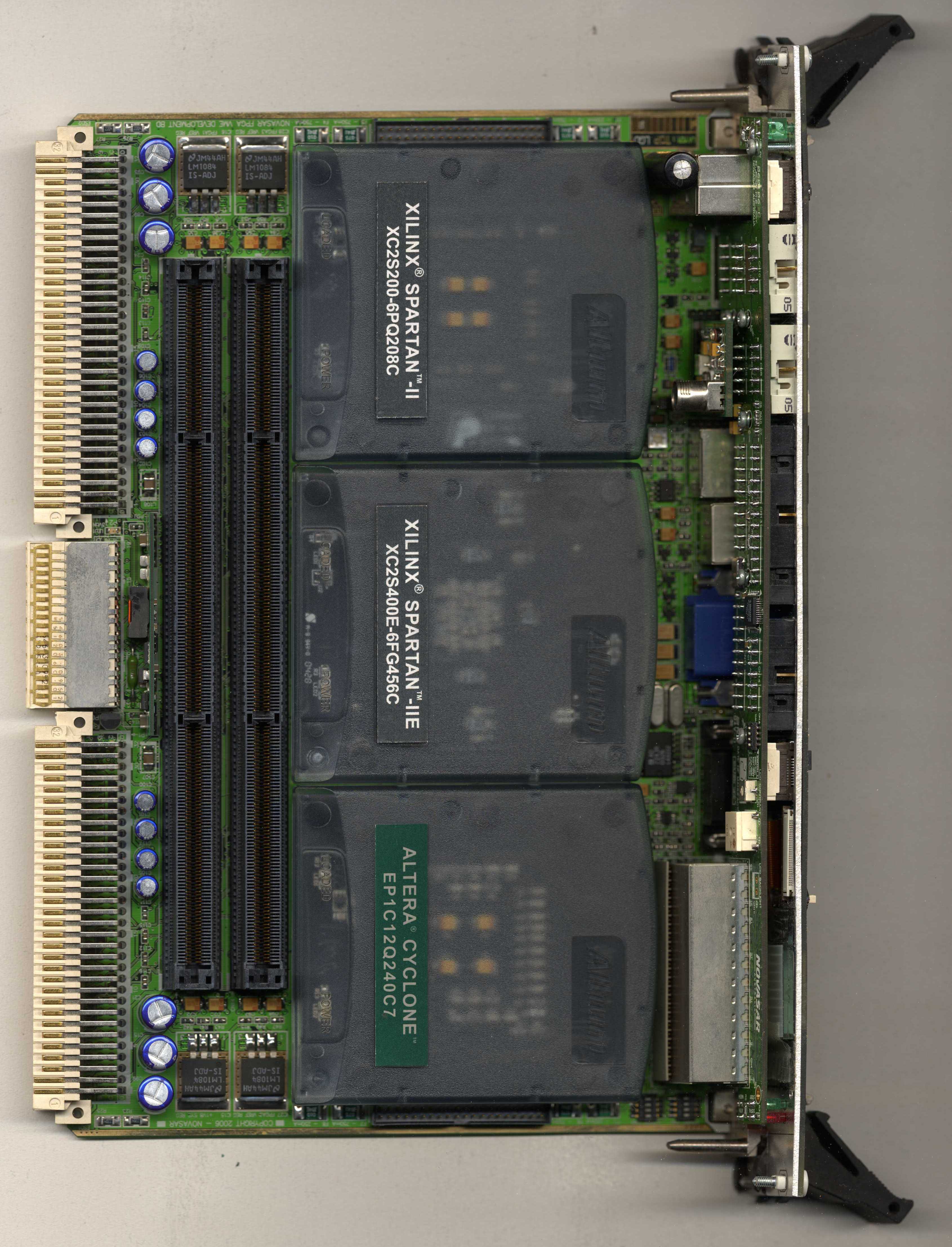

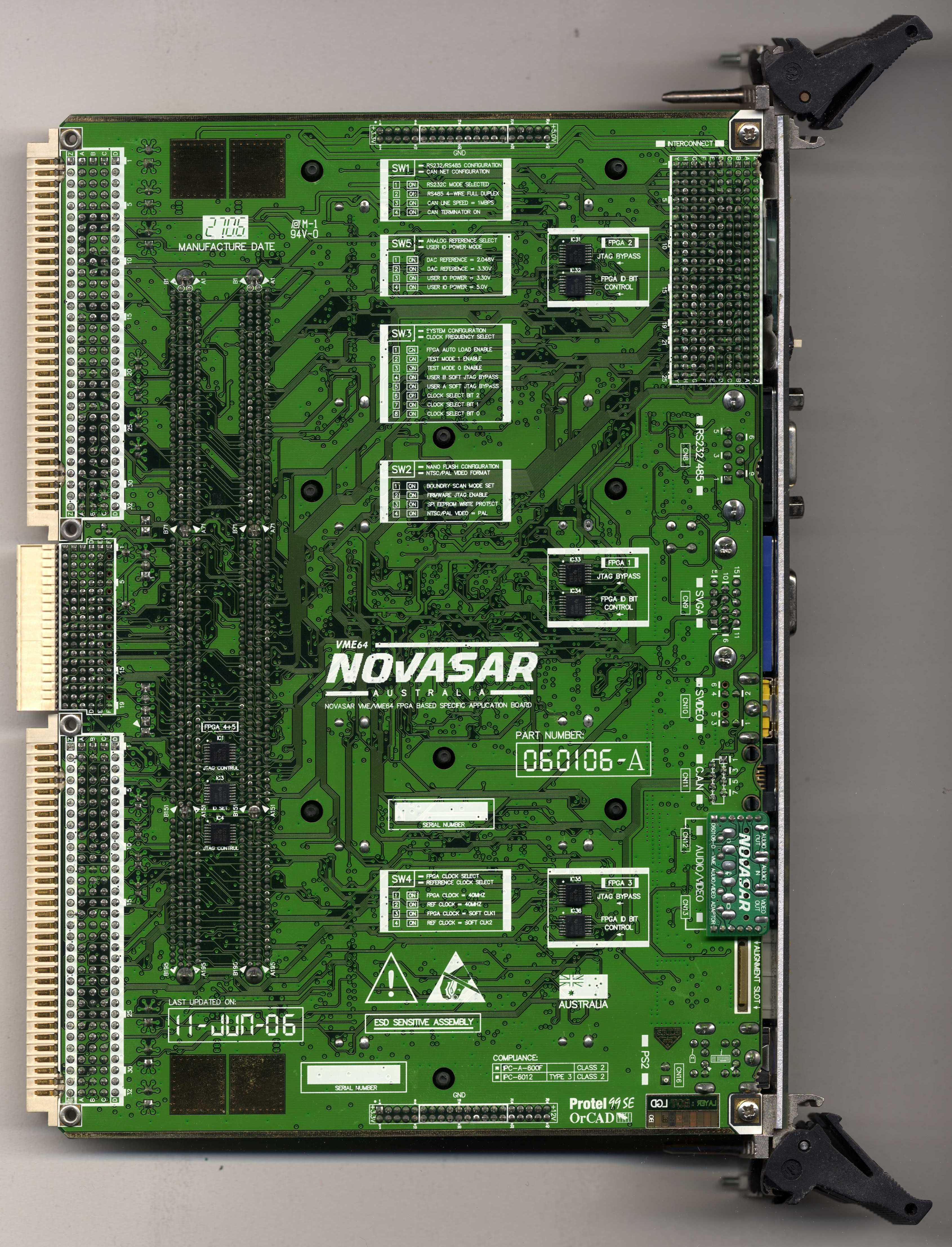

Nanoboard VME64 FPGA Board
Primary Device
Up to 3x Xilinx XC2V8000
Technology
8 track/8 space/28 via

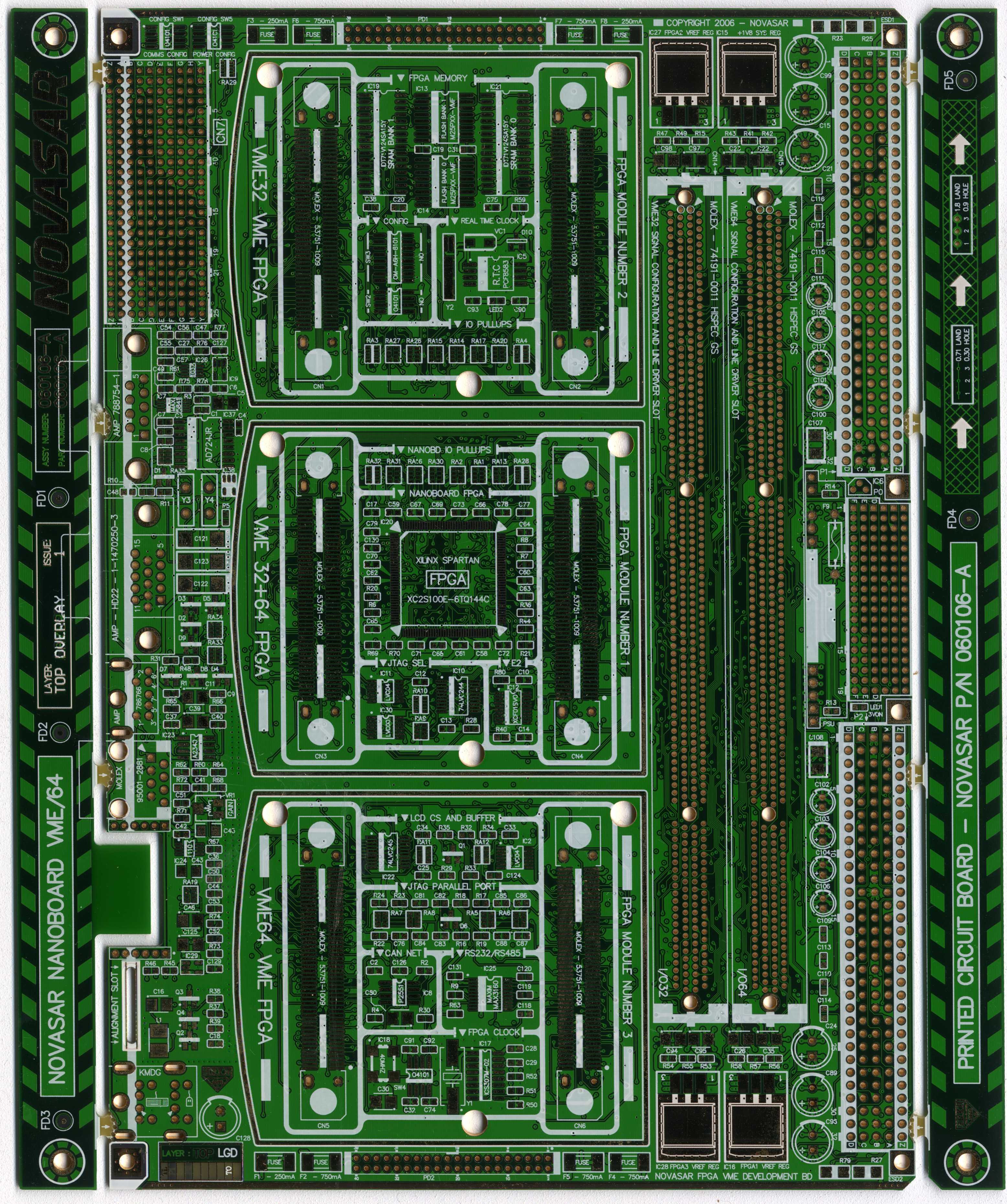

PCB Build Specification
8 Layer, 1/2oz, MASK, HG, FR4 (ISOLA)
Design Compliance
IPC-A-600/IPC-6012
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
