Date of Design
2006
Product

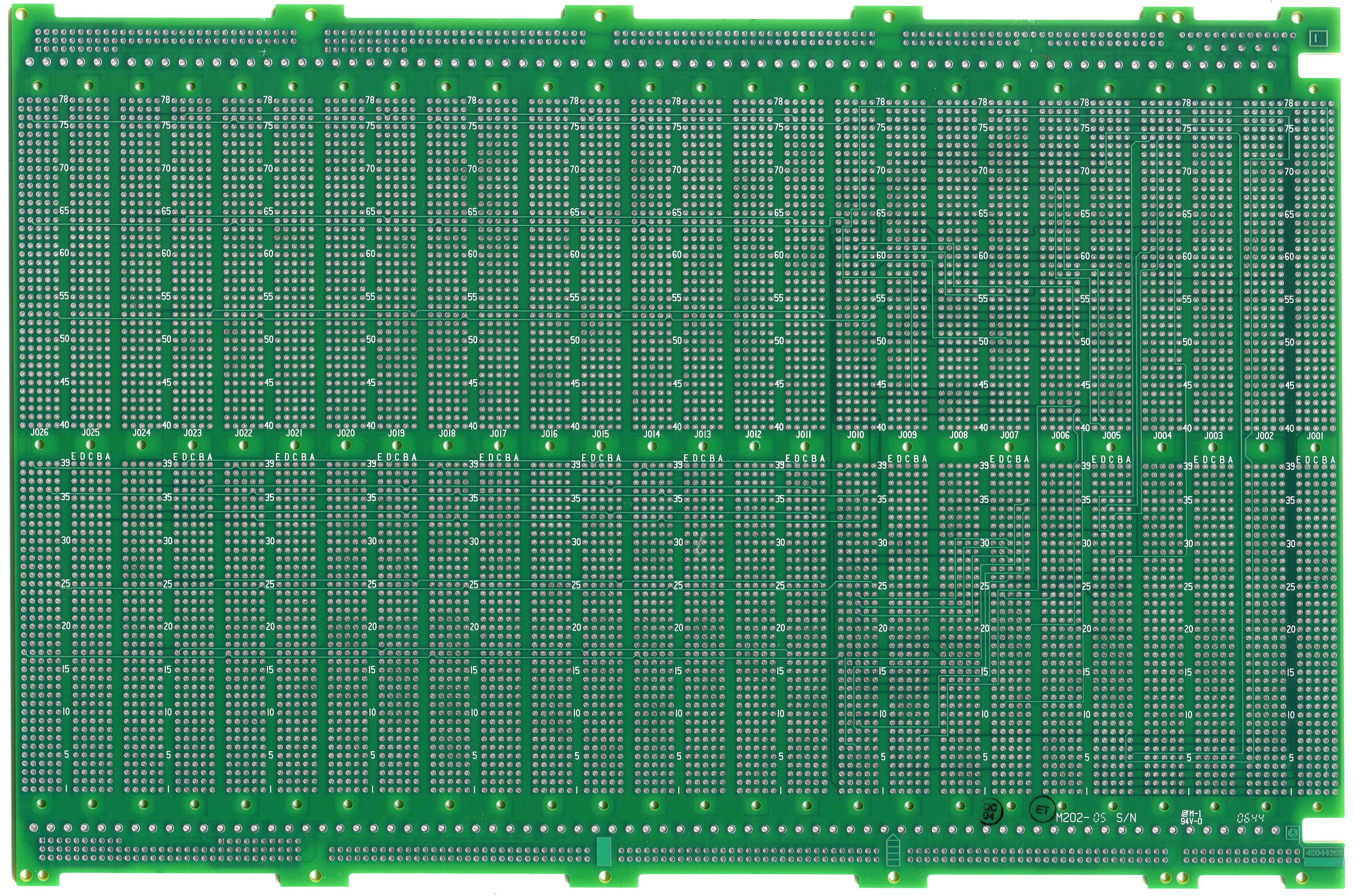

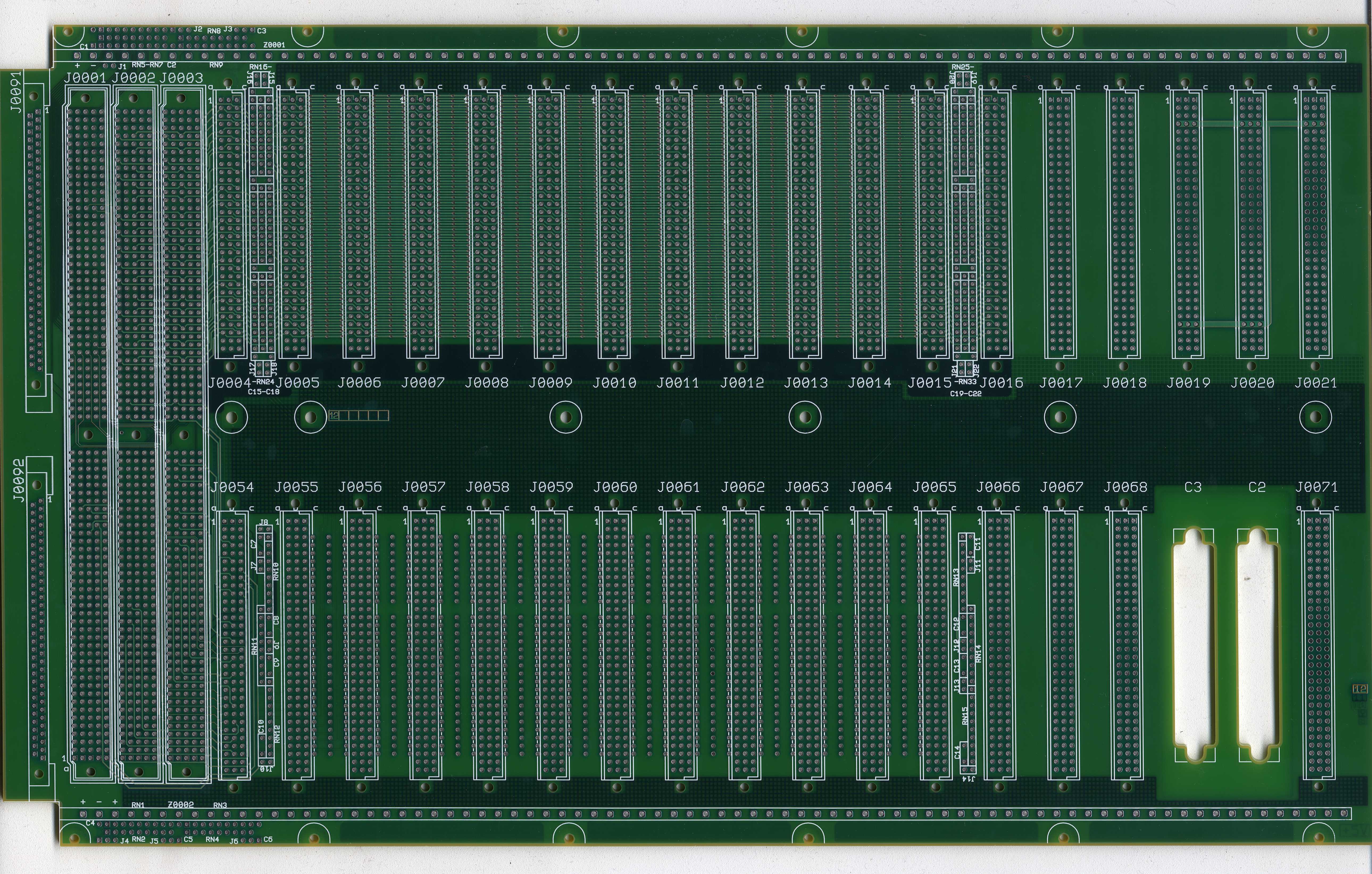

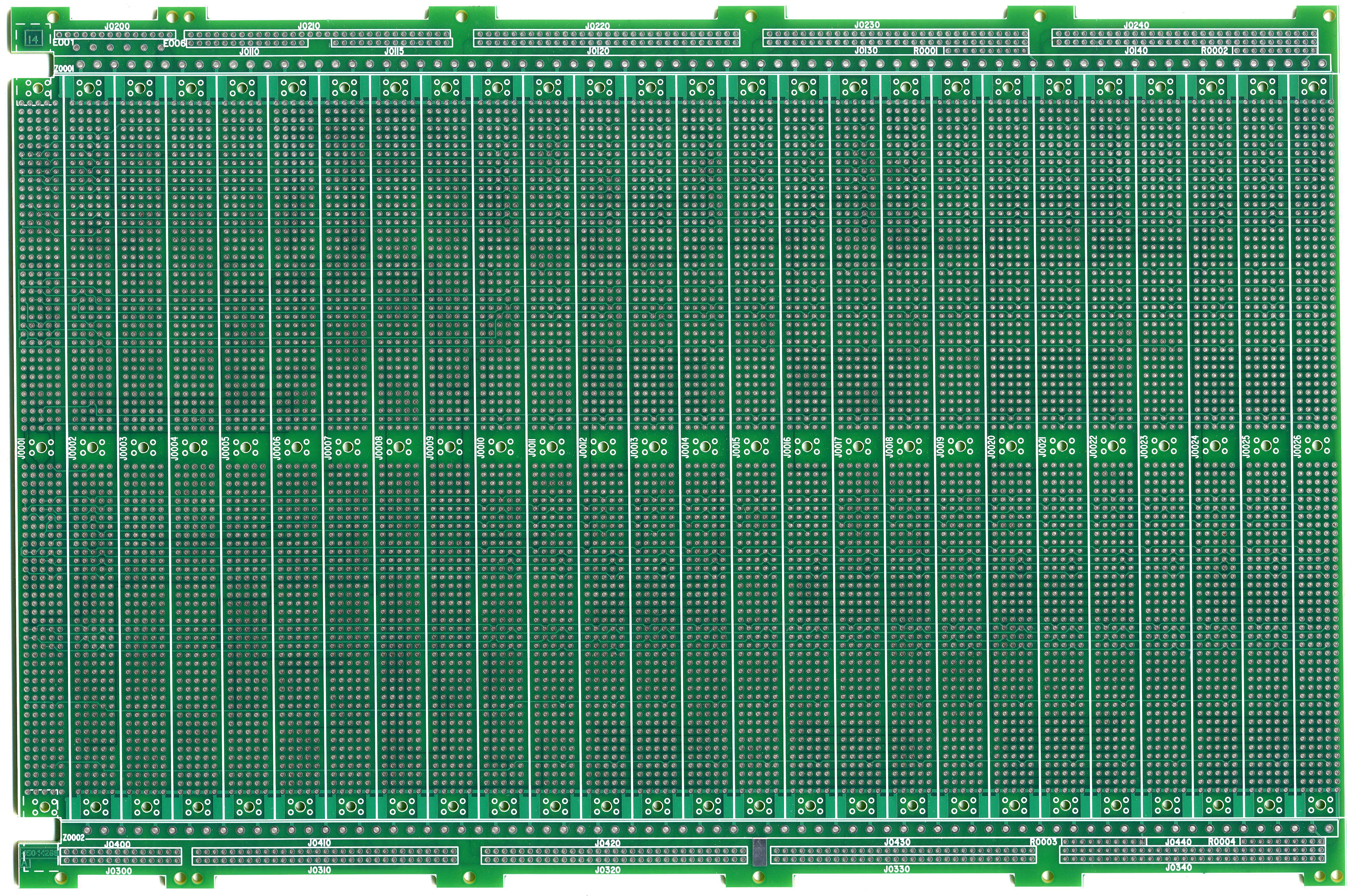

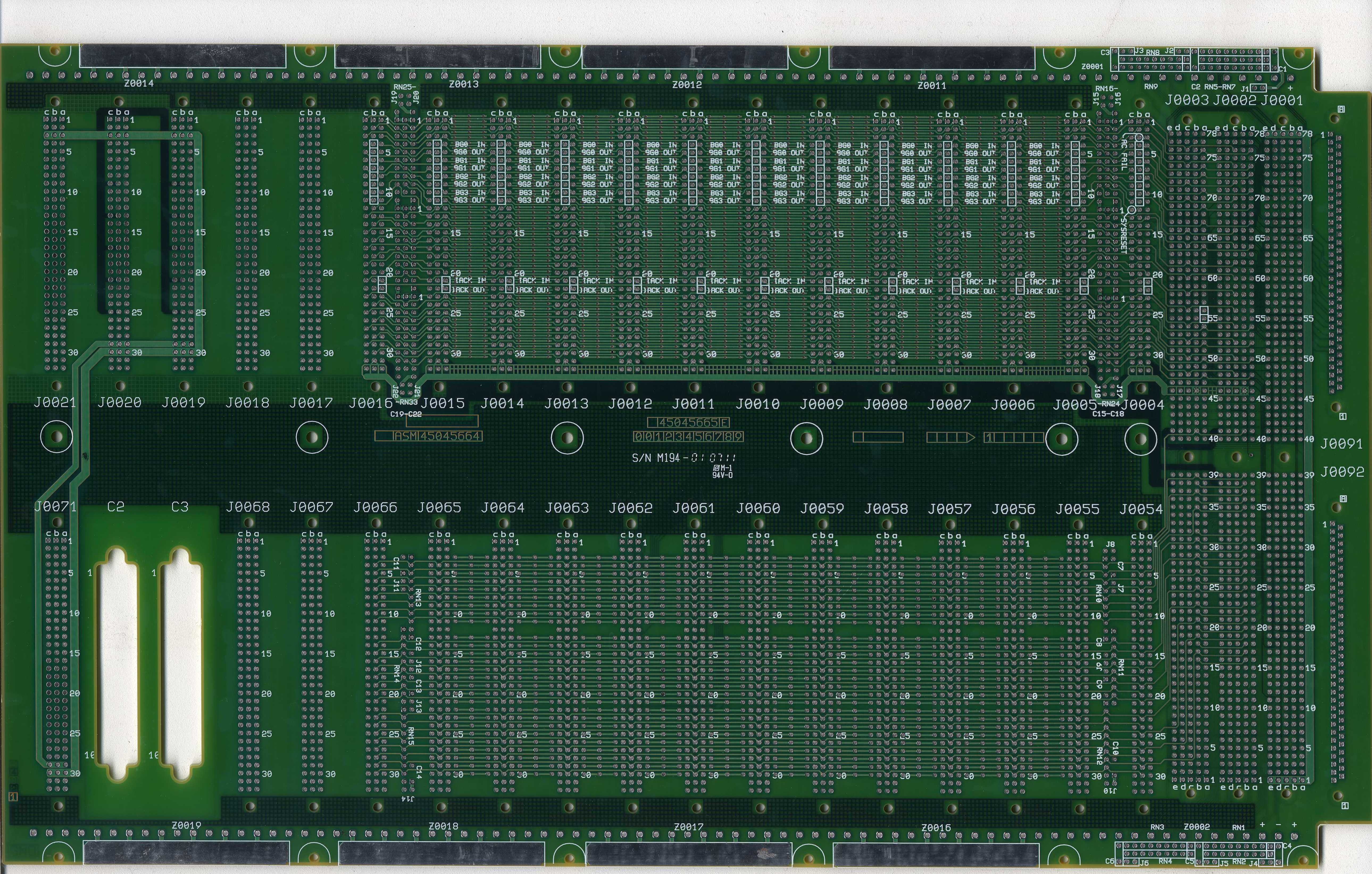

Scylla System Backplanes
Assembly ID
45044268 - INDUS
45045660 - SP2MB1
45045662 - SP2MB2
45045664 - SP2MB3
45045805 - SCMB
Company
Function
Submarine Sonar System
Primary Device
None (Mechanical IO)
Technology
HARTEC/SOCAPLEX/ROGERS-MEKTRON
PCB Build Specification
14 Layer, 1/2oz, MASK, HASL, Polyimide
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE/PENTALOGIX
Prototypes Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
