Date of Design
2009
Product

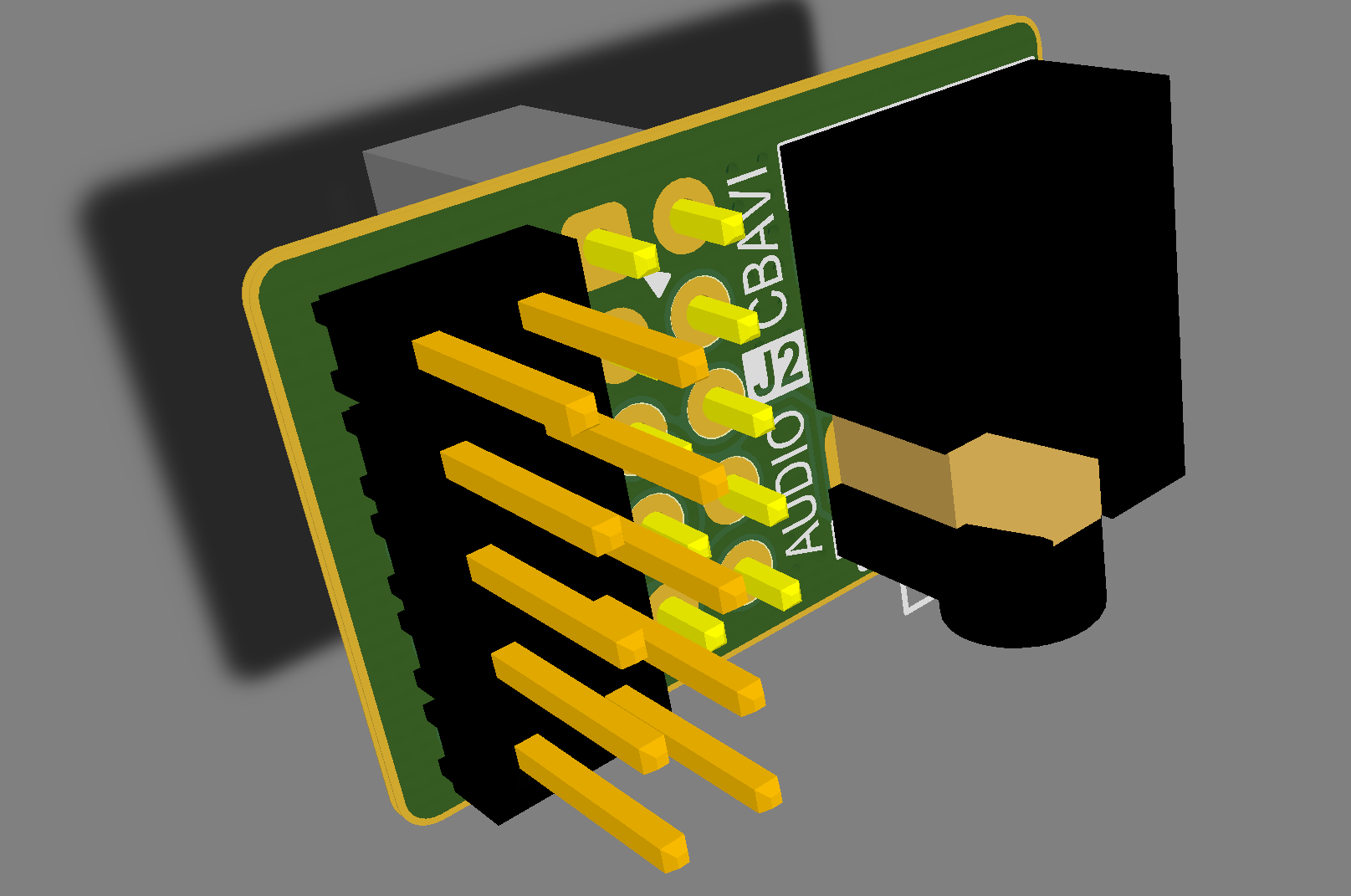

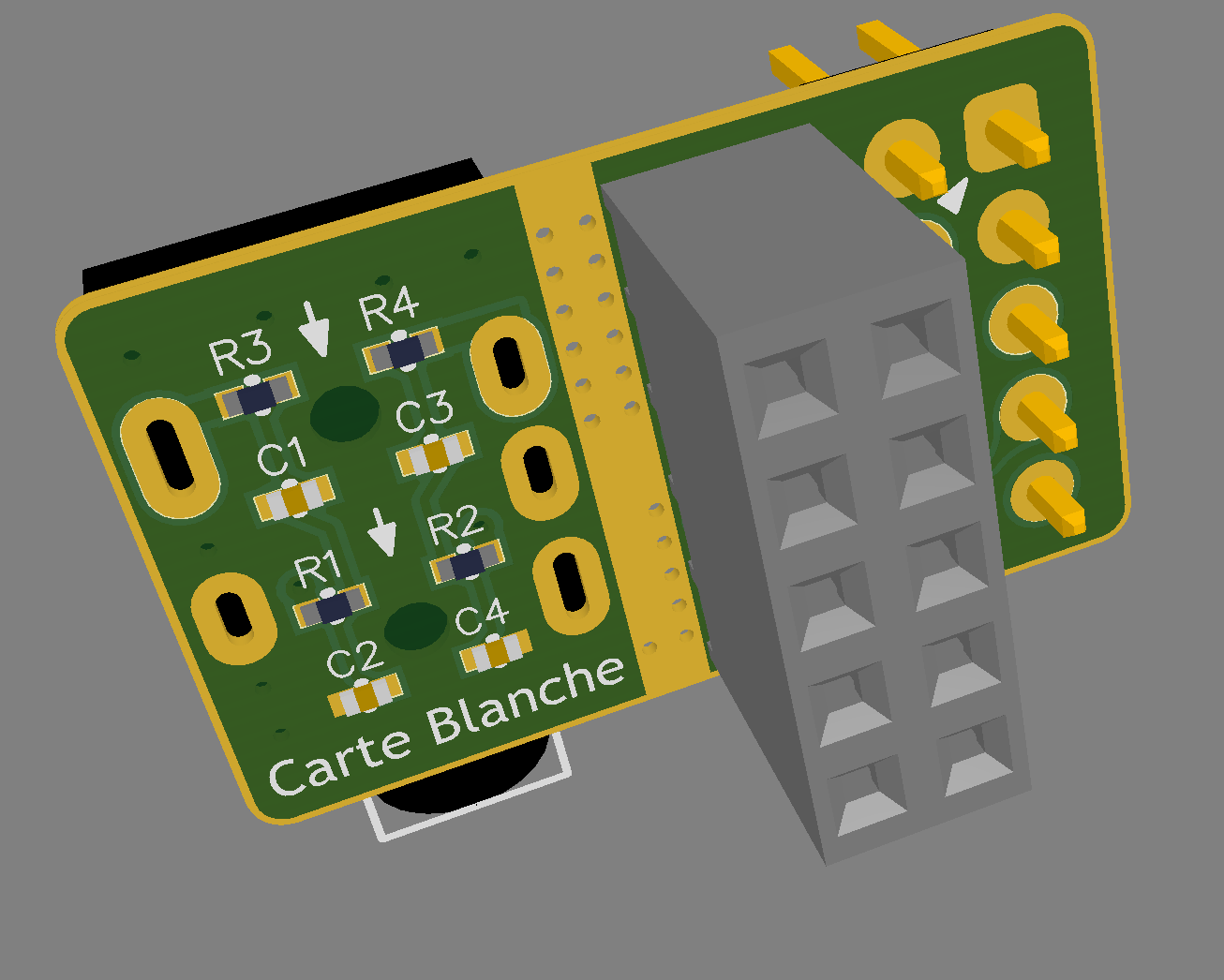

Delta Sigma Audio Adaptor
Assembly ID
CBAVI (Internal)
Company
Novasar
Function

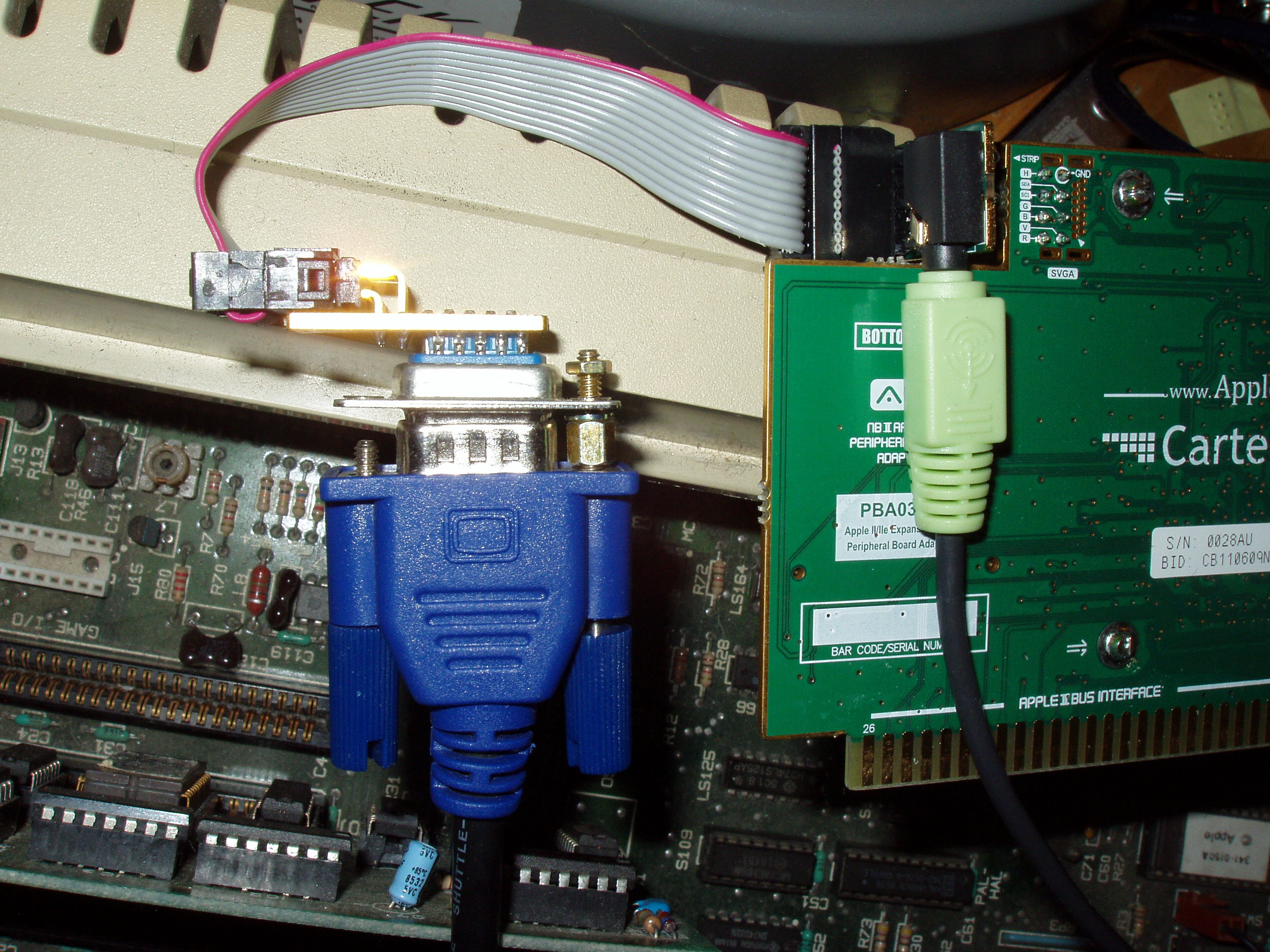

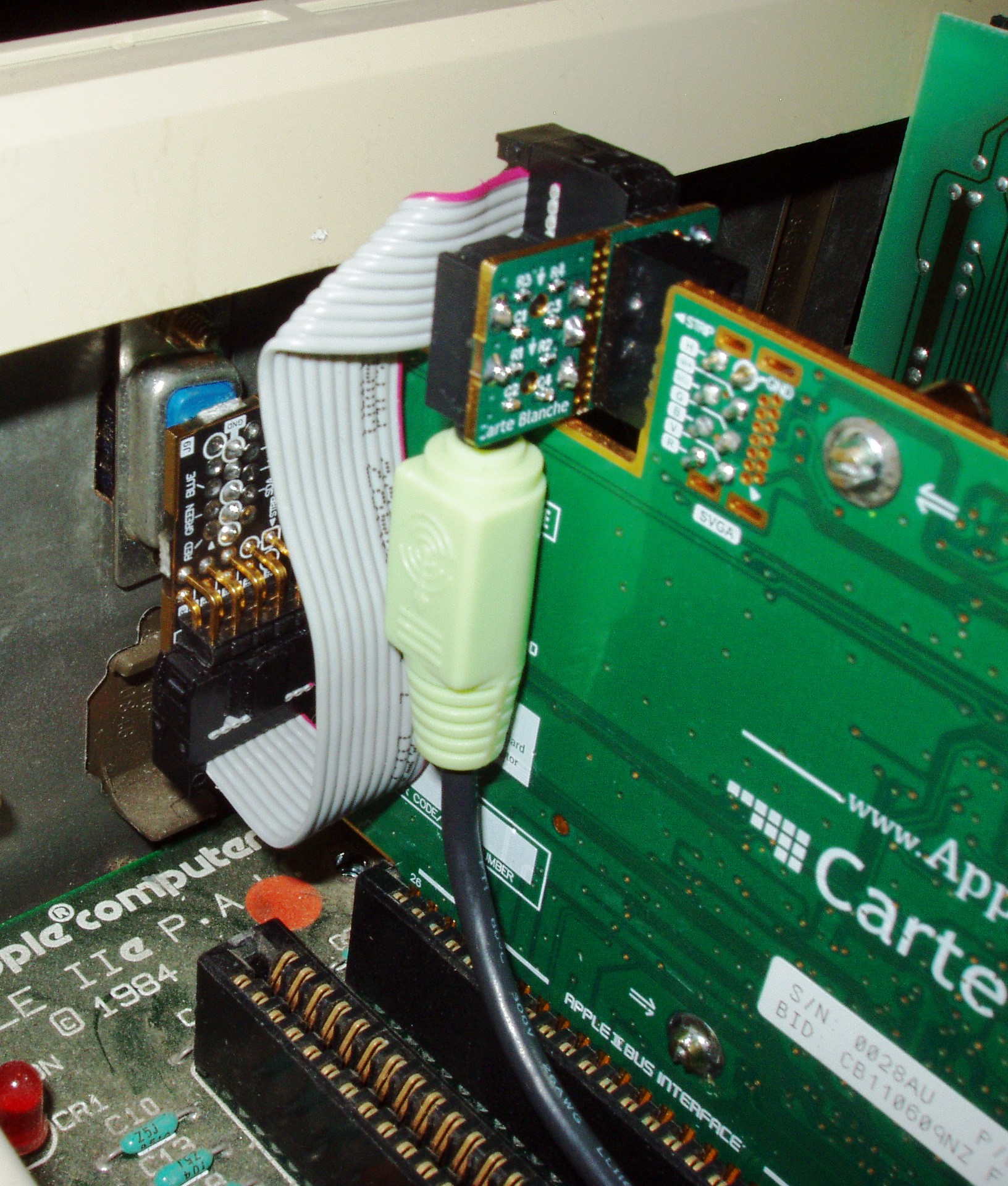

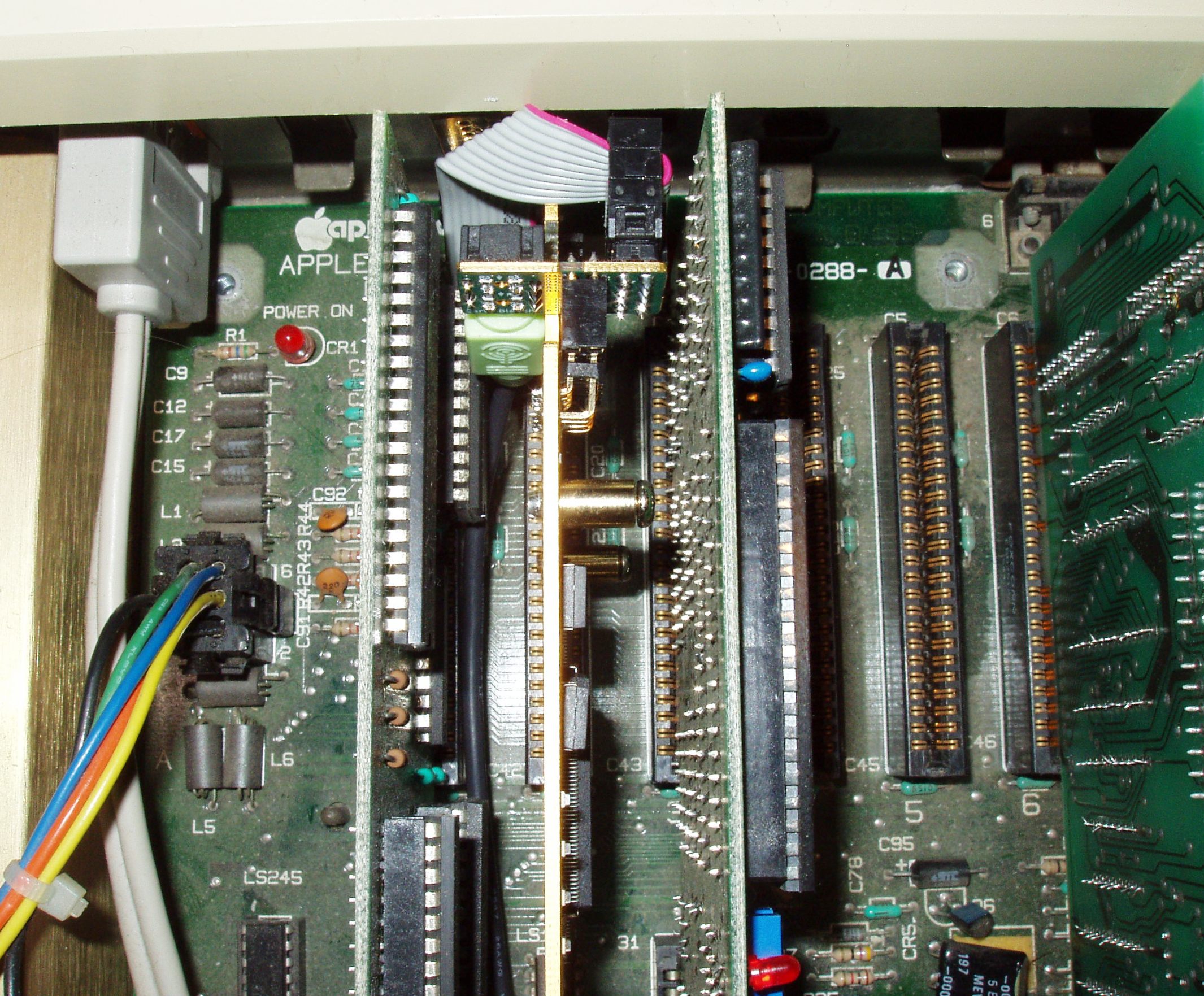

DS Audio + VGA Video for AII/III
Primary Device
None
Technology
5 track/5 space/24 via
PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR408
Design Compliance
94V0
Contract Manufacturer
PCB Cart (China)
CAD Application
Altium Designer W09
Prototype Availability
Yes
