Date of Design
2009
Product

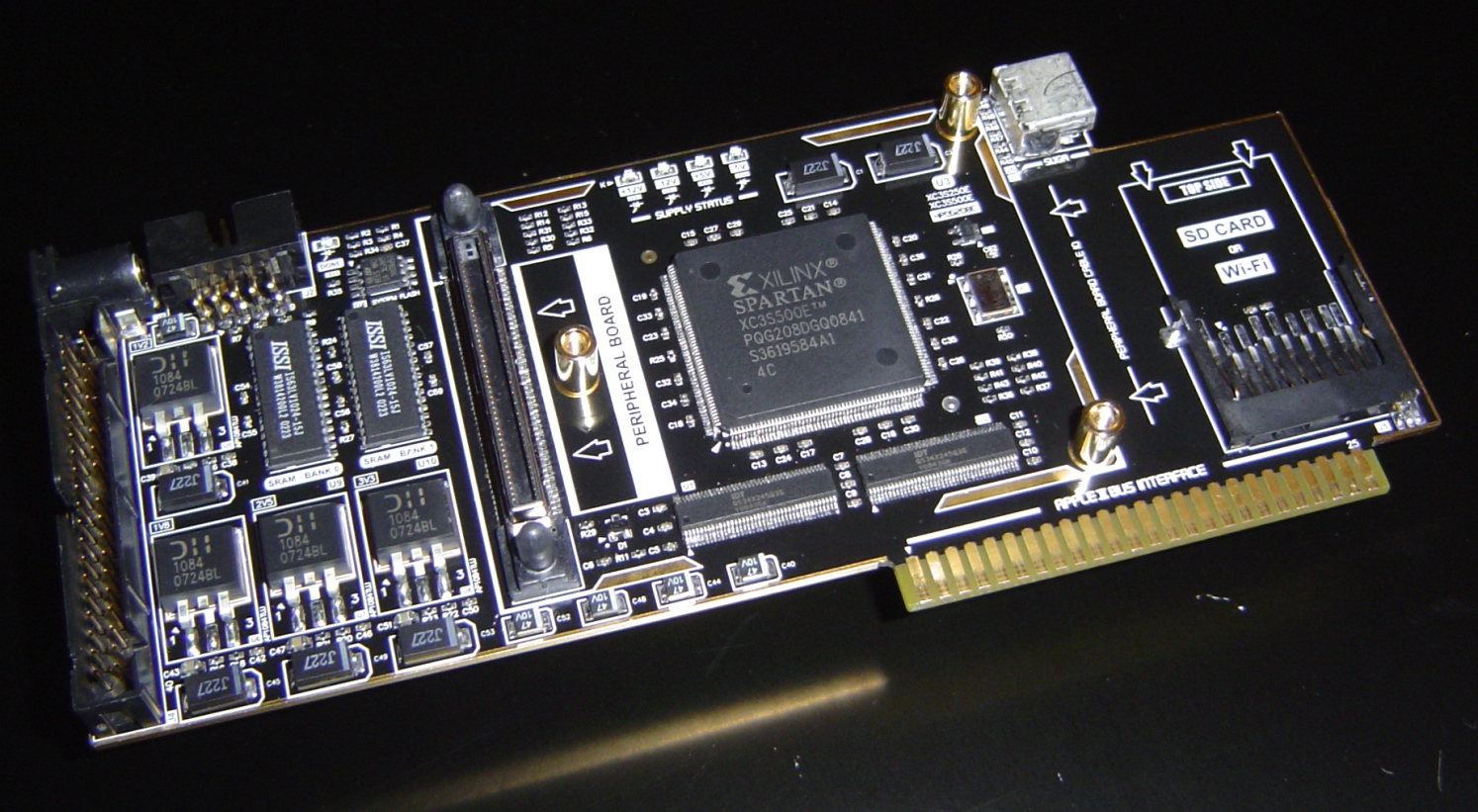

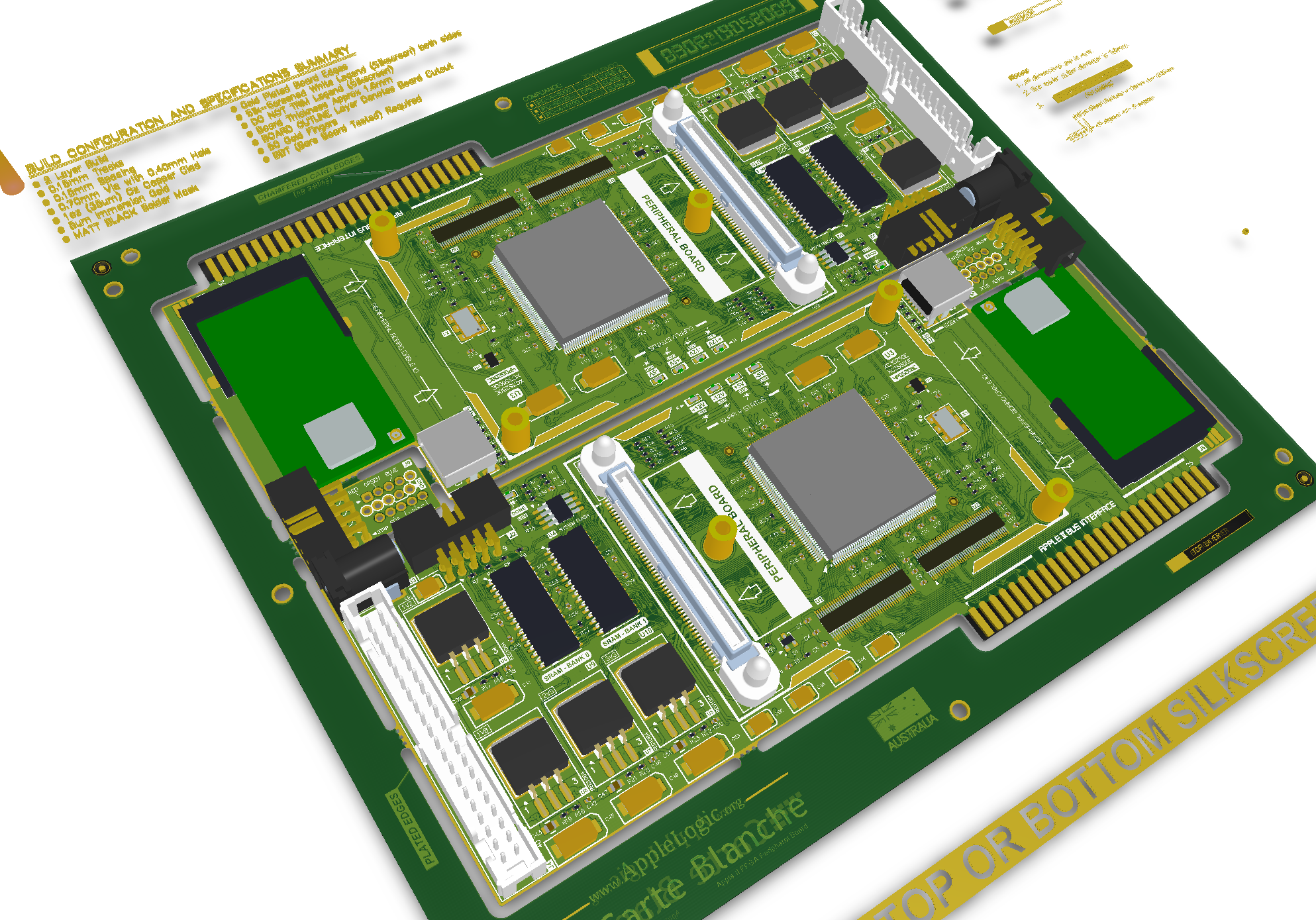

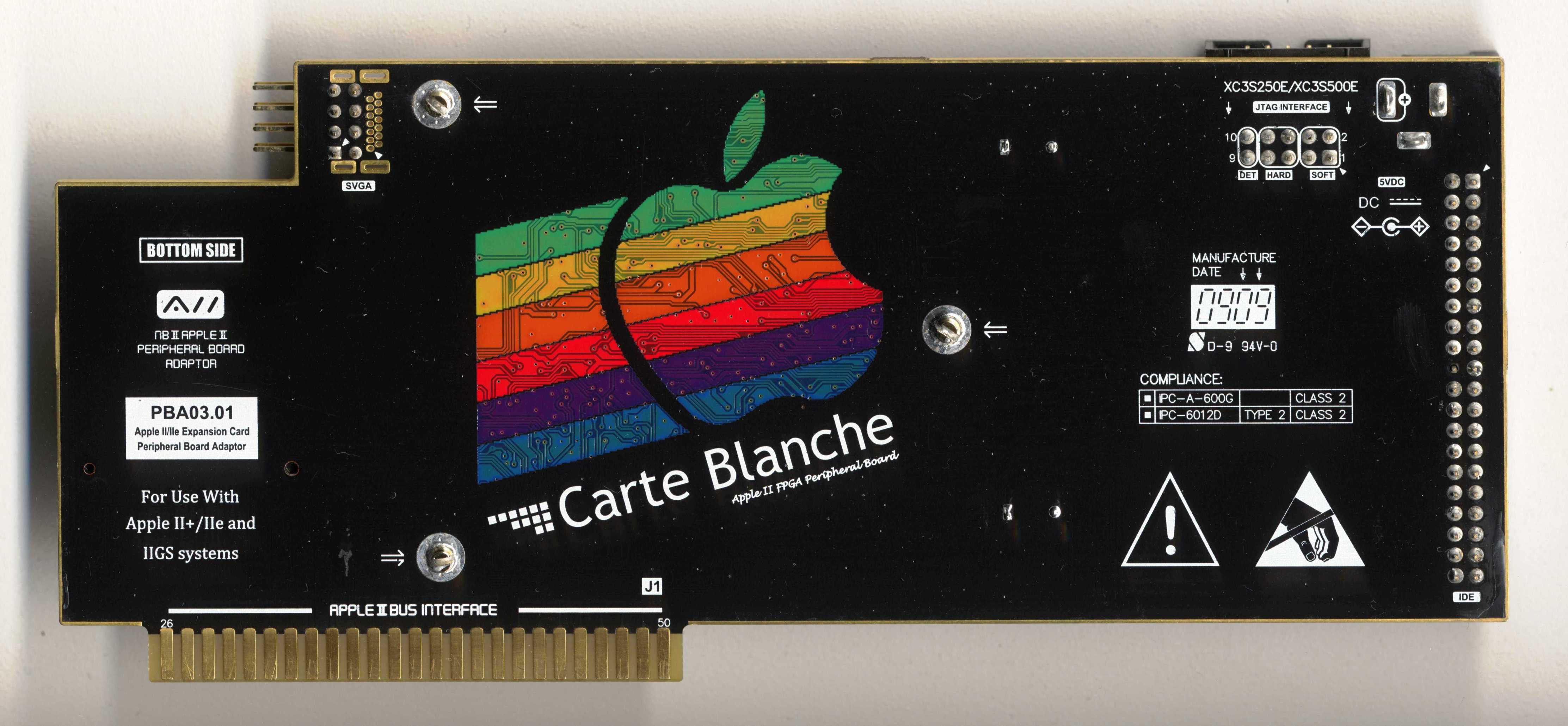

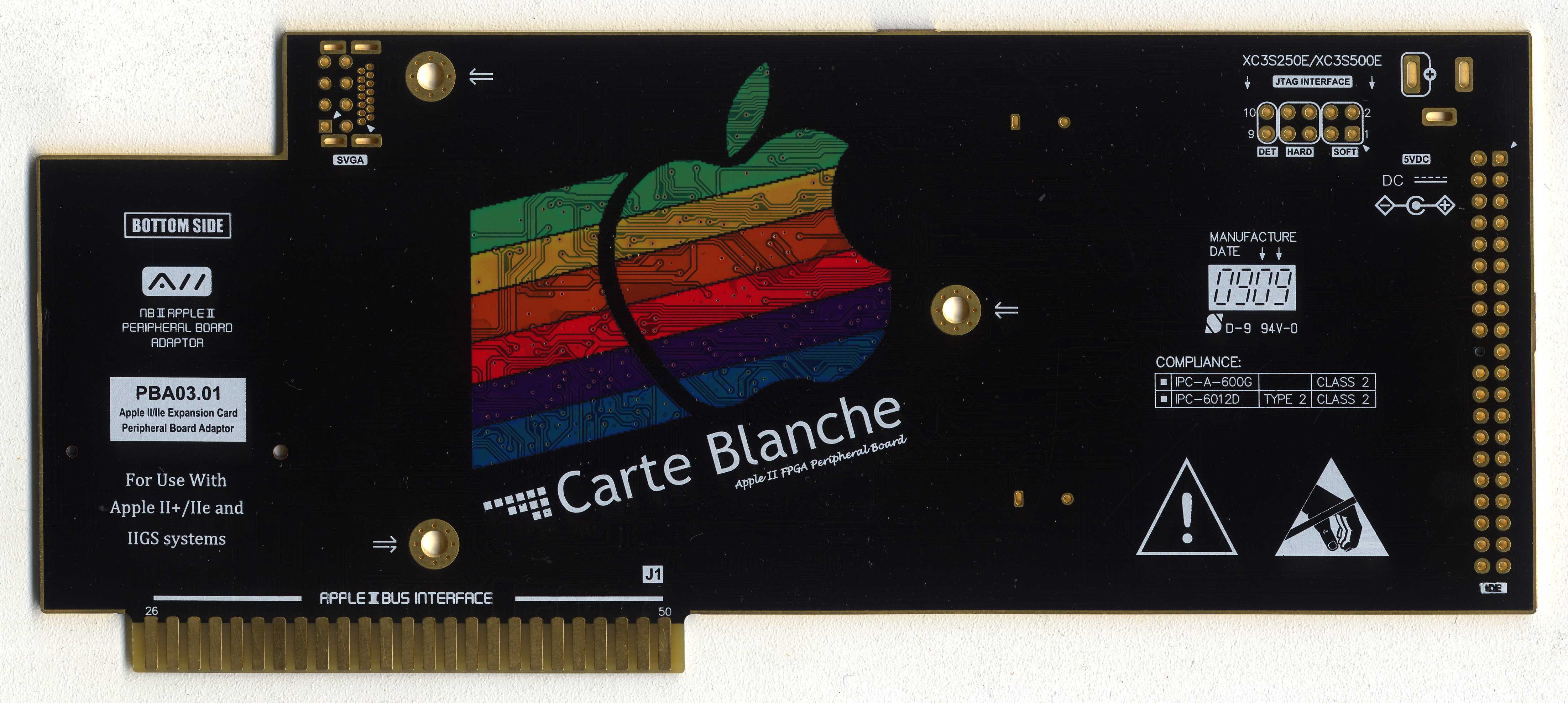

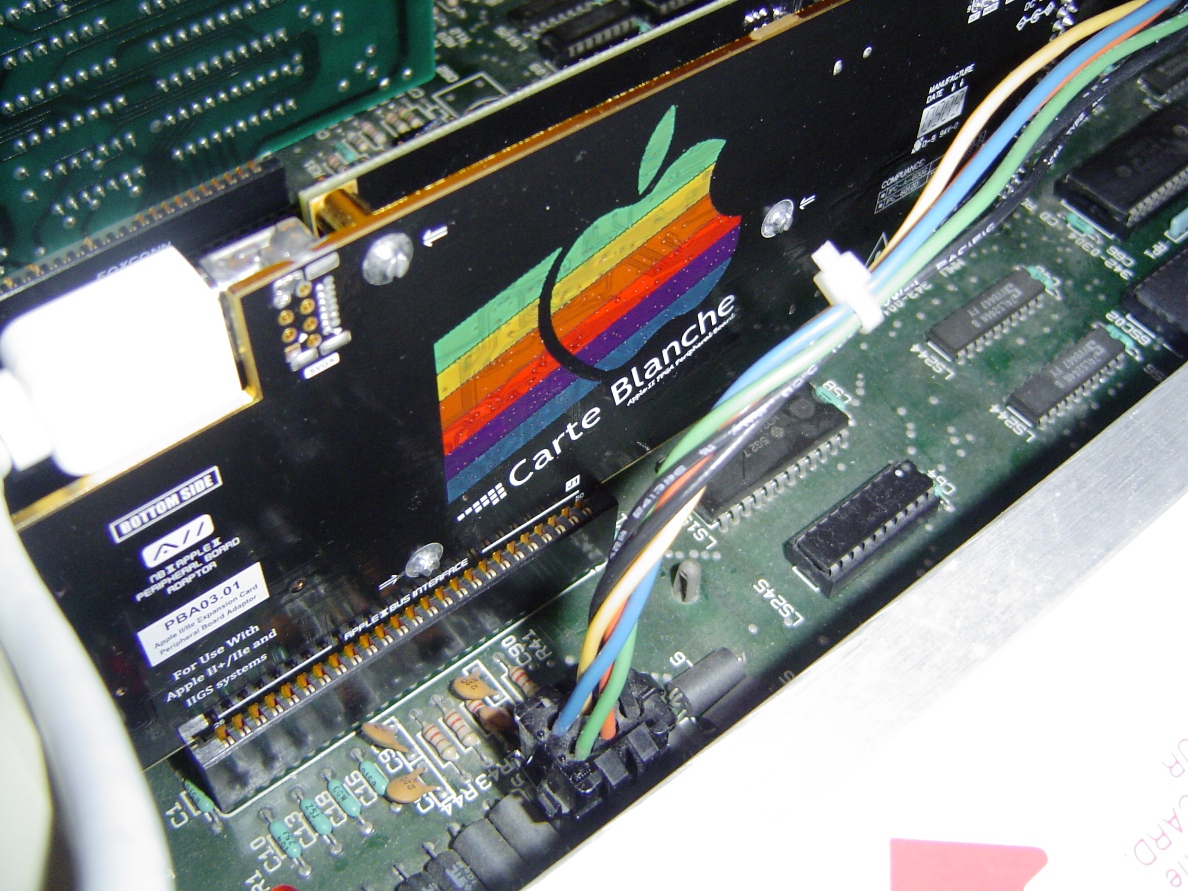

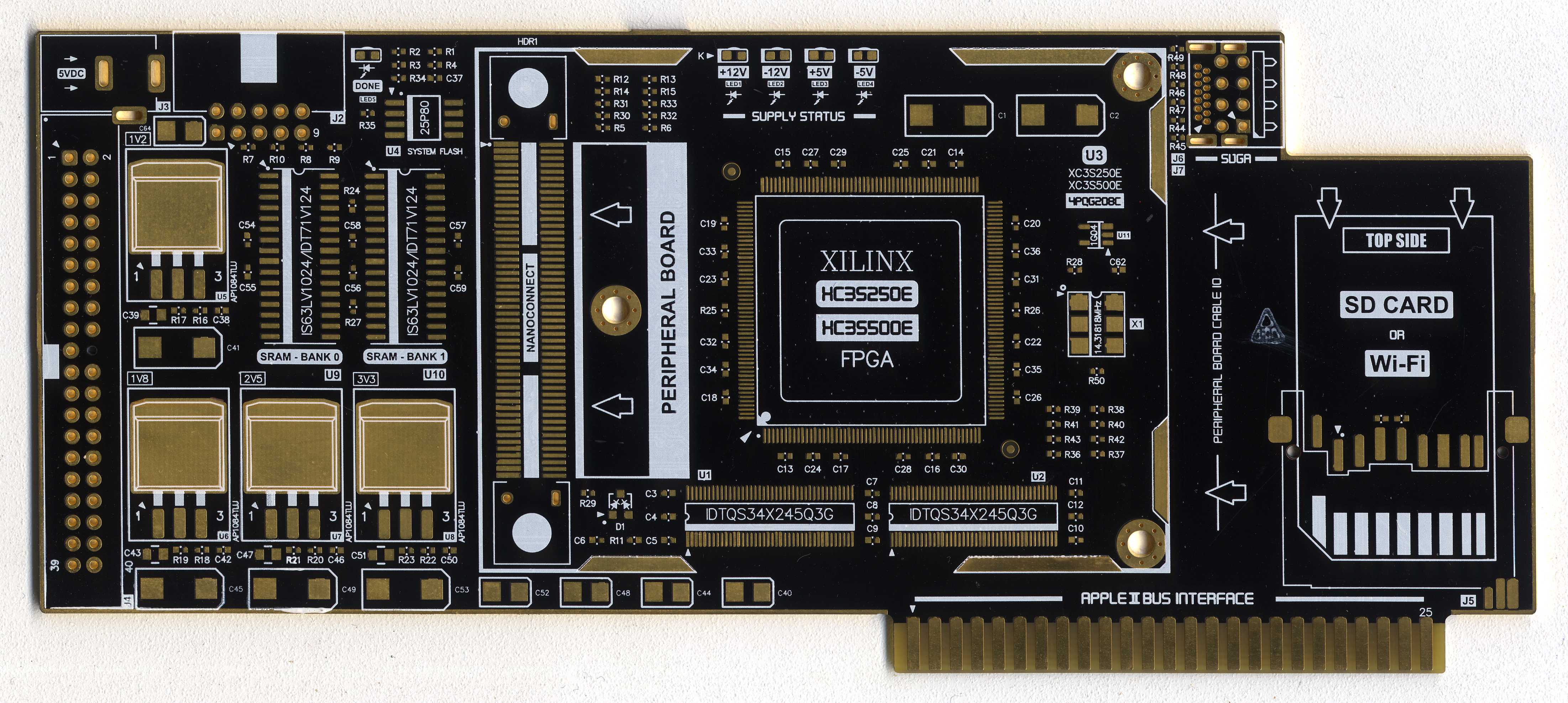

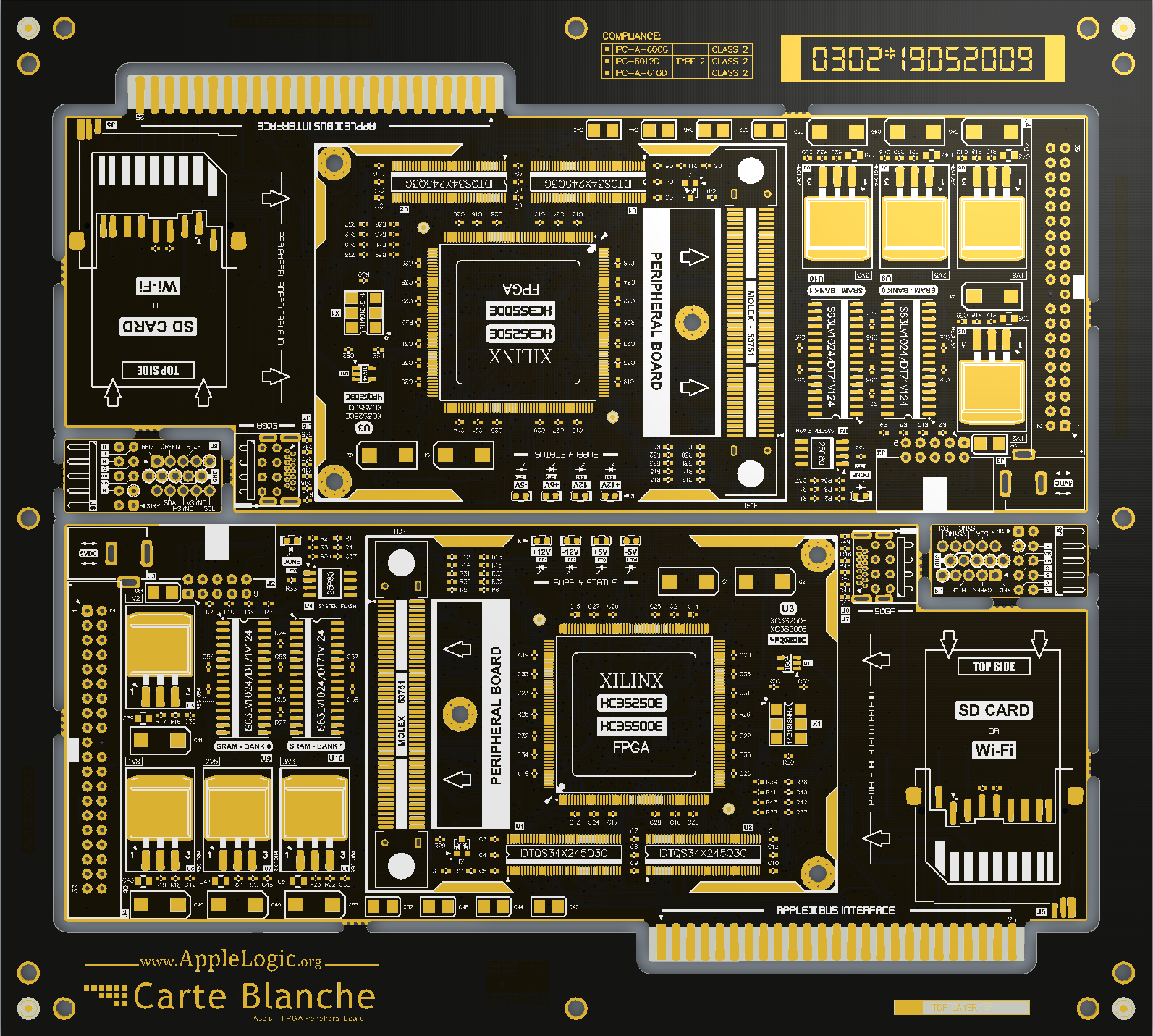

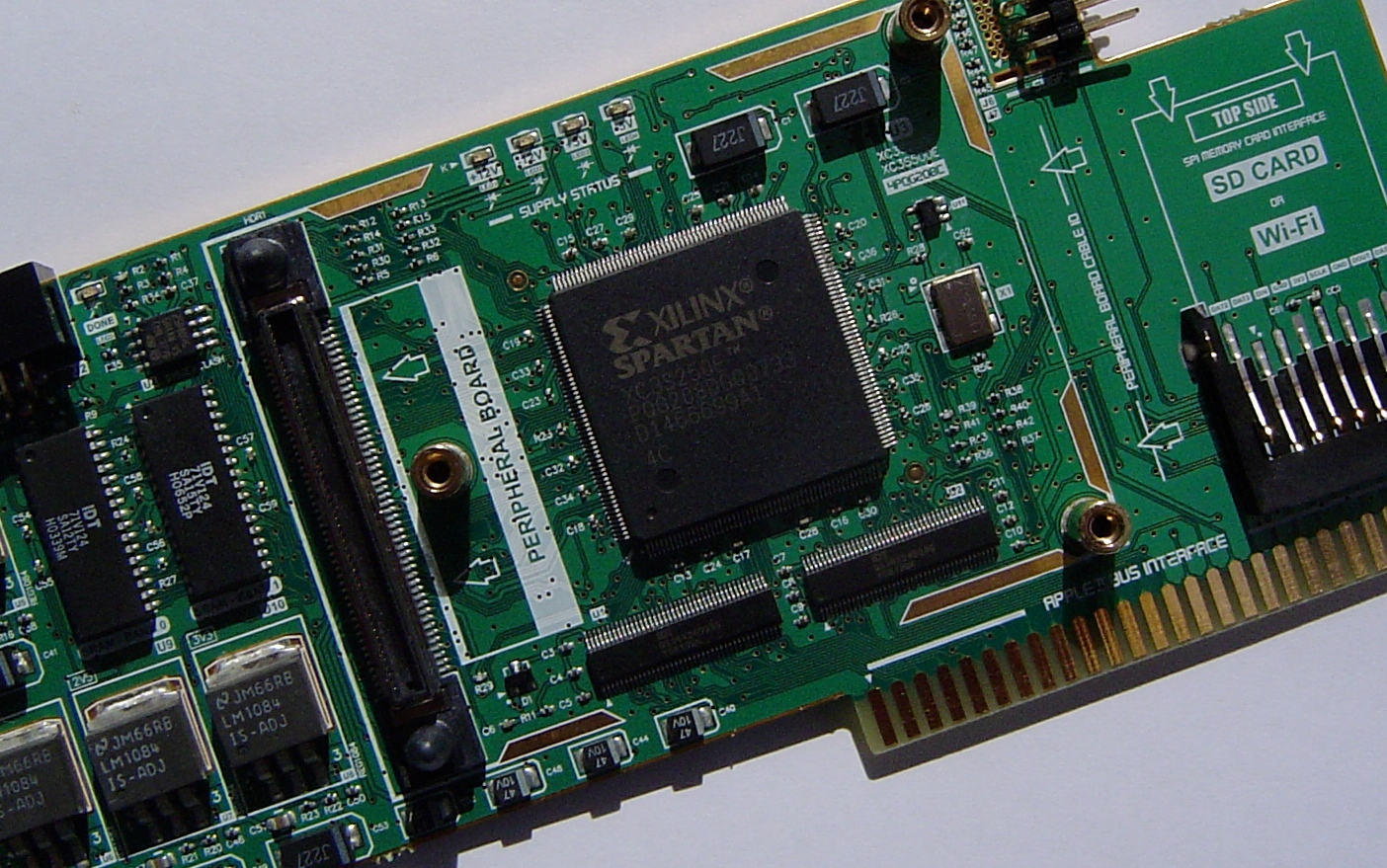

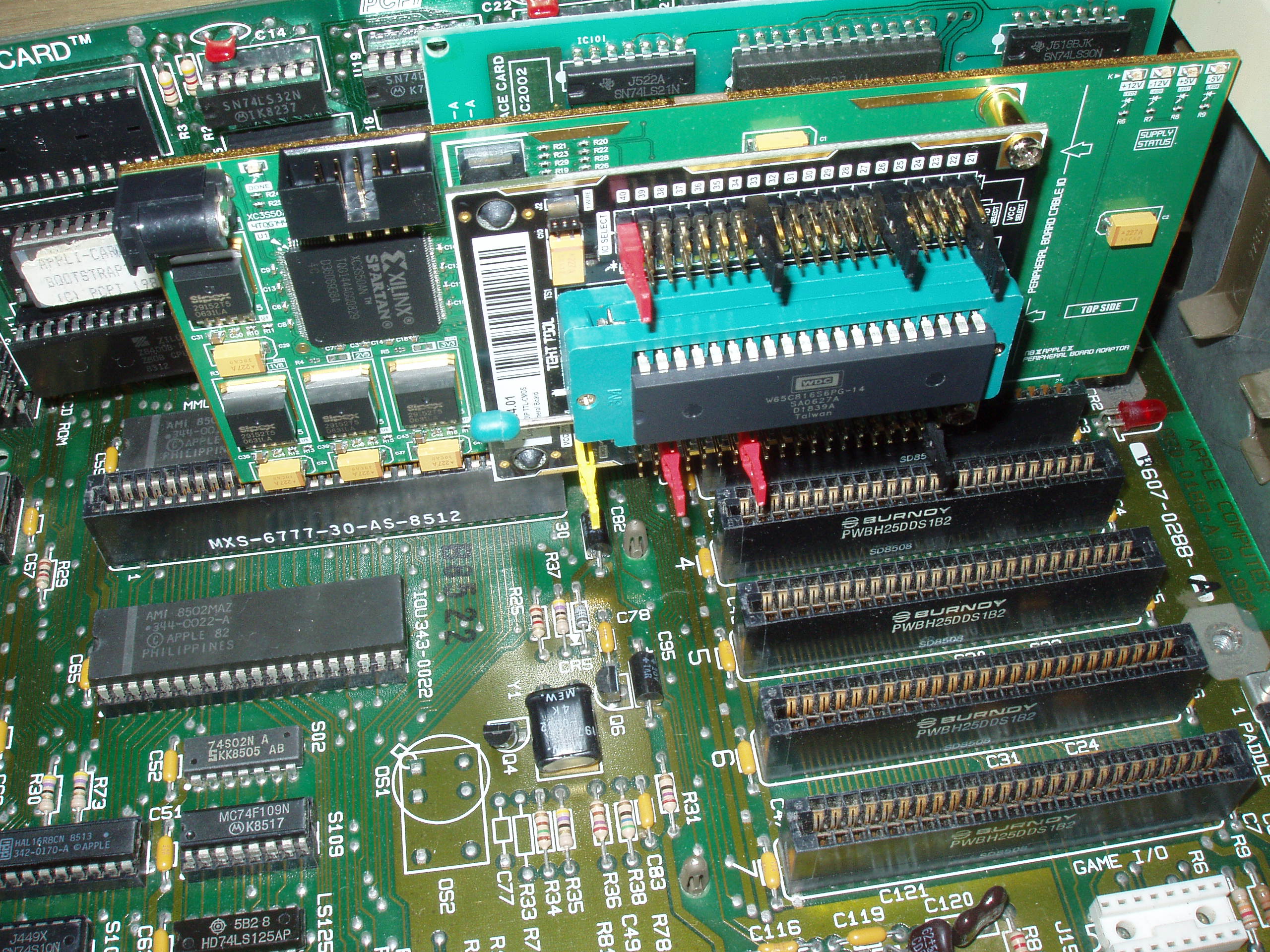

Apple II/III FPGA Card
Assembly ID
Company
Novasar
Function
Apple II Peripheral Board
Primary Device
Technology
8 track/5 space/28 via
PCB Build Specification
2 Layer, 1/2oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCB Cart (China)
CAD Application
Altium Designer S08
Prototype Availability
Yes
Downloads
CARTE BLANCHE - FLYER (PNG)
