Date of Design
2012
Product

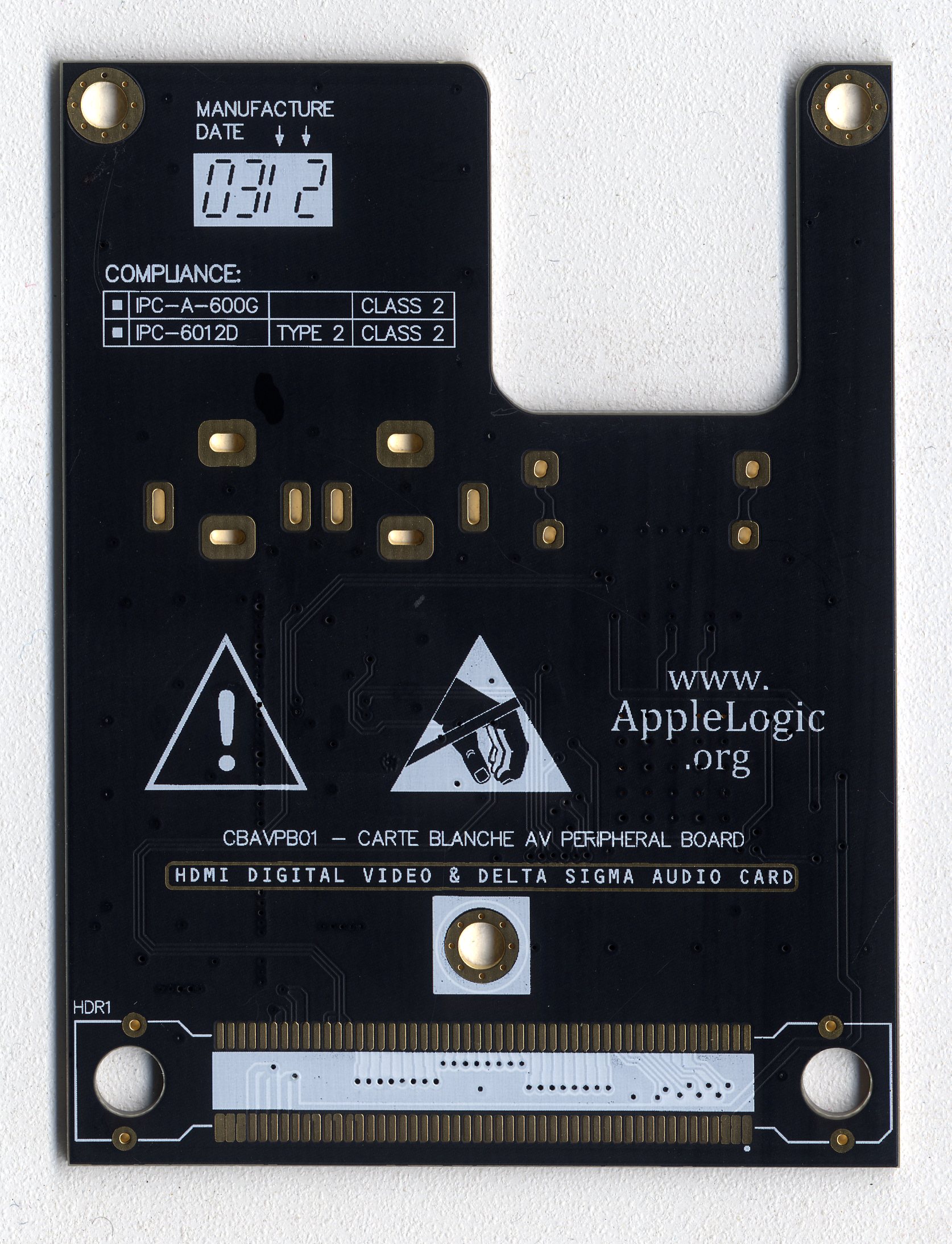

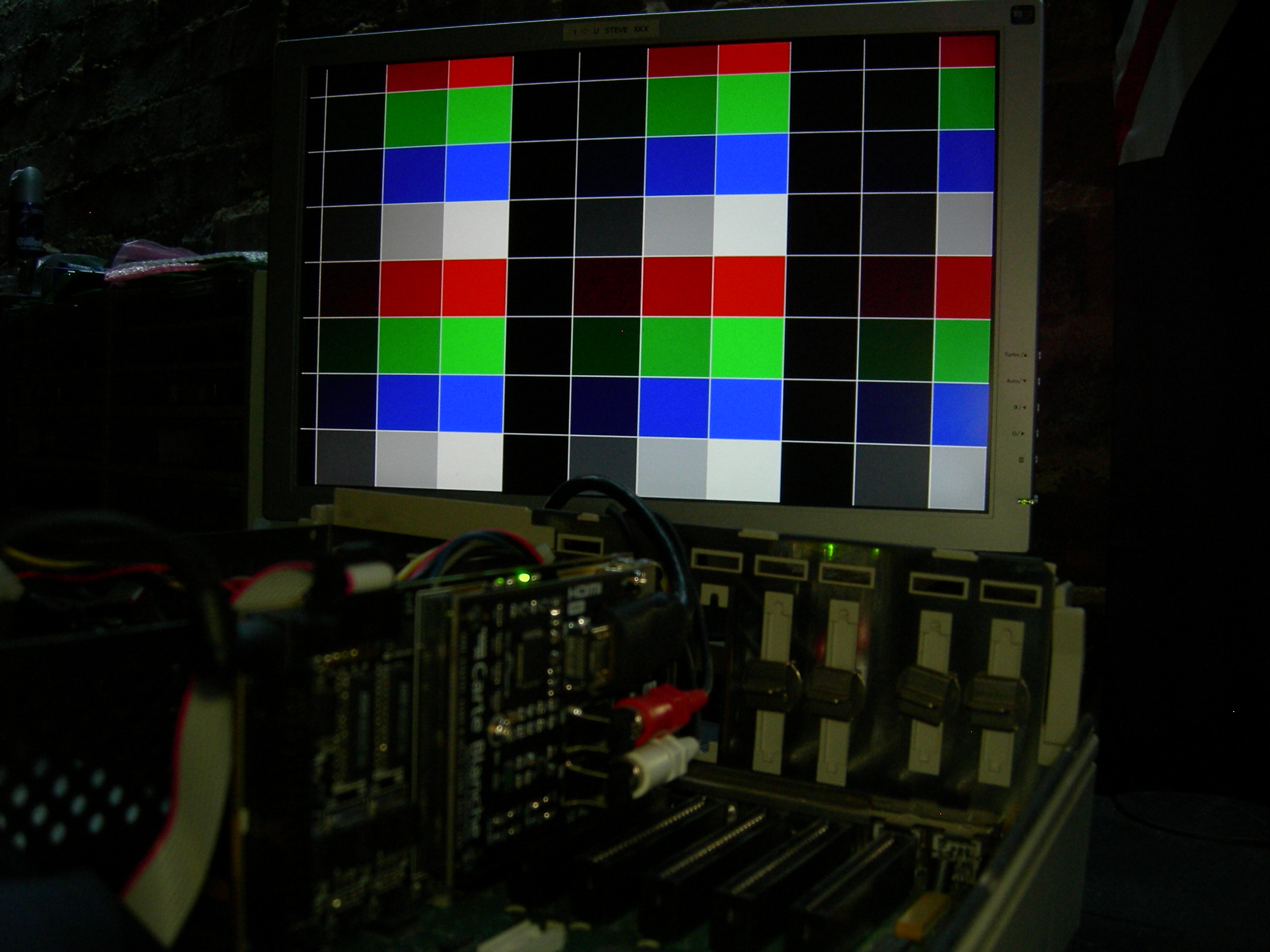

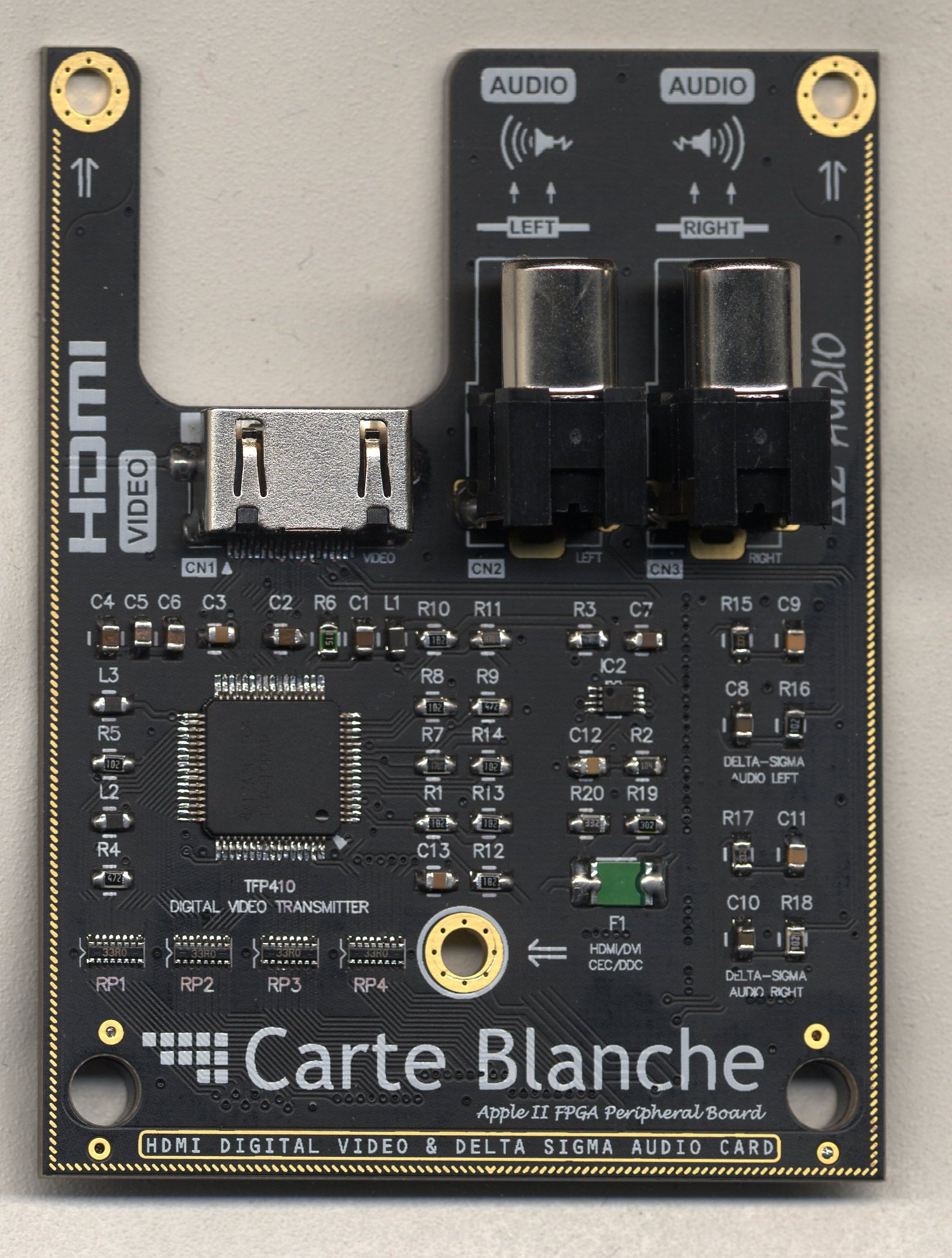

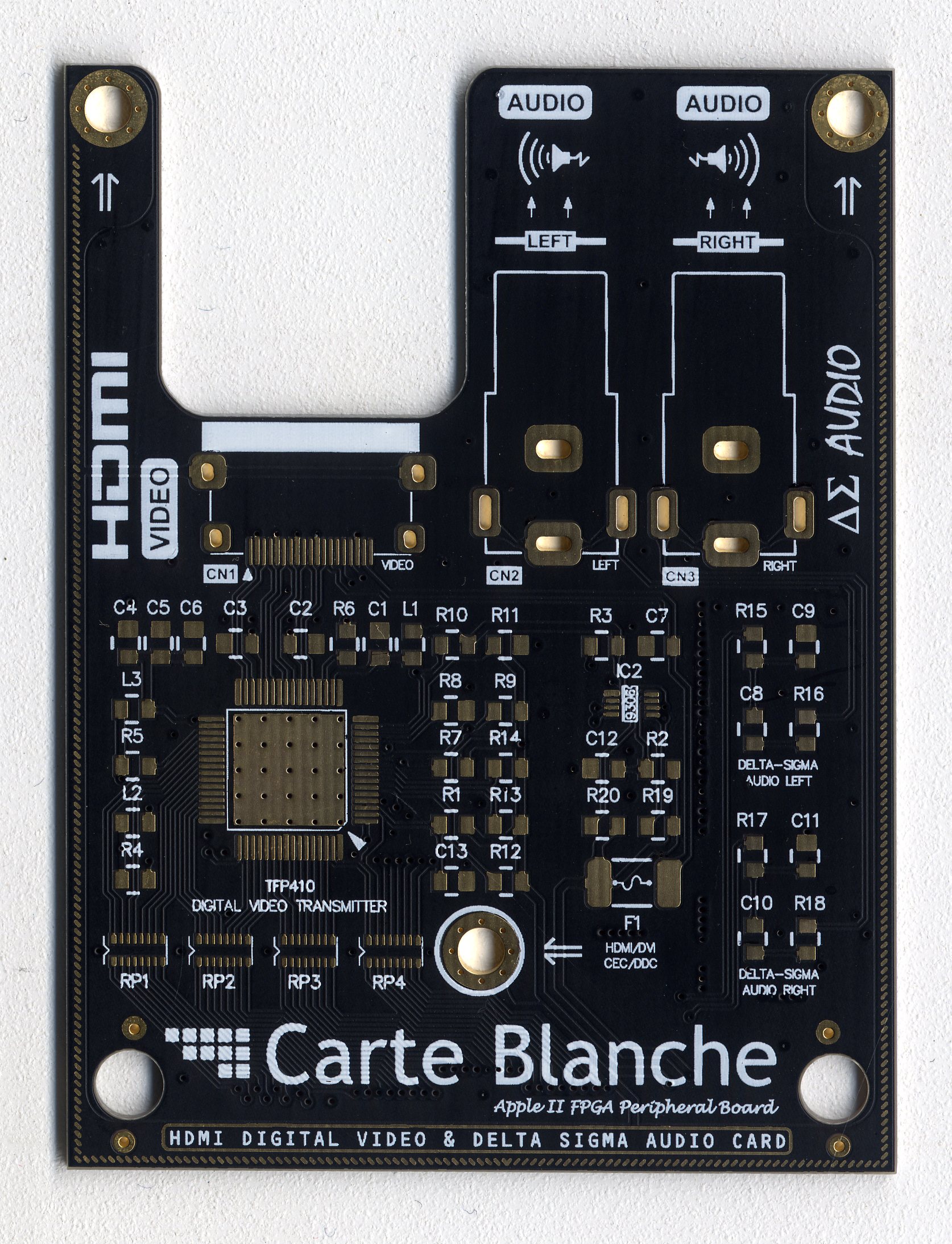

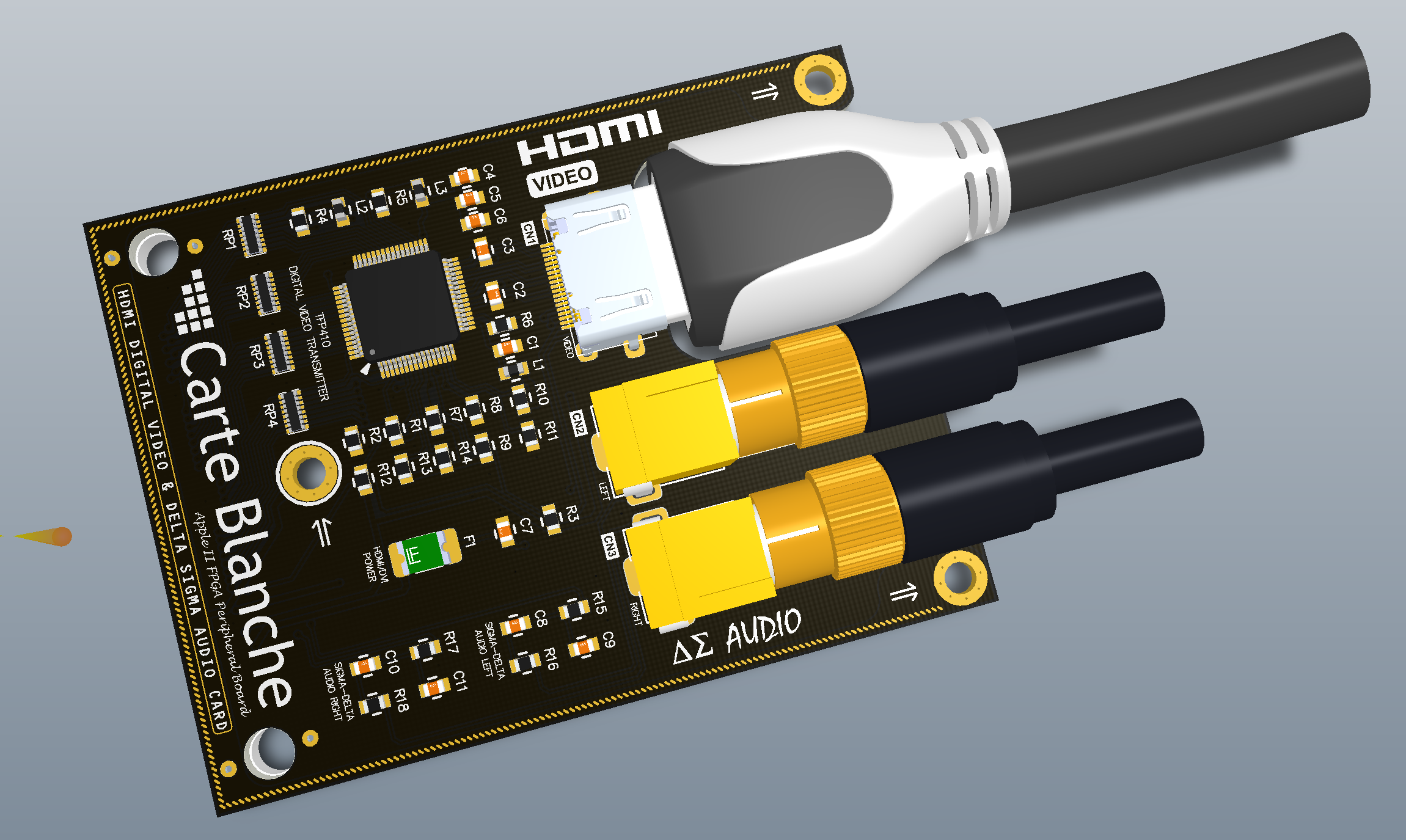

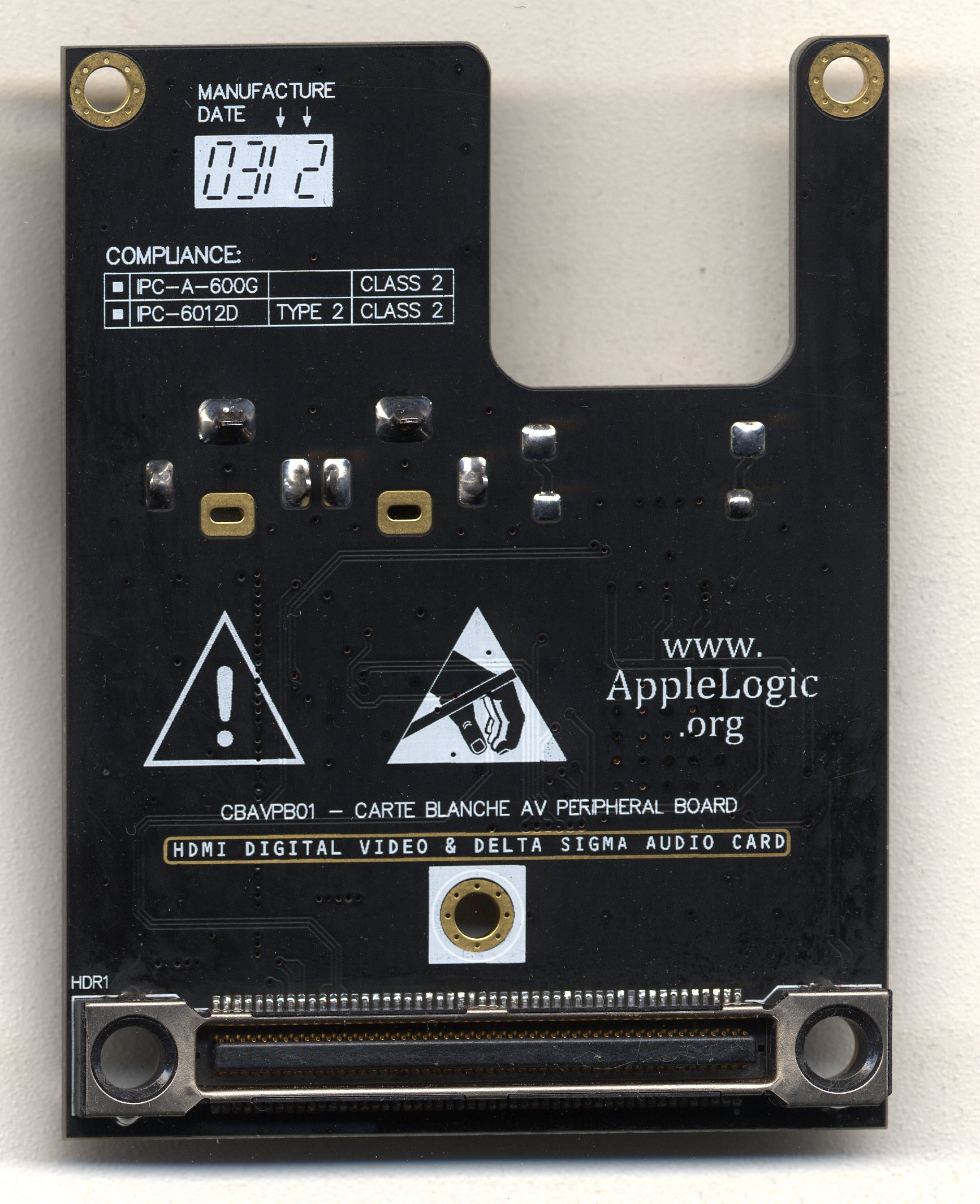

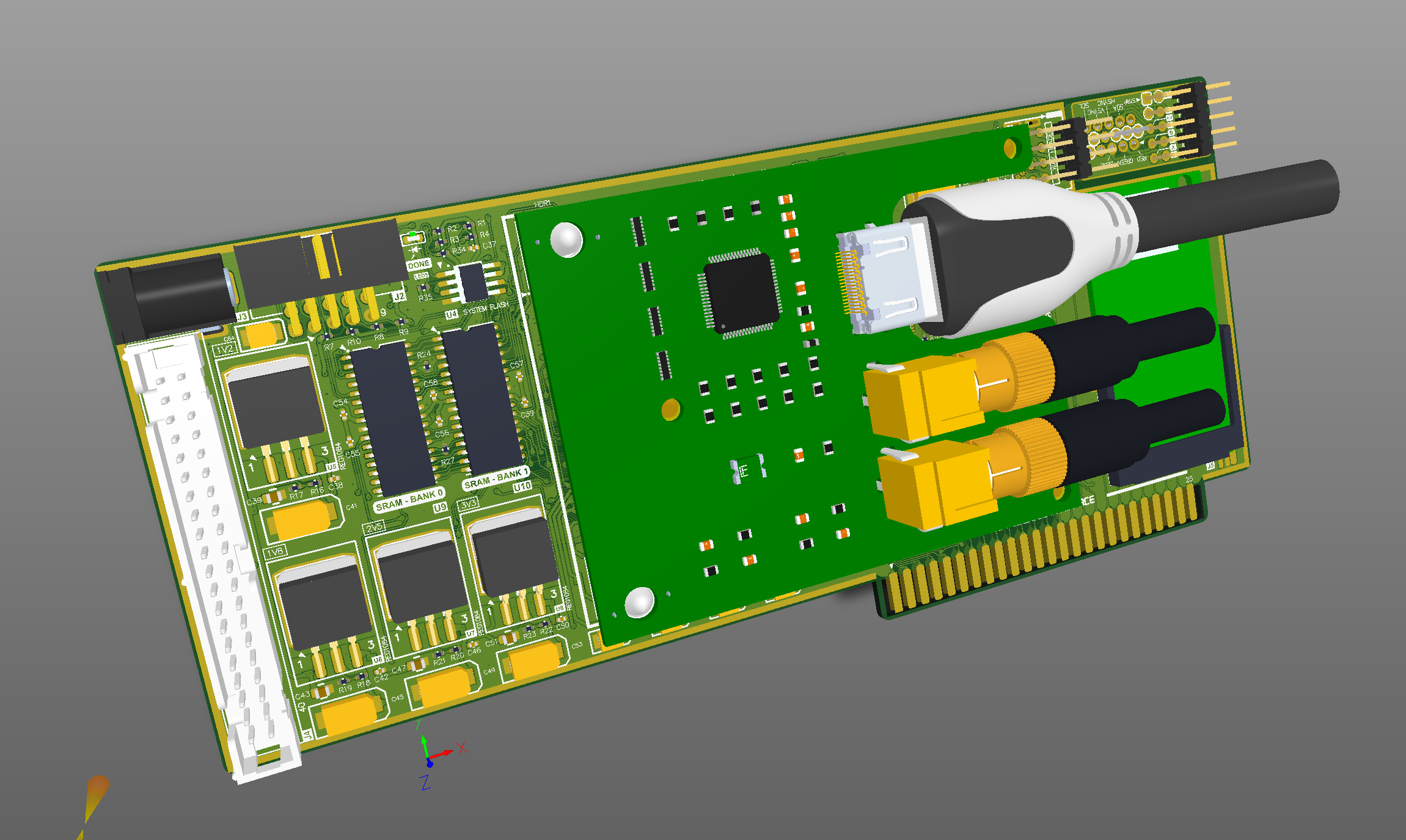

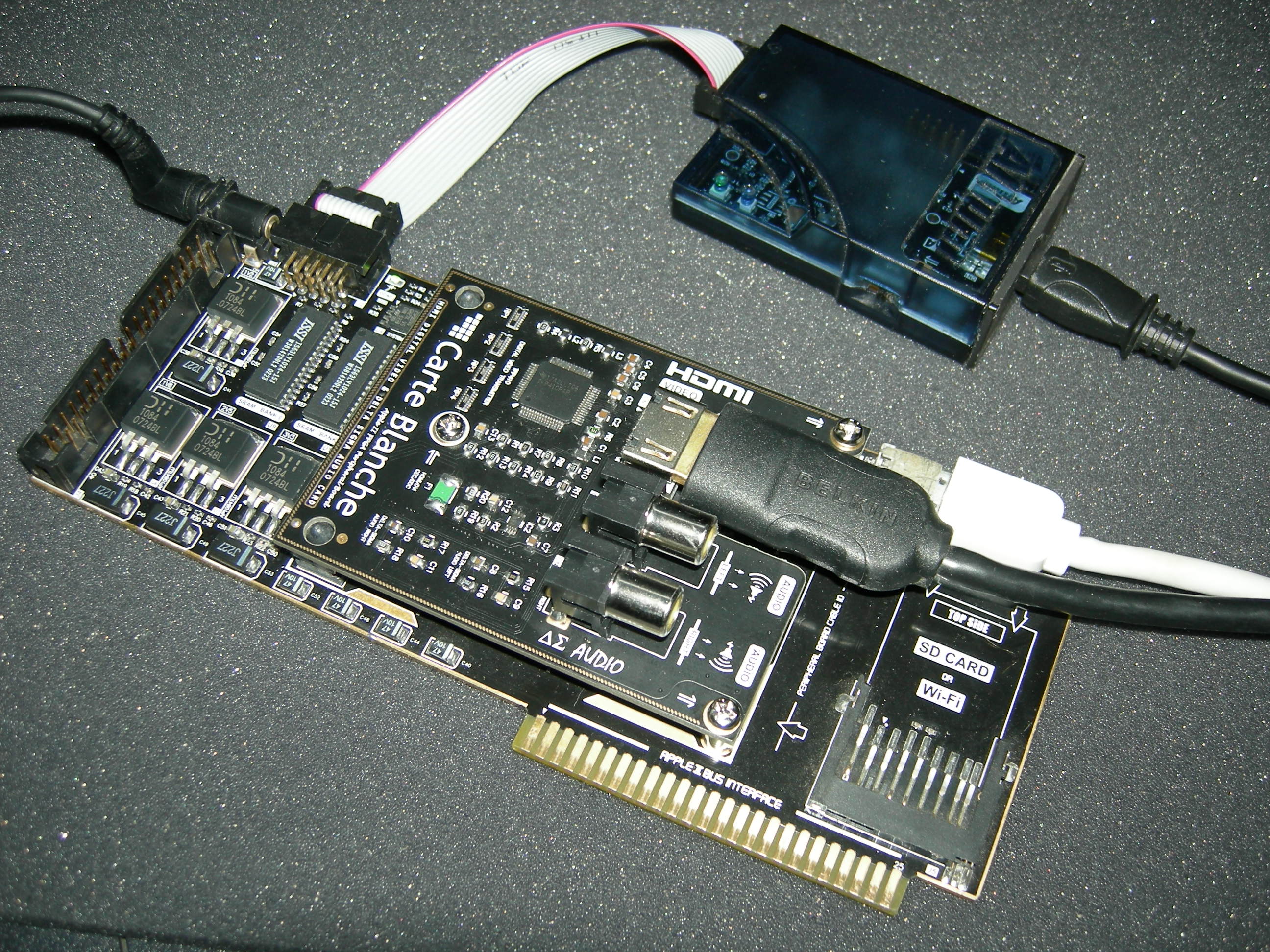

HDMI/DVI AV Peripheral Bd for Apple II
Assembly ID
CBAVPB01
Company
Novasar
Function
Primary Device
Technology
7 track/7 space/28 via

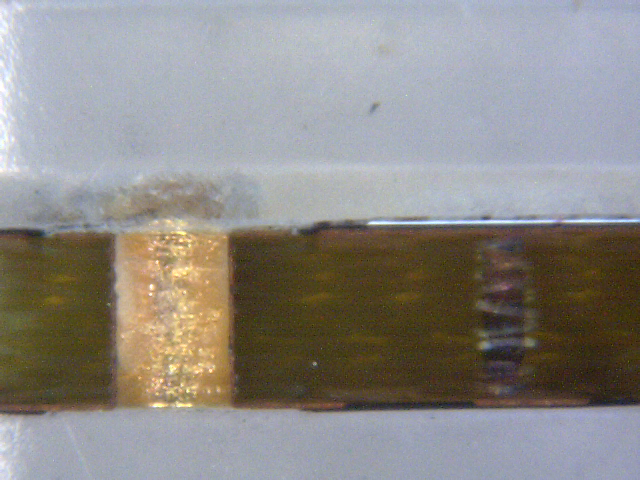

PCB Build Specification
2 Layer, 1/2oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCB Cart (China)

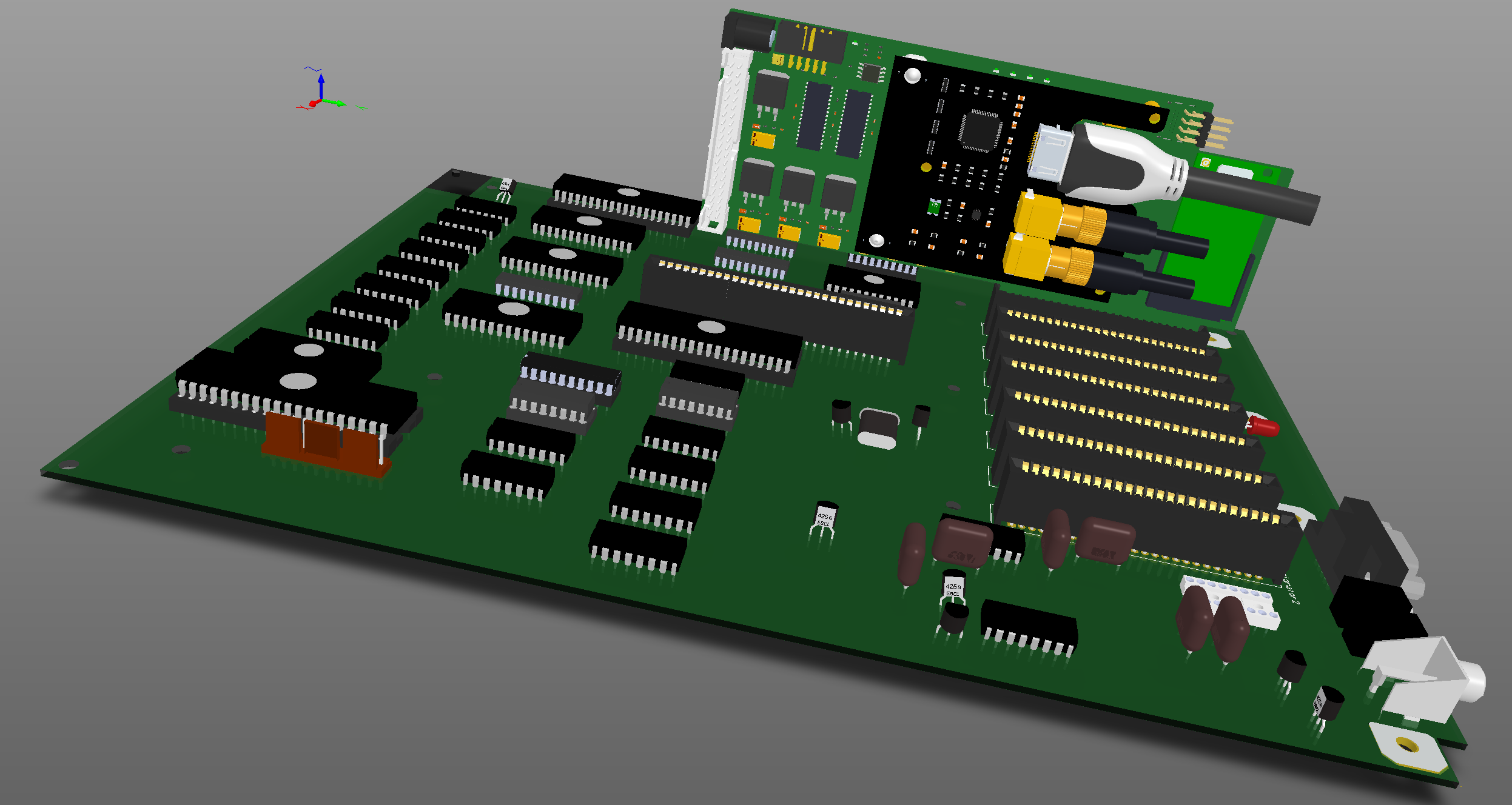

CAD Application
Altium Designer R10
Prototype Availability
Yes
