Date of Design
2010
Product

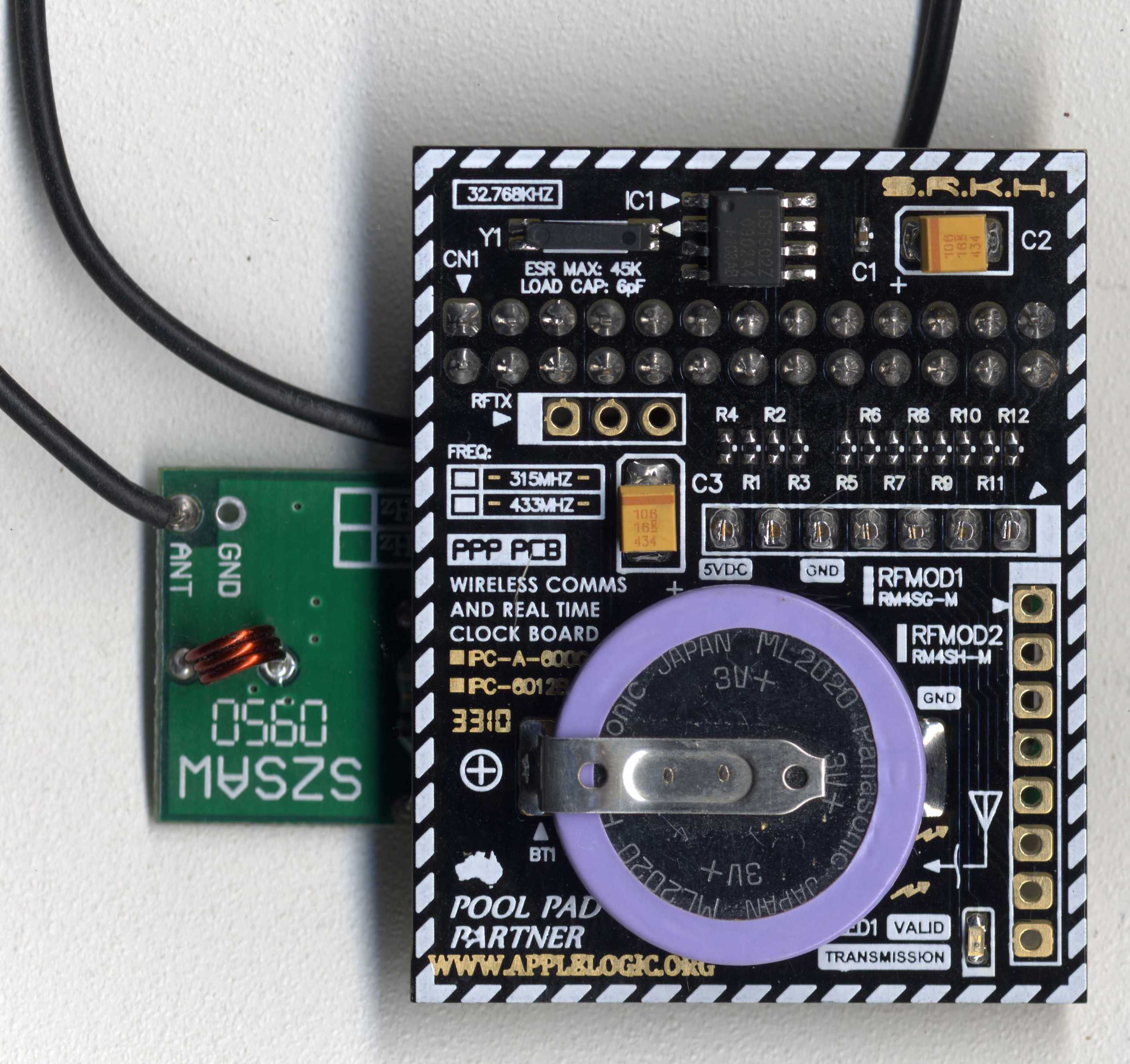

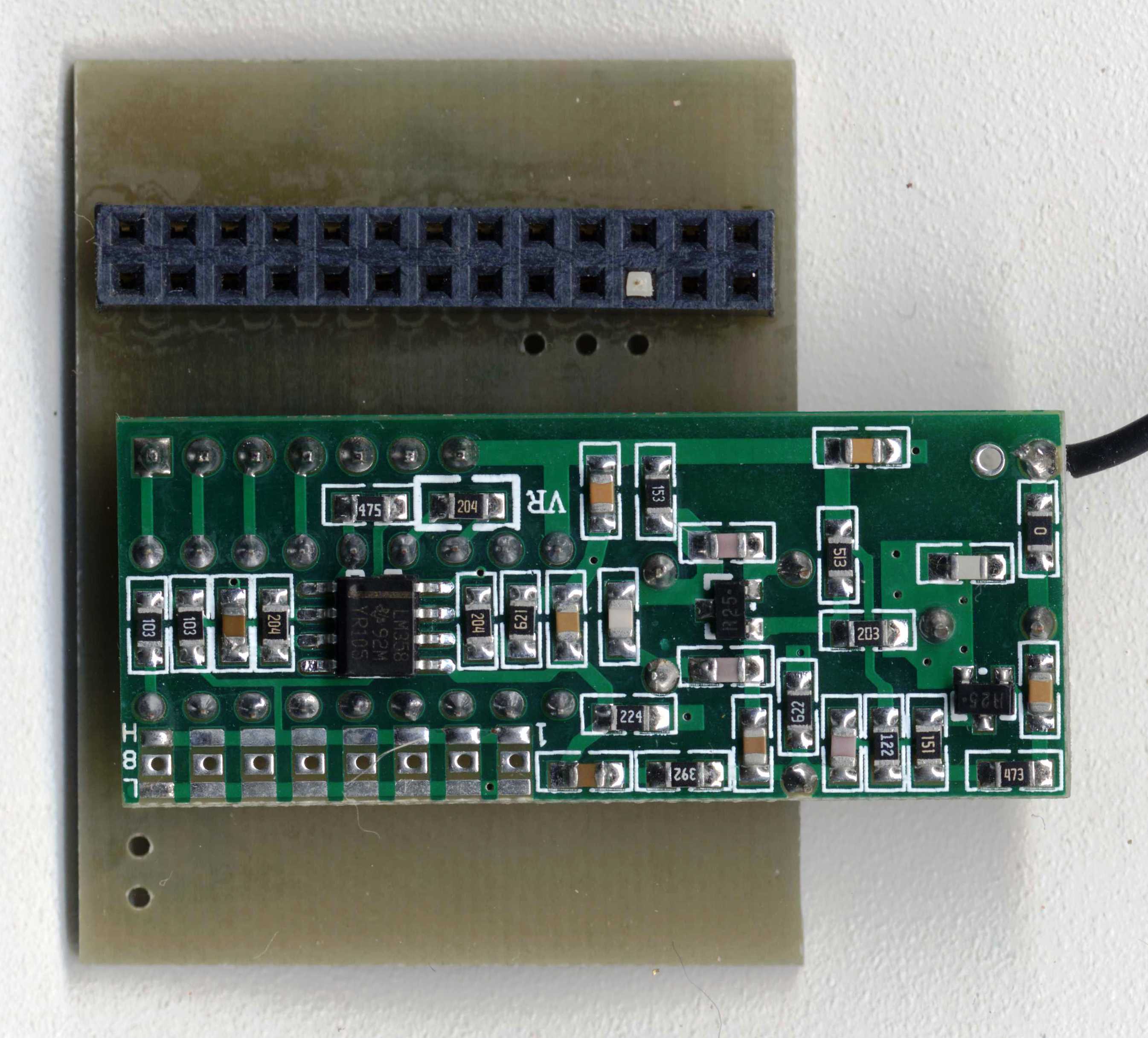

Pool Pad Partner RF Module
Assembly ID
PPPRF
Company
Novasar
Function
Wireless Comms and RTC Functions
Primary Device
DS1302+ PT2249A
Technology
5 track/5 space/24 via
PCB Build Specification
Single Layer, 1oz, MASK, ENIG, FR4
Design Compliance
94V0
Contract Manufacturer
PCB Cart (China)

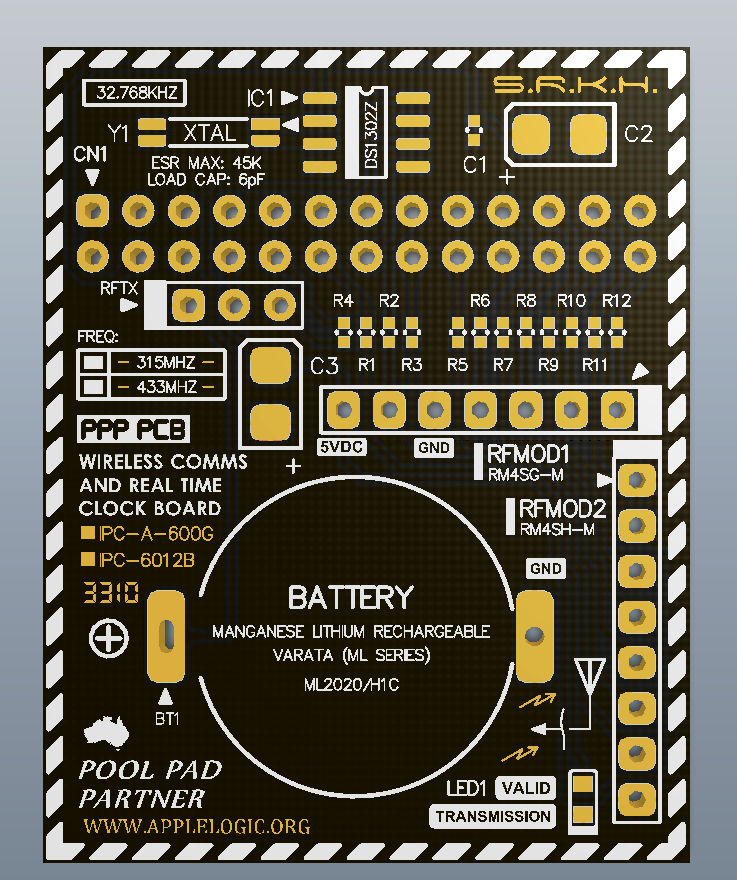

CAD Application
Altium Designer R10
Prototype Availability
Yes
Downloads
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
