Date of Design
2010
Product

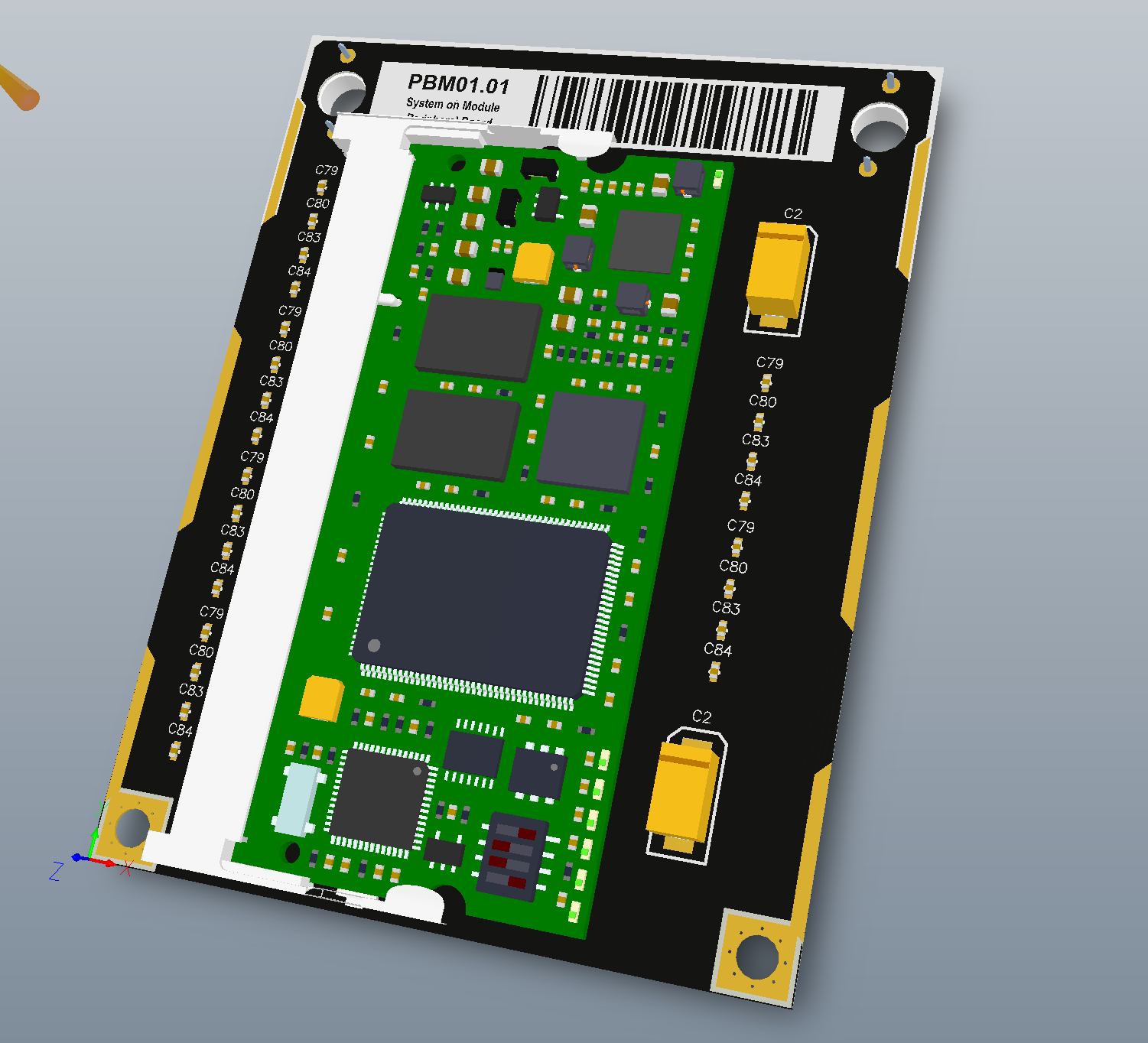

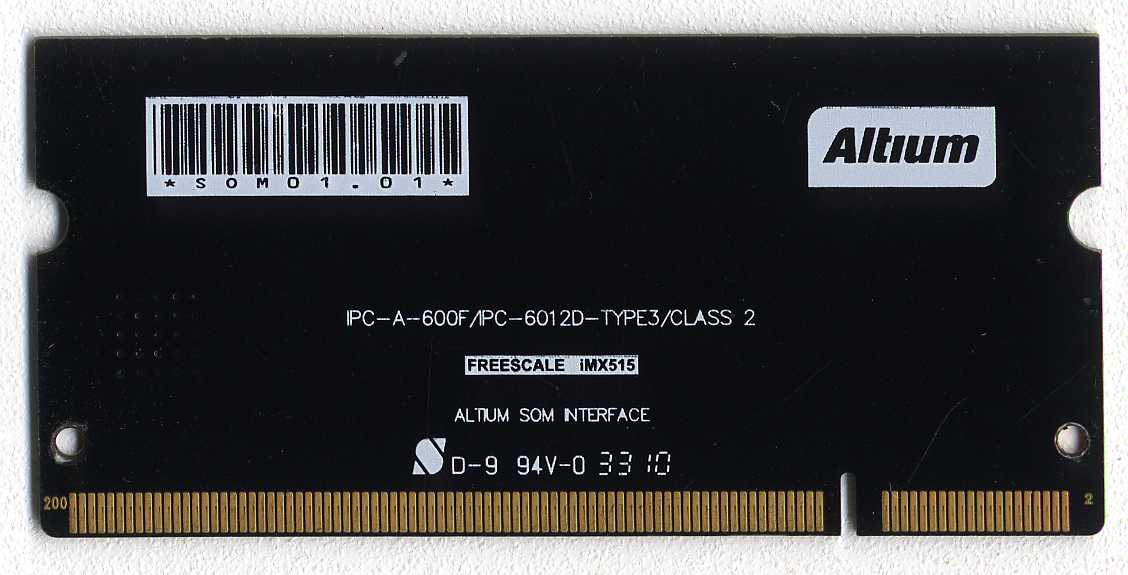

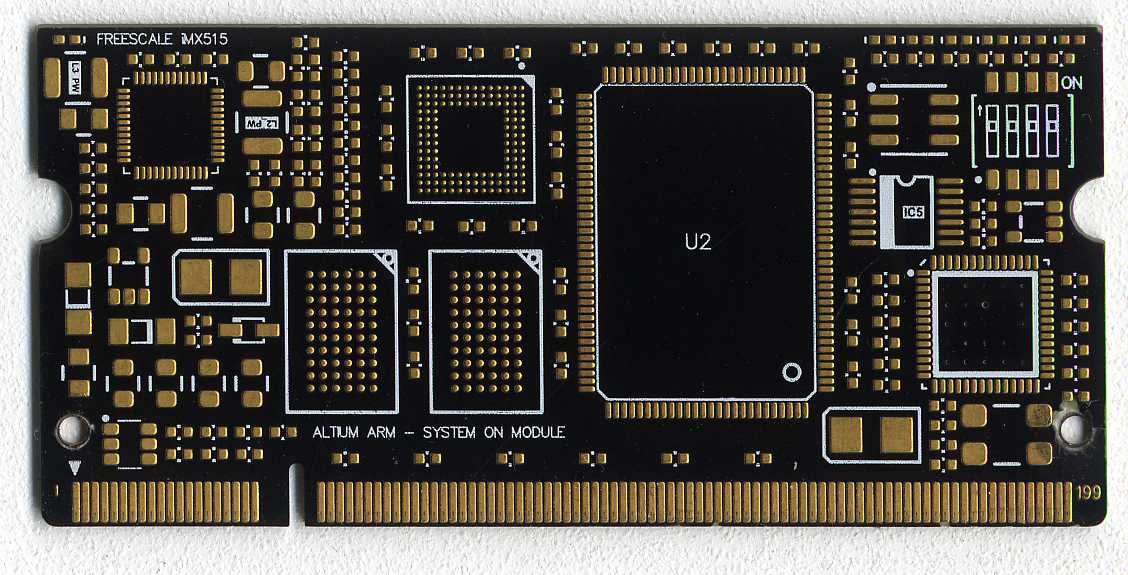

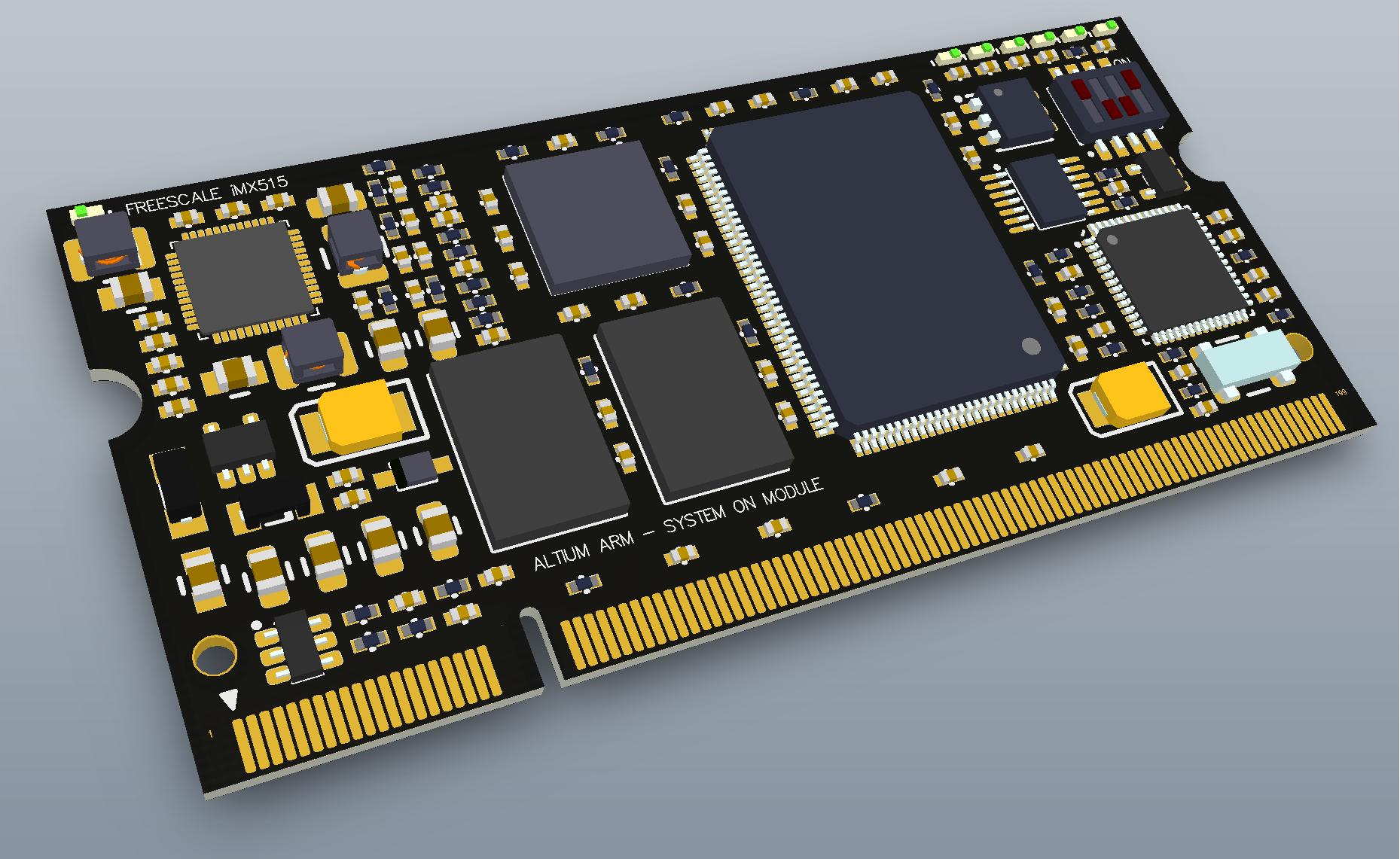

System On Module (SODIMM)
Assembly ID
SOM01
Company
Function
ARM8 Development/Deployment Bd.
Primary Device
Technology
4 track/4 space/26 via
PCB Build Specification
8 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)
CAD Application
Altium Designer R10
Prototype Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
