Specifications for PPPv1.07 (14SEPT10)
NOTE:
DC = DIRECT CONNECT VERSION
WEJB = WET END JUNCTION BOX VERSION
RF REMOTE CONTROL:
DEVICE : STANDARD RF KEY FOB
NUMBER OF KEYS : 8 (FOR POOL OPERATION) OR 12 (TO INCLUDE PPP SETTINGS OPTIONS)
DEVICE : PRINCETON PT 2622 AND PT2672
FREQ: : 315MHZ OR 433MHZ (ON REQUEST)
RANGE : 800 OR 1000 METERS
USER DISPLAY:
TYPE : VGA FULL COLOUR TEXT
RESOLUTION : 640 x 480
DISPLAY : 7" LCD OR OLED DISPLAY
INTERFACE: : DB15 - ANALOG VGA
PUMP CONTROL:
ON/OFF DURATION : FIXED - 3 HOURS
PUMP SPEED : FIXED
PUMP COMMS : YES - RS485
REMOTE CONTROL : KEY 1 (1 LONG FOR ON) AND KEY 2 (3 SHORT FOR OFF)
IO (WEJB) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY1 ON NB3K)
IO (DC) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM2 ON NB3K)
CHLORINATOR CONTROL:
ON/OFF DURATION : <FOLLOWS PUMP OPERATION WHEN ENABLED>
PPM : FIXED
CHLR COMMS : YES - RS232
IO (WEJB) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY0 ON NB3K)
IO (DC) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM0 ON NB3K)

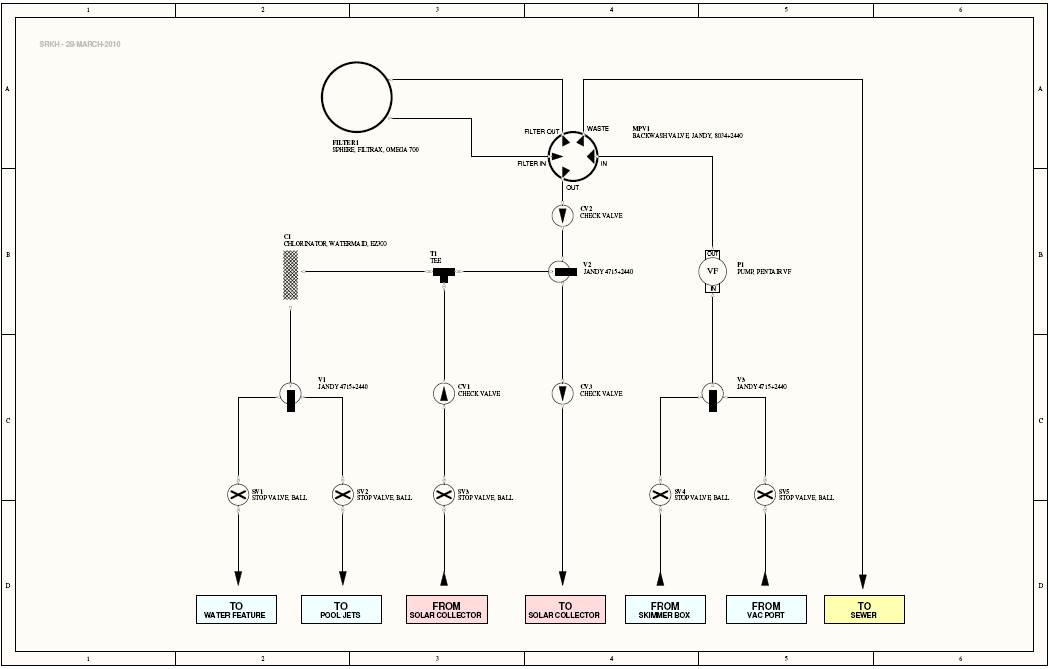

POOL INLETS (VACUUM CLEANER PORT AND SKIMMER BOX):
ON/OFF DURATION : UNLIMITED
REMOTE CONTROL : KEY 5 (1 LONG FOR ON - 3 SHORT FOR OFF)
IO (WEJB) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM2 ON NB3K)
IO (DC) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY0 ON NB3K)
POOL OUTLETS (JETS AND WATER FEATURE):
ON/OFF DURATION : UNLIMITED
REMOTE CONTROL : KEY 6 (1 LONG FOR ON - 3 SHORT FOR OFF)
IO (WEJB) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM1 ON NB3K)
IO (DC) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY3 ON NB3K)
BACKWASH VALVE:
ON/OFF DURATION : 2 MINUTES RUN TIME + 30 SECONDS SETUP + 30 SECONDS PULLDOWN
REMOTE CONTROL : KEY 4 (1 LONG FOR ON)
VALVE TYPE : JANDY 8034 + 2440 ACTUATOR
PRESSURE SENSOR : MG-300-A-MD-R (SSI TECH)
SENSOR OUTPUT : 20mA CURRENT LOOP TO 8 BIT ADC (ADC CH2 ON NB3K)
IO (WEJB) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM3 ON NB3K)
IO (DC) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY2 ON NB3K)
PUMP TIMERS:
NUMBER OF TIMERS: : TWO (2) - ONE FOR AM AND ONE FOR PM (SET USING 24HR TIME)
ON/OFF DURATION : 3 HOURS EACH - START AT 7AM/PM - END 10 AM/PM
REMOTE CONTROL : KEY 3 (1 LONG FOR ON - 3 SHORT FOR OFF)
SOLAR HEATING FUNCTION:
IN SENSOR : MEASURING WATER TEMPIN ENTERING COLLECTORS (ADC CH0 ON NB3K)
TEMP SENSOR : MEASURING WATER TEMP IN COLLECTORS (ADC CH1 ON NB3K)
TYPE OF SENSOR : NATIONAL SEMICONDUCTOR LM35DT - 10mV/DEGREE CELCIUS
TRIGGER : 36 DEGREE'S INSIDE COLLECTORS FOR 5 MINUTES
ON/OFF DURATION : 2 MINUTES SOLAR PUMP TIME + 30 SECONDS SETUP + 30 SECONDS PULLDOWN
PUMP SPEED : FIXED
AUTOMATIC DUMP : YES
IO (WEJB) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM0 ON NB3K)
IO (DC) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY1 ON NB3K)
POOL LIGHT:
ON/OFF DURATION: : UNLIMITED
BRIGHTNESS CTRL : NO
REMOTE CONTROL : KEY 7 (1 LONG FOR ON - 3 SHORT FOR OFF)
IO (WEJB) : RELAY - NO/COM/NC - 48VDC/2A MAX (RLY2 ON NB3K)
IO (DC) : OPEN COLLECTOR MOSFET - 30VDC/5A MAX (PWM1 ON NB3K)
