Date of Design
2007
Product

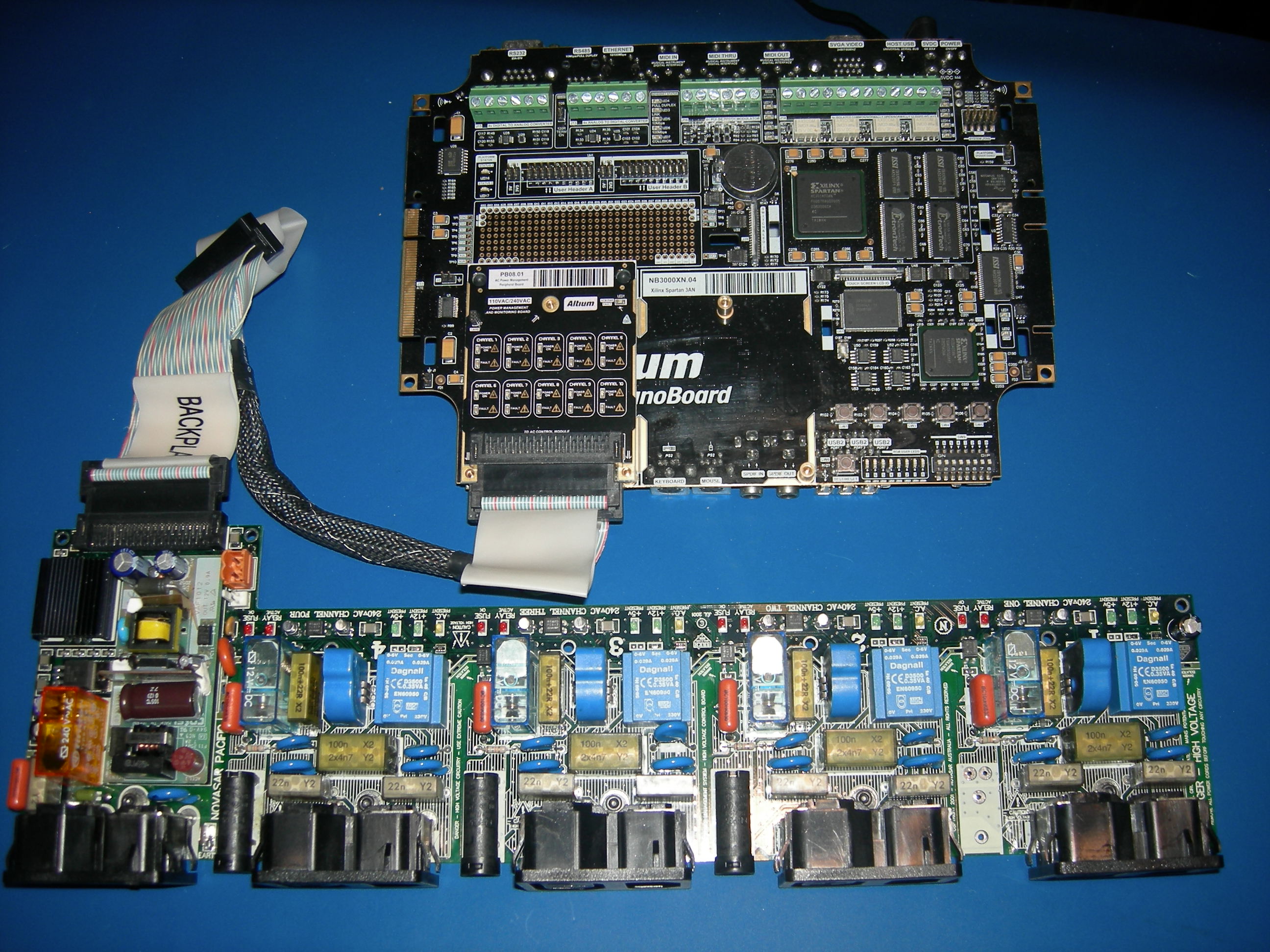

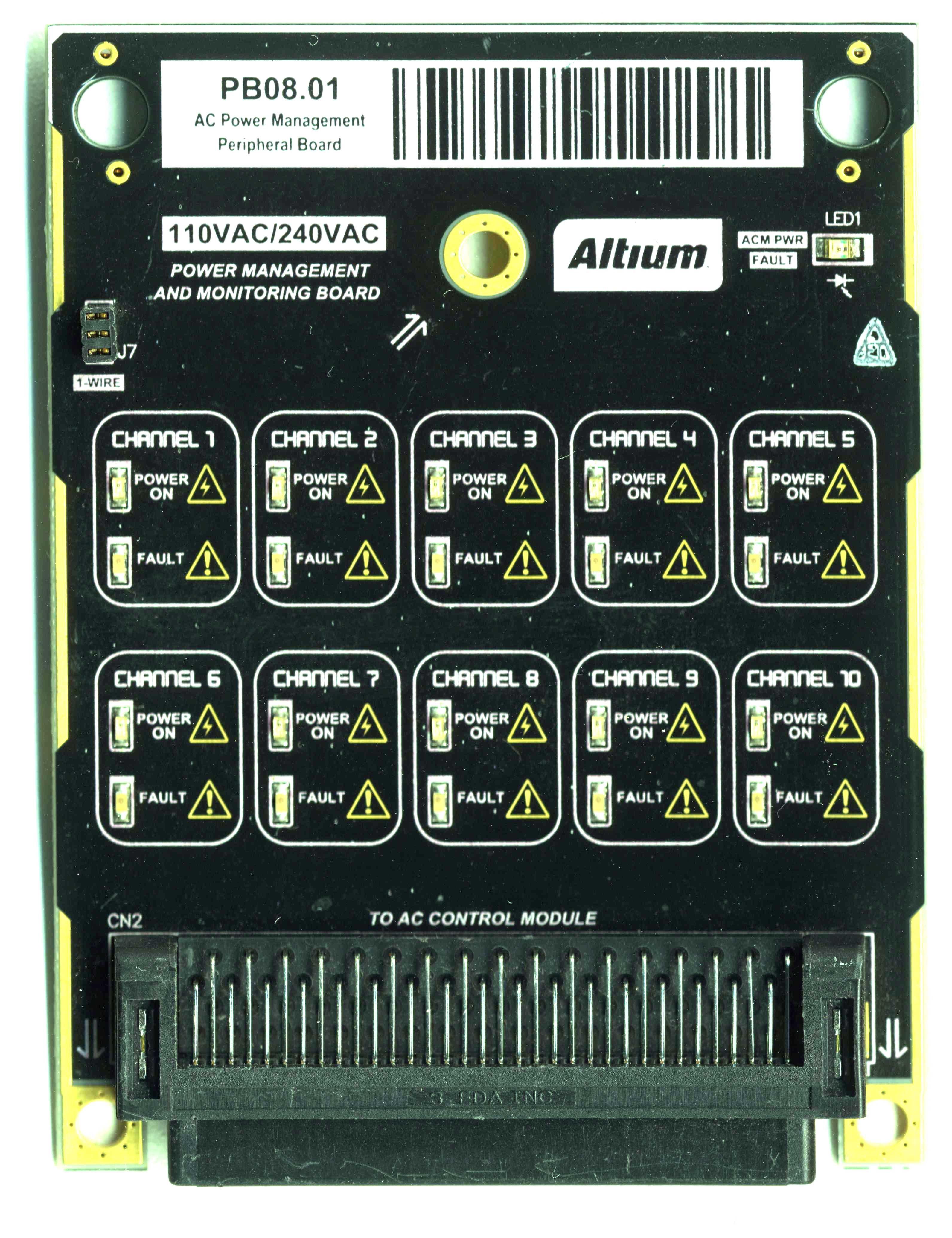

AC Power Manager
Assembly ID
PB08
Company
Function
Monitor and Control HVAC 110/240vAC
Primary Device
None (Discretes)
Technology
5 track/5 space/28 via

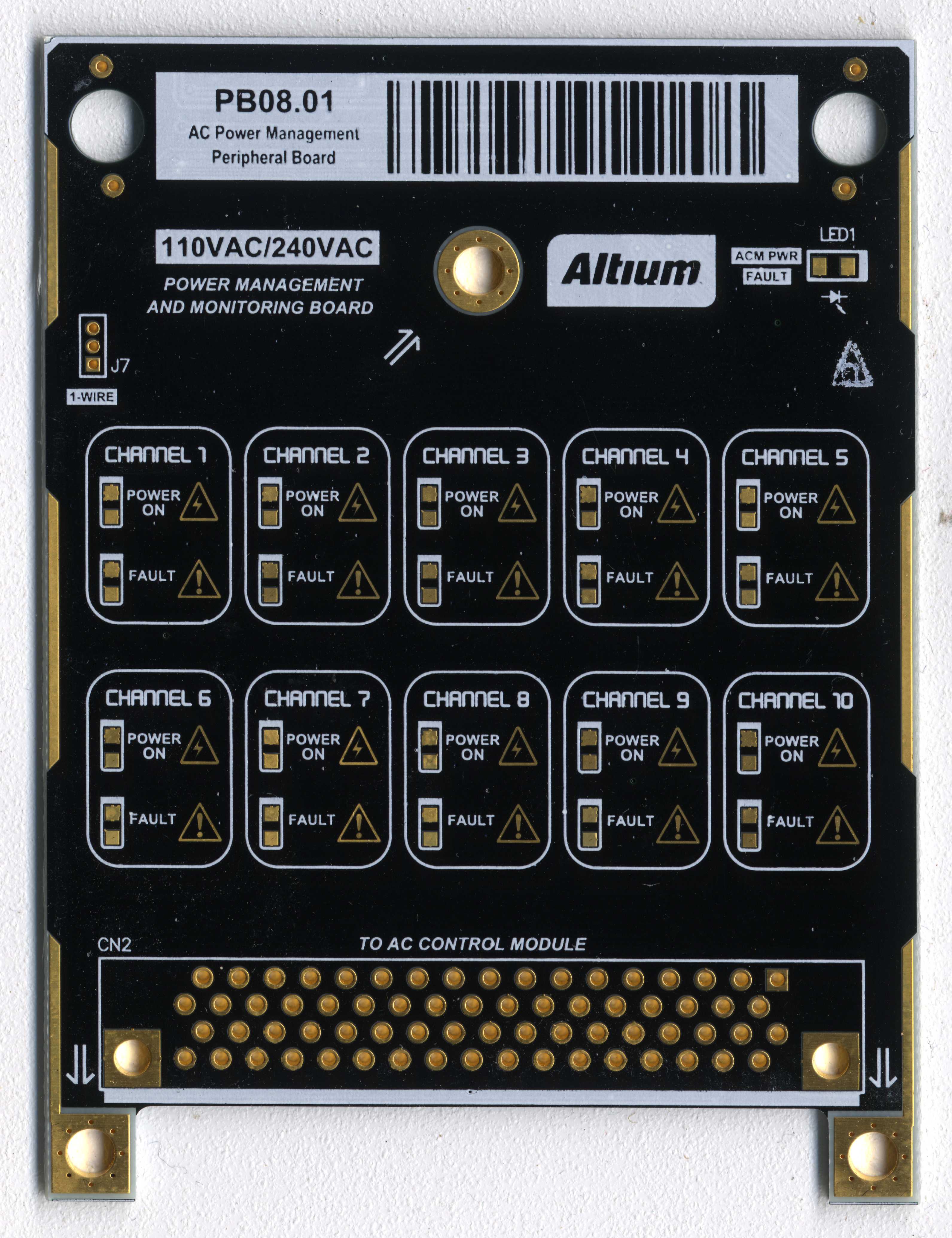

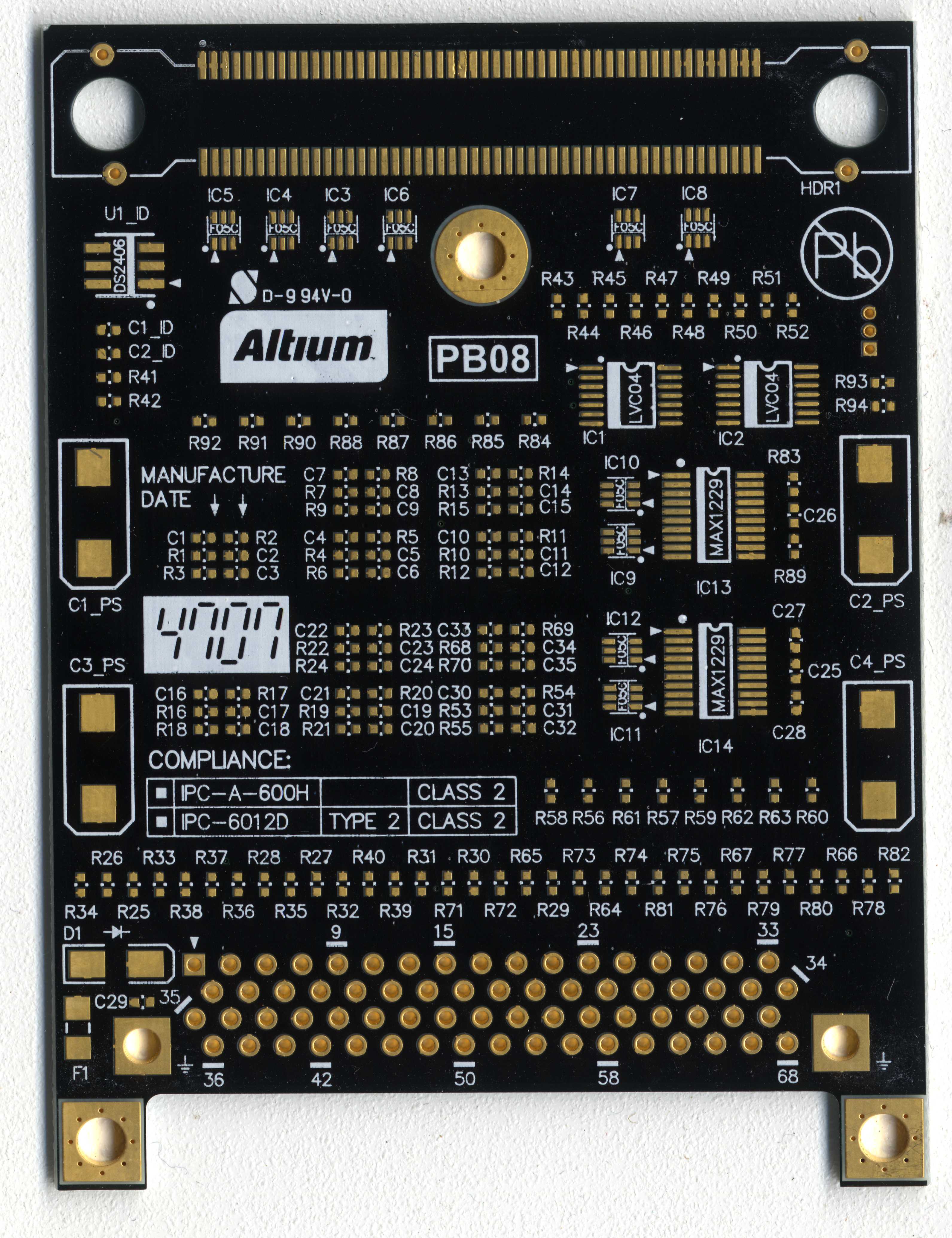

PCB Build Specification
2 Layer, 1/2oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)
CAD Application
Altium Designer 6.8
Prototype Availability
Yes
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
