Date of Design
2007
Product

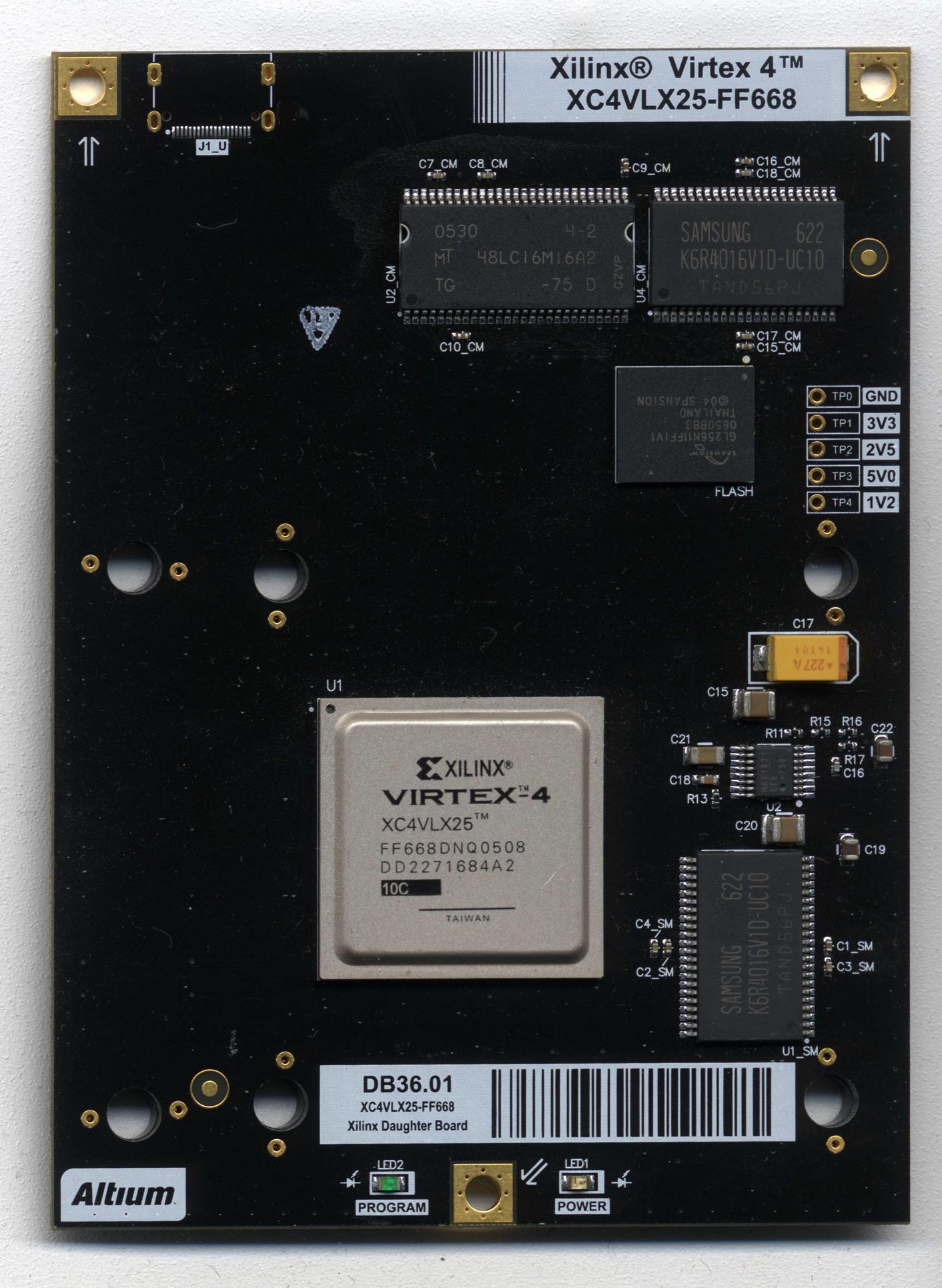

Xilinx Virtex 4 FPGA Module
Assembly ID
DB36/DB46
Company
Function
FPGA with SRAM, DRAM and Flash Mem.
Primary Device
Xilinx XC4VLX/SX35-FF668
Technology
5 track/5 space/26 via
PCB Build Specification
8 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
YUAN Circuits (TAIWAN)
CAD Application
Altium Designer 6.8
Prototype Availability
Yes
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
