Date of Design
2003
Product
Ranges Low Noise SMPS's
Assembly ID
56935601
Company
Function

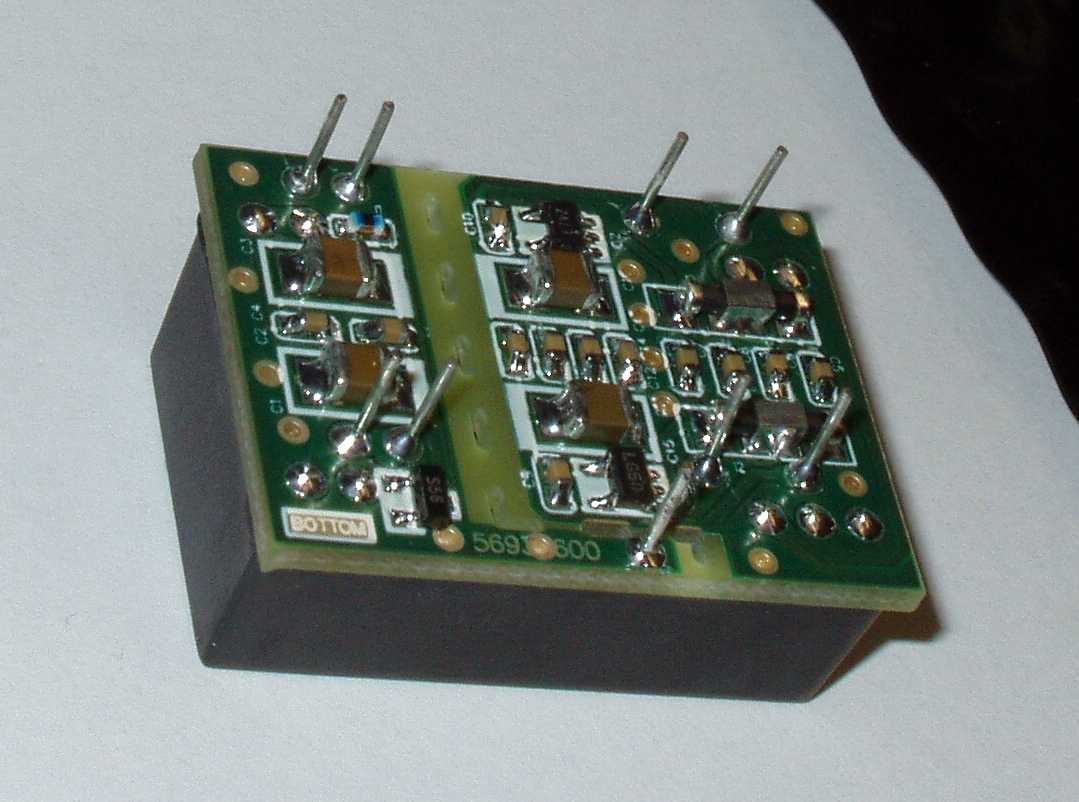

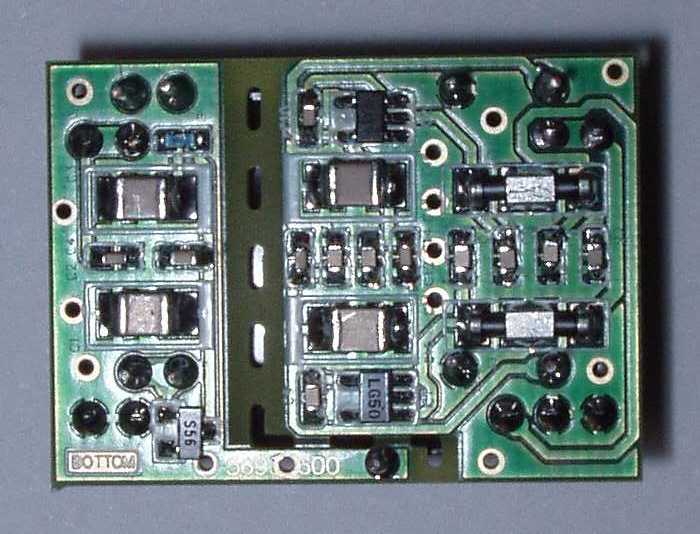

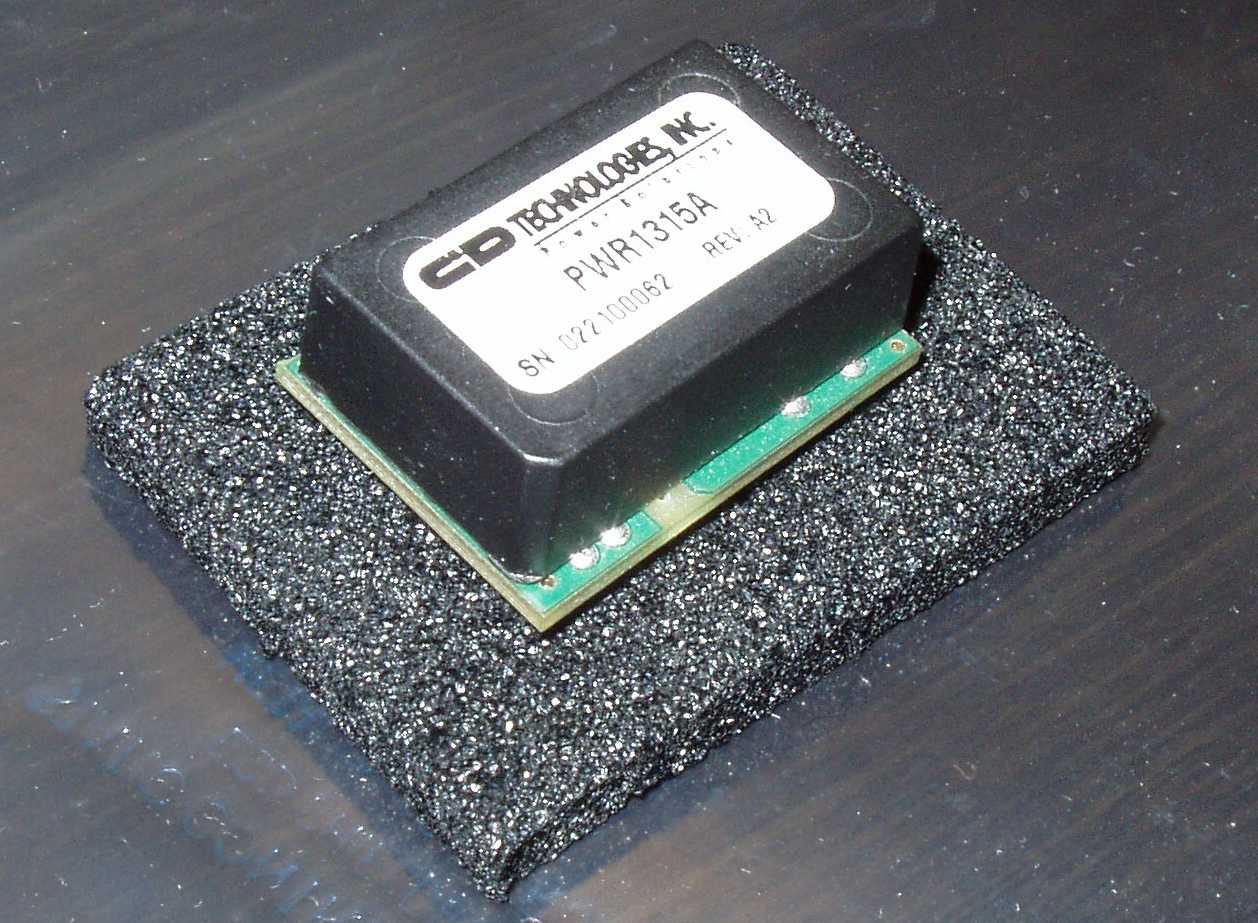

Low Noise Isolated DC-DC SMPS's
Primary Device
LT196x Complimentary Pair
Technology
8 track/8 space/30 via

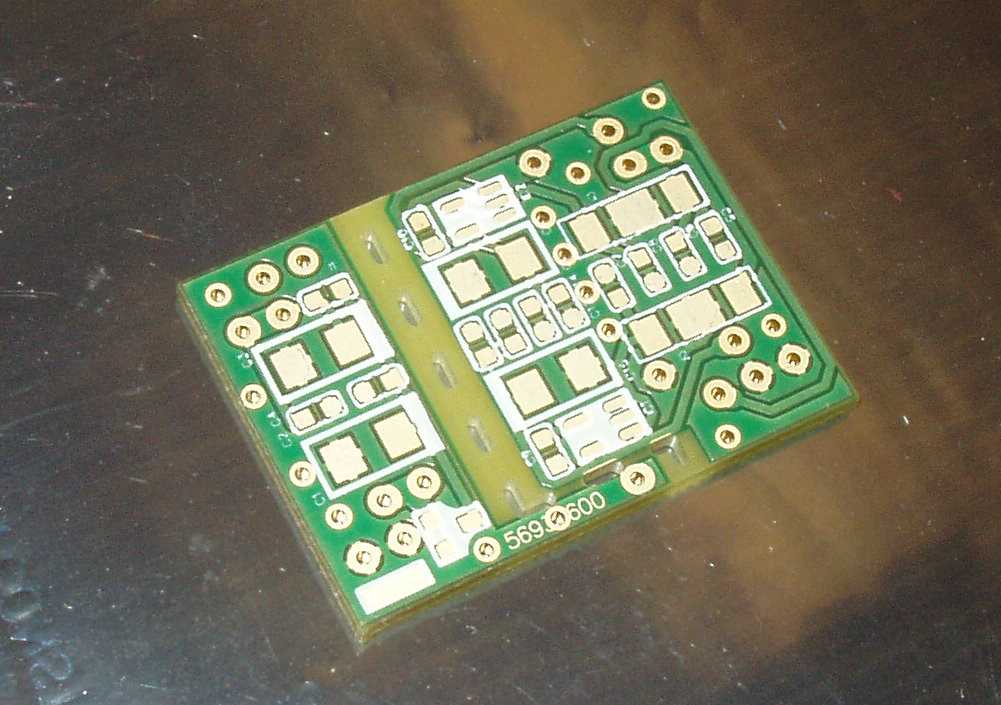

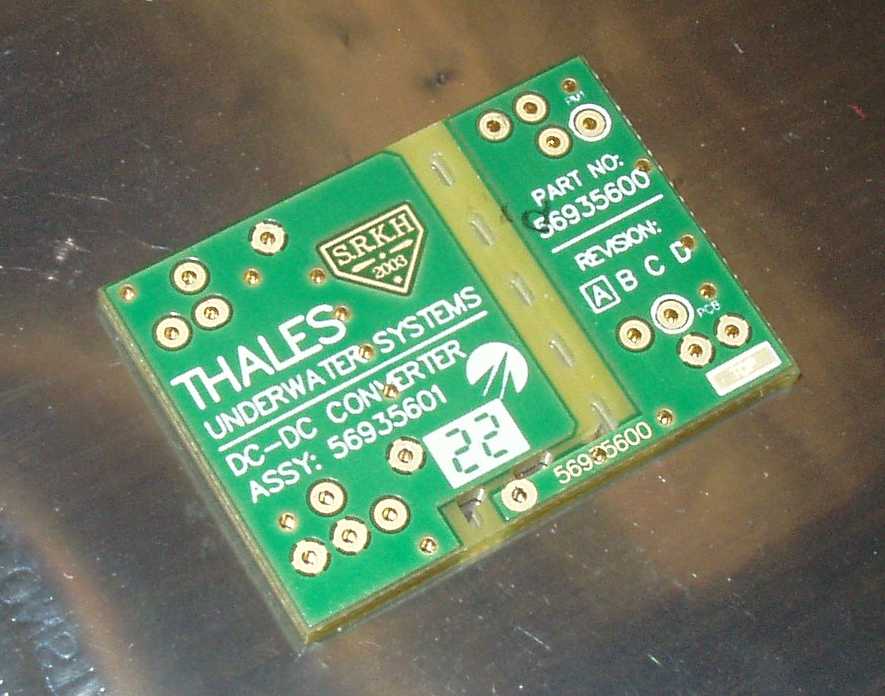

PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR408
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Precision Circuits (VIC)
CAD Application
Protel 99SE
Prototype Availability
No
