Date of Design
2003
Product

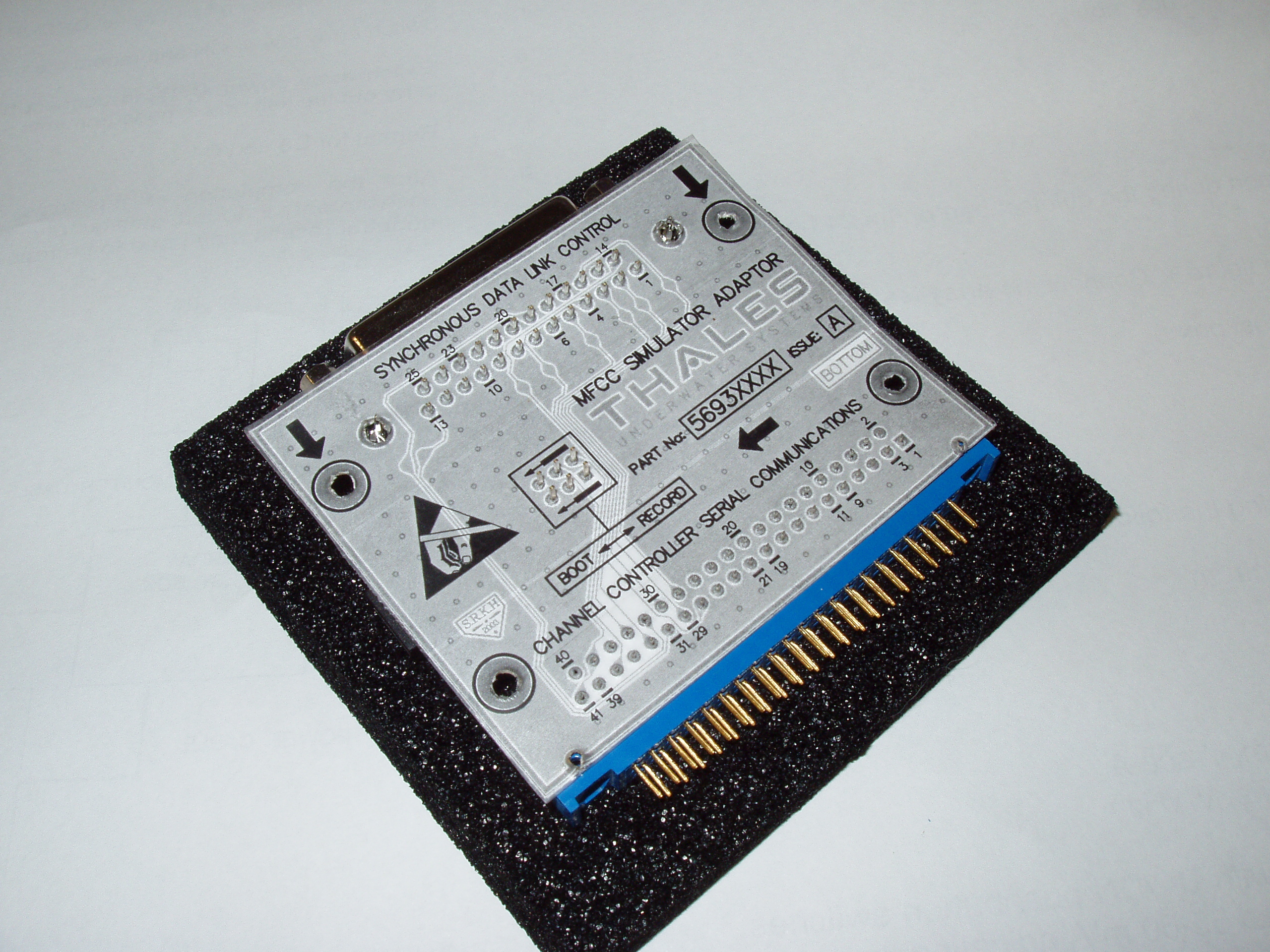

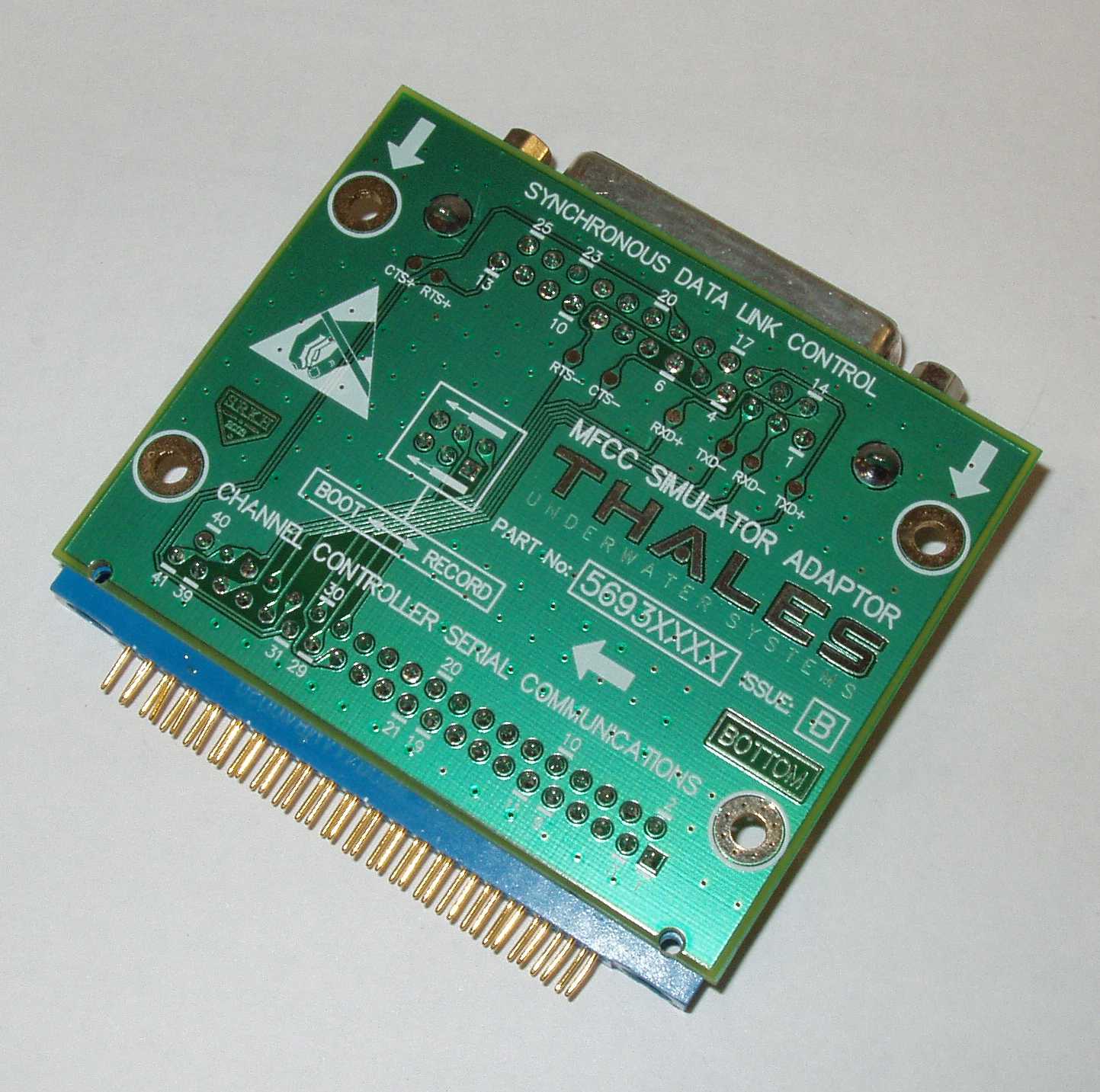

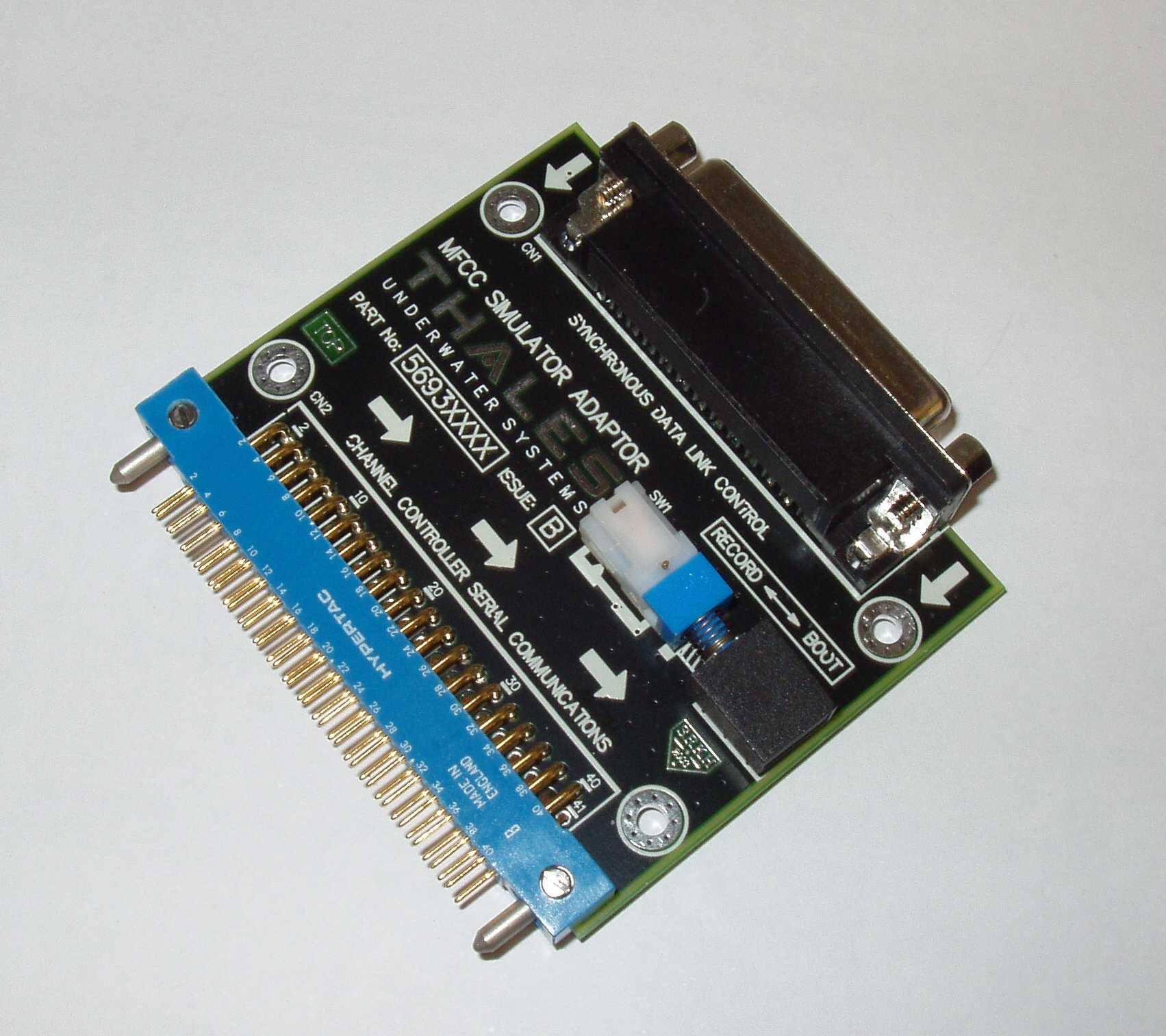

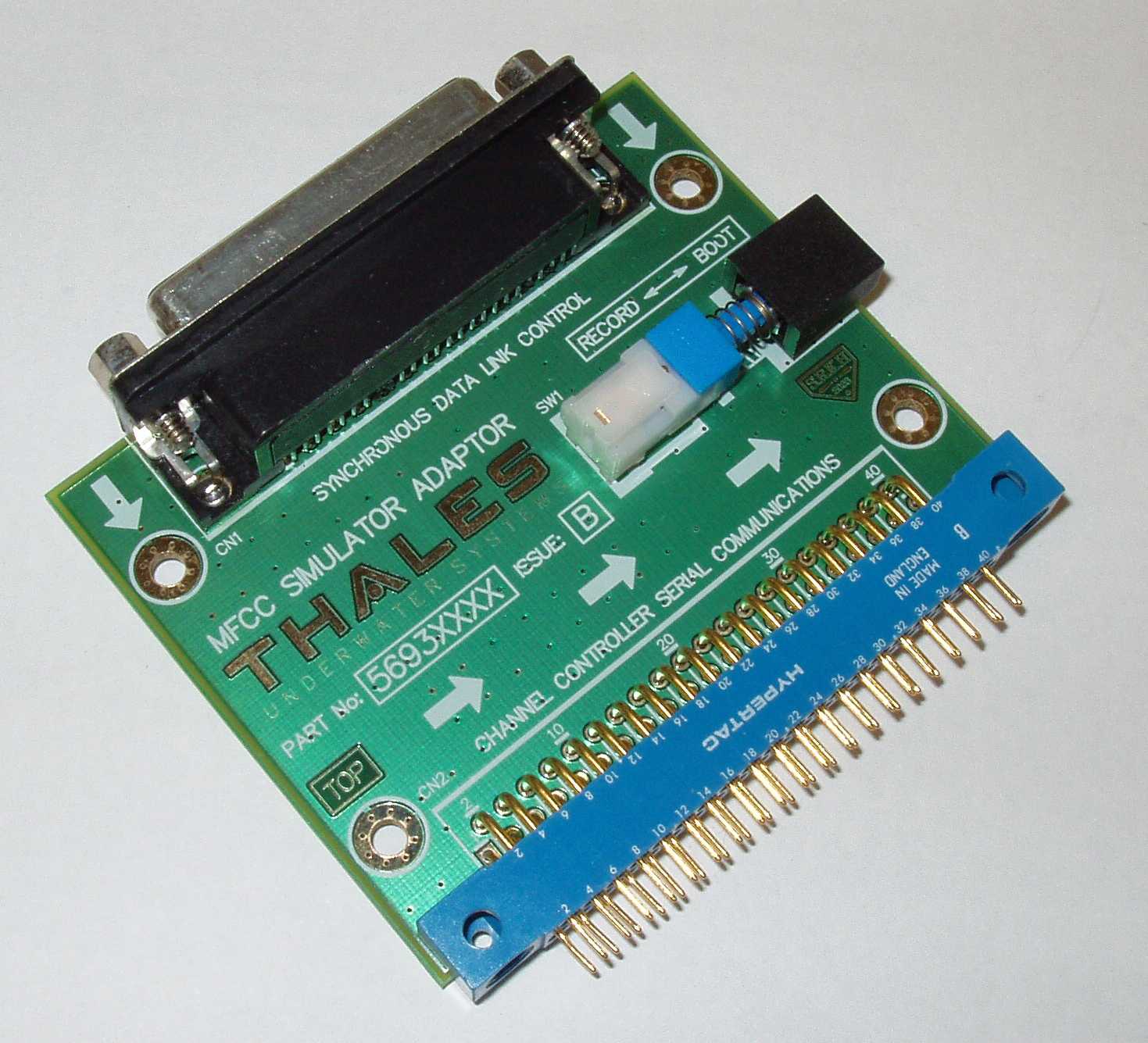

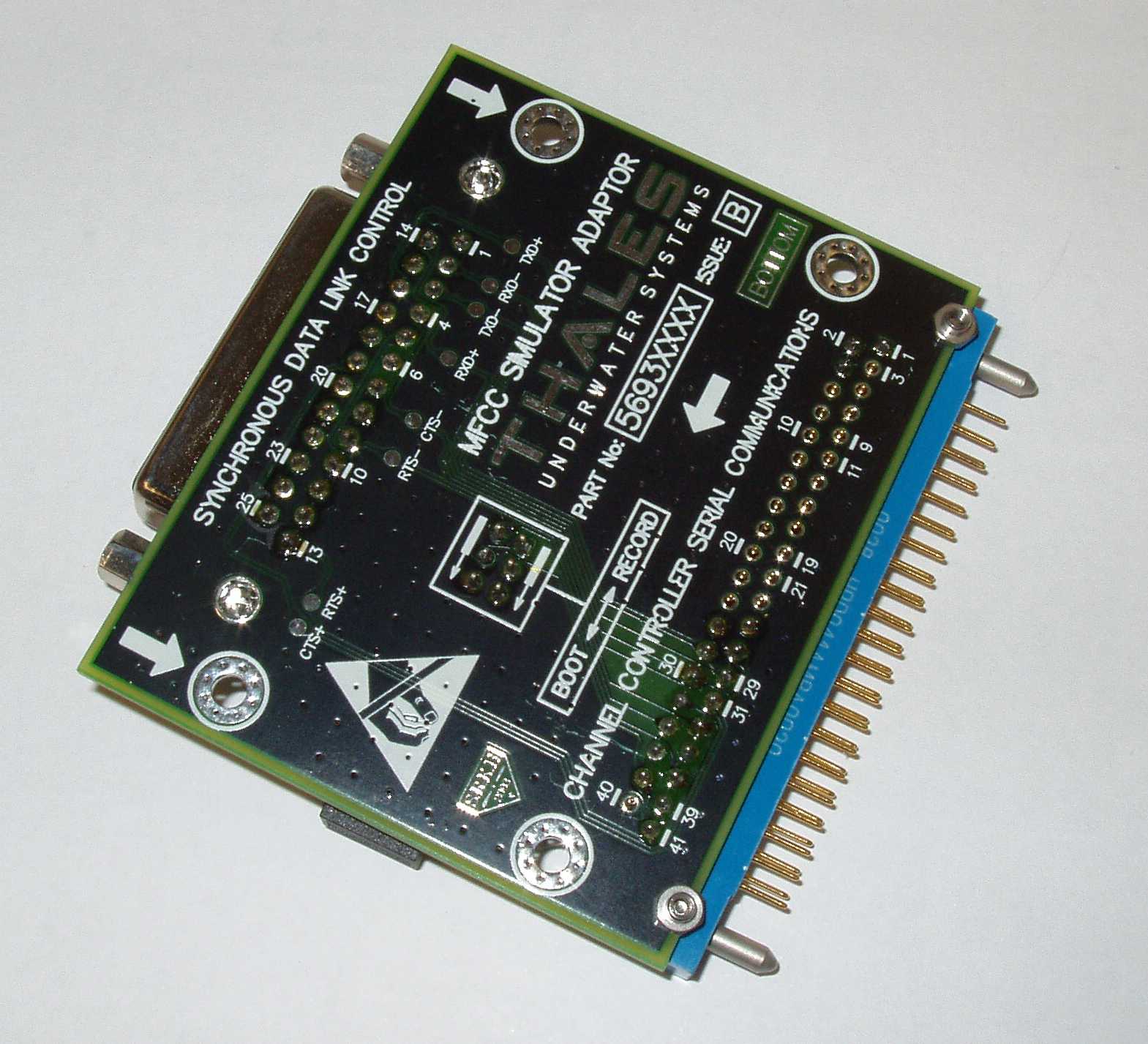

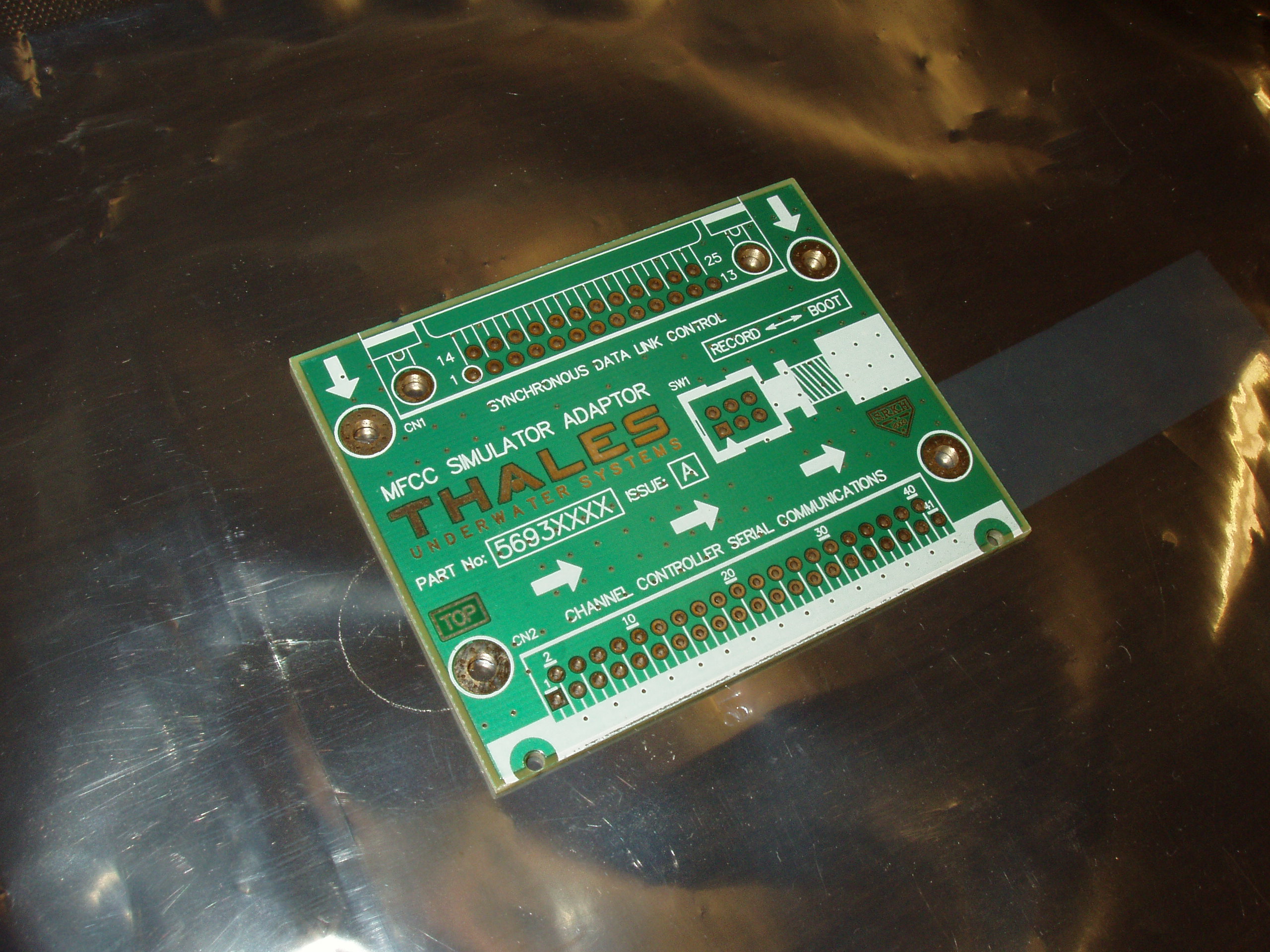

SIM SWITCH
Assembly ID
MFCCSIM
Company
Function
Digital Simulator Multiplexer
Primary Device
None (Mechanical Devices Only)
Technology
8 track/8 space/30 via
PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR408
Design Compliance
IPC-A-600/IPC-6012
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
No
