Date of Design
2004
Product

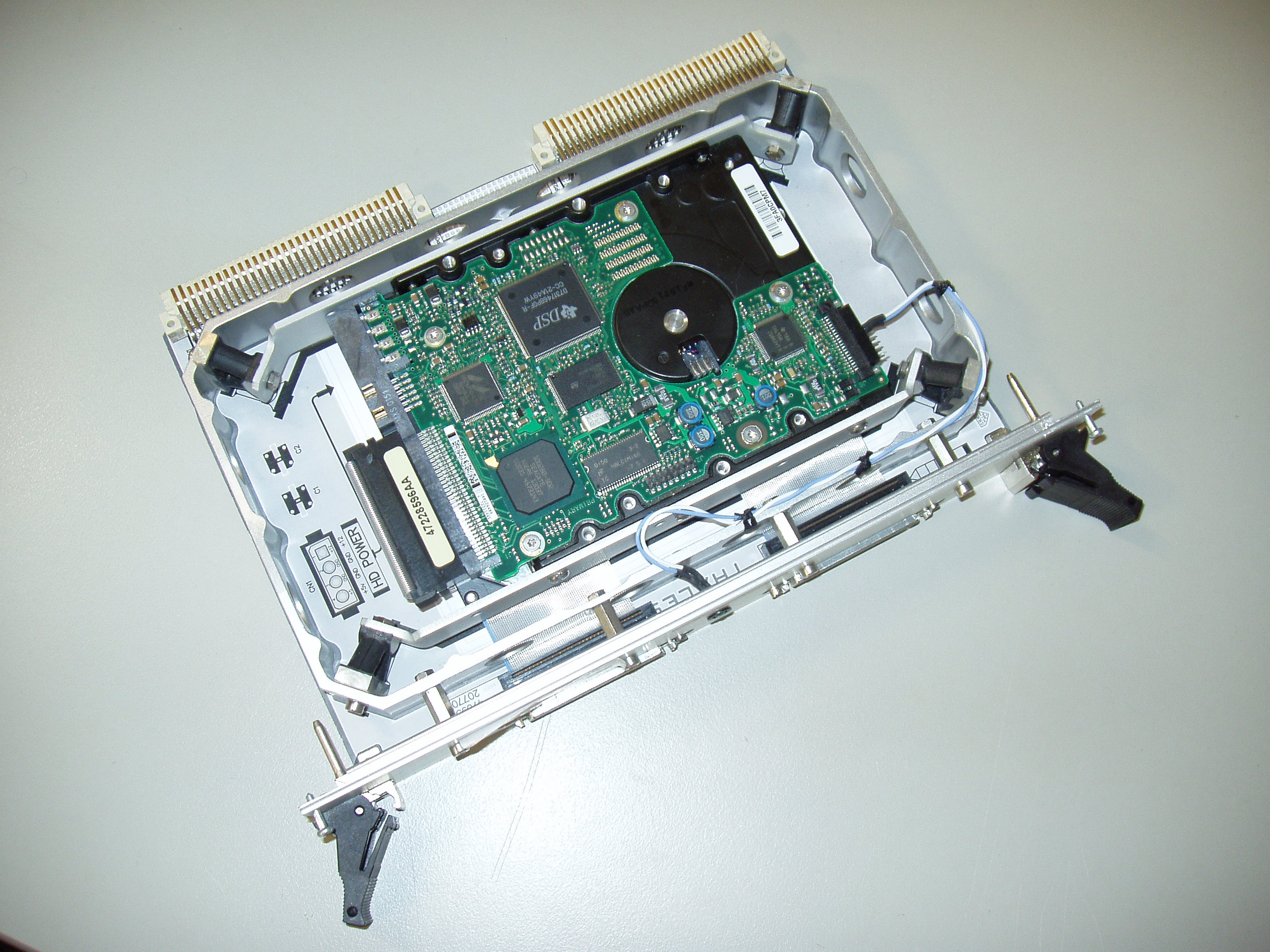

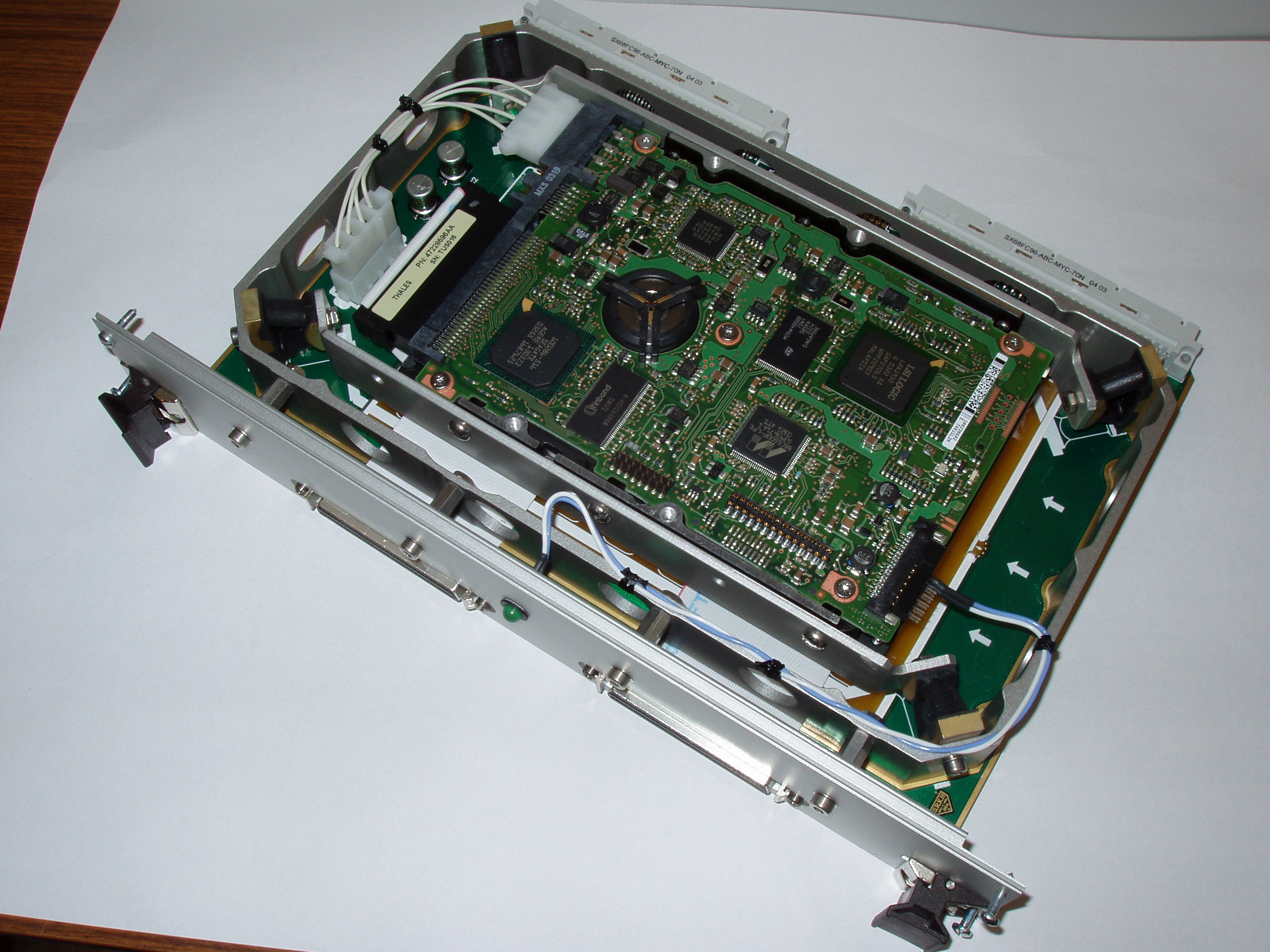

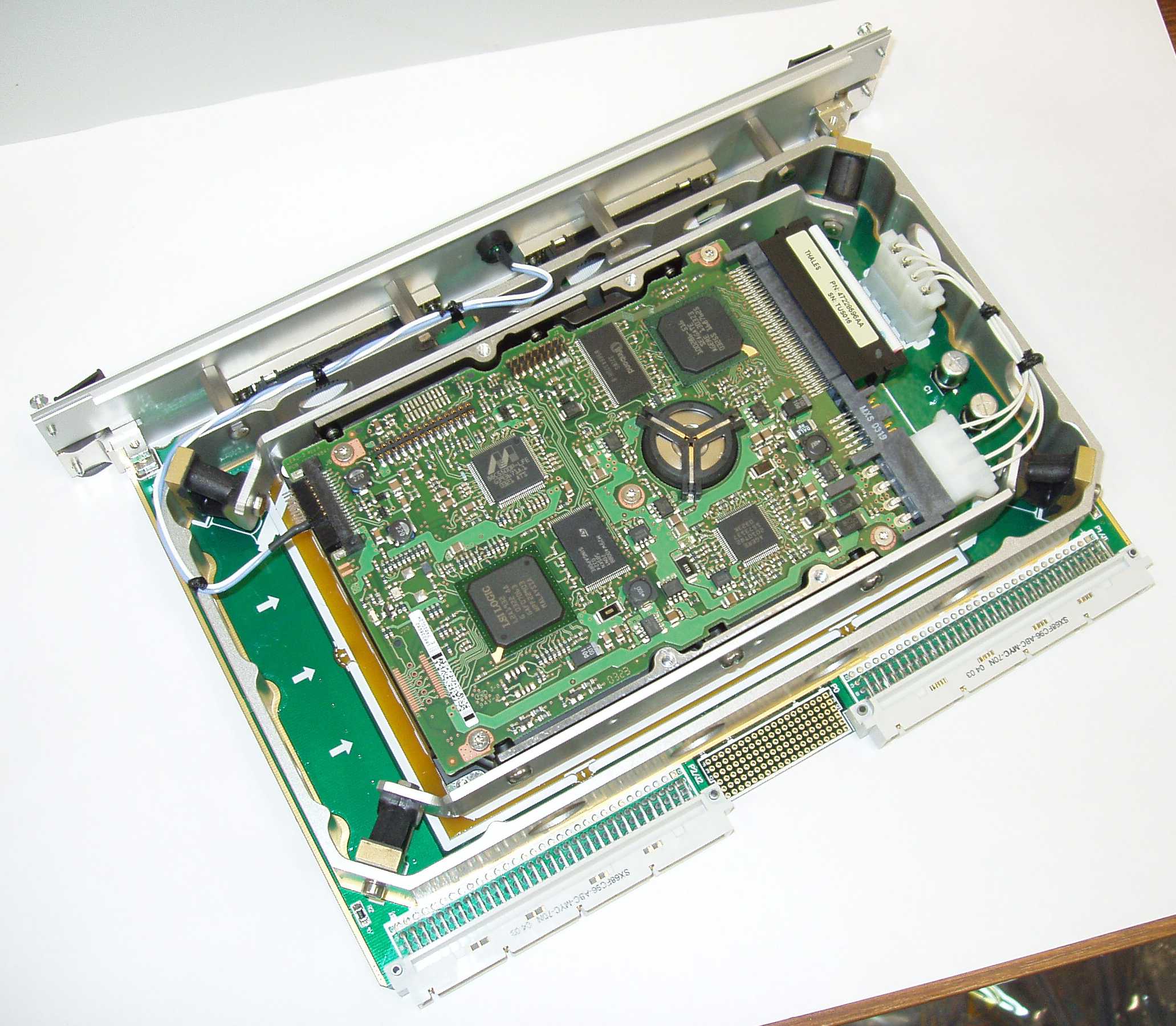

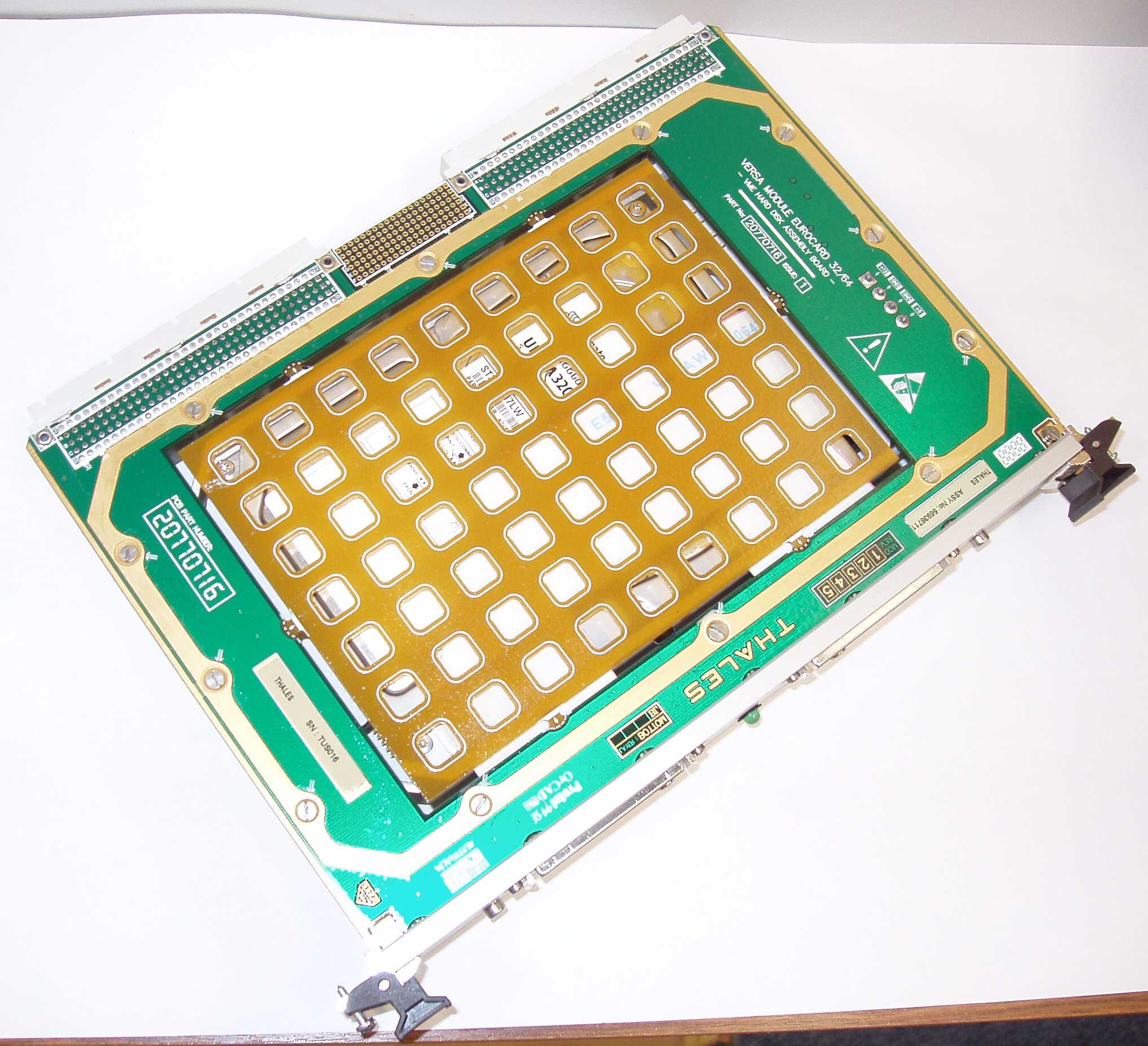

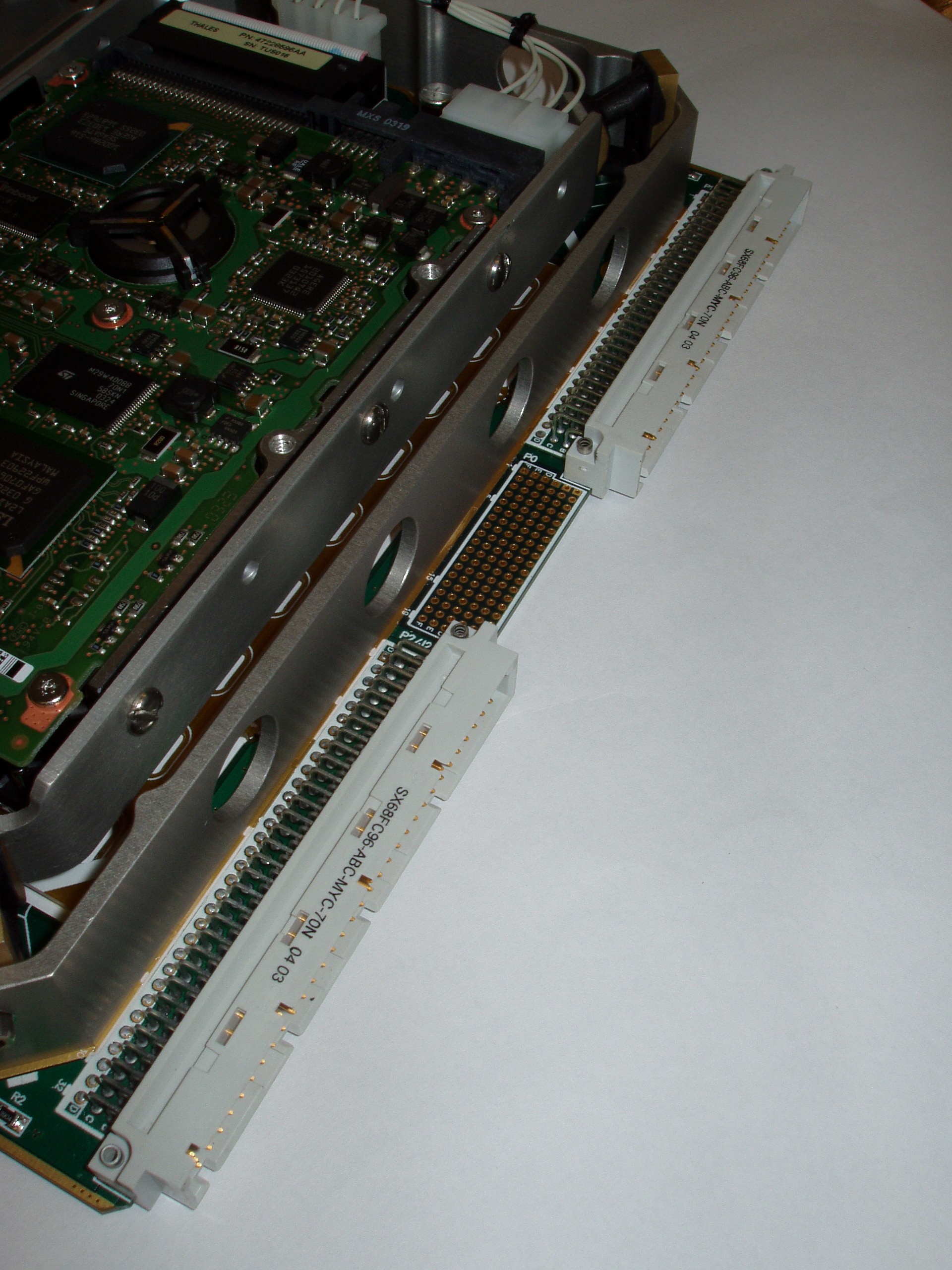

VME/VME64 SCSI HDA Board
Assembly ID
47095742
Company
Function
VME64 Mass Storage Card
Primary Device
None (Bus on J0)
Technology
8 track/8 space/28 via
PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR408
Contract Manufacturer
IPC-A-600/IPC-6012
Manufacturer
ENTECH Circuits (SA)
CAD Application
Protel 99SE
Prototype Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
