Date of Design
2004
Product

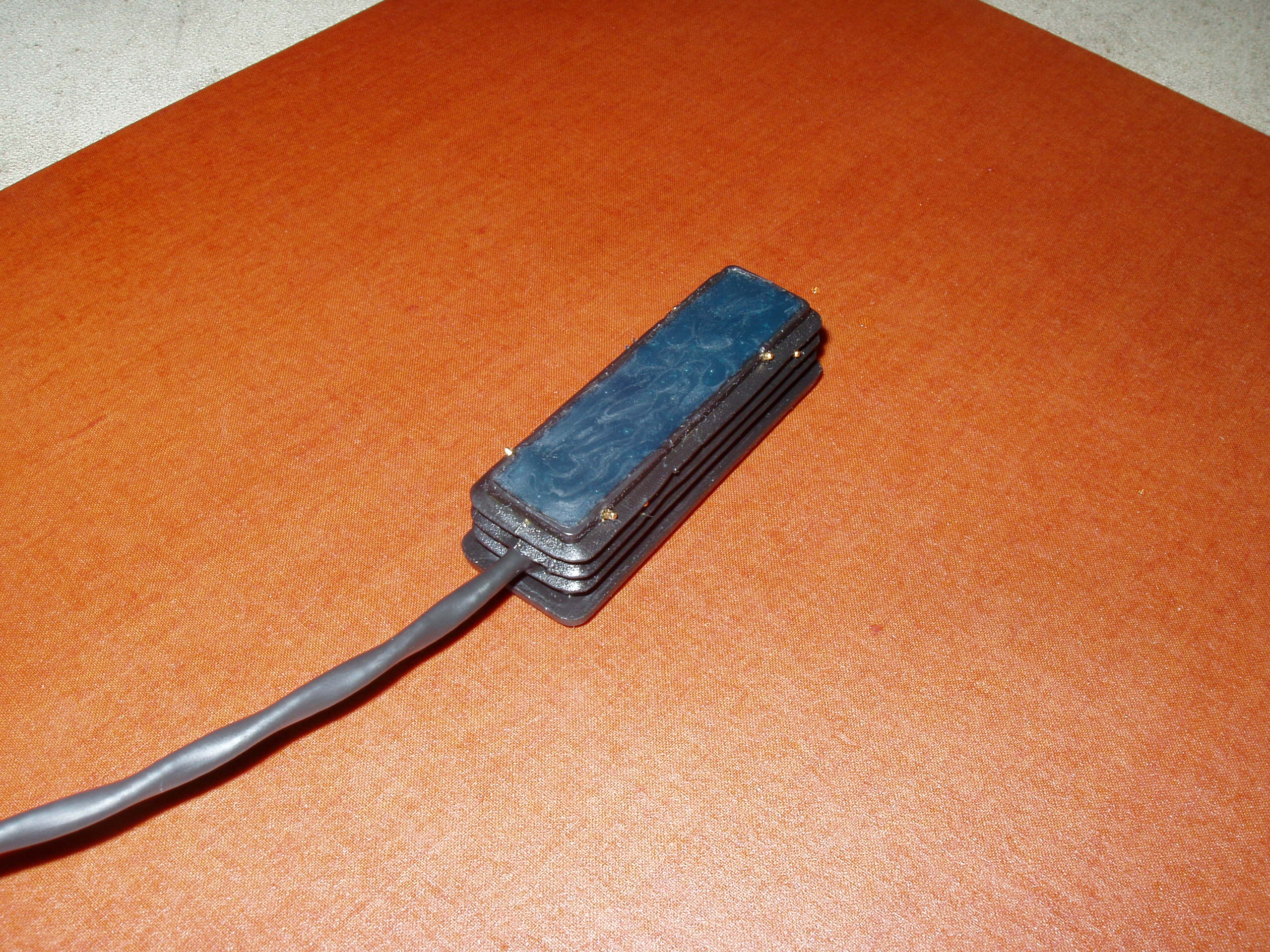

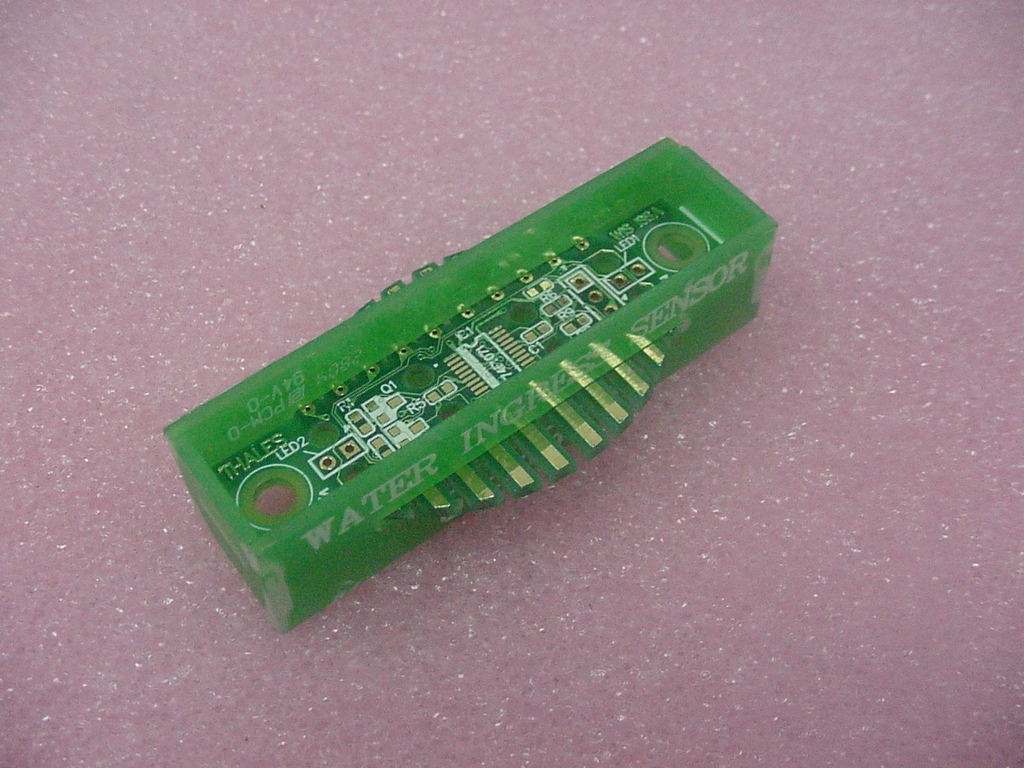

Water Ingress Sensor
Assembly ID
5693xxxx
Company
Function

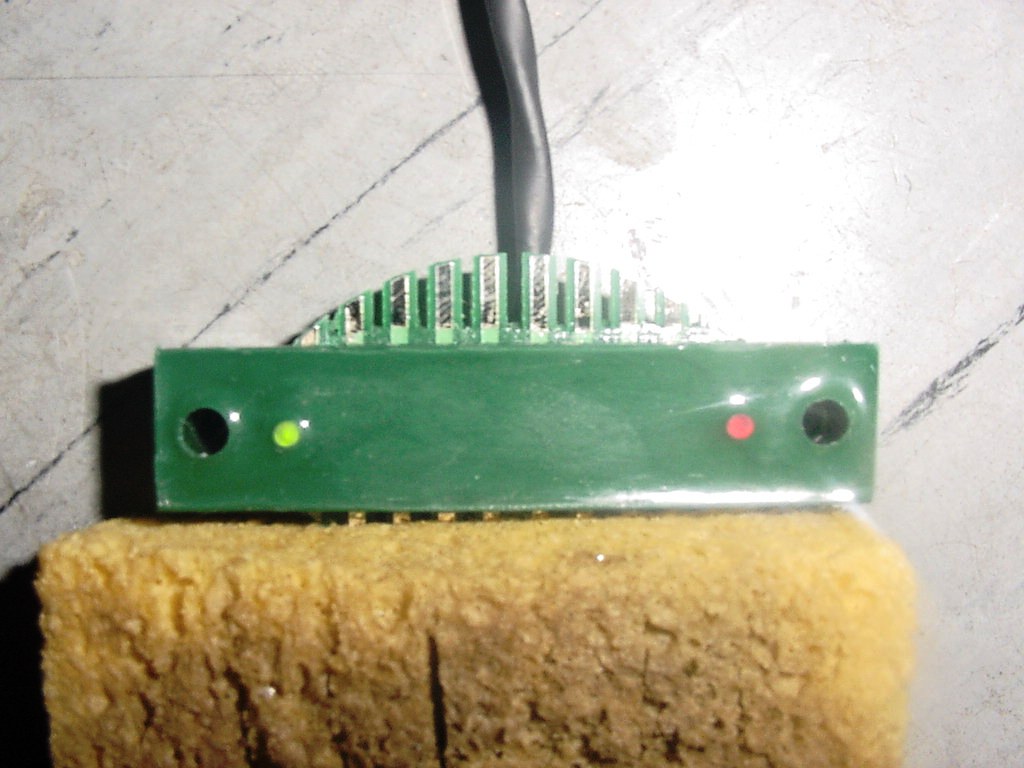

Detection of Water Ingress
Primary Device
FDN359 + NC7S02M5
Technology
6 track/6 space/28 via

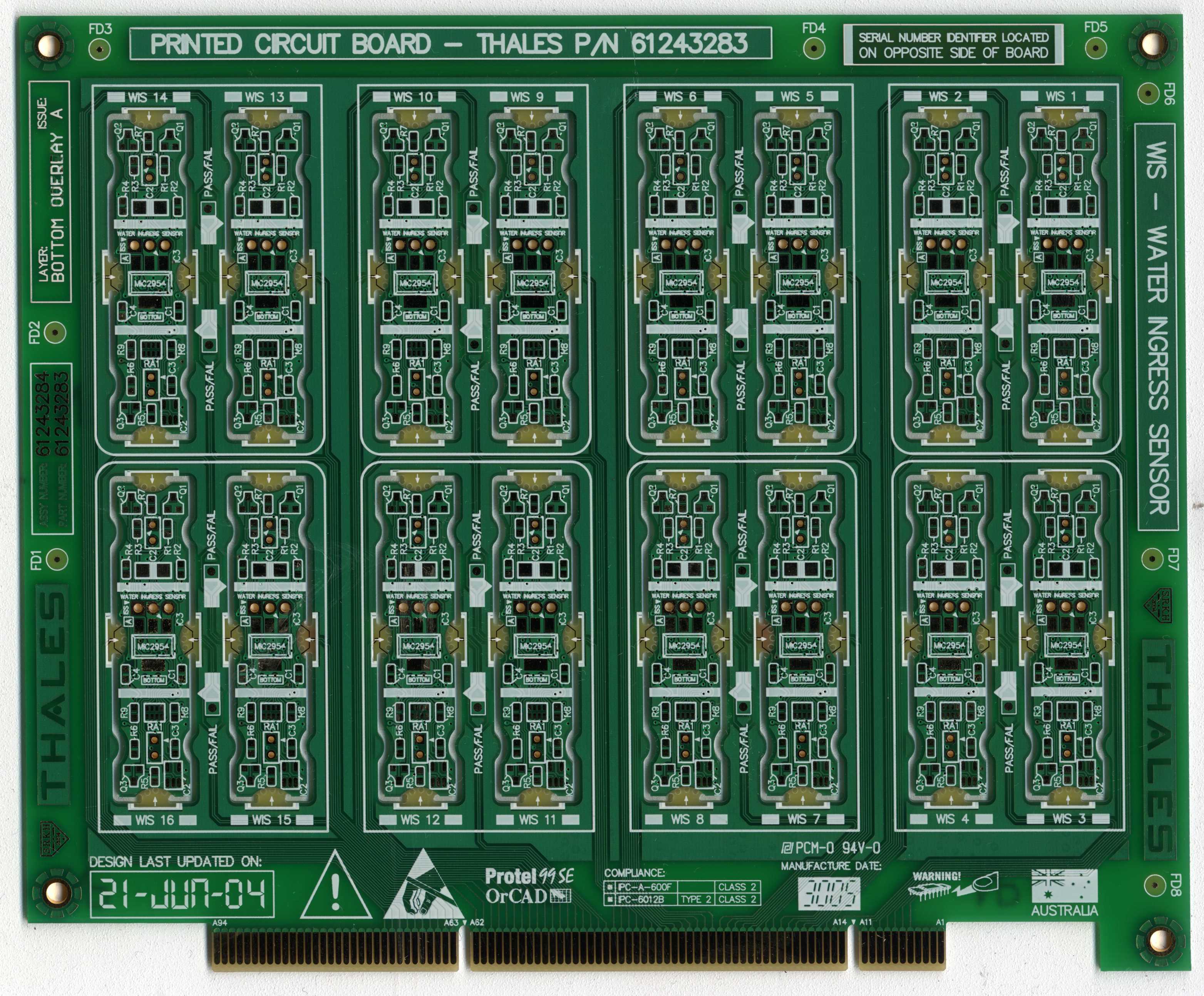

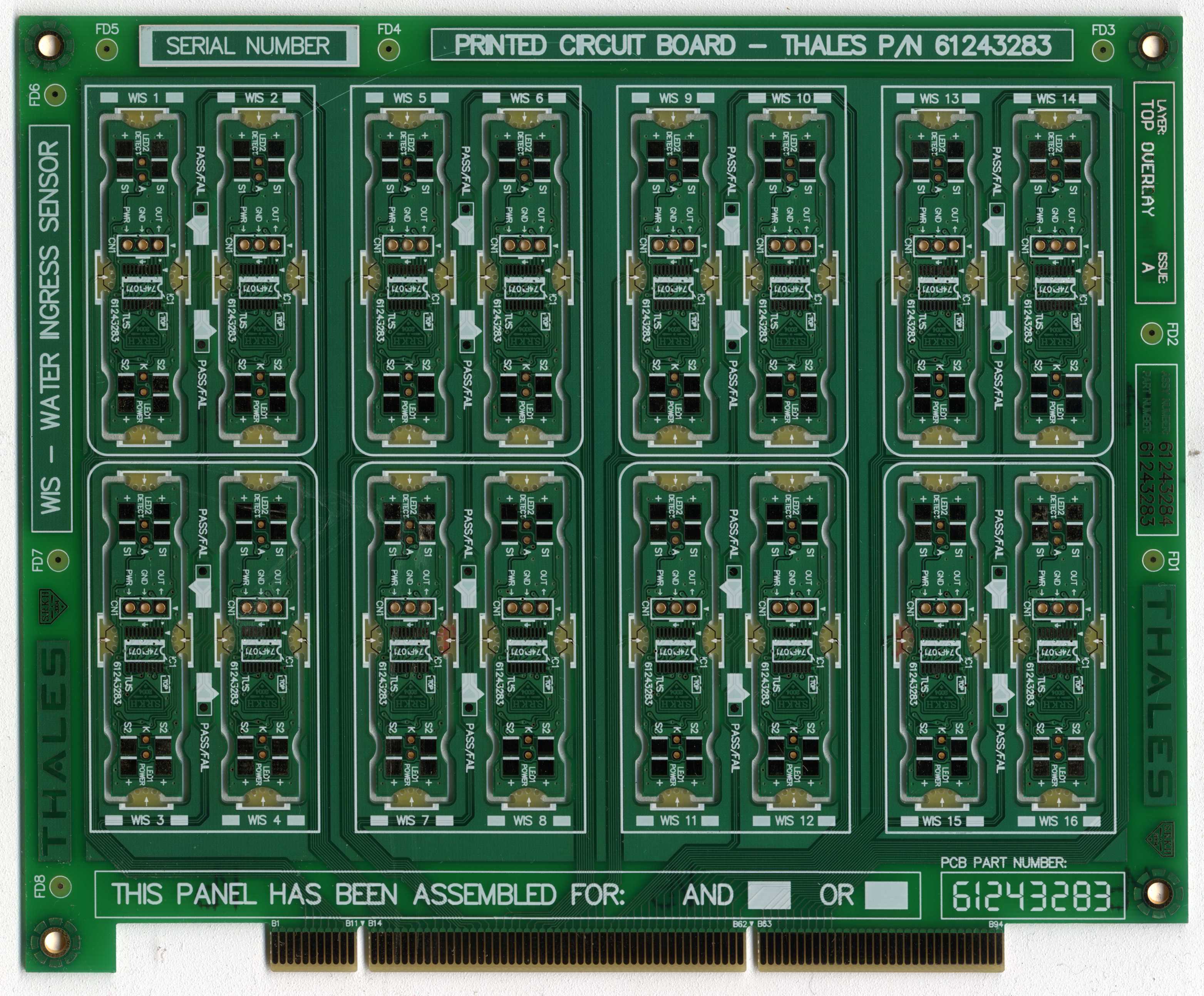

PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR408
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
Yes
