Date of Design
2011
Product

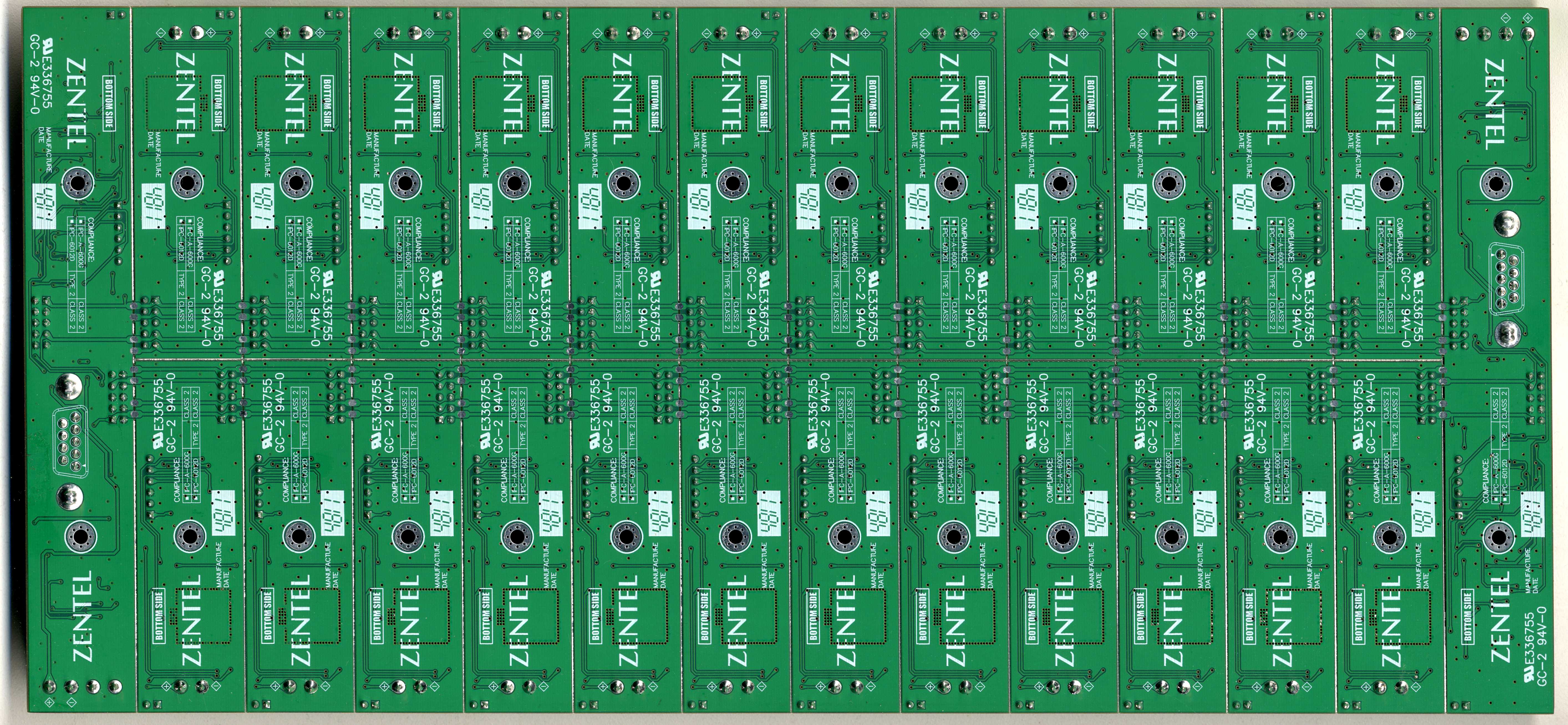

Battery Management System
Assembly ID
BMS
Company
Function
Battery System for Aviation
Primary Device
PIC16F1824
Technology
12 track/10 space/30 via

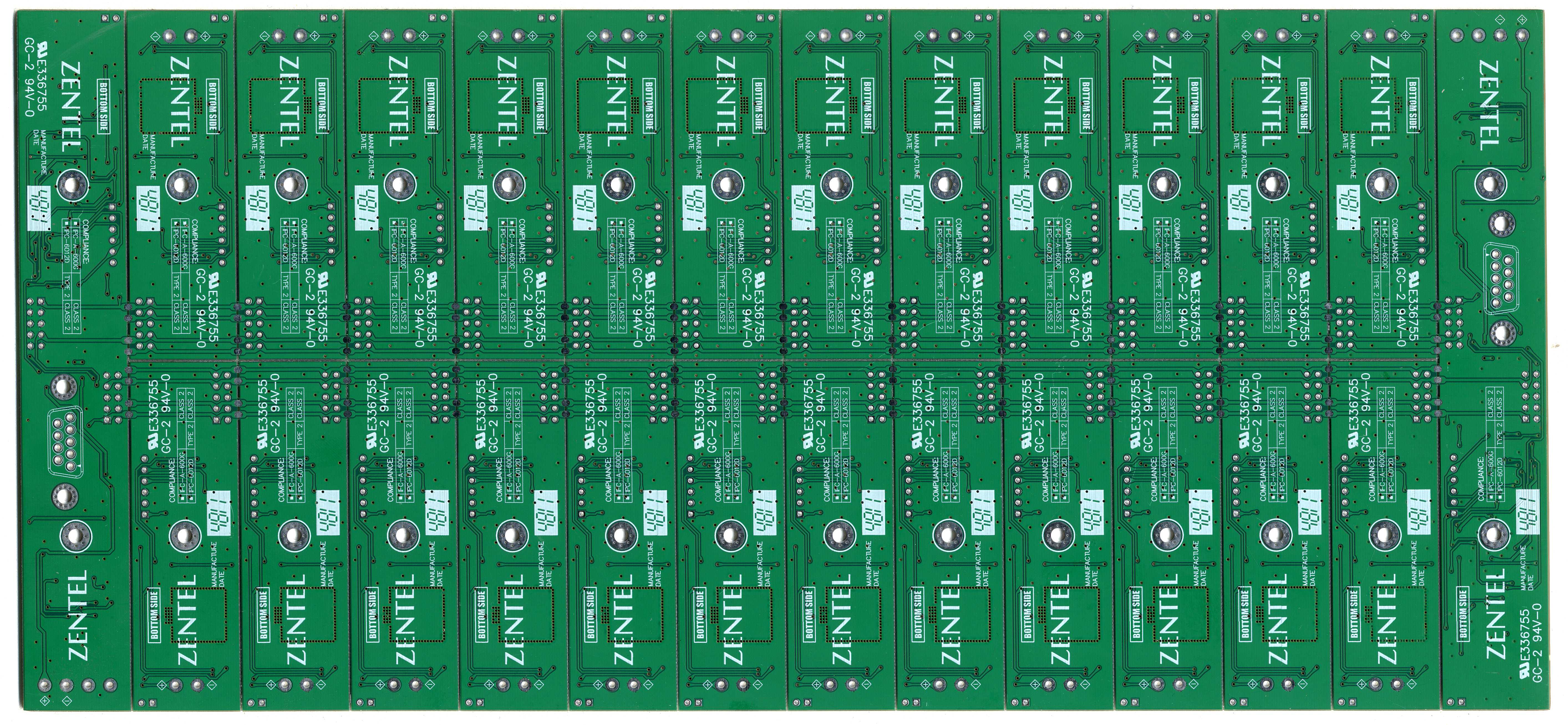

PCB Build Specification
2 Layer, 1/2oz, MASK, HASL, FR4
Design Compliance

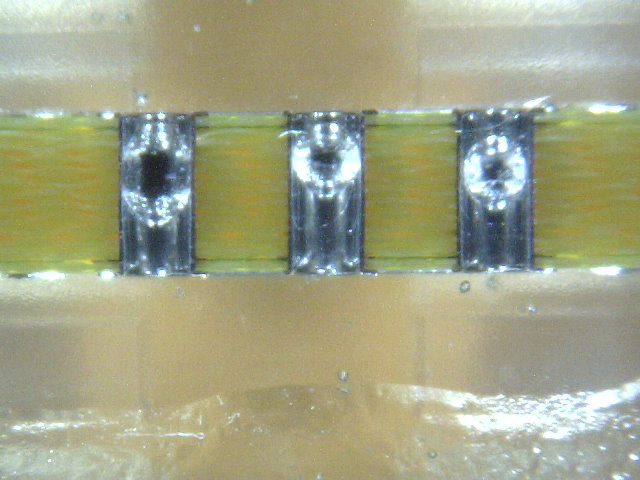

IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCB Cart (CHINA)
CAD Application
Altium Designer R10
Prototype Availability
No
Downloads
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
