Date of Design
2011
Product

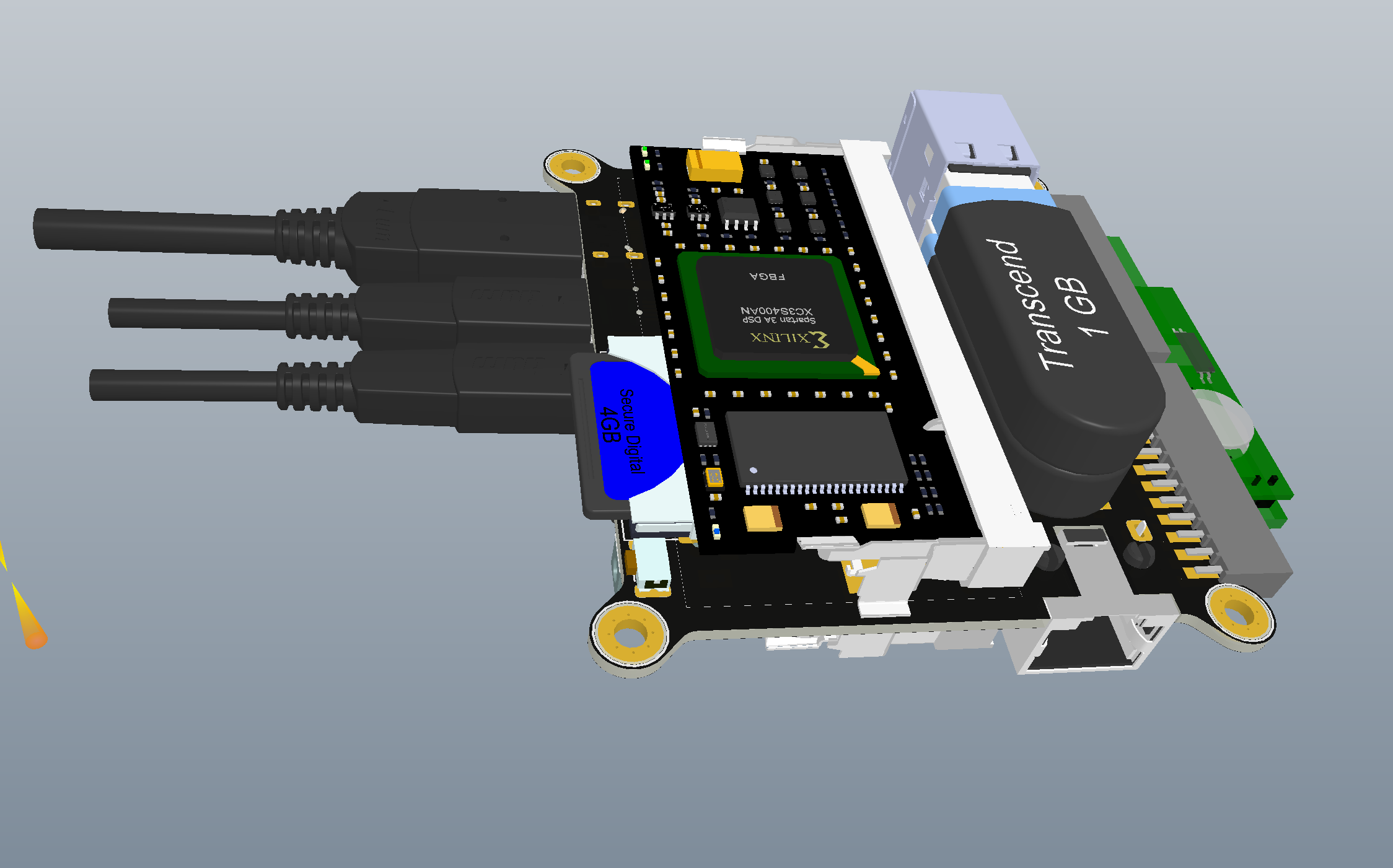

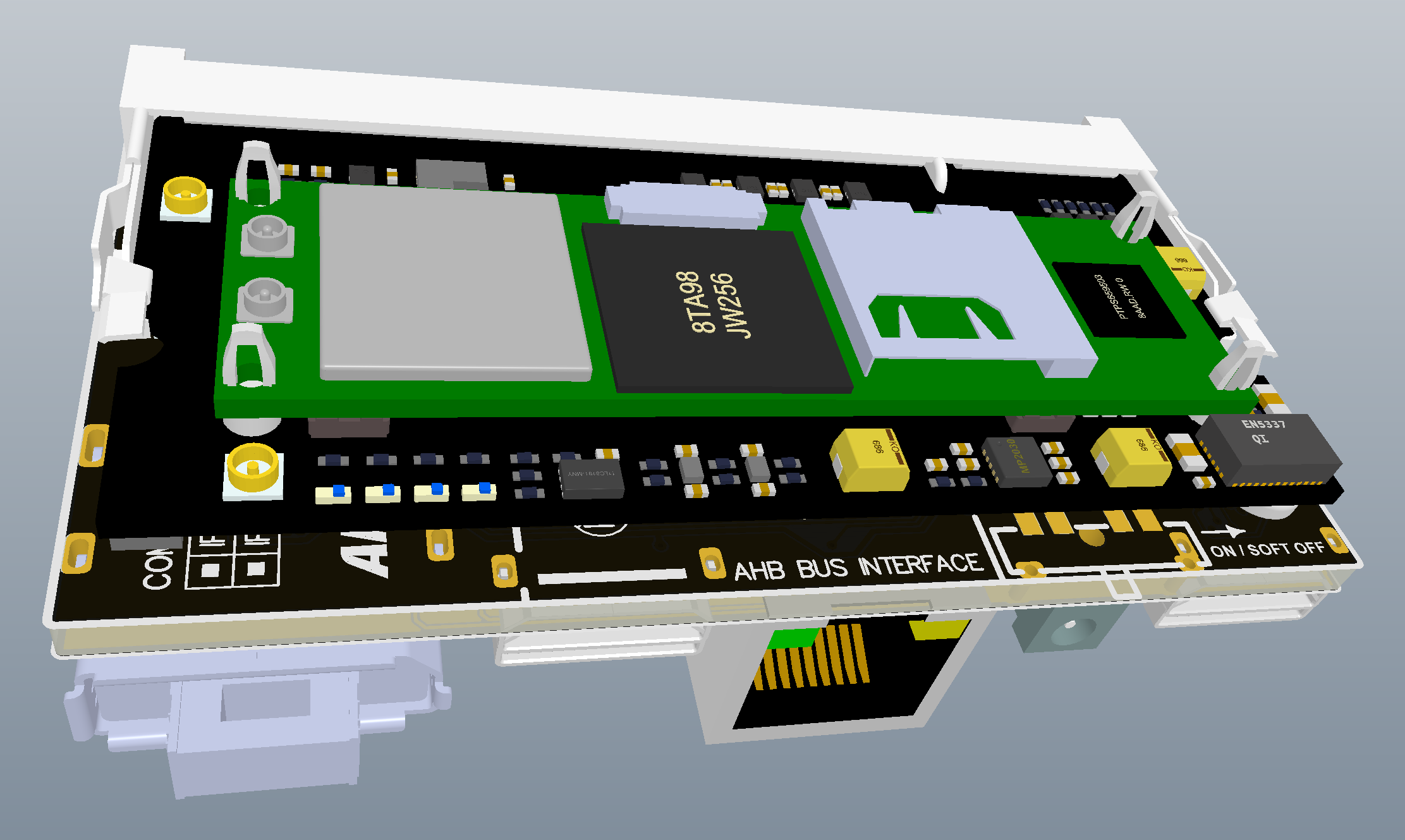

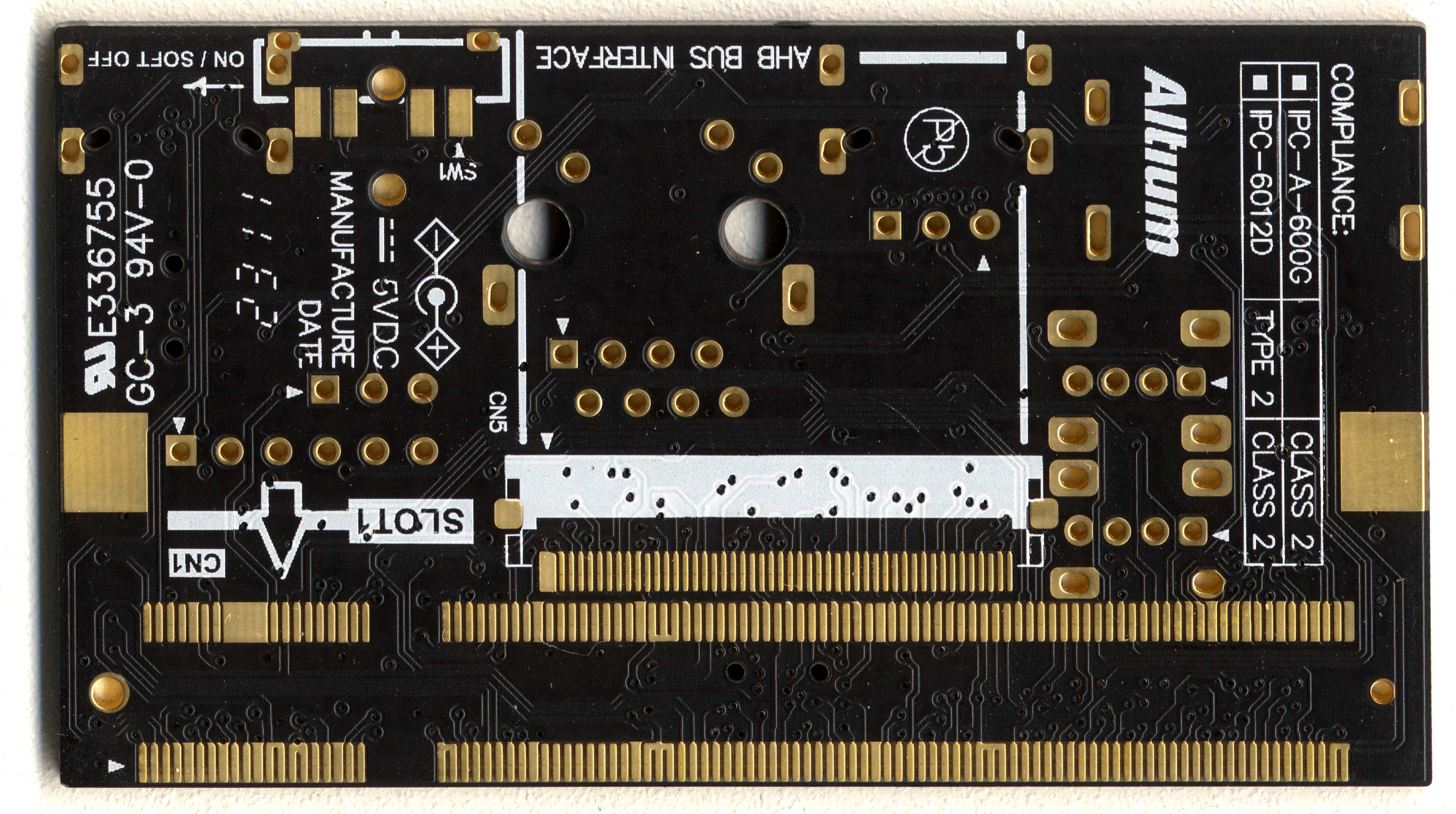

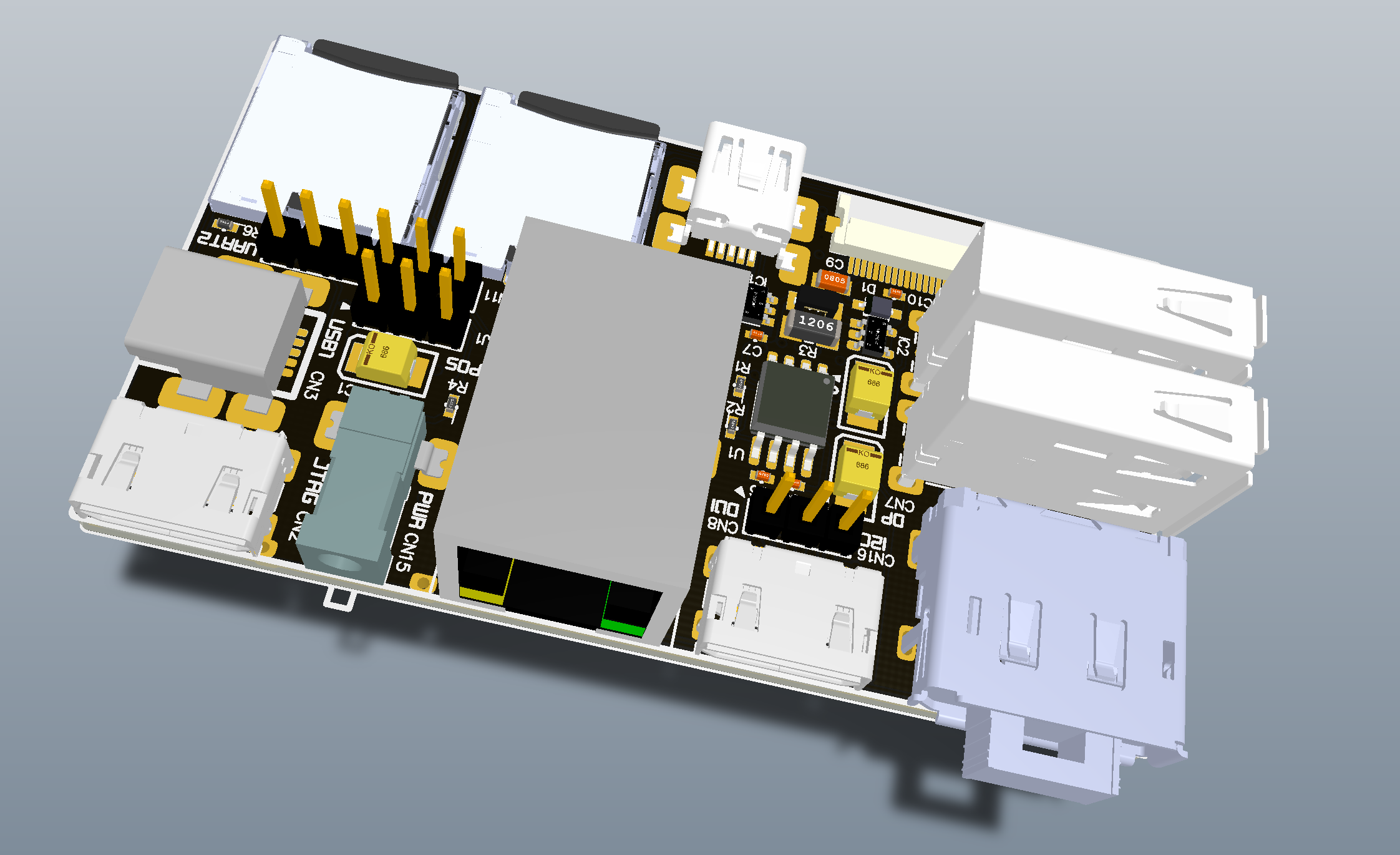

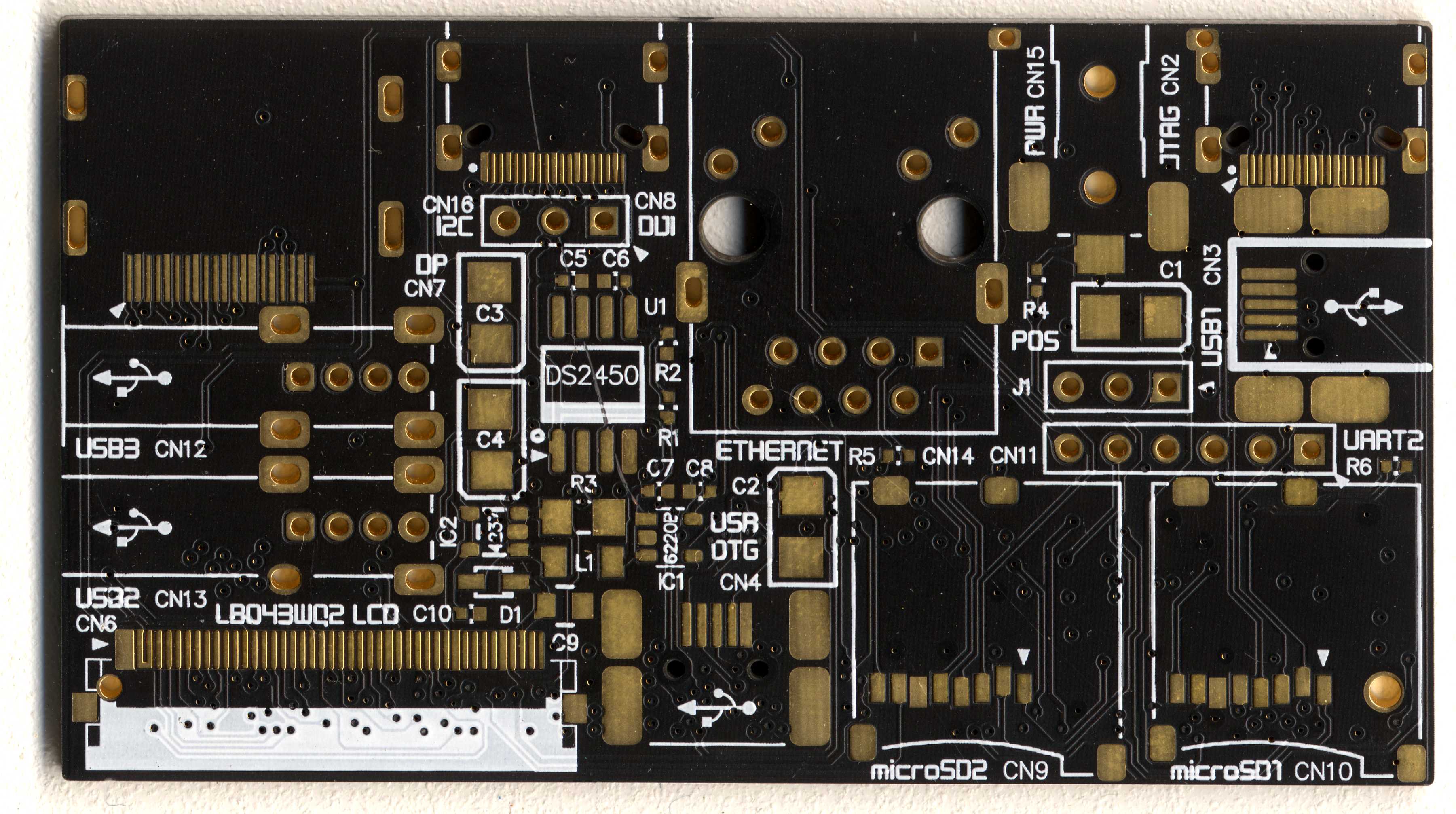

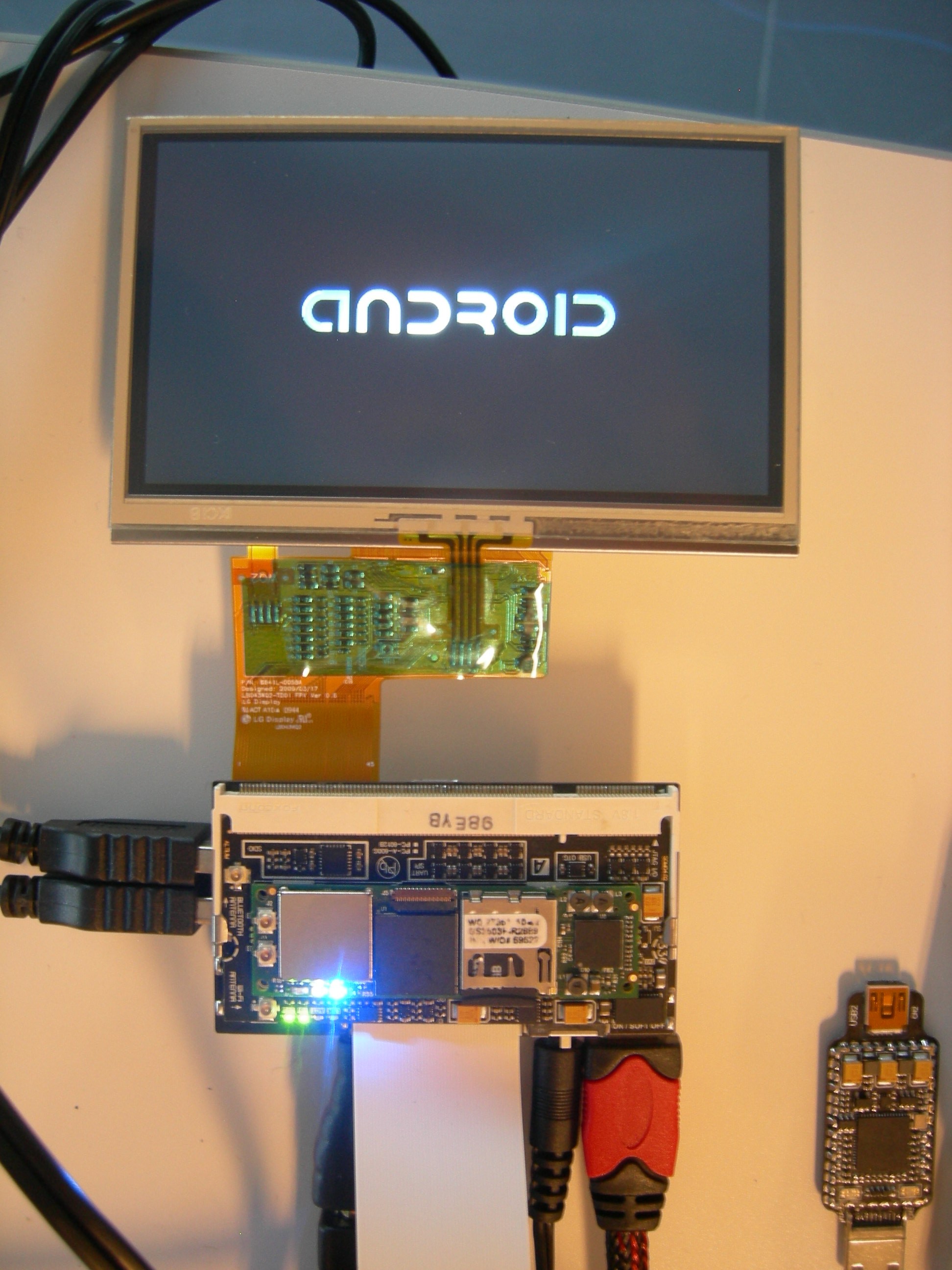

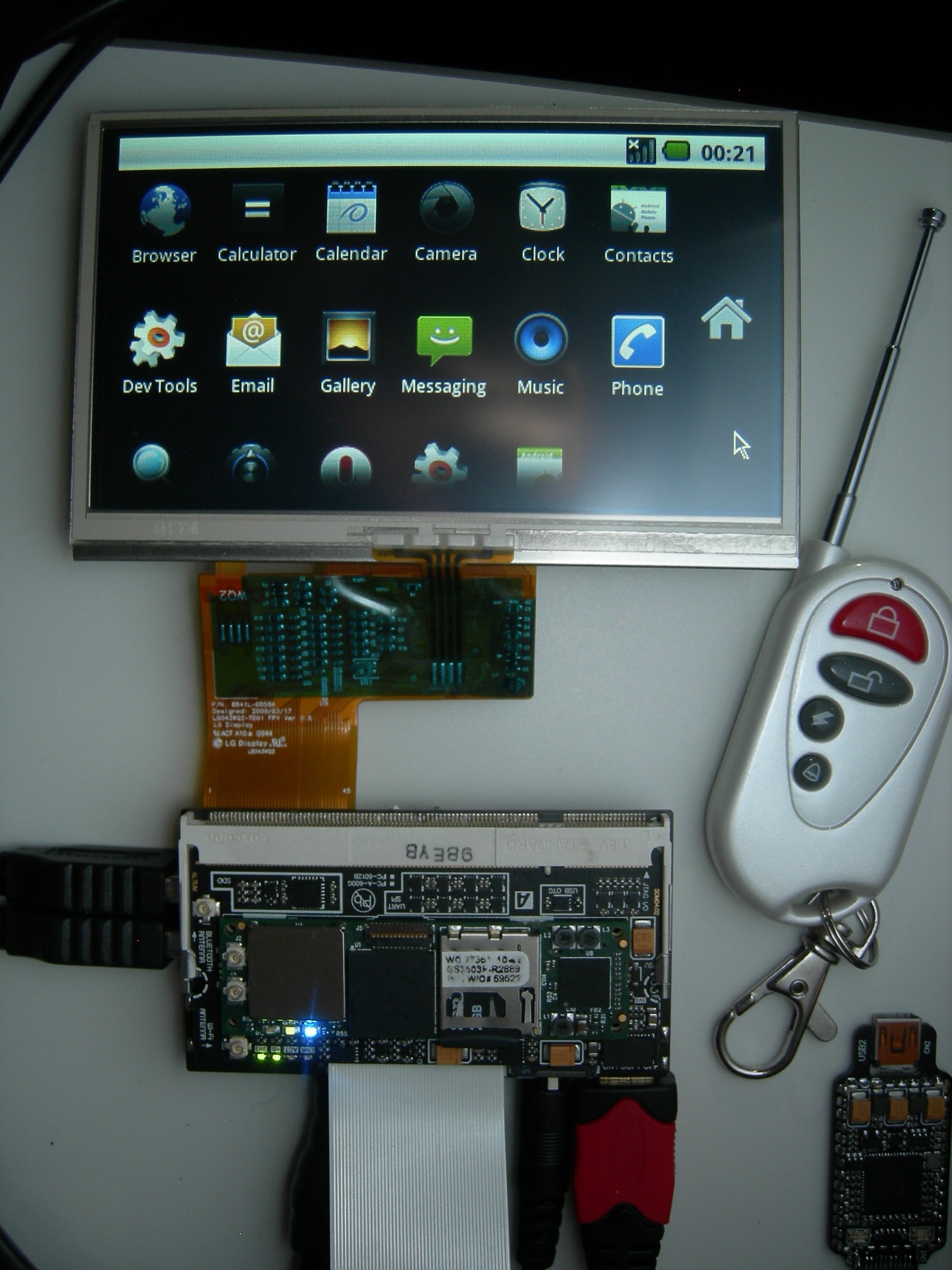

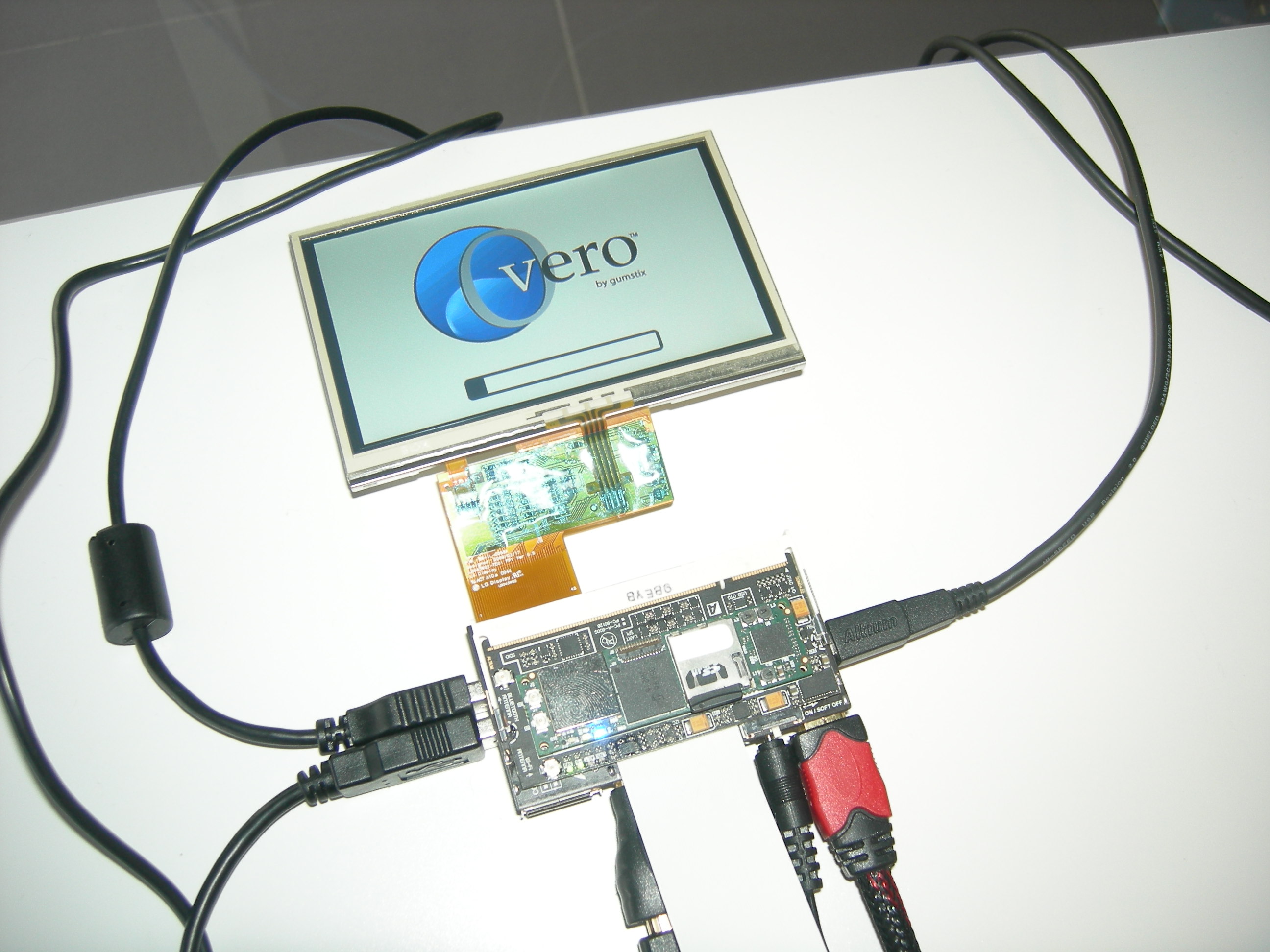

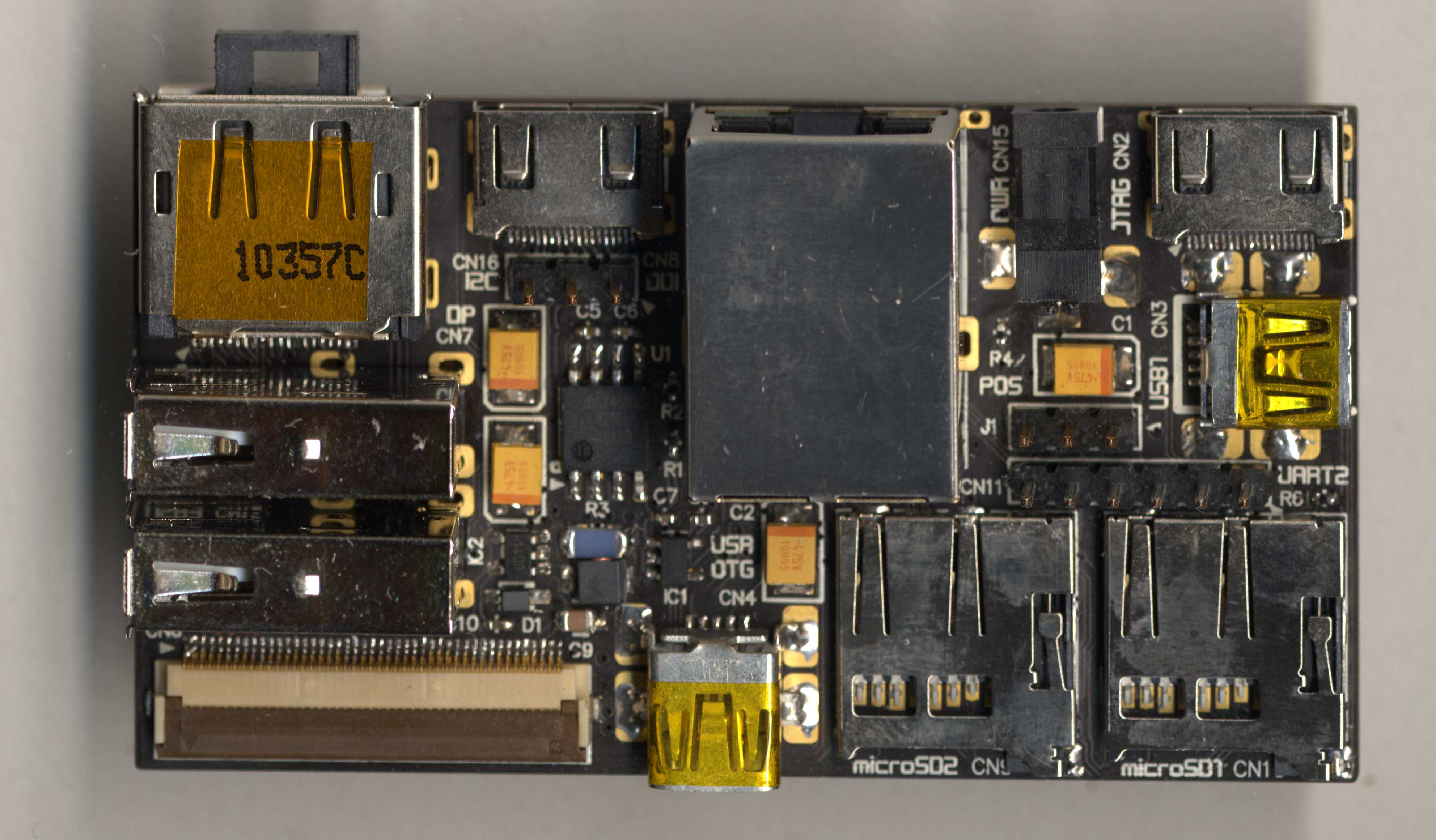

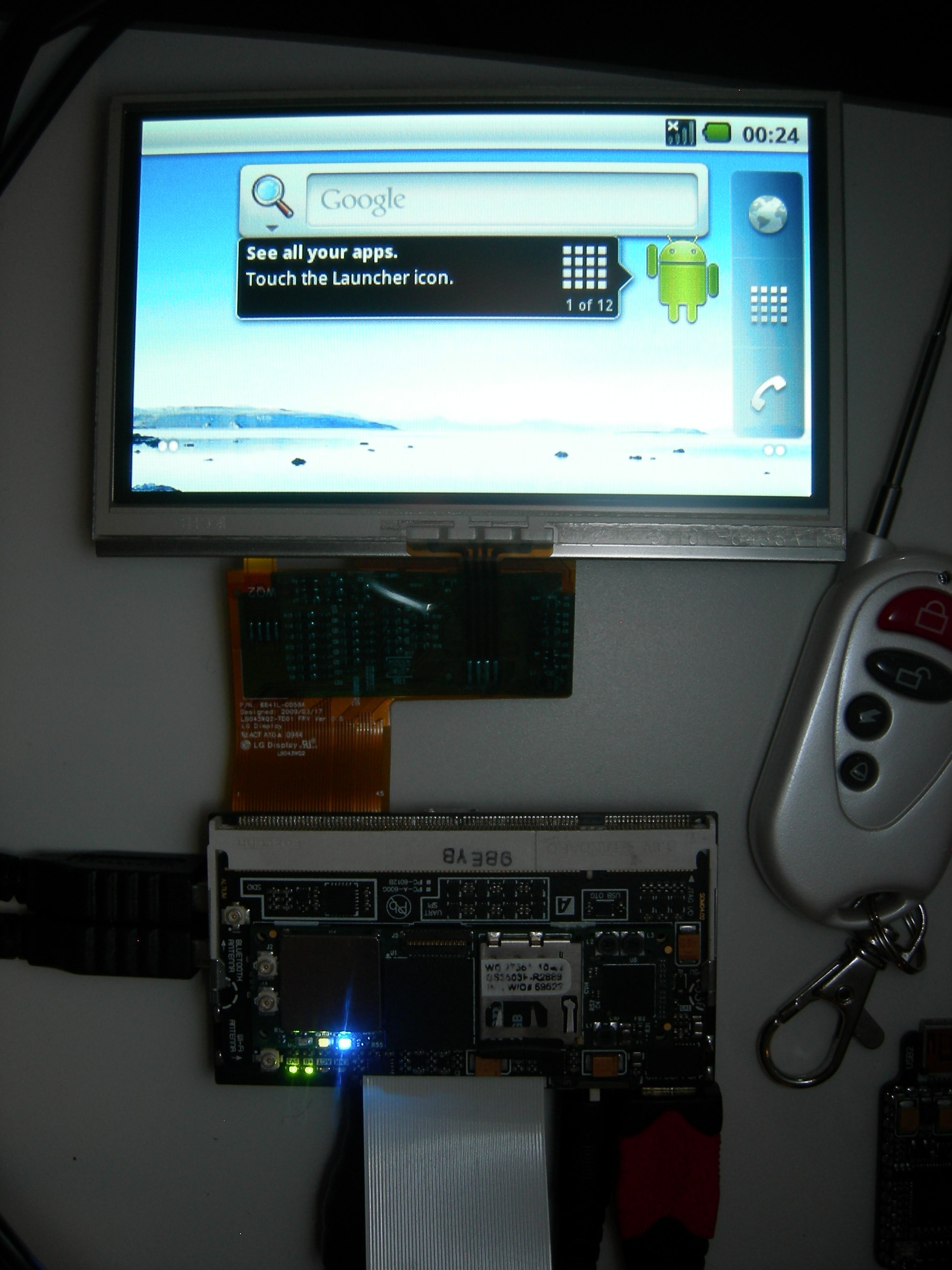

Carrier Board for SOM Systems
Assembly ID
TCB01
Company
Function

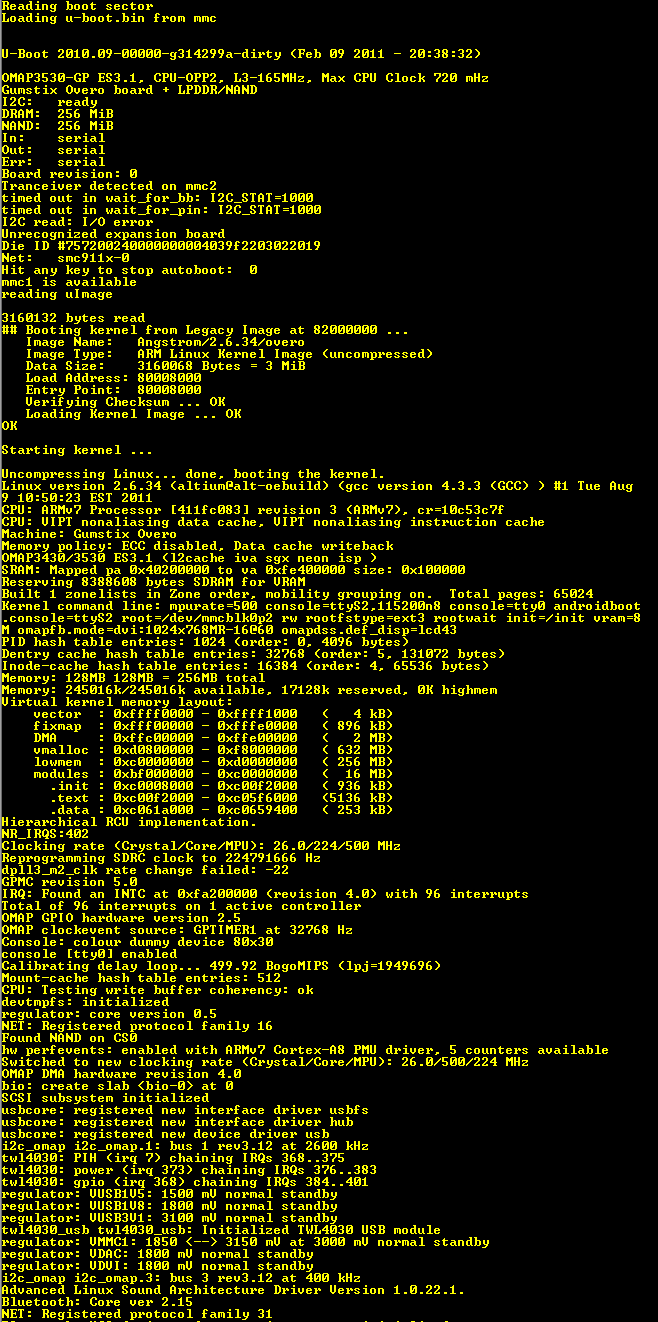

ARM CPU with FPGA SOM Carrier Bd
Primary Device
OMAP3530 ARM A8 + XC3S1600E FPGA
Technology
4 track/4 space/26 via
PCB Build Specification
2 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012
Contract Manufacturer
PCB Cart (CHINA)
CAD Application
Altium Designer R10
Prototype Availability
Yes
