Date of Design
2011
Product
Assembly ID
CBIIC
Company
Novasar
Function

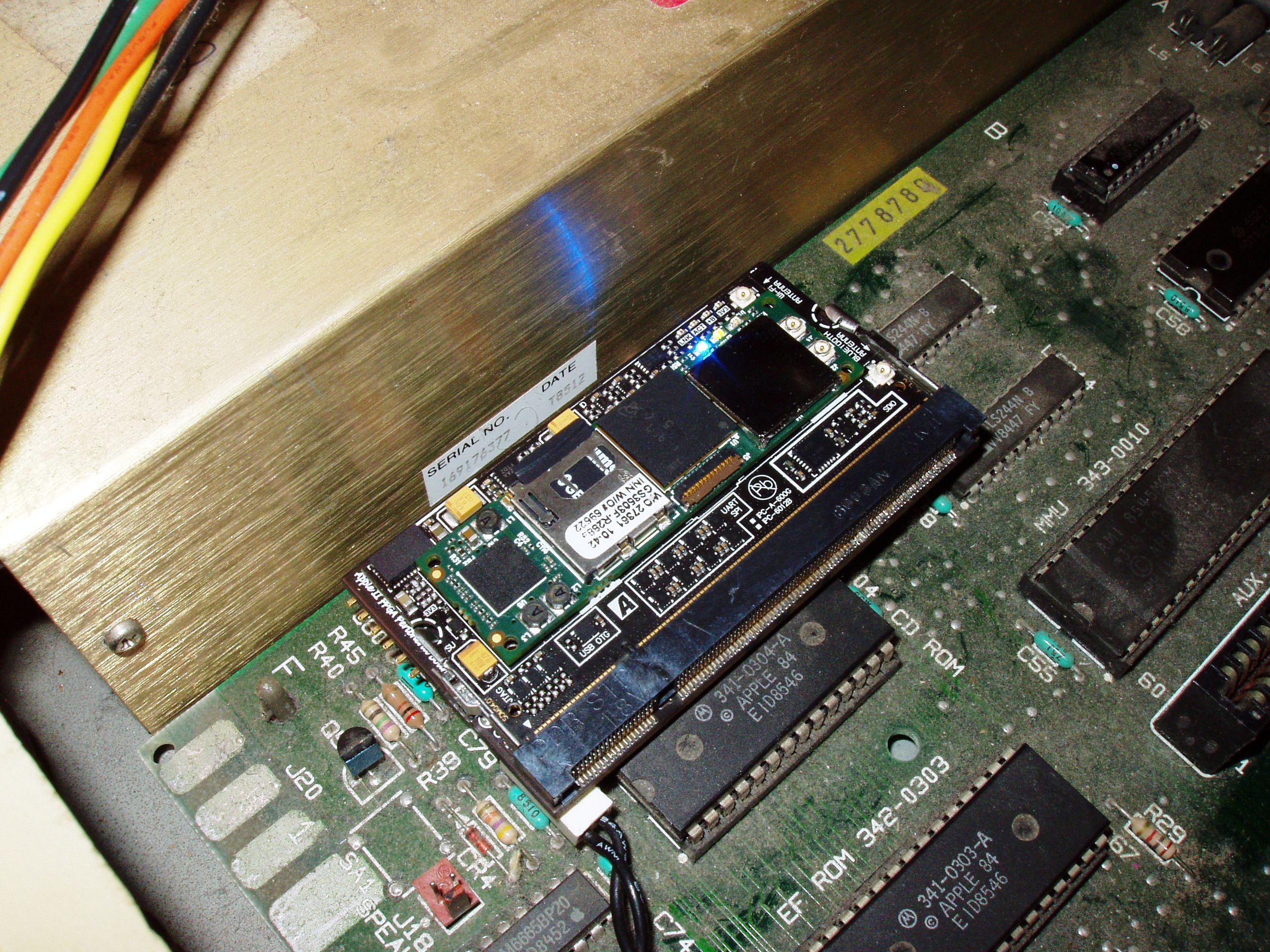

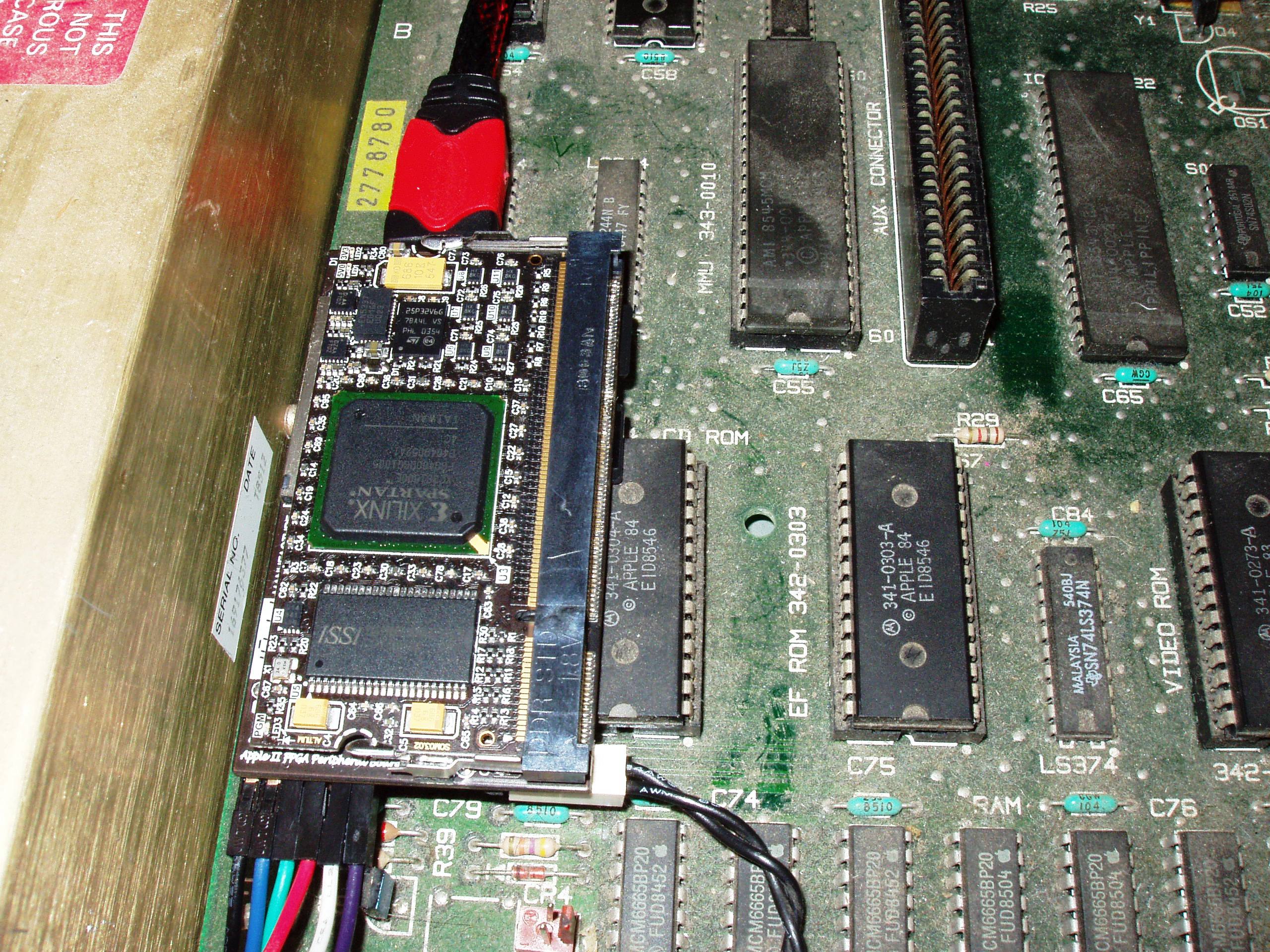

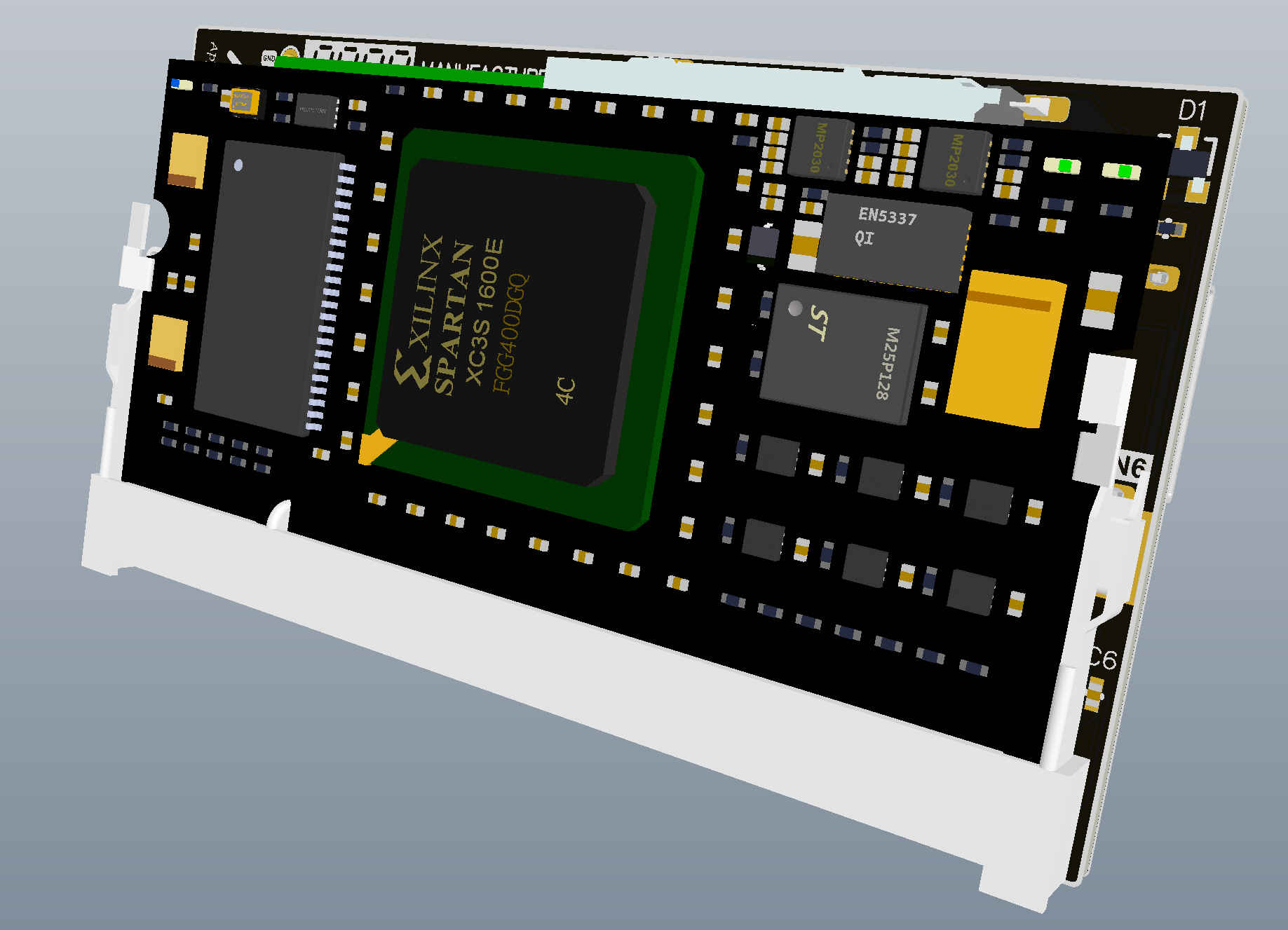

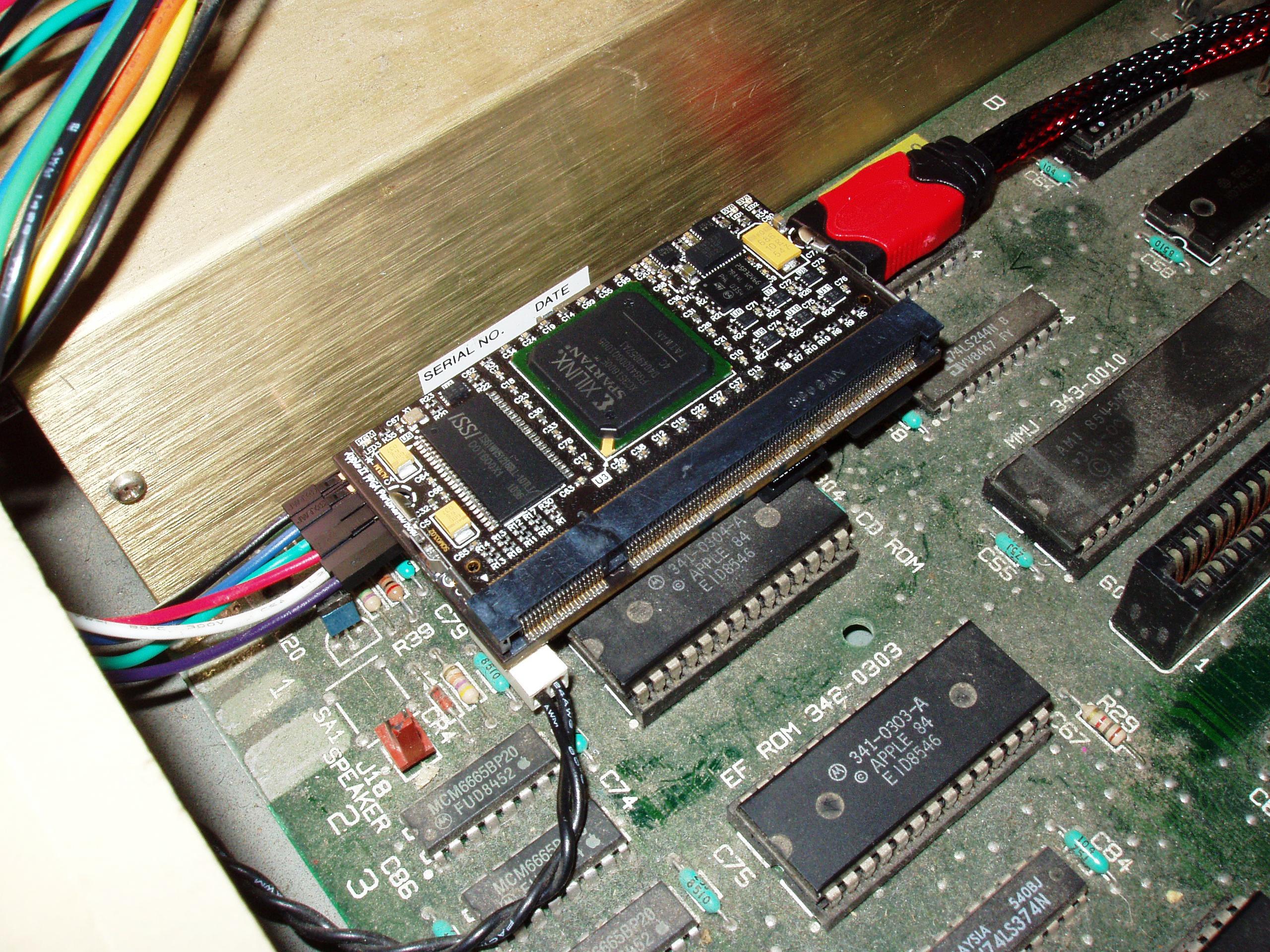

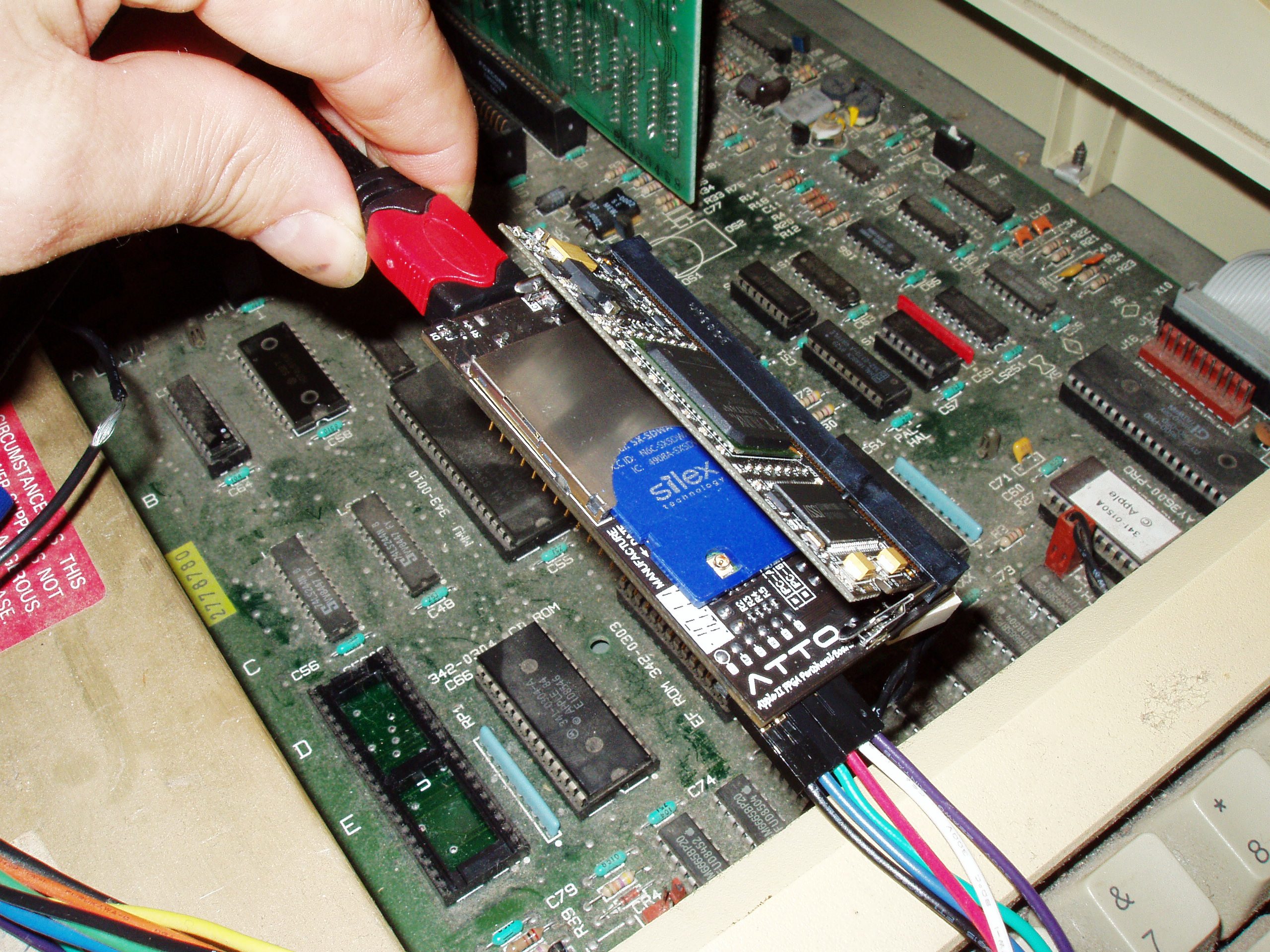

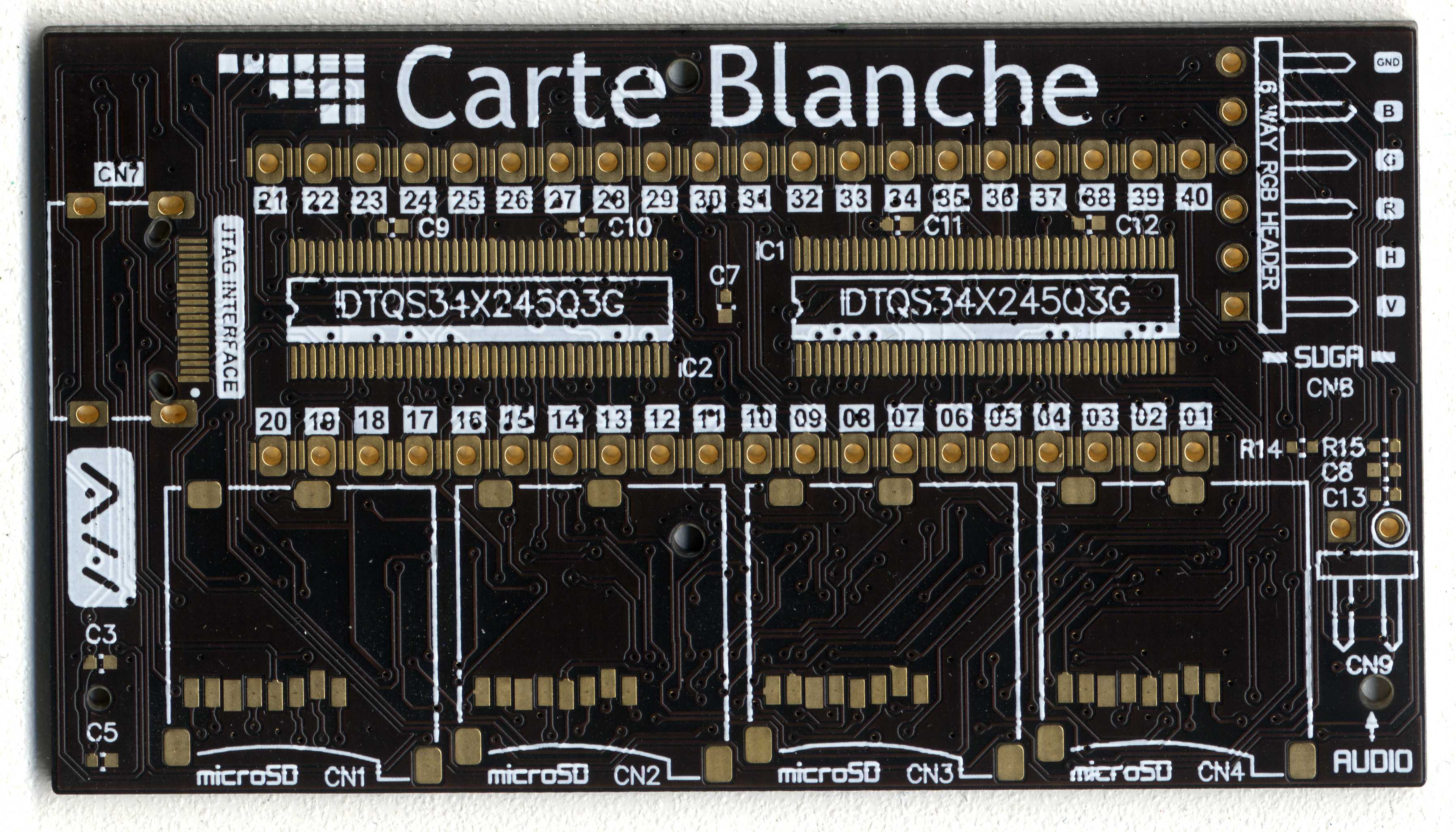

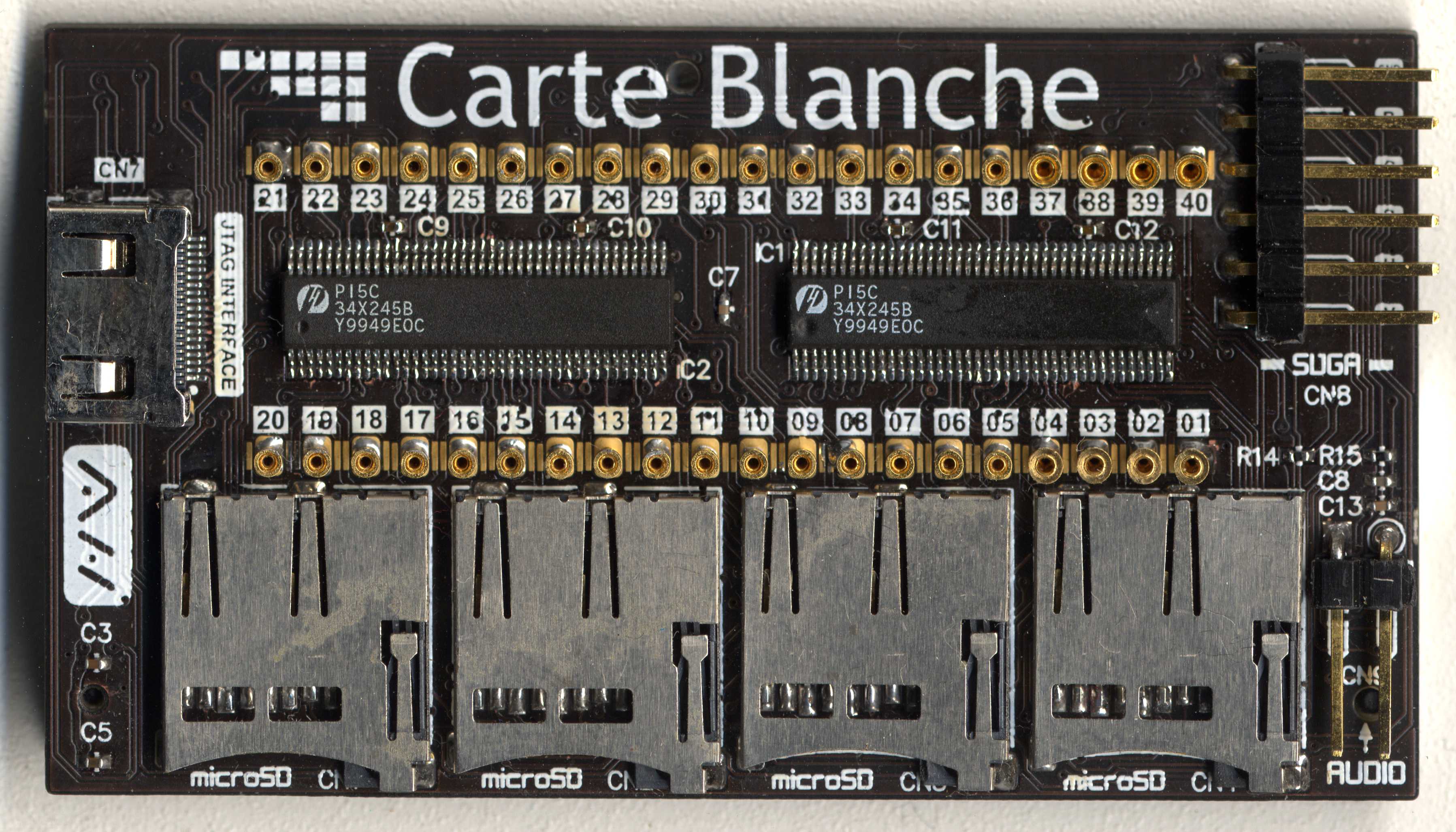

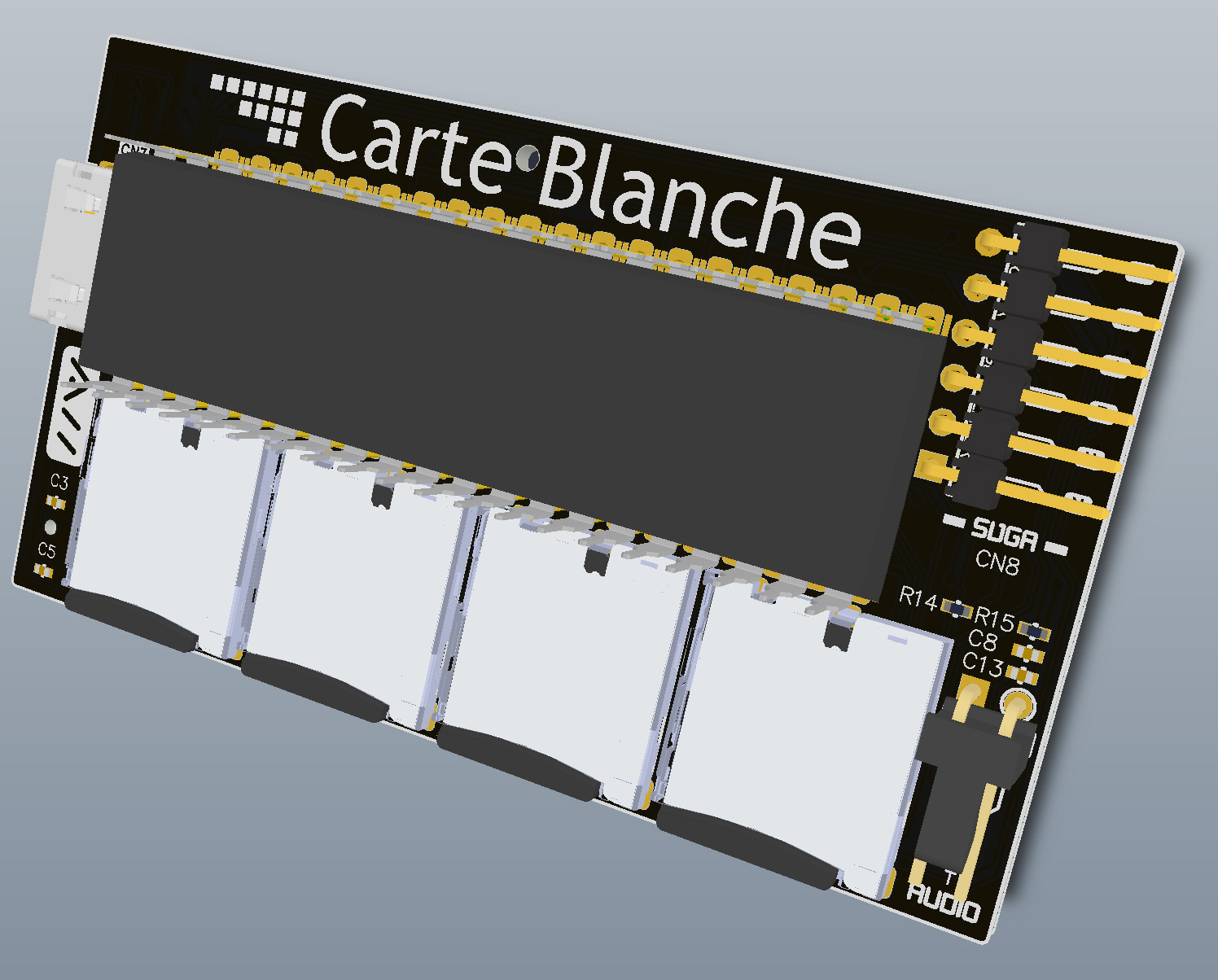

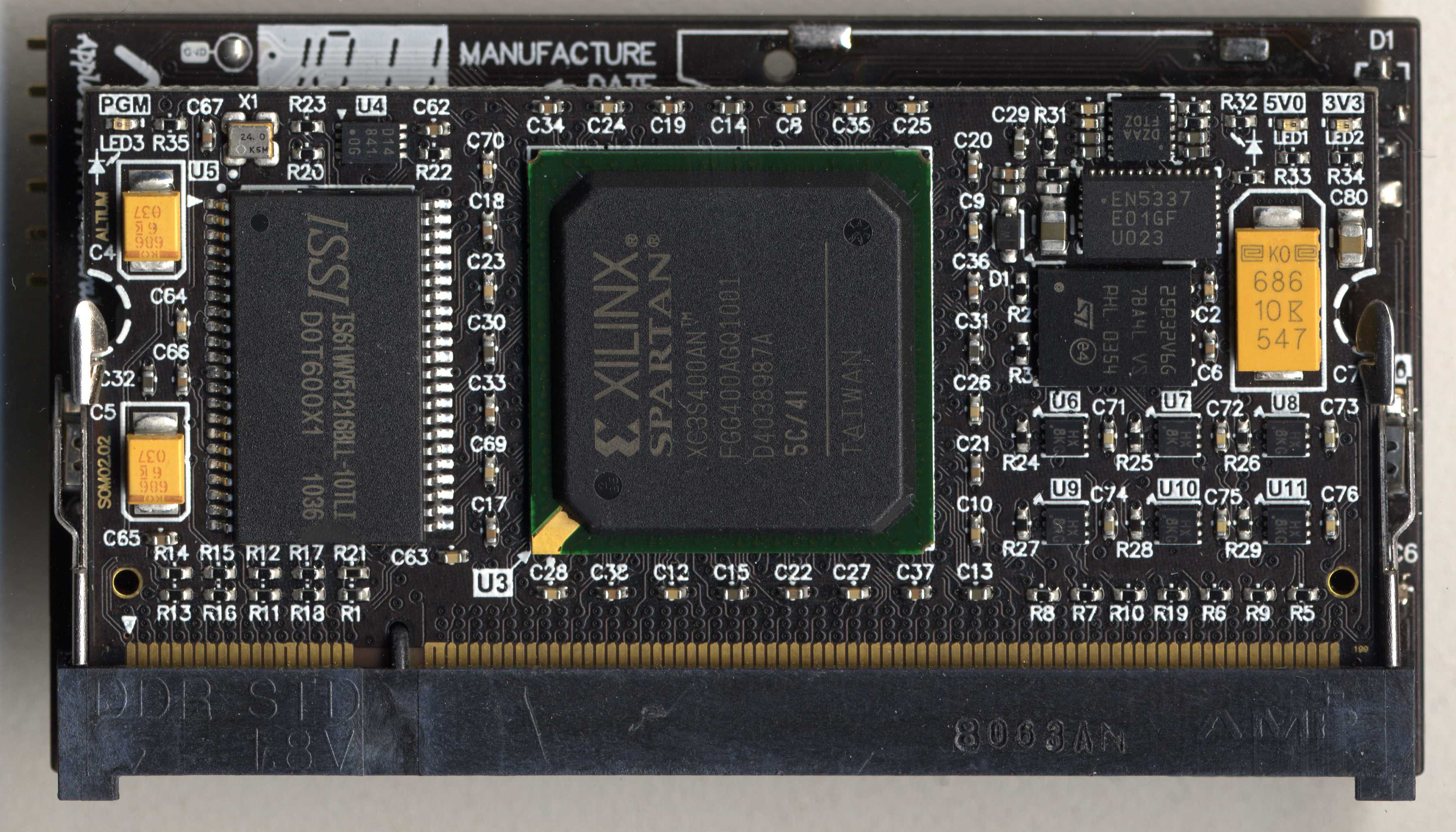

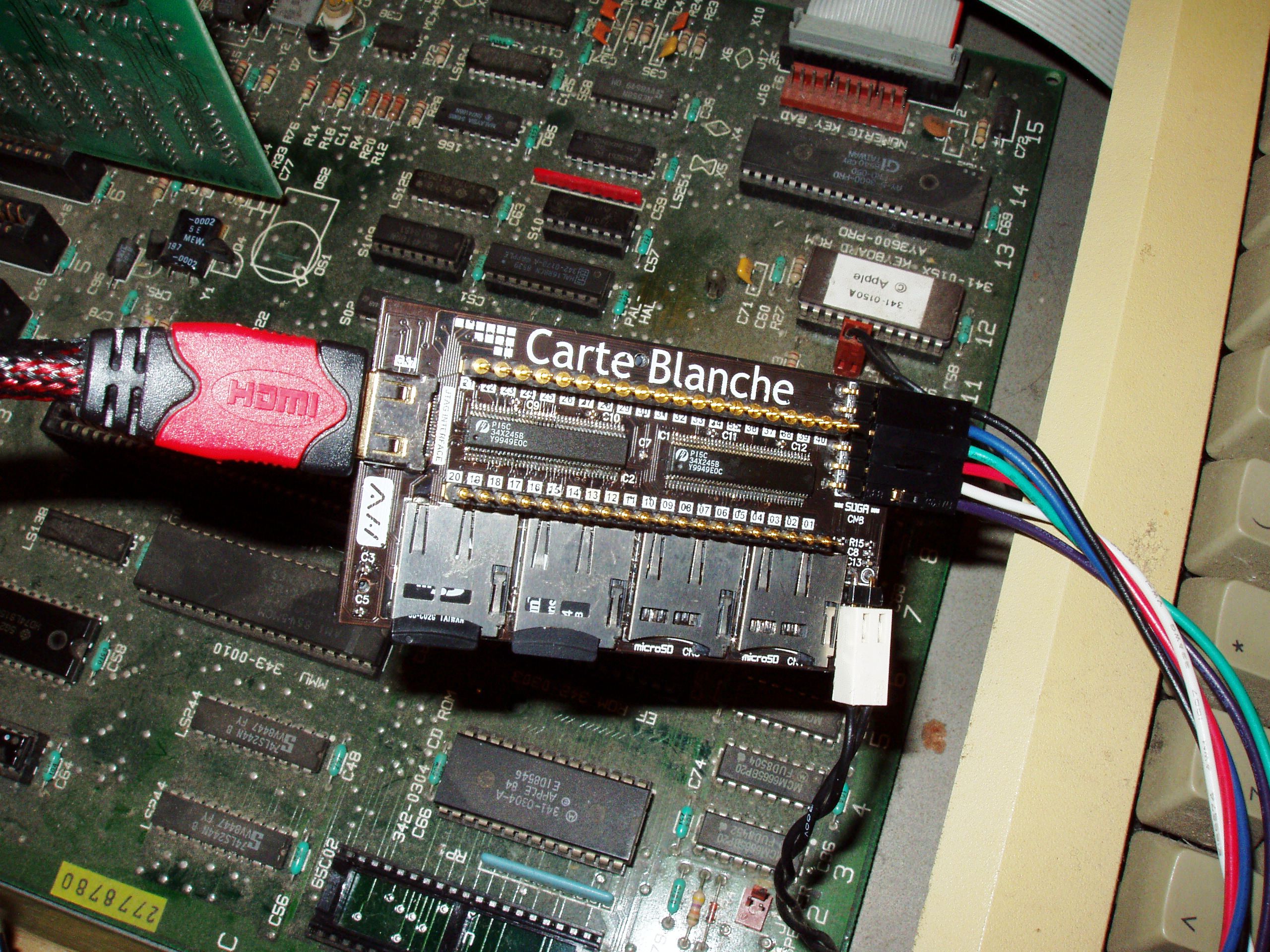

Apple IIc FPGA Peripheral Bd
Primary Device
None (SODIMM Module)
Technology
4 track/4 space/26 via
PCB Build Specification
2 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012
Contract Manufacturer
PCB Cart (CHINA)
CAD Application
Altium Designer R10
Prototype Availability
Yes
