Semiconductor Manufacturers
How to identifiy IC manufacturers of semiconductor devices used in vintage Apple systems

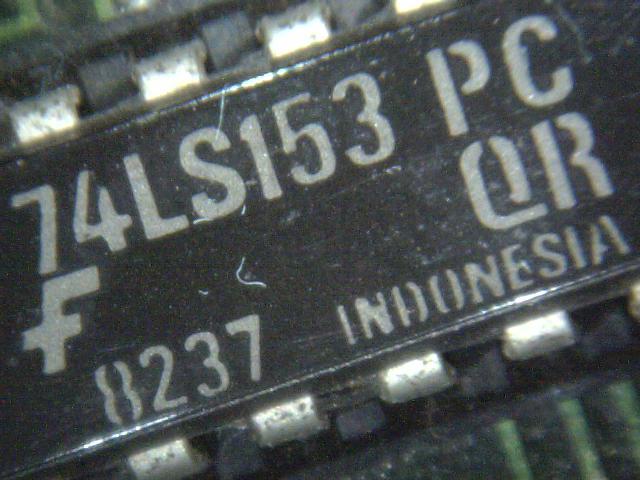

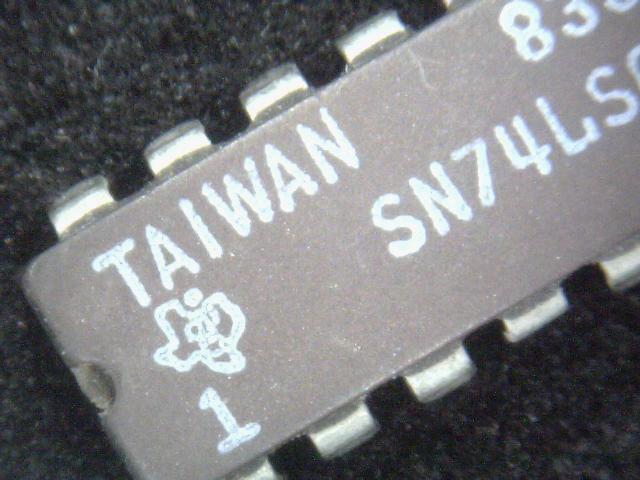

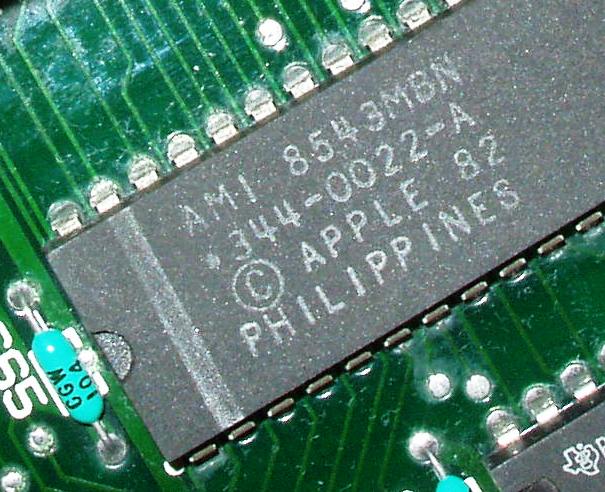

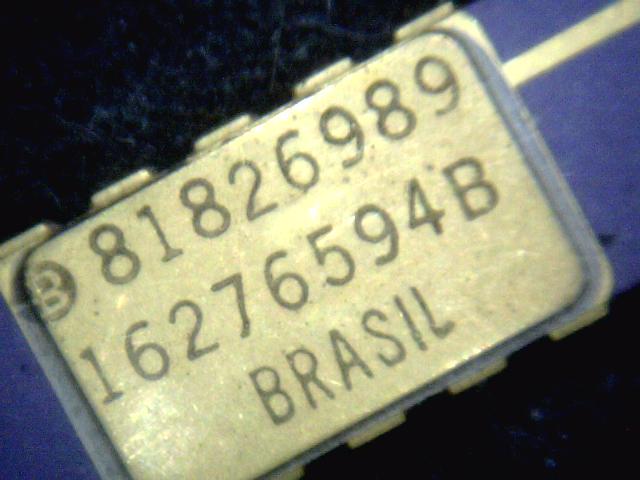

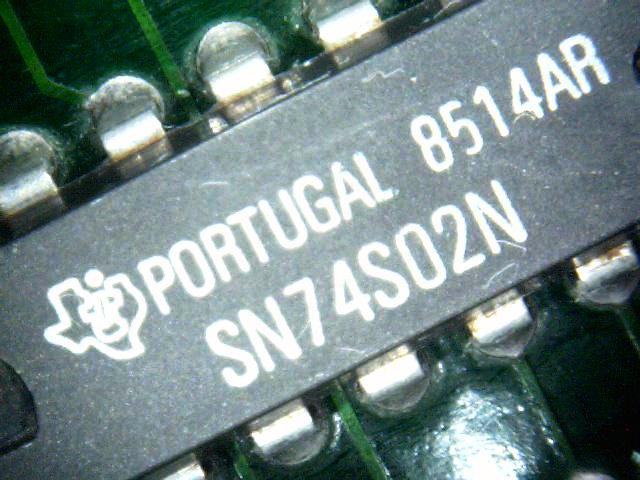

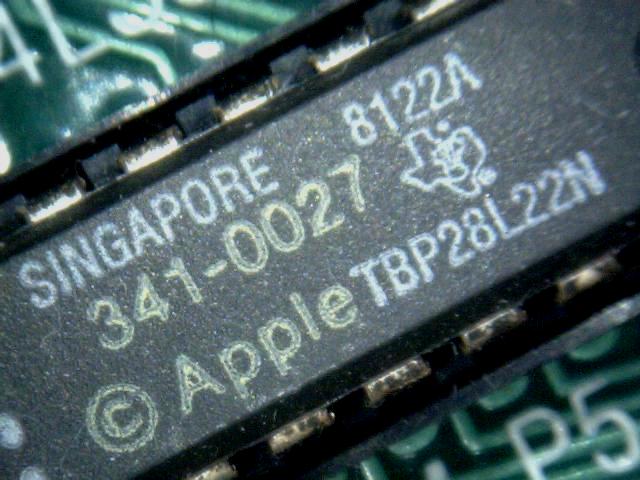

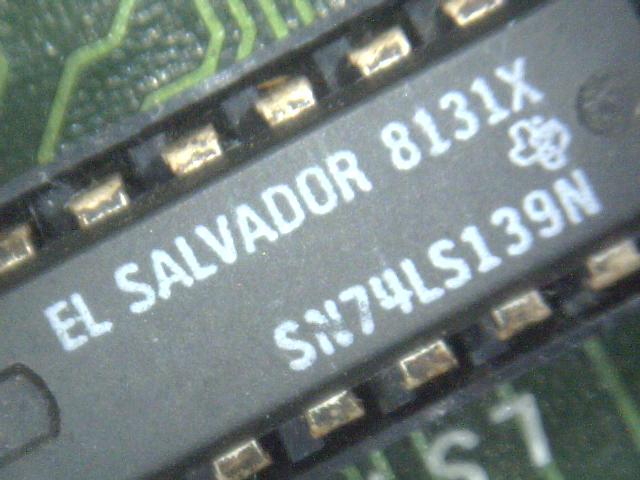

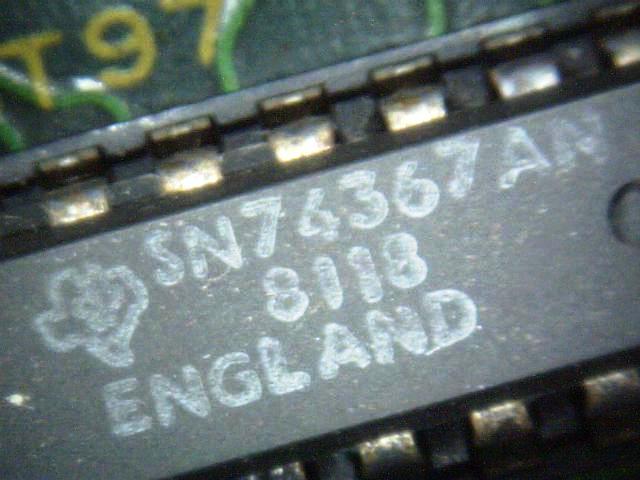

With the insatiable personal computer demand of the 80's came the semiconductor supply boom, which was felt around the entire globe, especially in Asia and the US. Constant shortages of various devices opened up new opportunities for manufacture and supply of the much needed devices, and also established the major technology centres around the world today. Although some counterfeiting of devices was known at the time, most major semiconductor vendors were quick to construct multi-million dollar high technology facilities in many countries, such as England, Portugal, Malaysia, El Salvador, Taiwan, Ireland, Japan, Korea, Singapore, Indonesia, Mexico, Brazil, Thailand, Philippines, Malta, Italy and the USA to supply the lucrative technology markets. For over a decade the LS, or discreet logic series, enjoyed tremendous success, being the core ingredient of most computer designs of that time. By the mid 1990's a transition to ASSP, ASIC and the matured FPGA and CPLD devices had well and truly begun. By 1998 the demand had completely fallen off for standard logic, and was fast becoming extinct to newer, cheaper, faster, smaller, and more flexible integrated devices. With the pursuing economic changes, maintaining and operating many semiconductor fabrication and packaging sites simply became not economically viable. Only a few discreet logic vendors remain today. Many became extinct, whilst others transitioned into new device technologies. The following photos illustrate a snapshot in history as to what each company's devices once looked liked; while many still use the same logo, such as TI and AMD, others evolved their logos into something else, such as GoldStar, or simply left the semiconductor industry altogether.





The semiconductor industry's standard date stamp
keep28@hotmail.com

Classic logic vendors of the eighties

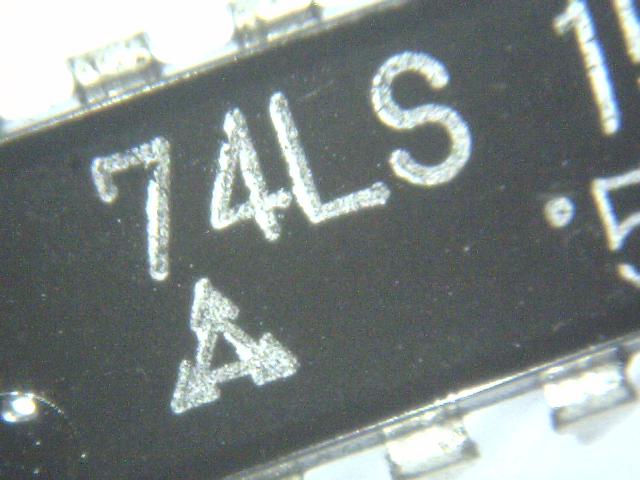

MATSUSHITA
Matsushita
Electric

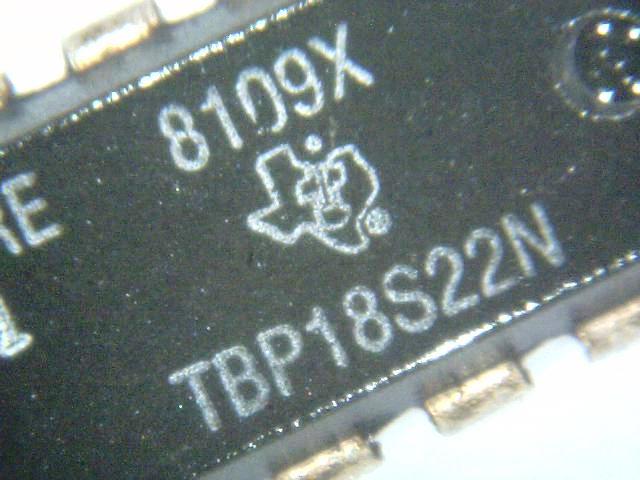

TEXAS INSTRUMENTS
Texas
Instruments
MOTOROLA
Motorola
inc.

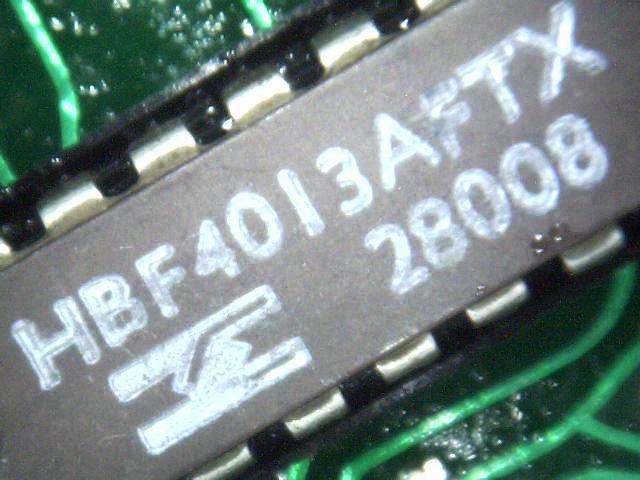

HBF SEMI
HBF
inc.

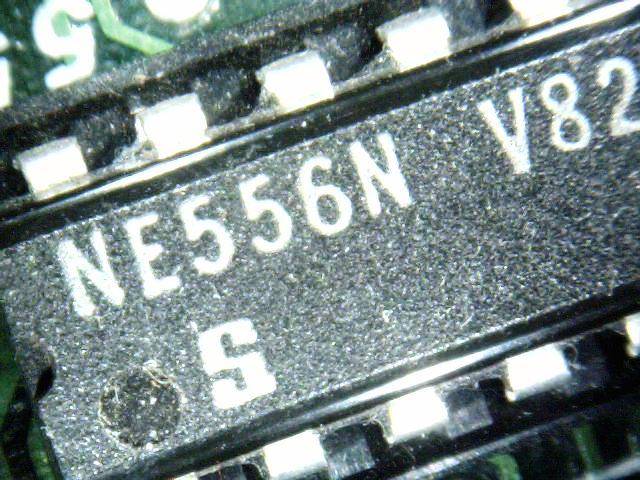

SIGNETICS
Signetics
Semiconductor

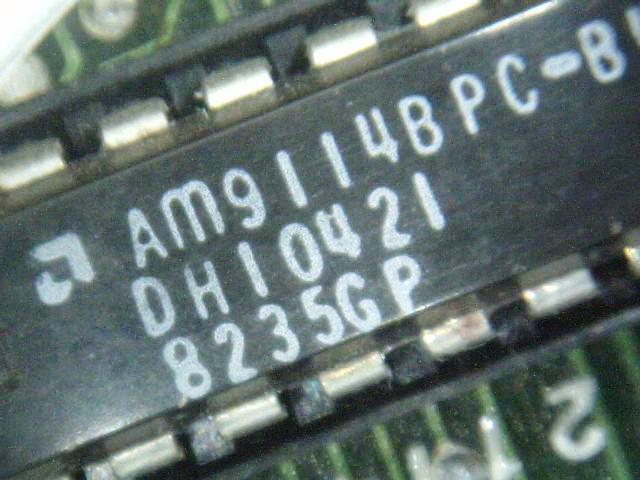

AMD
Advanced Micro
Devices
HARRIS
Harris
Semiconductor

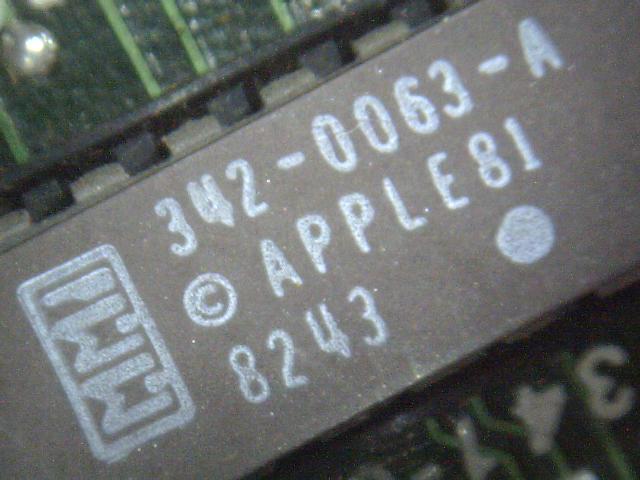

MMI
Monolithic
Memories Inc.

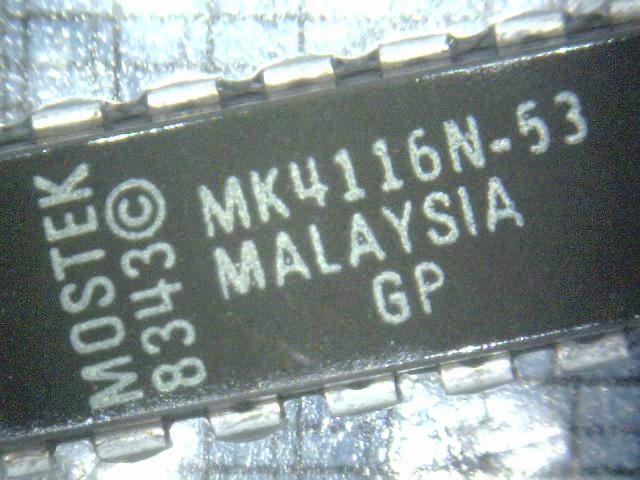

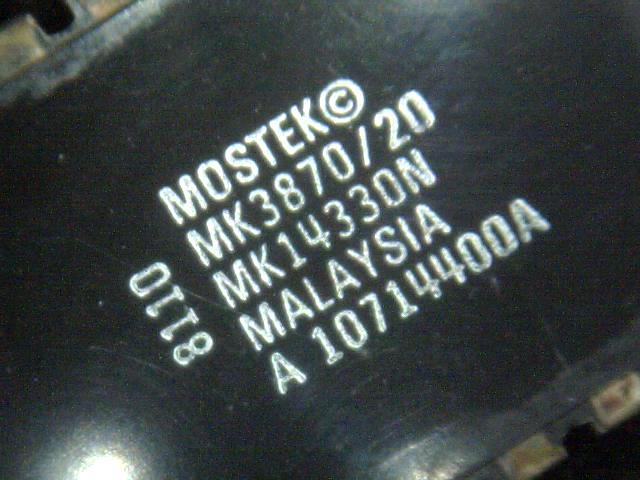

MOSTEK
MOSTEK

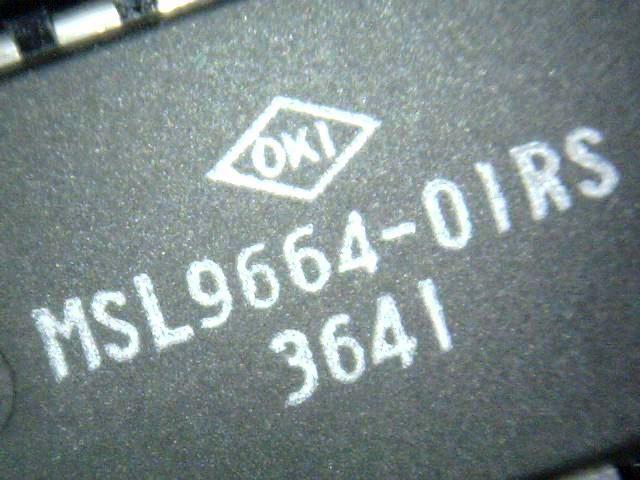

OKI
OKI

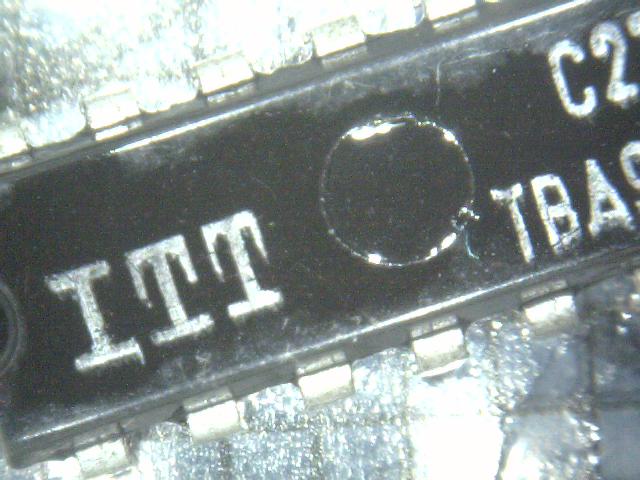

ITT
ITT

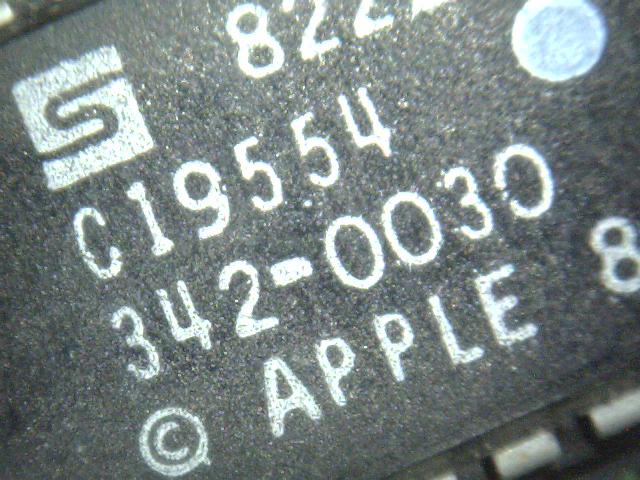

SYNERTEK
Synertek

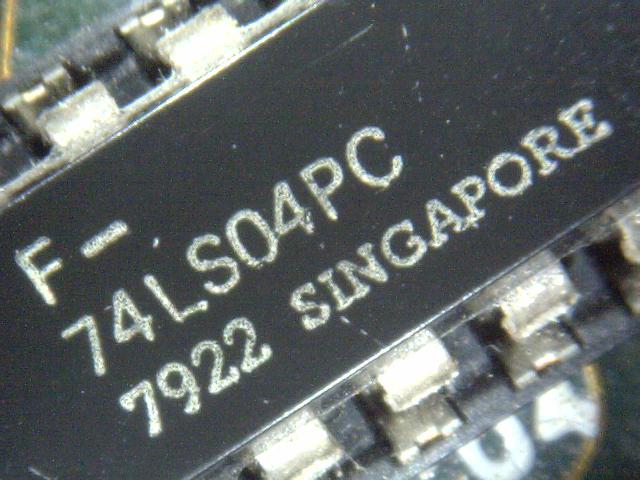

FAIRCHILD
Fairchild

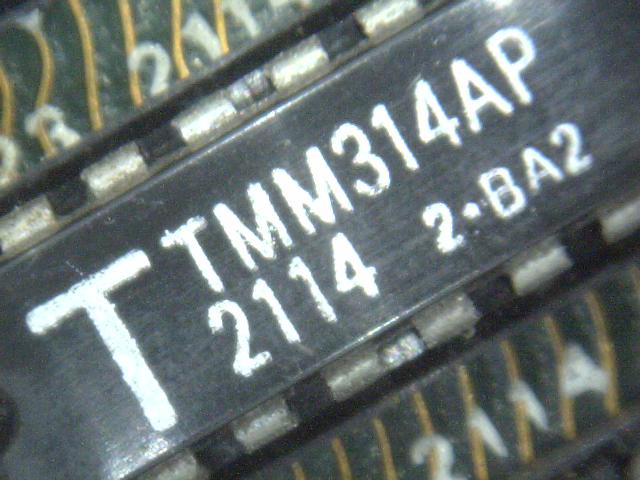

TOSHIBA
Toshiba

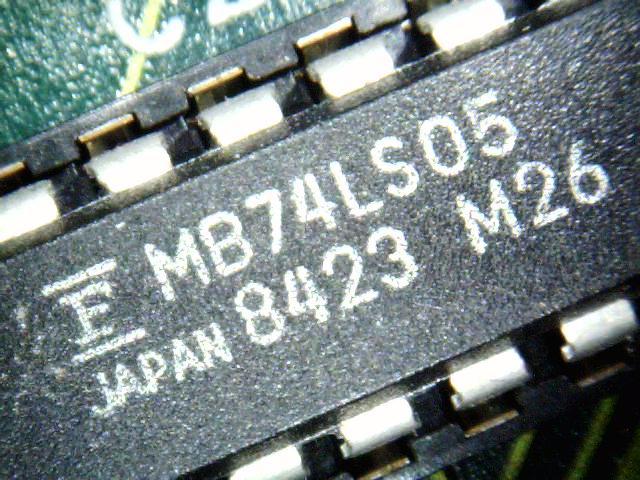

FUJITSU
Fujitsu
Japan

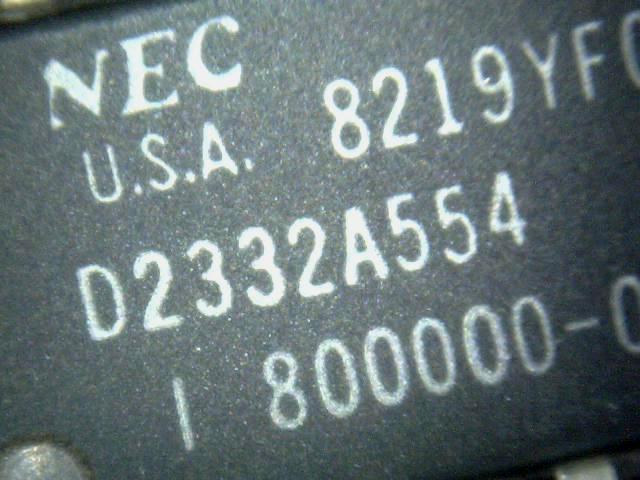

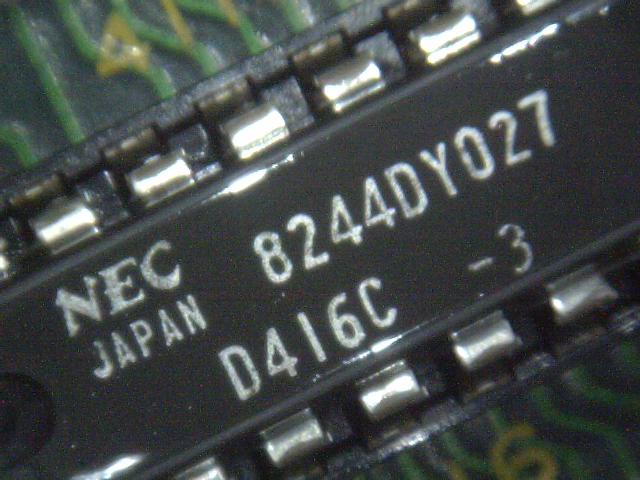

NEC
Nippon
Electric Co.

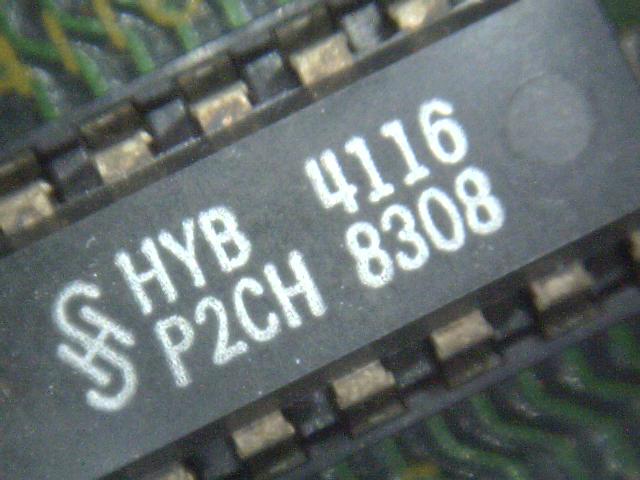

SIEMENS
Siemens

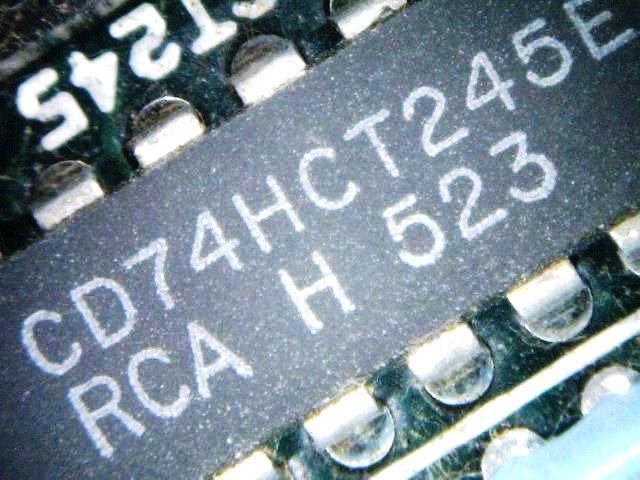

RCA
RCA

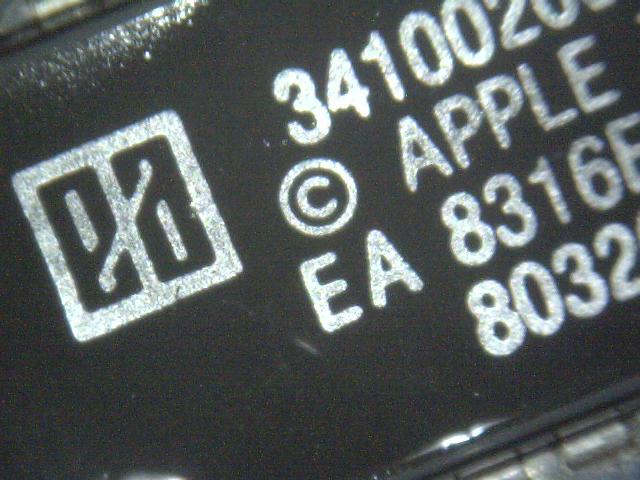

EA
EA

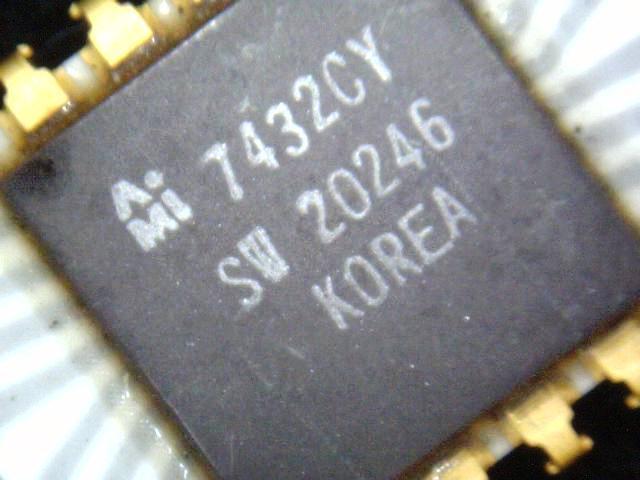

AMI
American
Megatrends Inc.

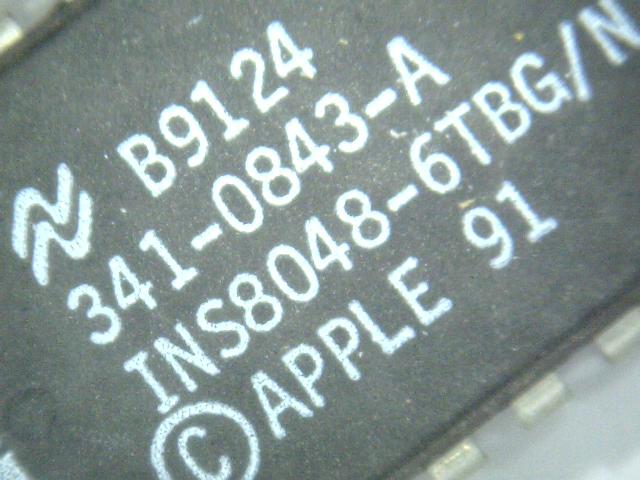

NATSEMI
National
Semiconductor

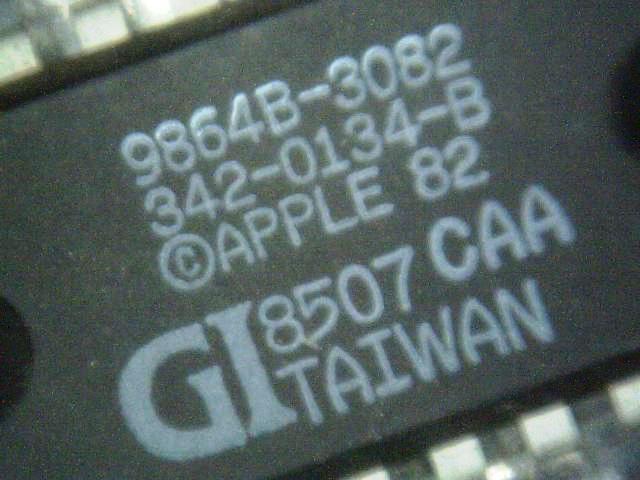

GI
General
Instruments

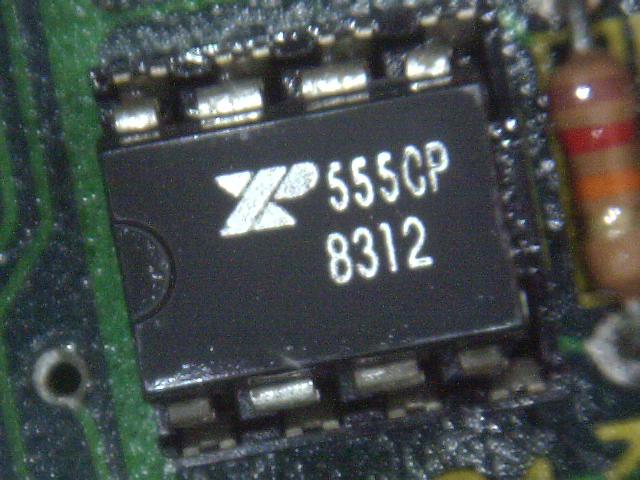

EXAR
EXAR
Semiconductor

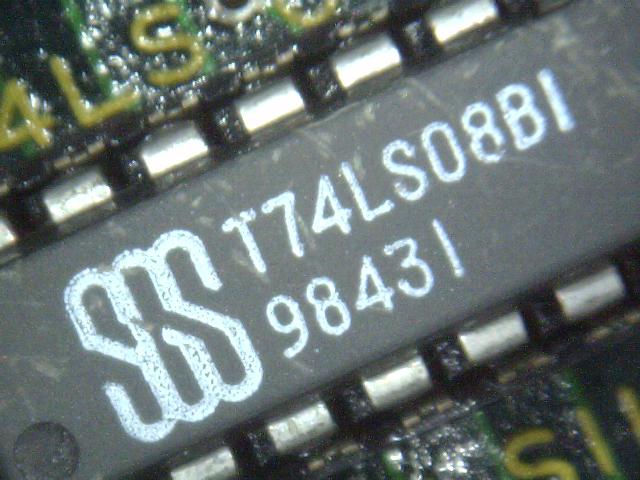

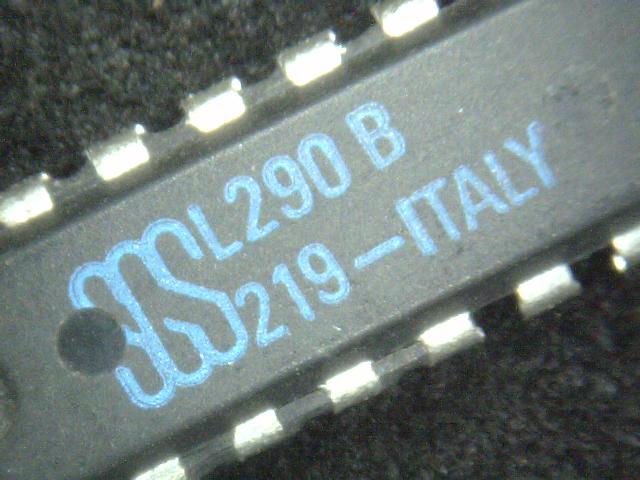

ST
SGS
THOMSON

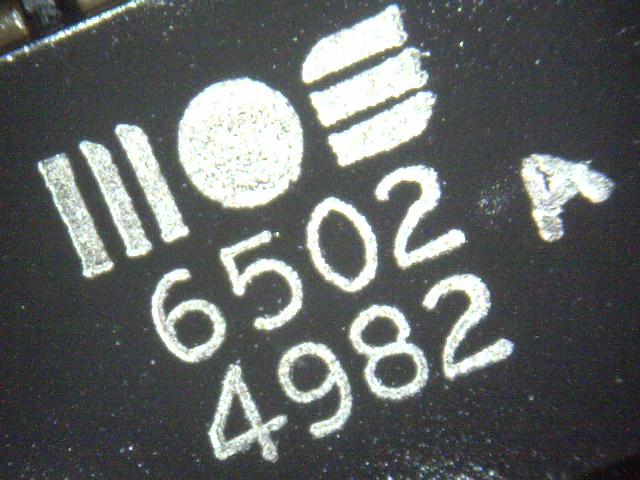

MOS
Metal Oxide
Semiconductor

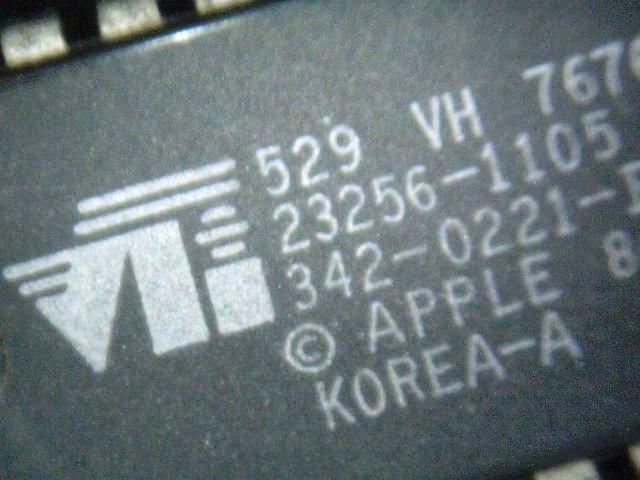

VTI
VTI
Semiconductor

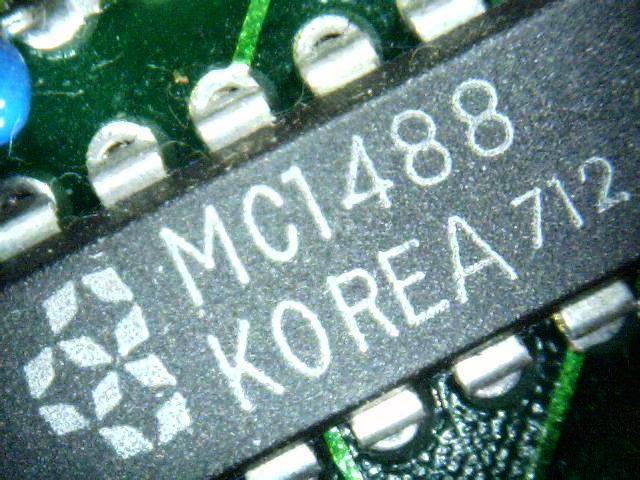

SAMSUNG
Samsung
MC3242A

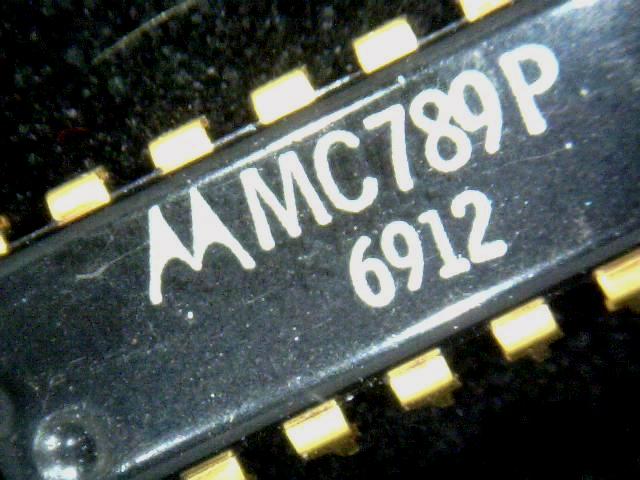

For the majority of the time the semiconductor industry has been producing devices, a date code system has been in place and used by most vendors as far back as 1969. The very generic concept of "YEAR-WEEK" is still in use on most devices produced today. By representing the date of manufacture as four digits, two for the year and two for the week number, each device can have its vintage easily identified. Although this system is primarily used for identifying manufacturing batches in quality control, the time stamp makes a very useful tool in determining the age of a product the device is used in. With Apple II clones, this is the only method, as most PCB's had no markings at all.

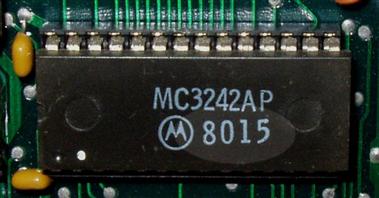

Motorola's DRAM memory controller, manufactured during the peak of the industry, in the 15th week of 1980.

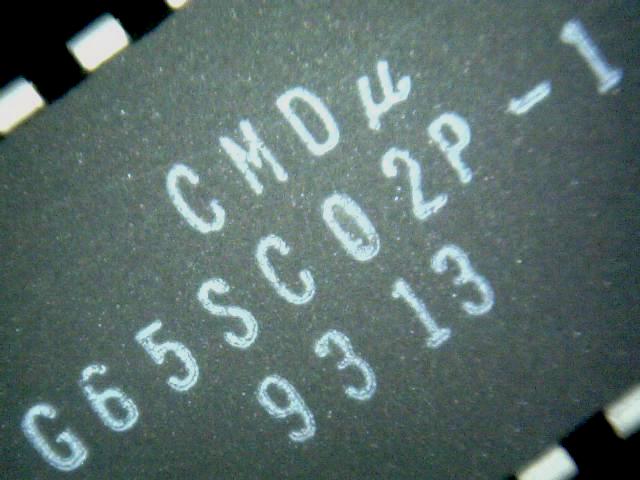

CMD
Californian Micro
Devices

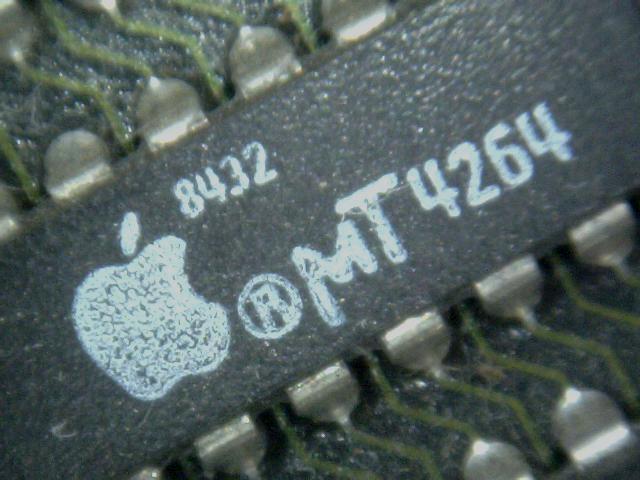

MT
Micron
Technology

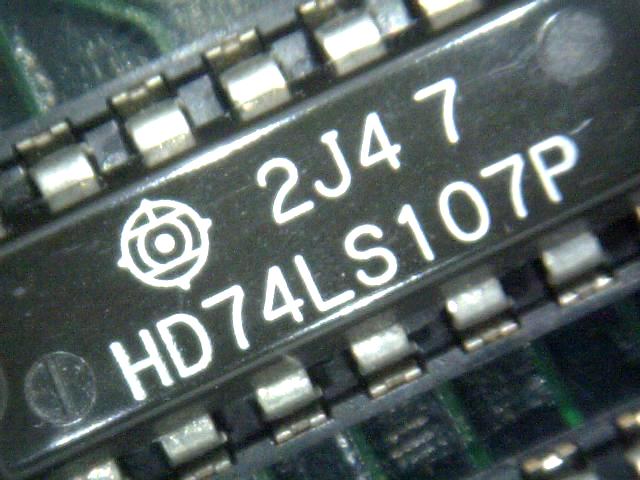

HITACHI
Hitachi

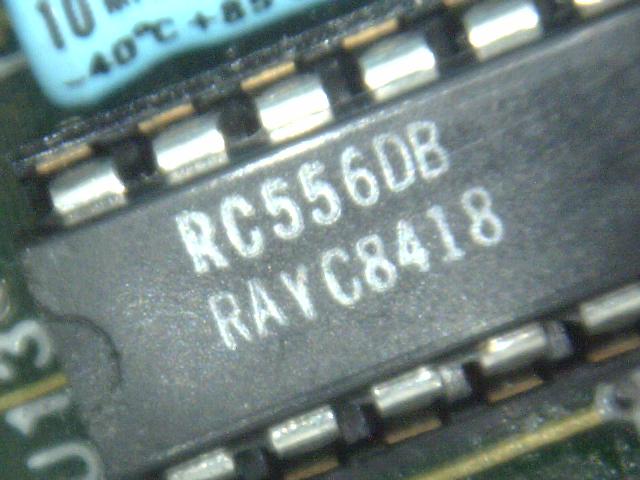

RAYTHEON
Raytheon

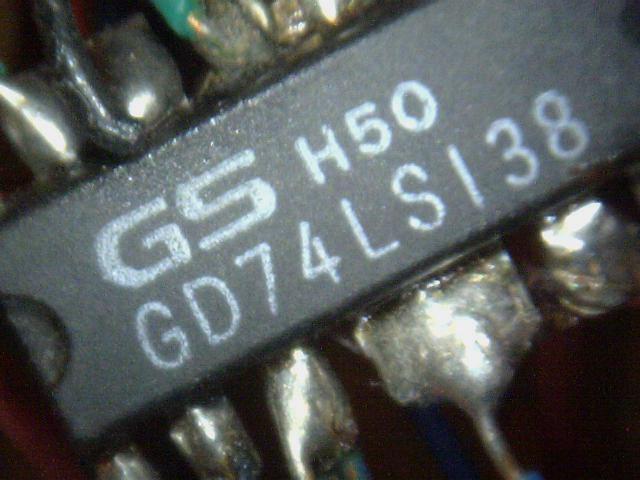

GS
Gold Star
GS
AVG Semiconductor
