Date of Design
2005
Product

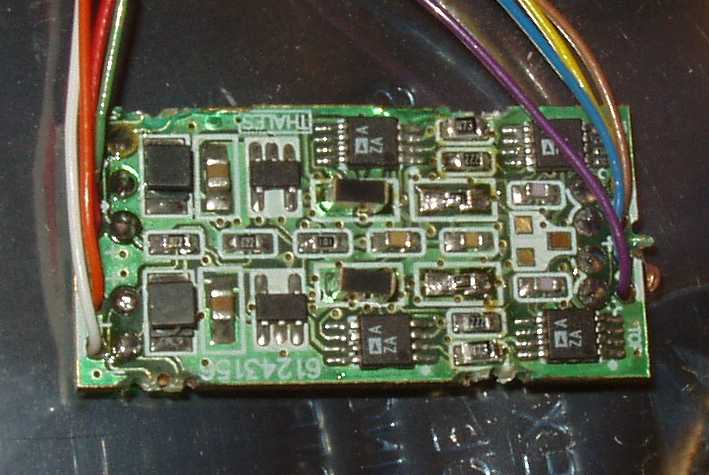

AIRES Sonar Array Amplifier
Assembly ID
61243156
Company
Function
Low Noise Differential Amp
Primary Device
Technology
6 track/6 space/26 via

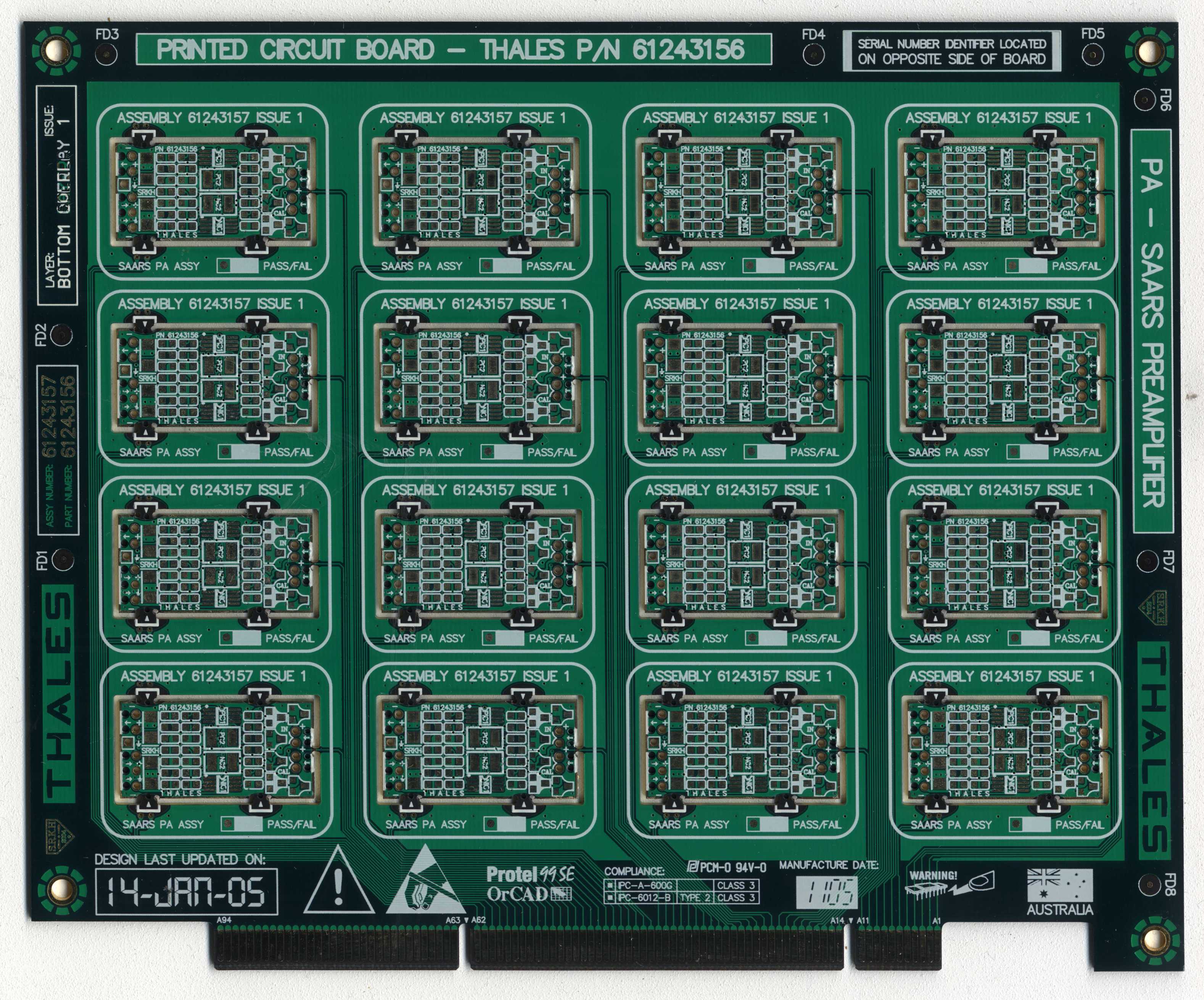

PCB Build Specification
2 Layer, 1oz, MASK, HG, FR408
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
