Date of Design
2005
Product

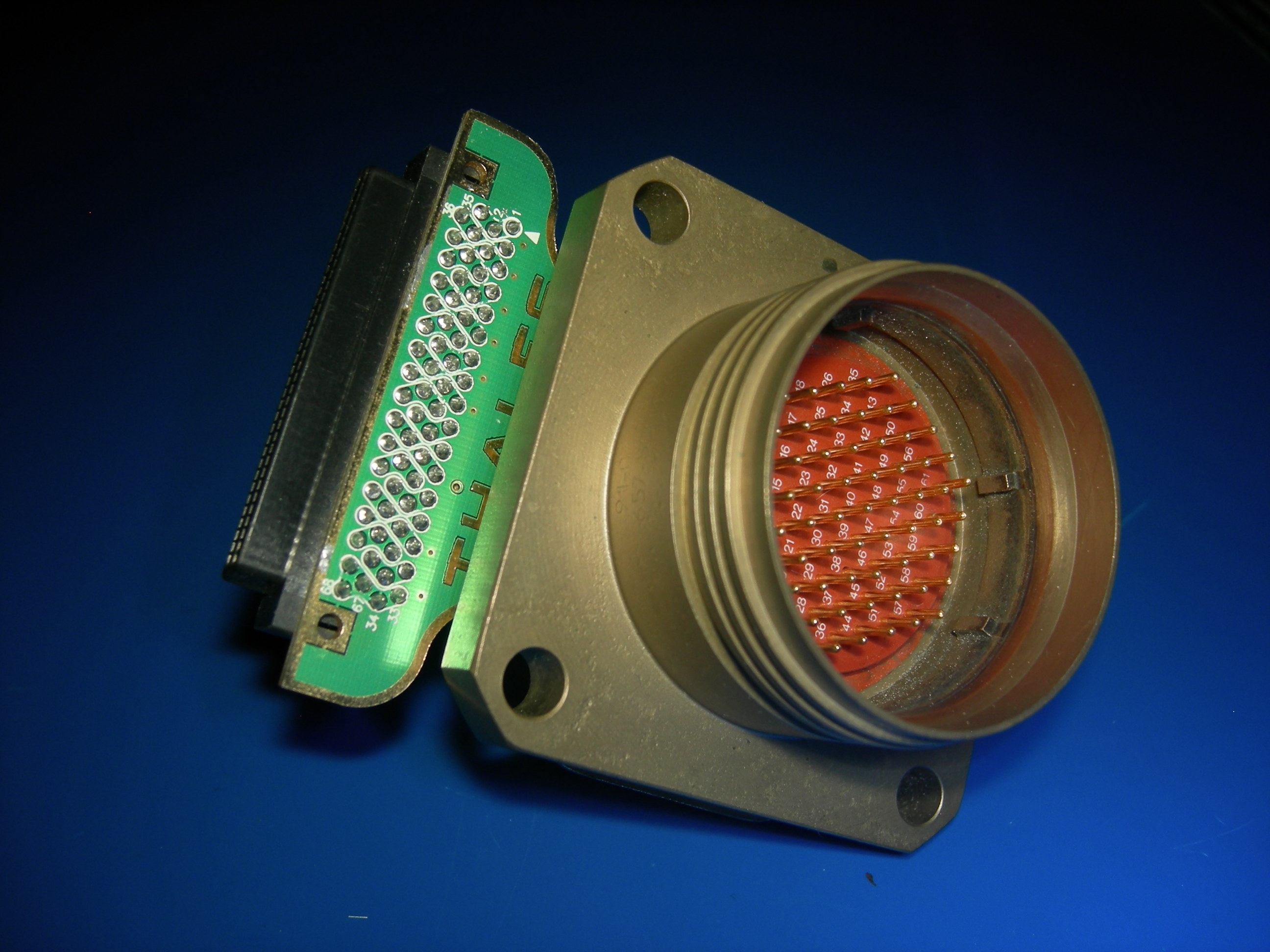

OJB Pressure Hull IO
Assembly ID
61244543
Company
Function
Pressure Hull Diff Pair Mech IO
Primary Device
None
Technology
8 track/8 space/30 via
PCB Build Specification
6 Layer, 1oz, MASK, HG, FR408
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
Yes
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
