Date of Design
2005
Product

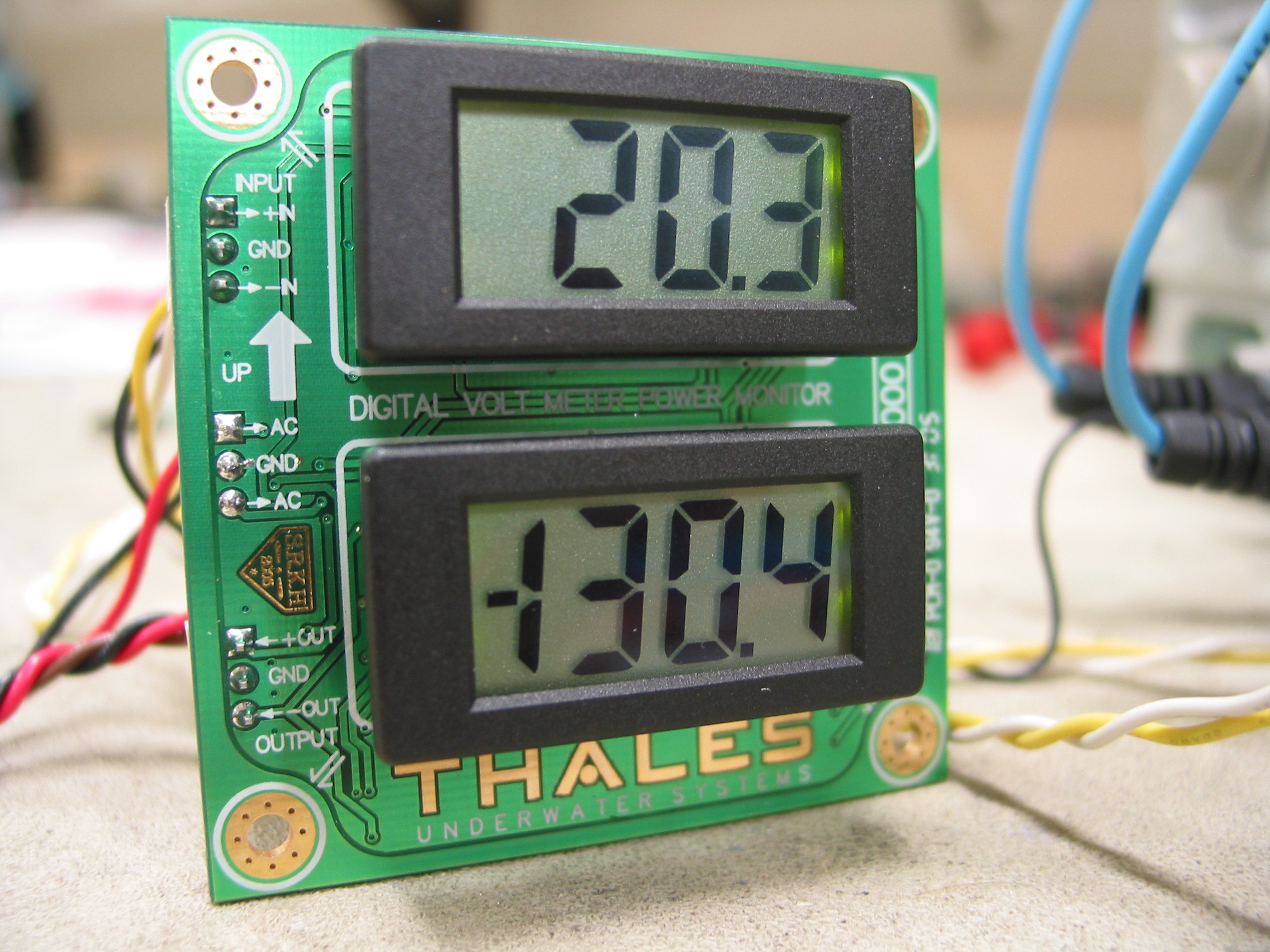

Digital Volt Meter
Assembly ID
5693XXXX
Company
Function
Voltage/Current Instrument Panel
Primary Device
Lascar OEM
Technology
8 track/8 space/30 via

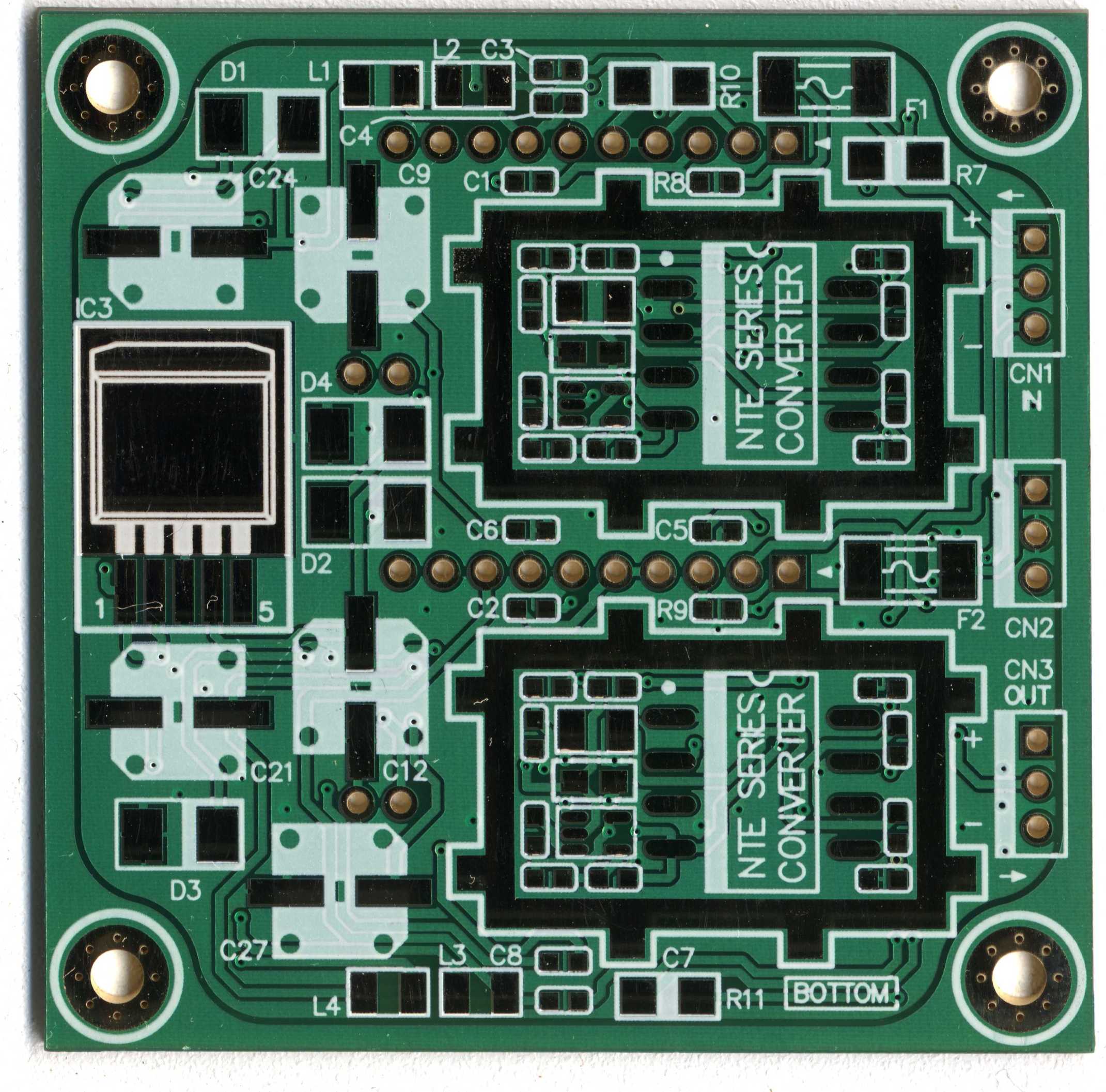

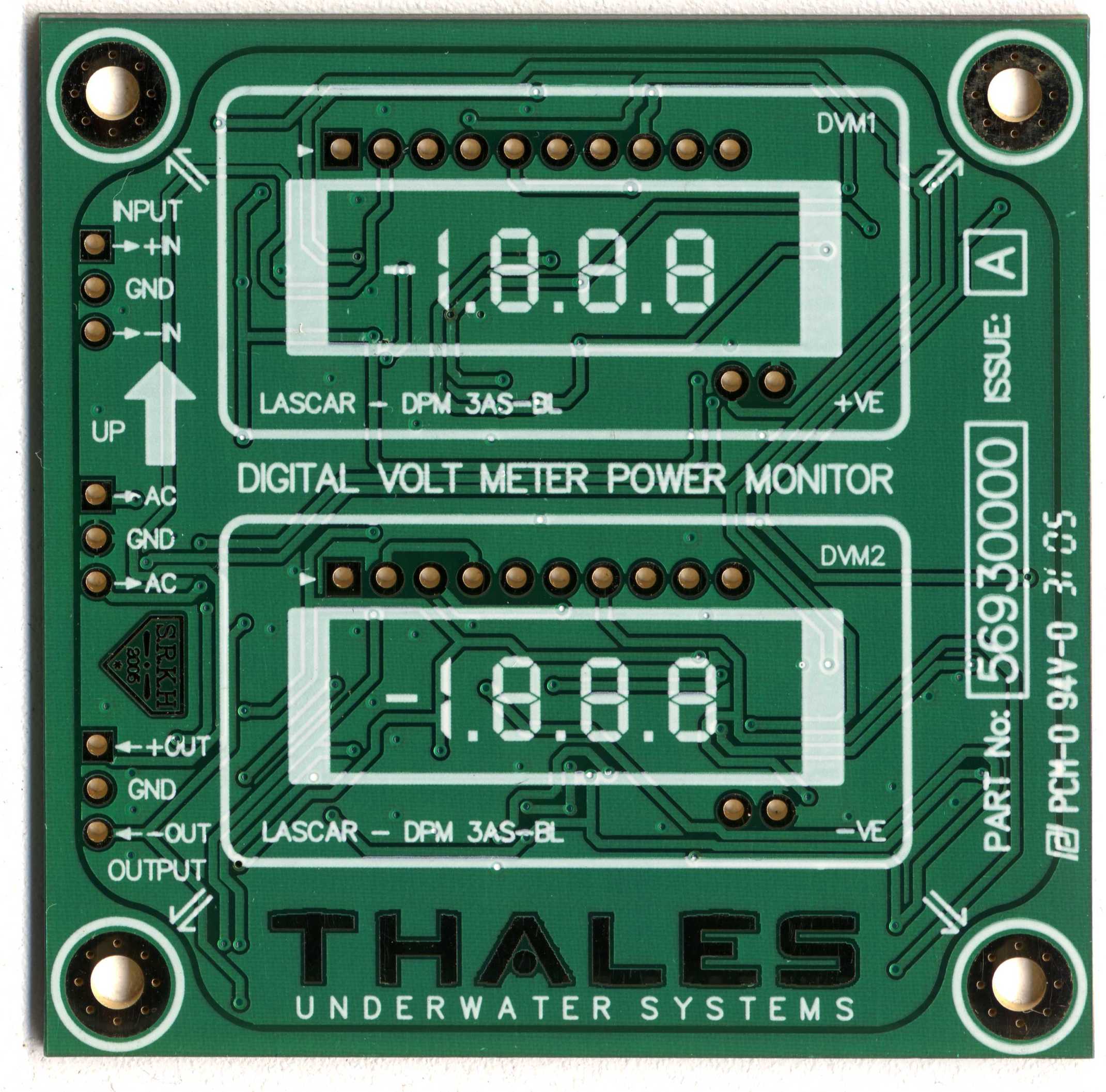

PCB Build Specification
2 Layer, 1oz, MASK, HG, FR408
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
Yes
