Date of Design
2005
Product

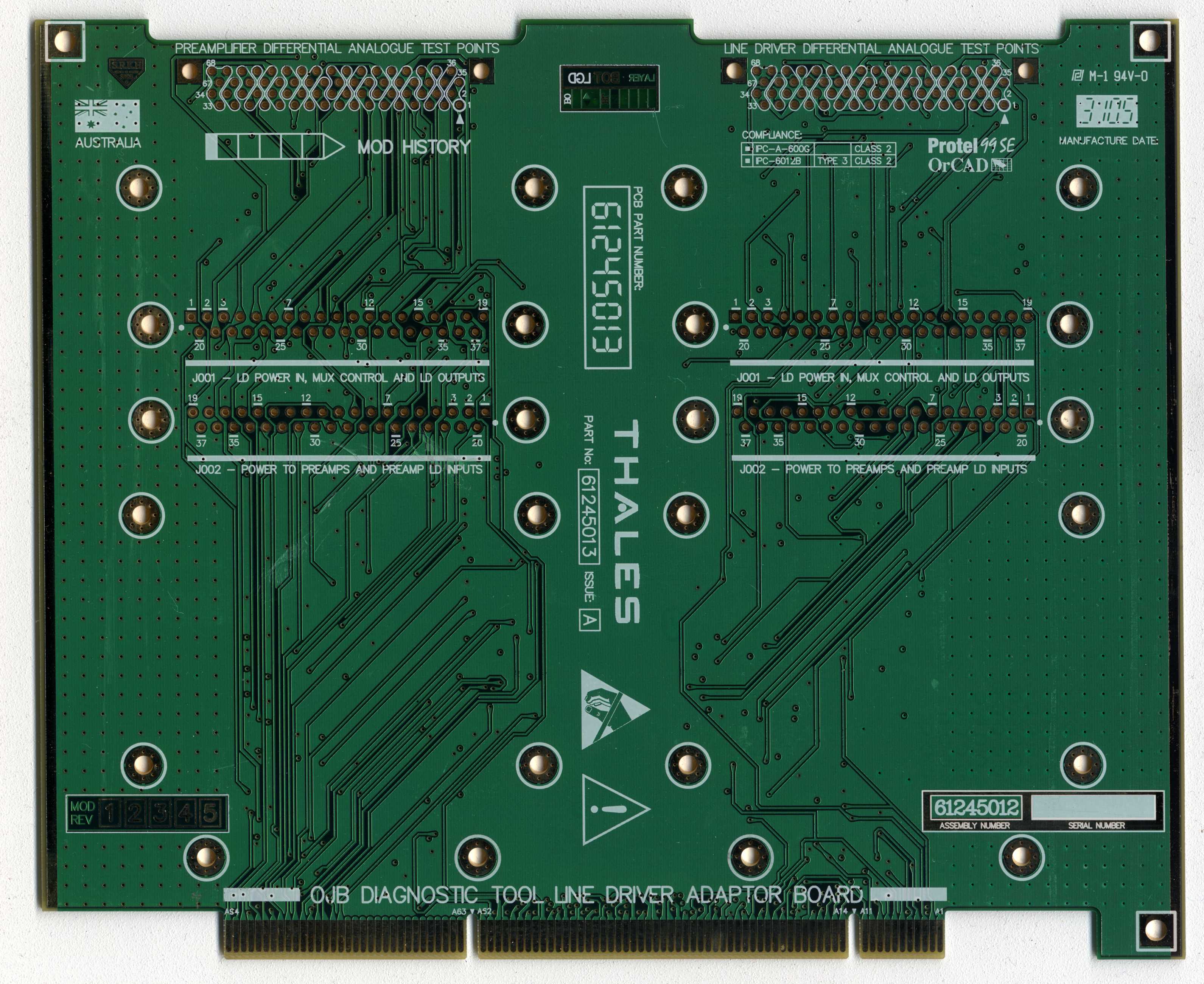

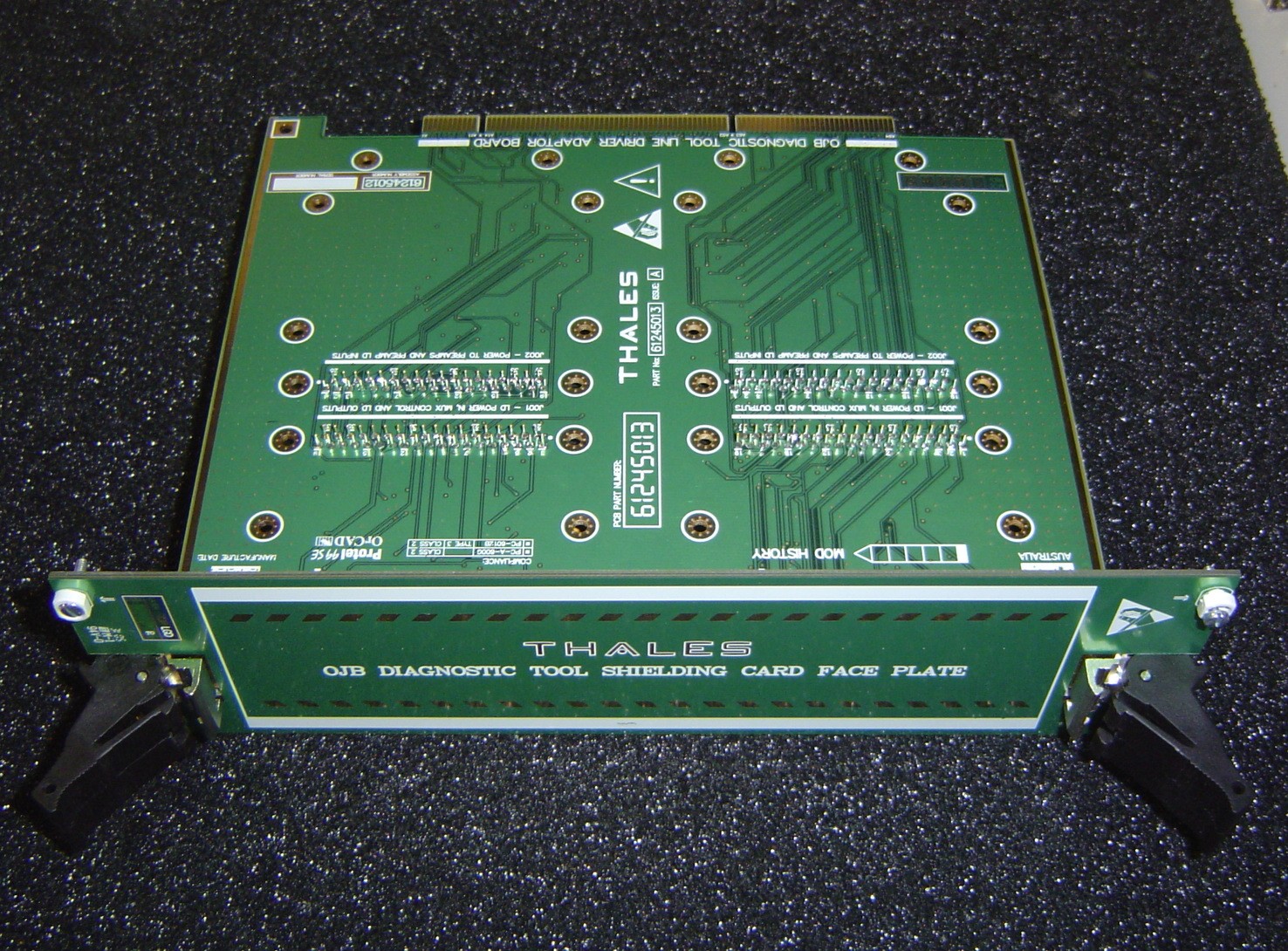

Line Driver Adaptor
Assembly ID
61245013
Company
Function
ATE Line Driver Interface
Primary Device
LDA ASSY.
Technology
5 track/5 space/26 via
PCB Build Specification
6 Layer, 1oz, MASK, HG, FR408
Design Compliance
IPC-A-600/IPC-6012
Contract Manufacturer
PCBCo. (SINGAPORE)
CAD Application
Protel 99SE
Prototype Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
