2008
Product

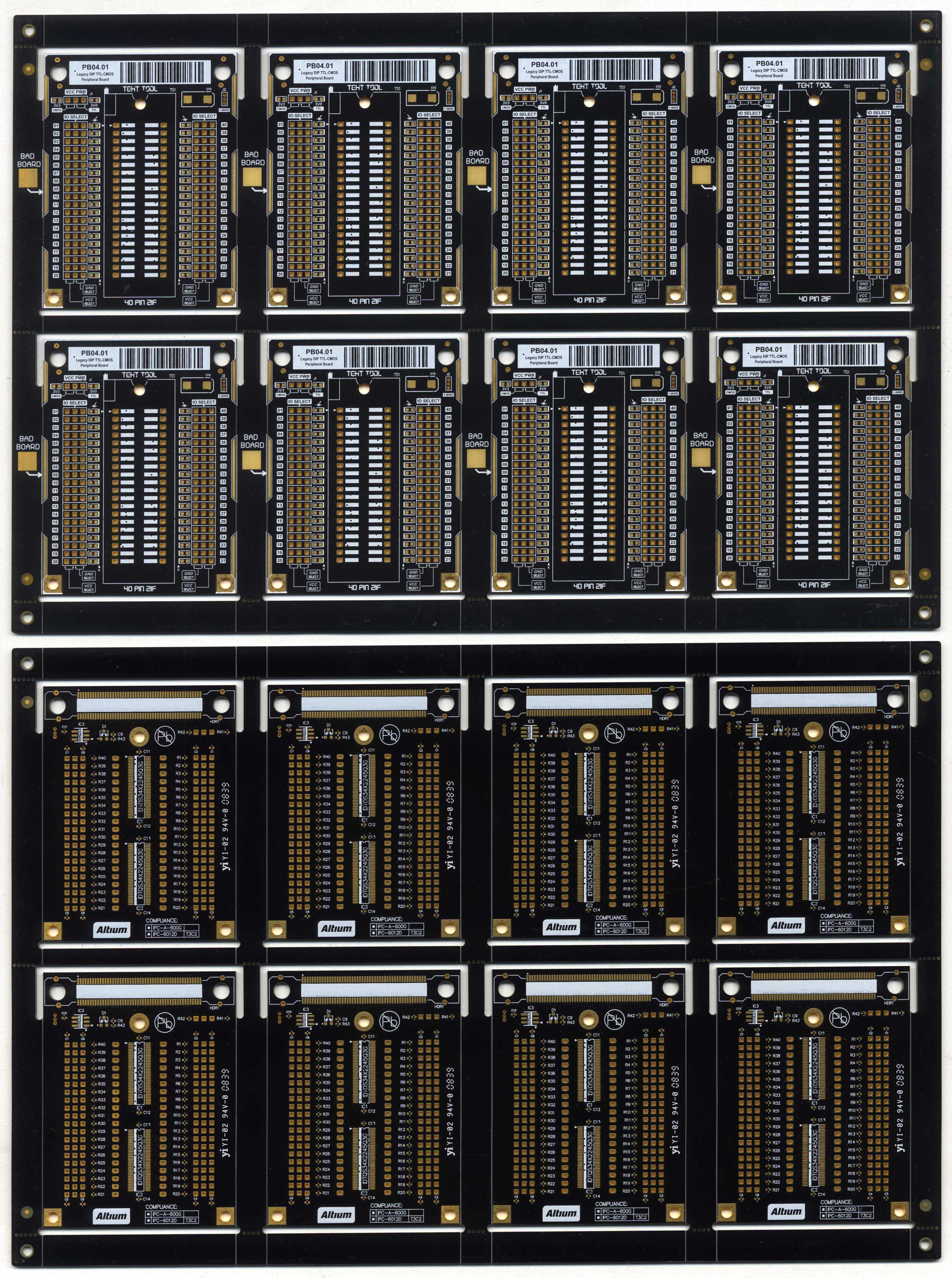

ASIC Adaptor
Assembly ID
ASIC Adaptor (PB04)
Company
Function
Adapt ASIC for use with FPGA's
Primary Device
IDT/QS34X245Q3G
Technology
5 track/5 space/24 via
PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR04
Design Compliance
IPC610/IPC6012
Contract Manufacturer
Yuan Circuits (TAIWAN)
CAD Application
Altium Designer S08
Prototype Availability
Yes
