Date of Design
2008
Product

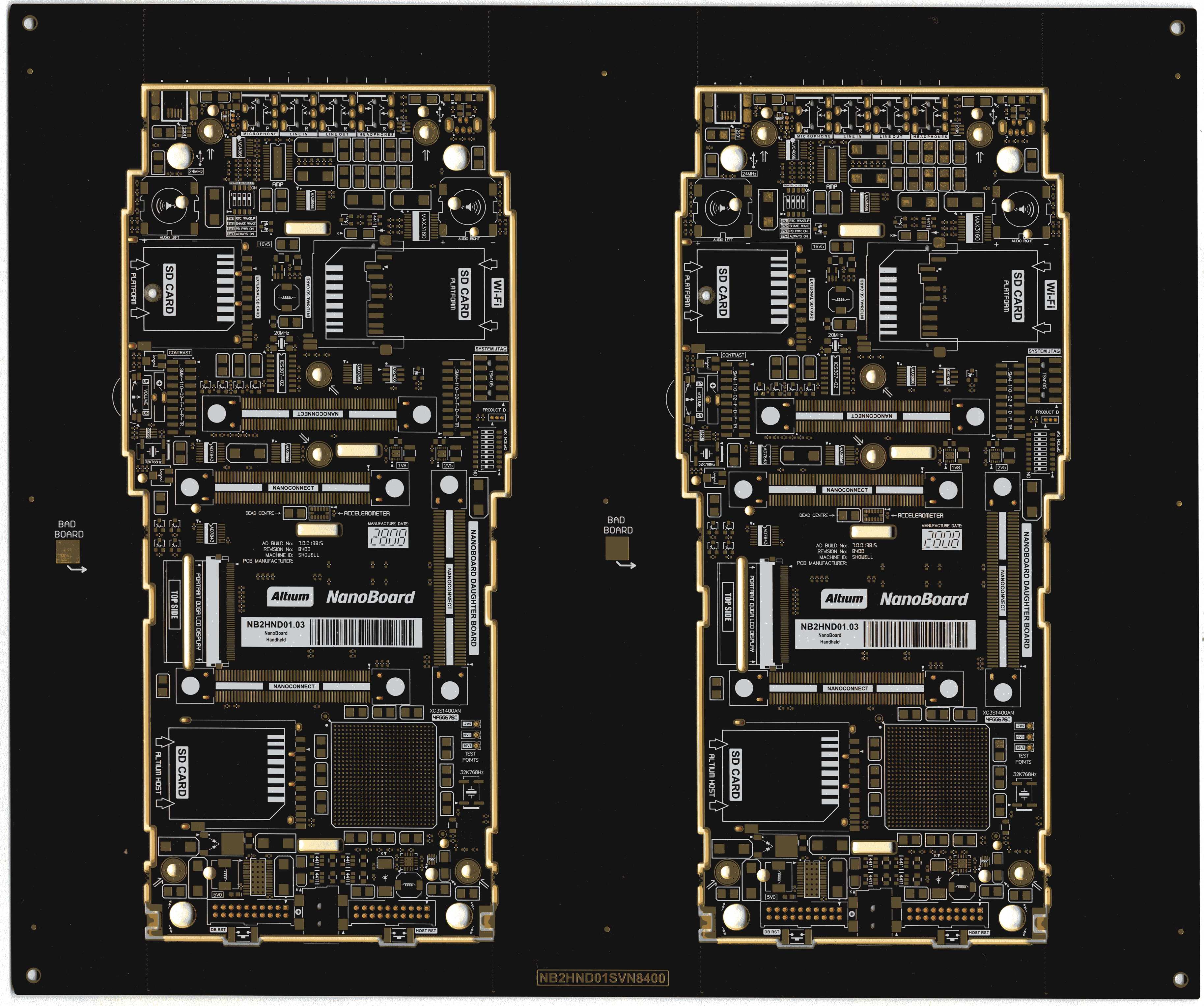

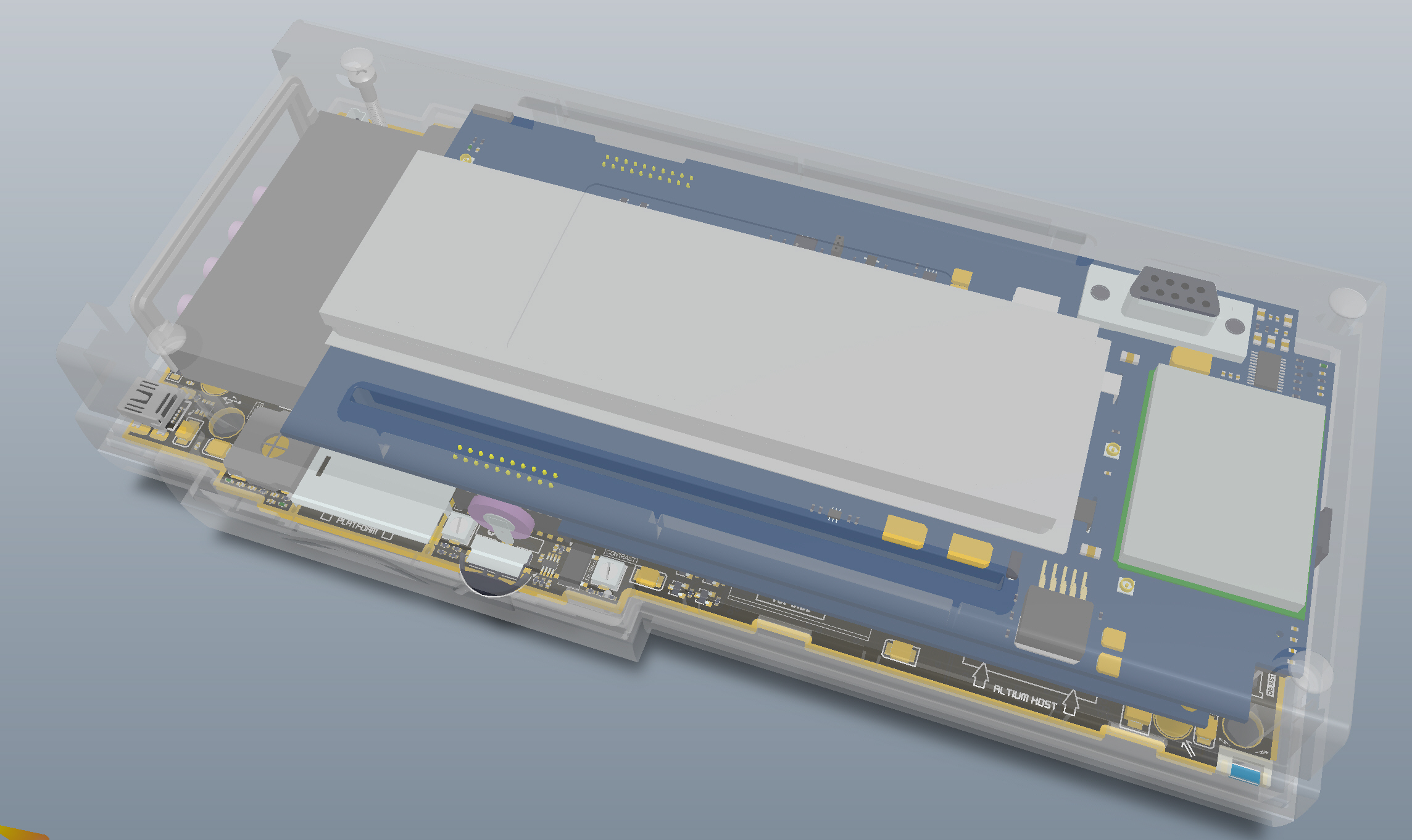

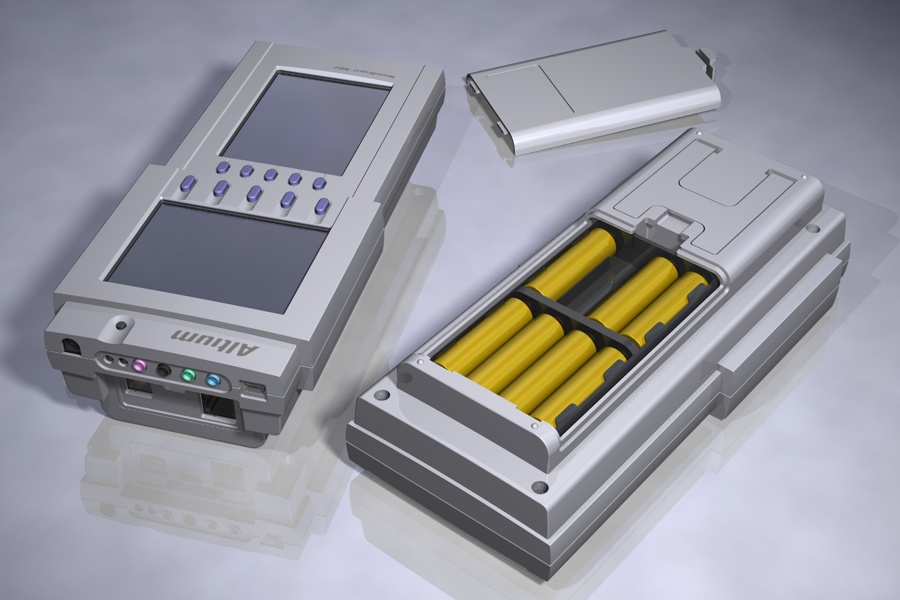

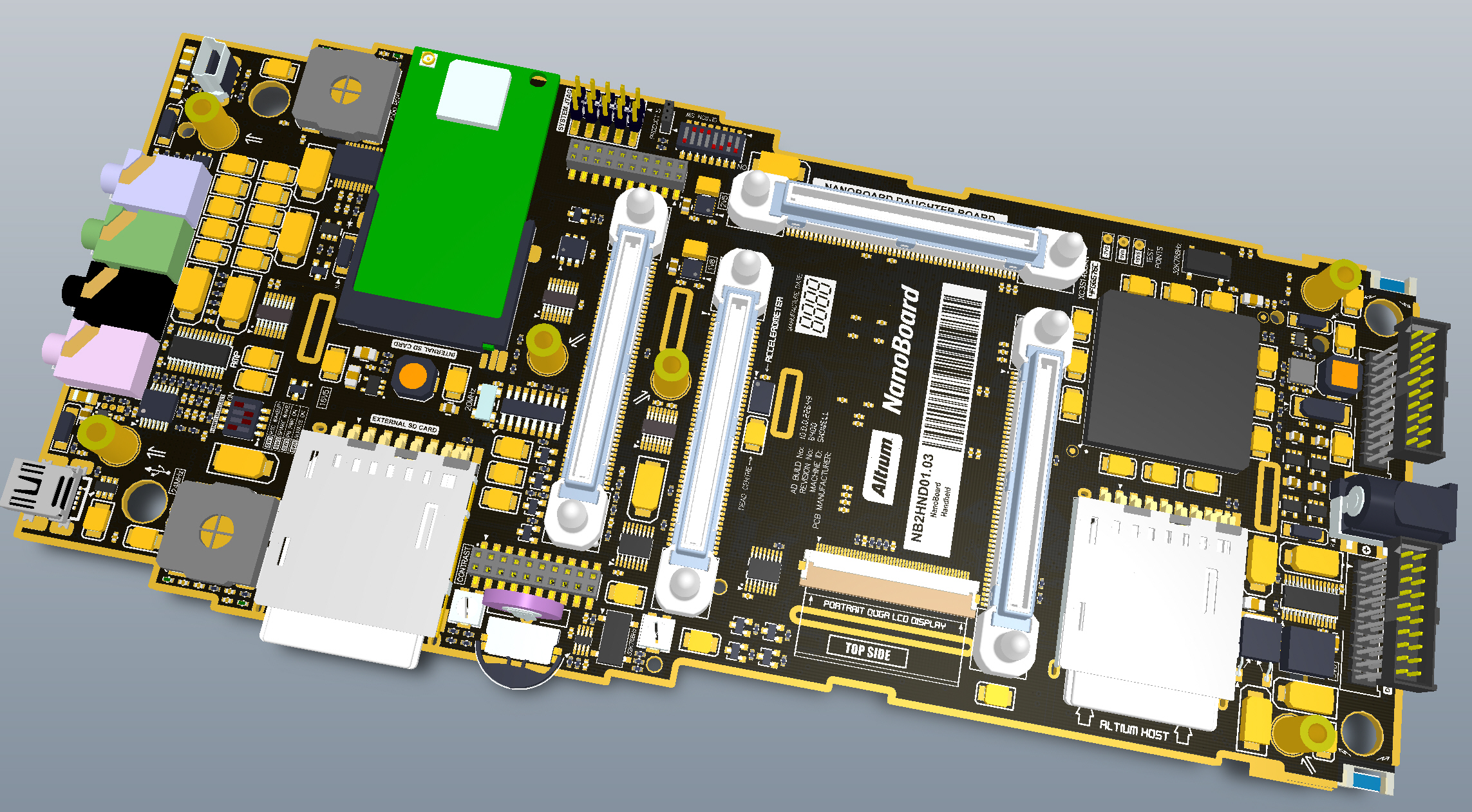

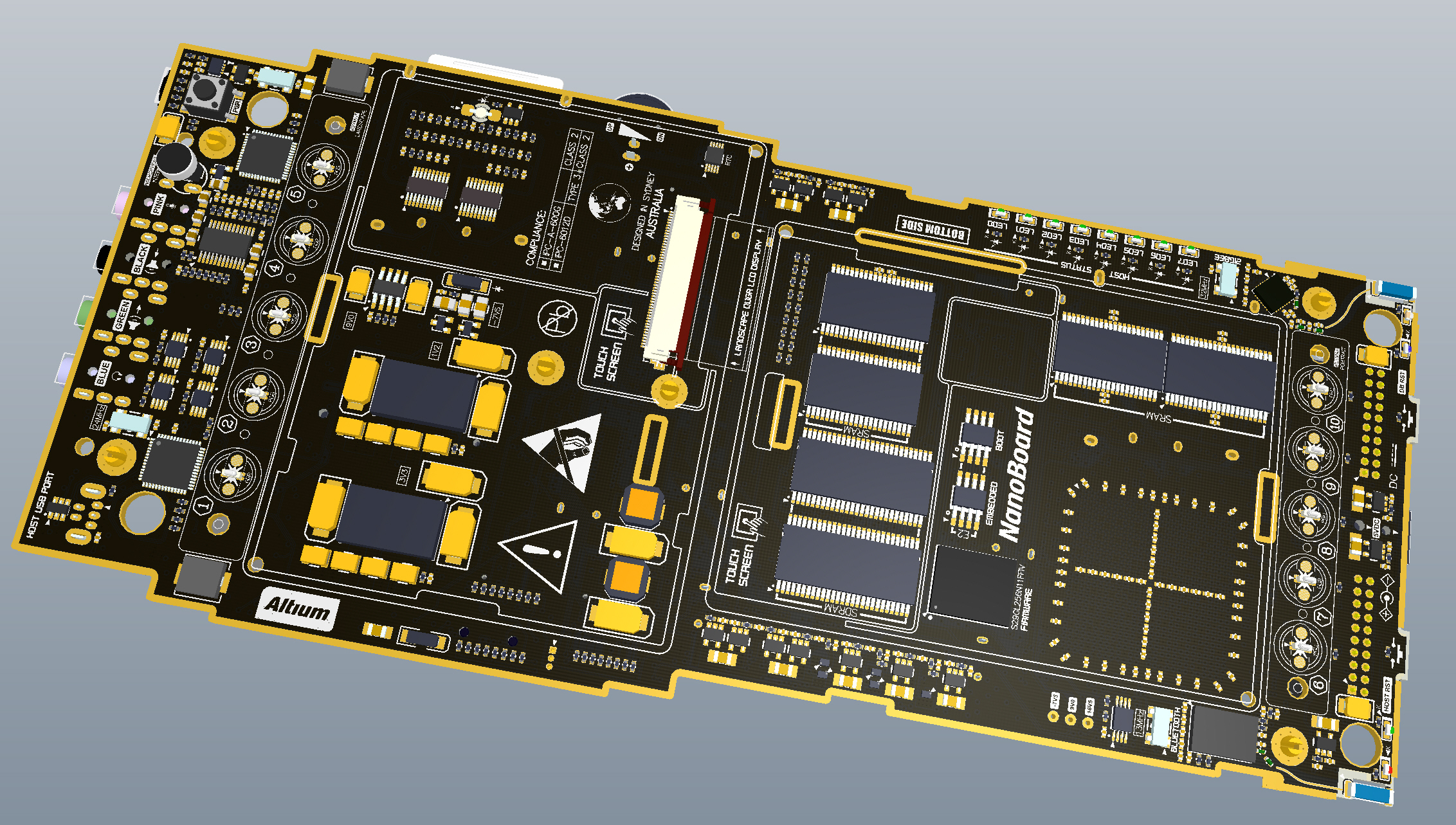

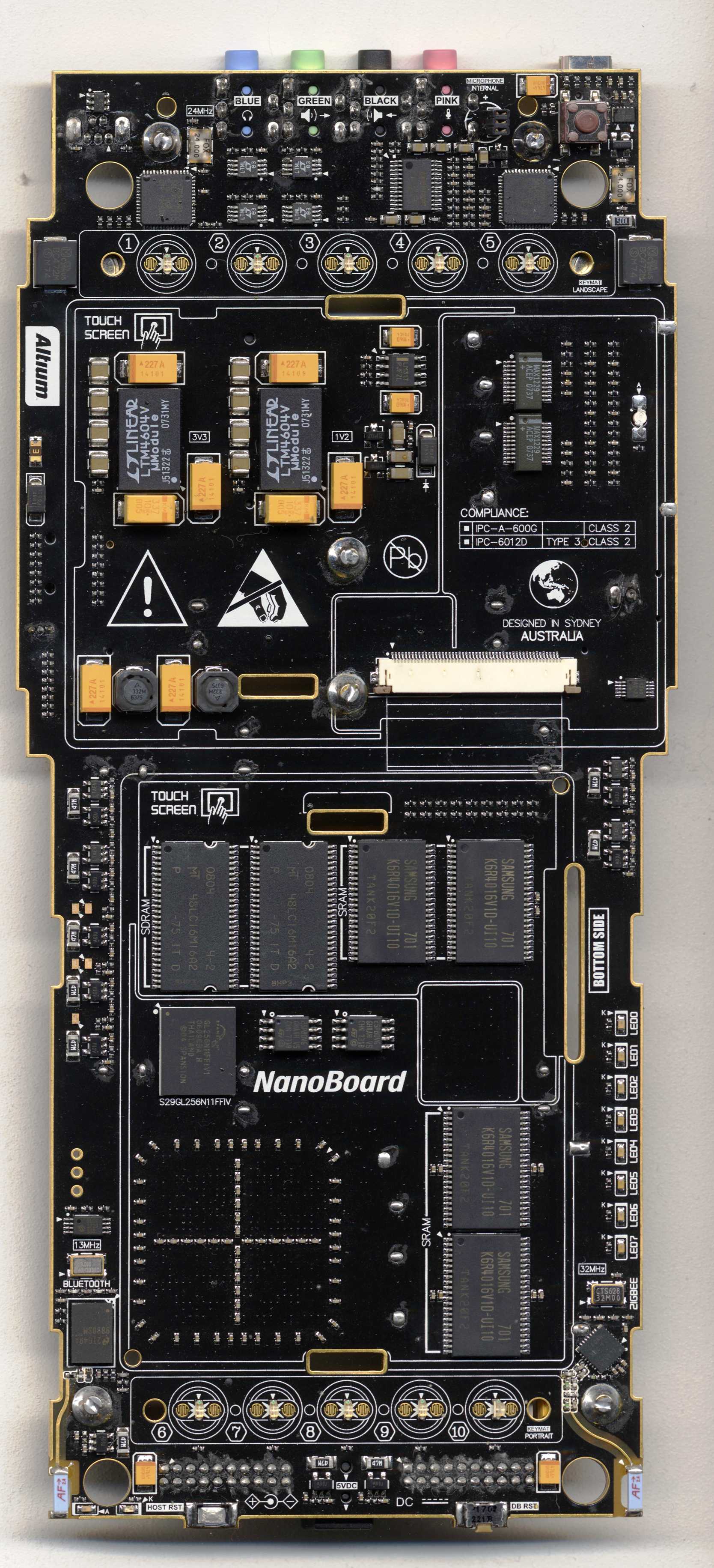

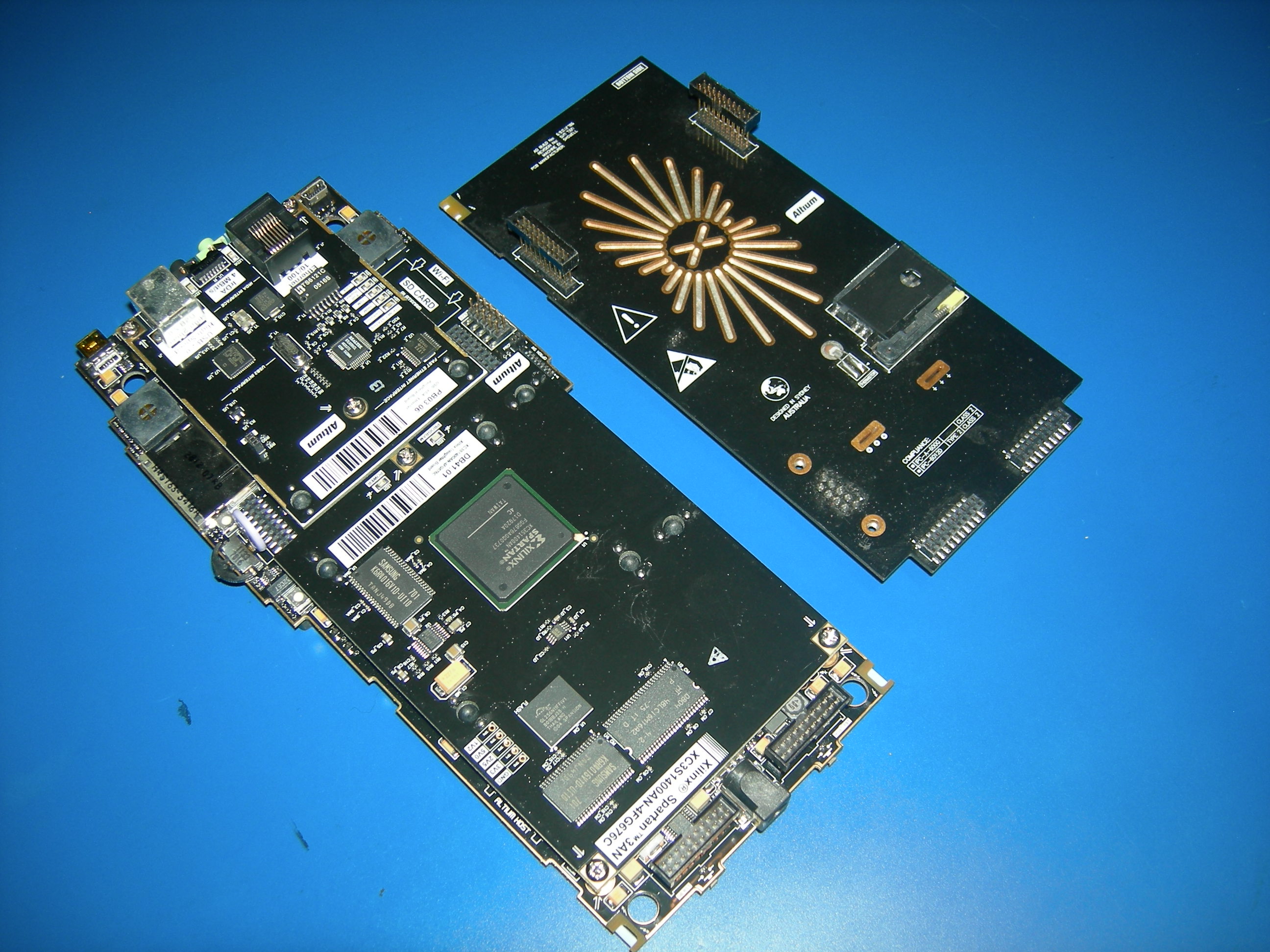

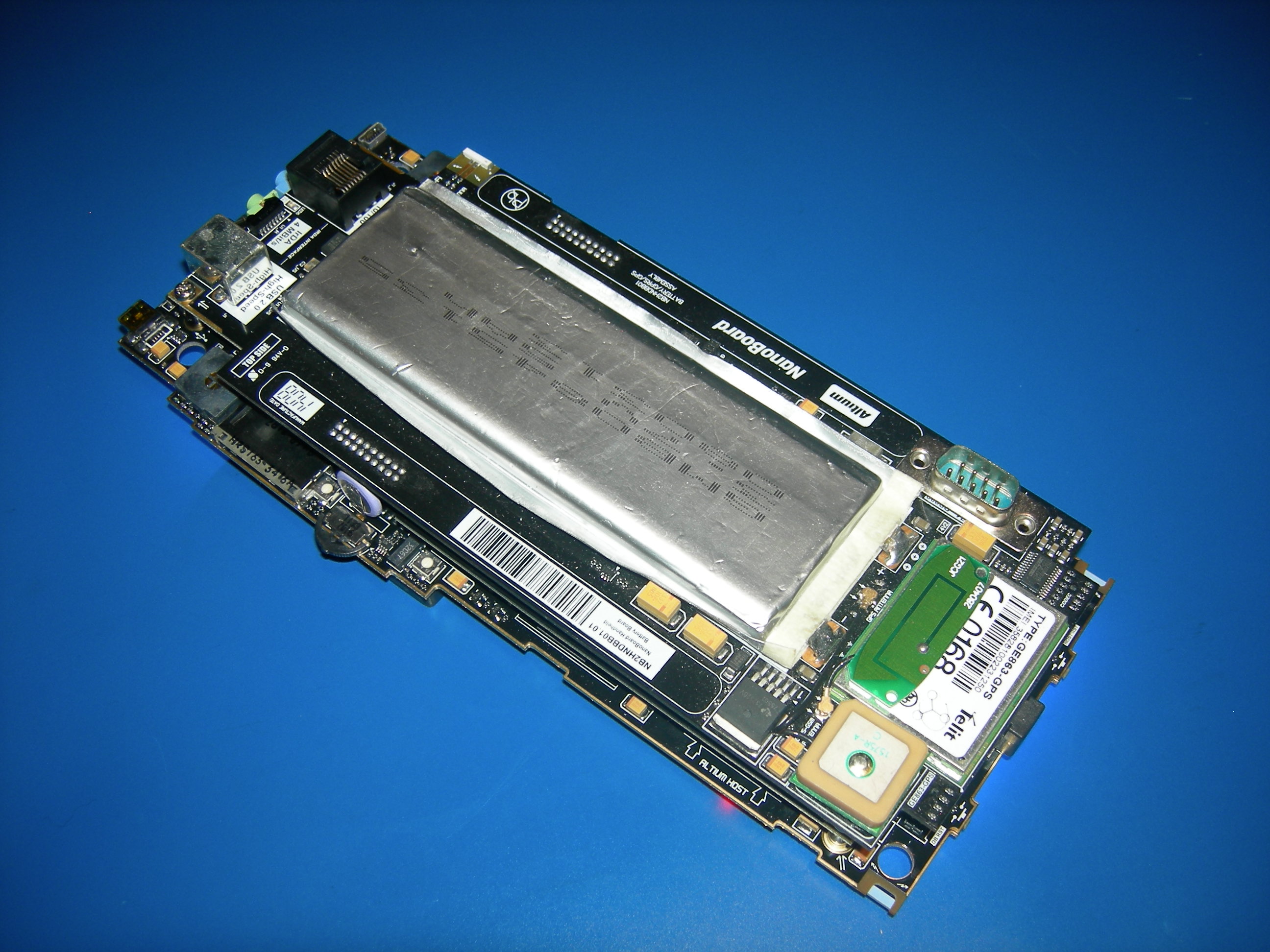

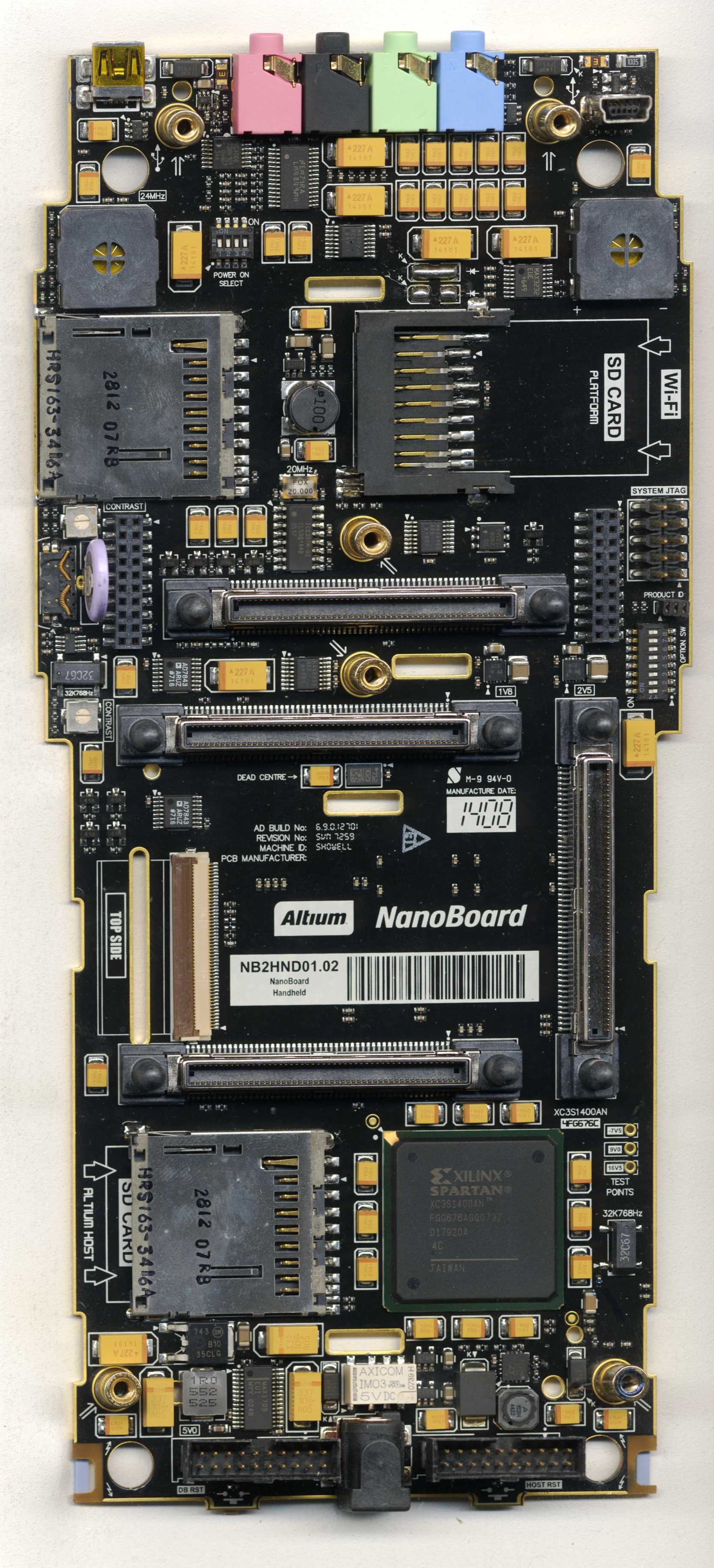

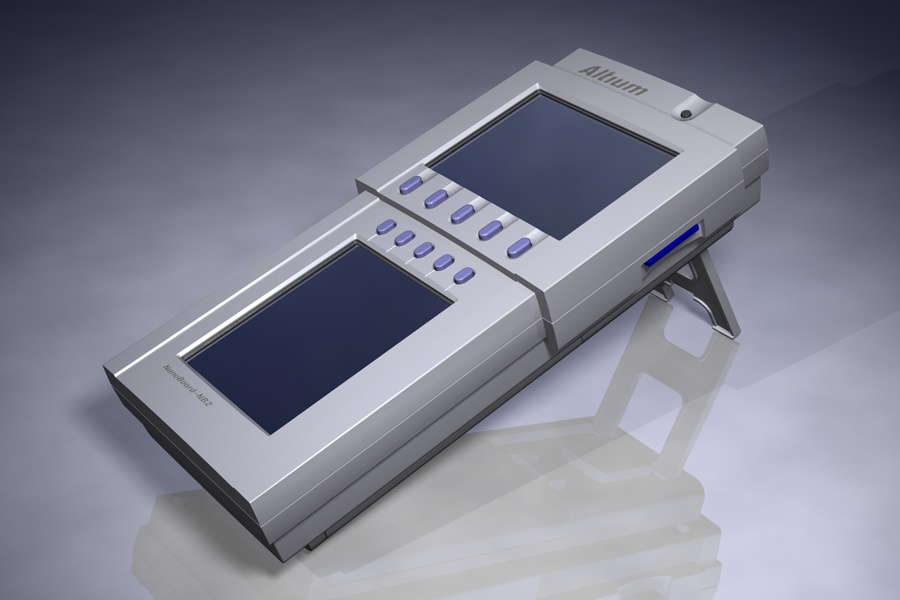

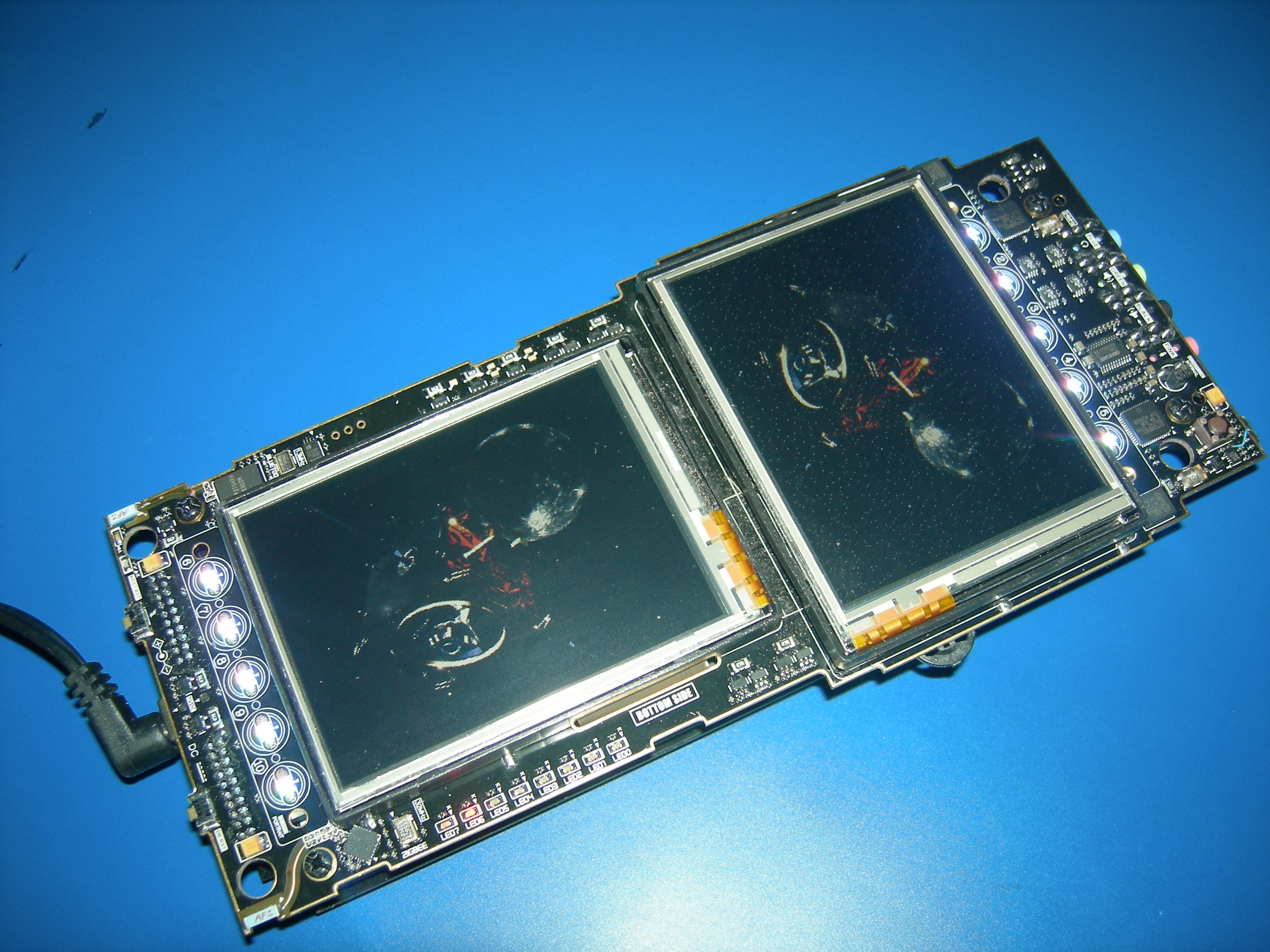

Handheld Nanoboard
Assembly ID
NB2HND01
Company
Function
Handheld FPGA Deployment Bd.
Primary Device
Xilinx Spartan XC3S1400AN
Technology
5 track/5 space/26 via
PCB Build Specification
8 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)

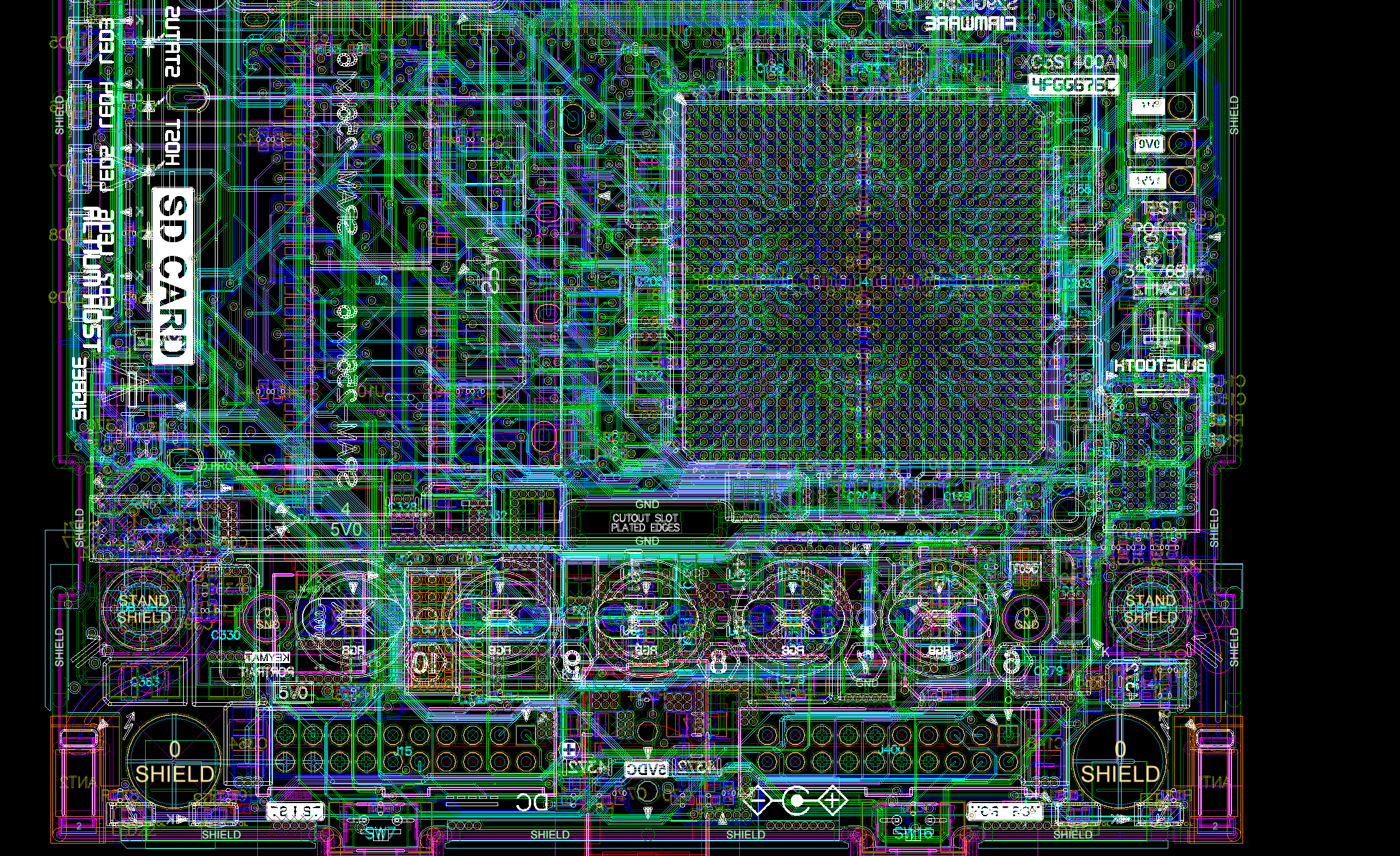

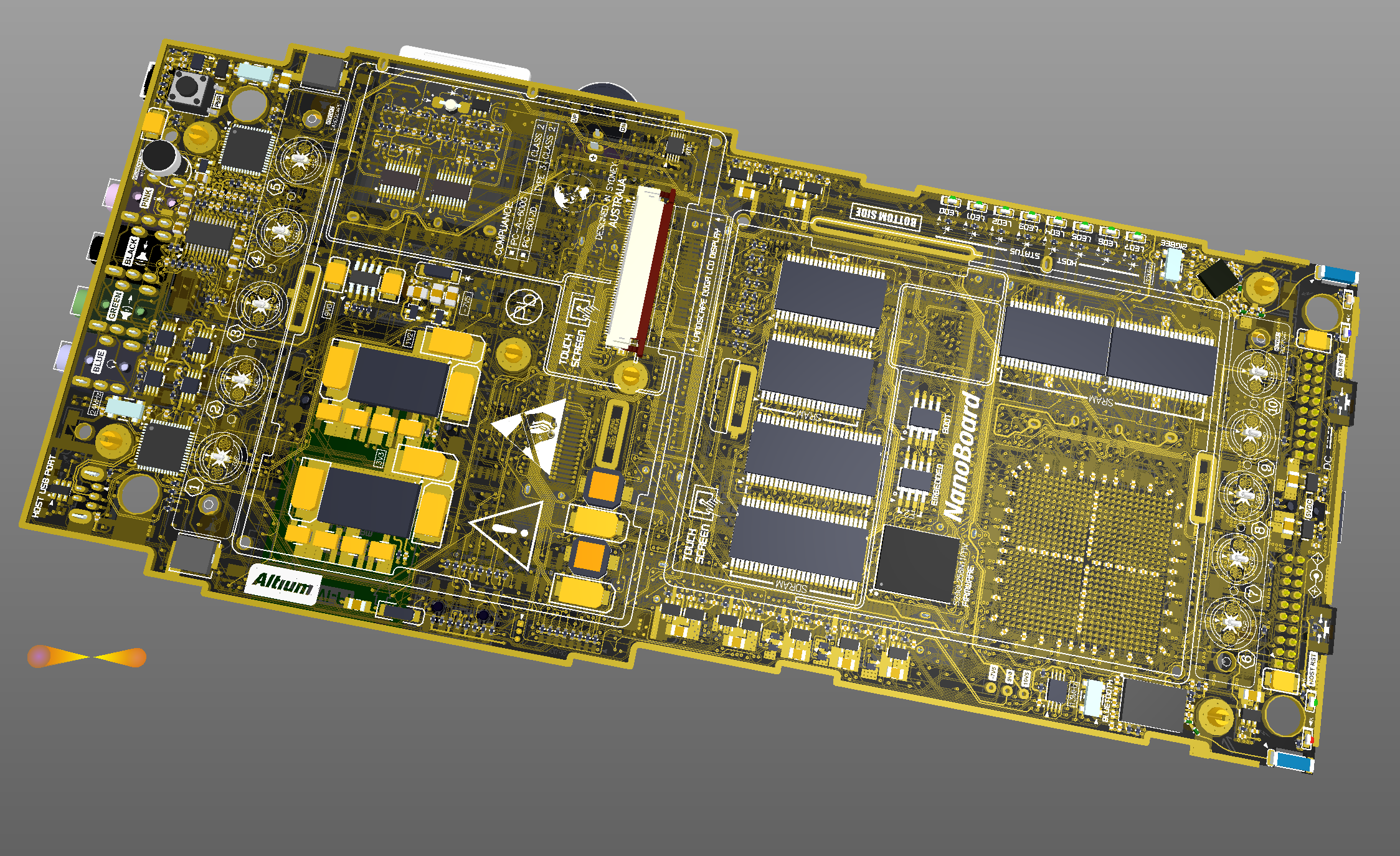

CAD Application
Altium Designer W09
Prototype Availability
Yes
