Date of Design
2008
Product

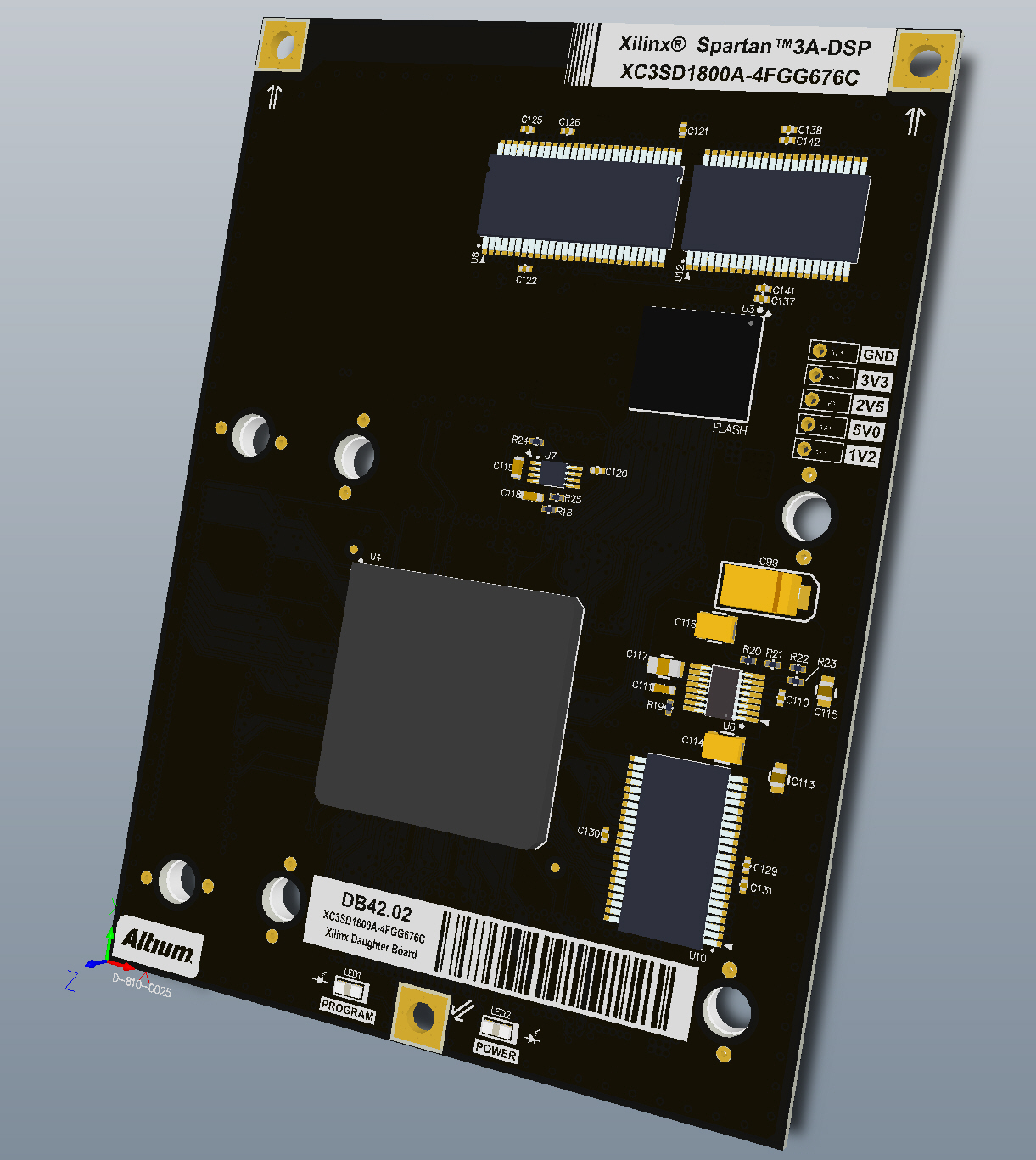

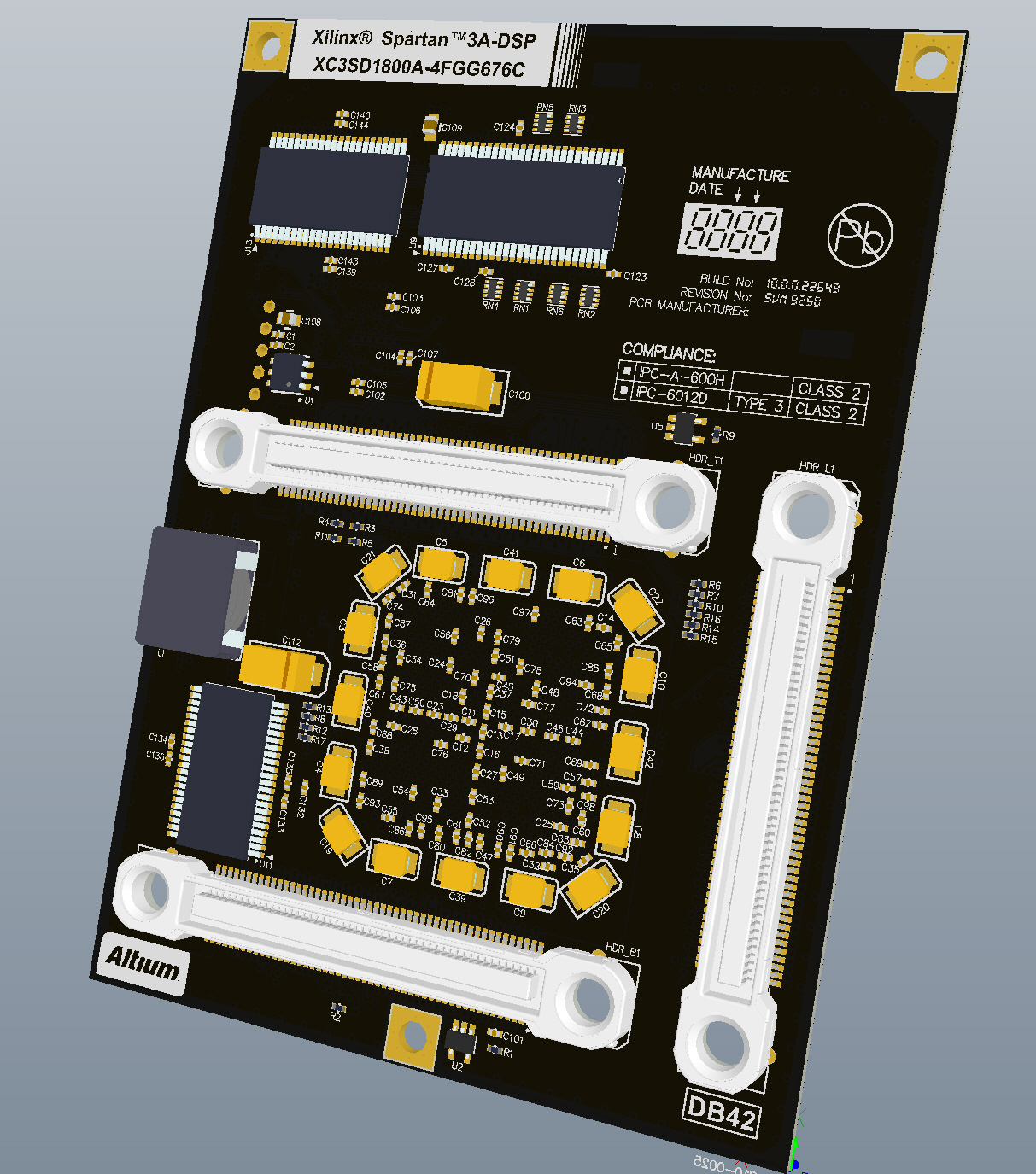

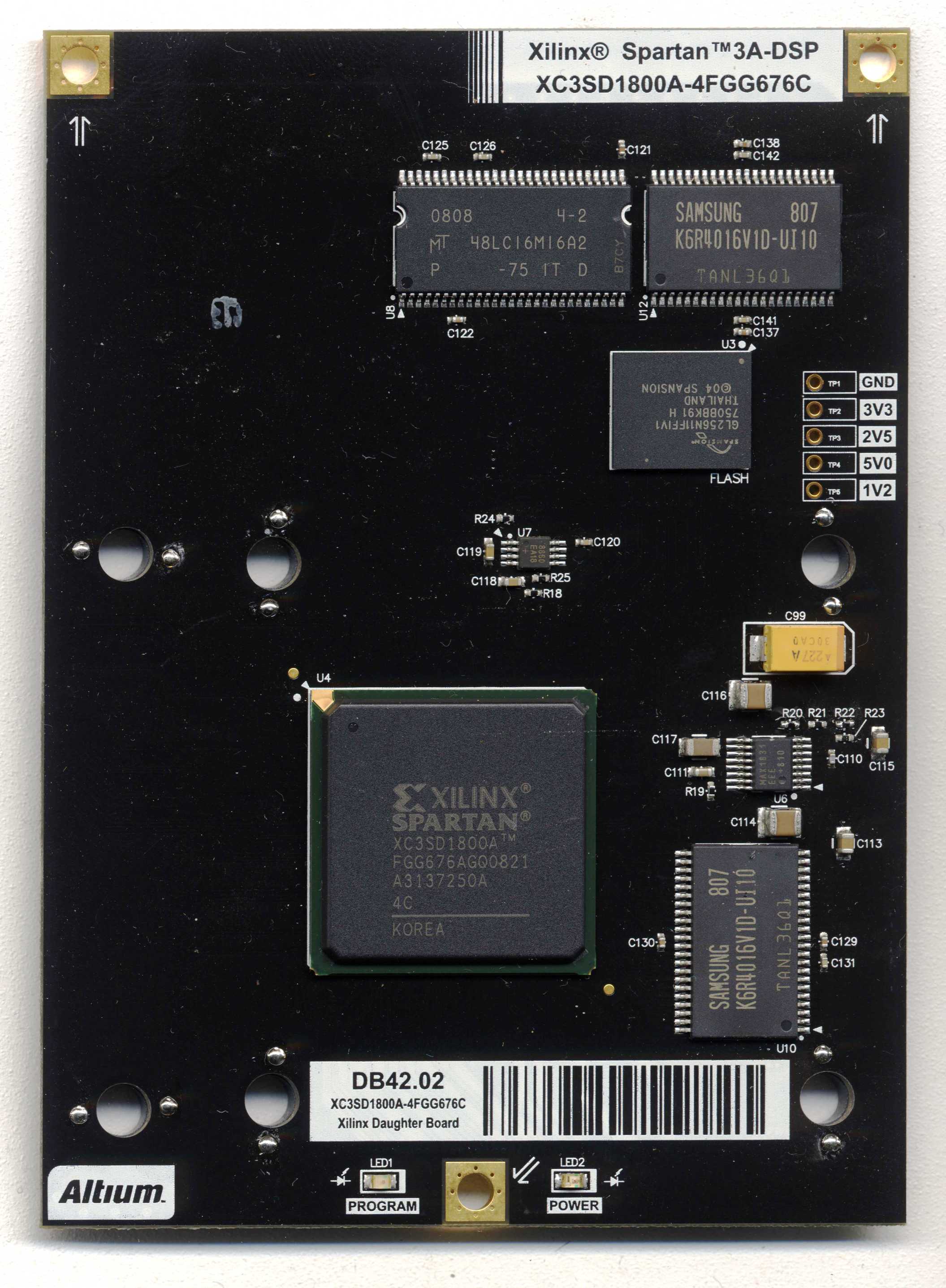

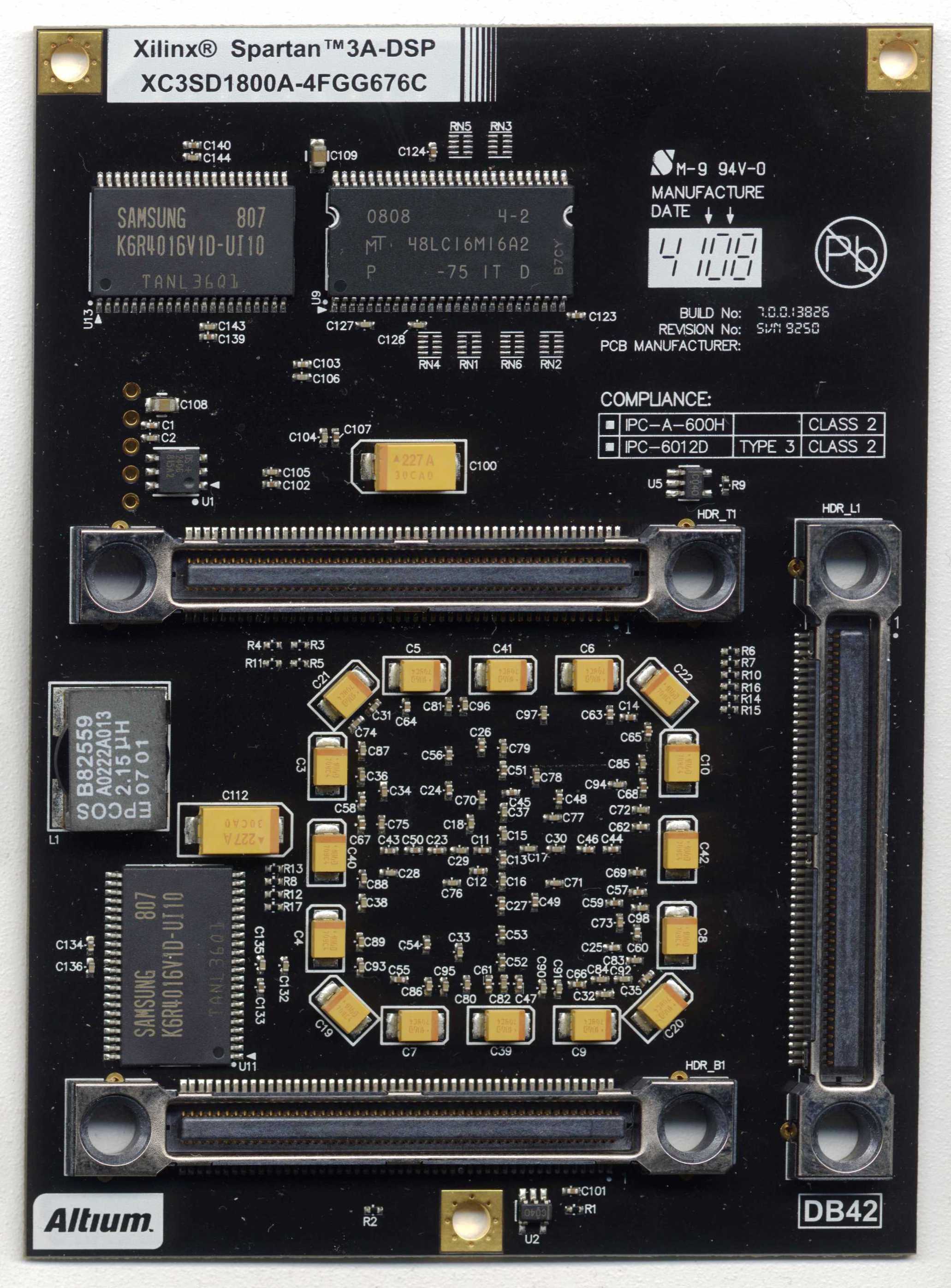

Xilinx XC3SD1800A FPGA Module
Assembly ID
DB42.02
Company
Function
DSP+FPGA w/SRAM, DRAM and Flash
Primary Device
XC3SD1800A-4FGG676C
Technology
5 track/5 space/24 via

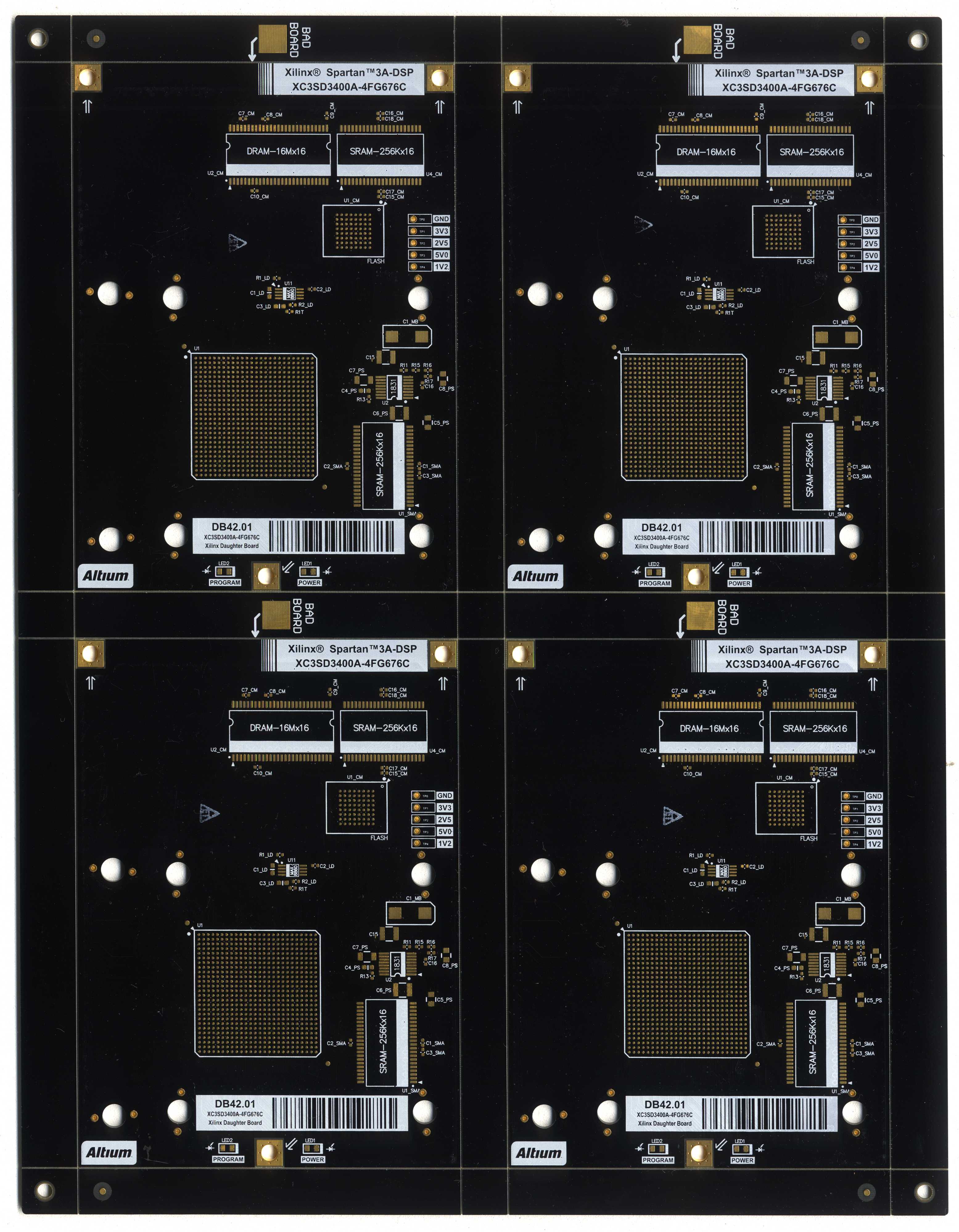

PCB Build Specification
8 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)
CAD Application
Altium Designer 6.9
Prototype Availability
Yes
