Date of Design
2008
Product

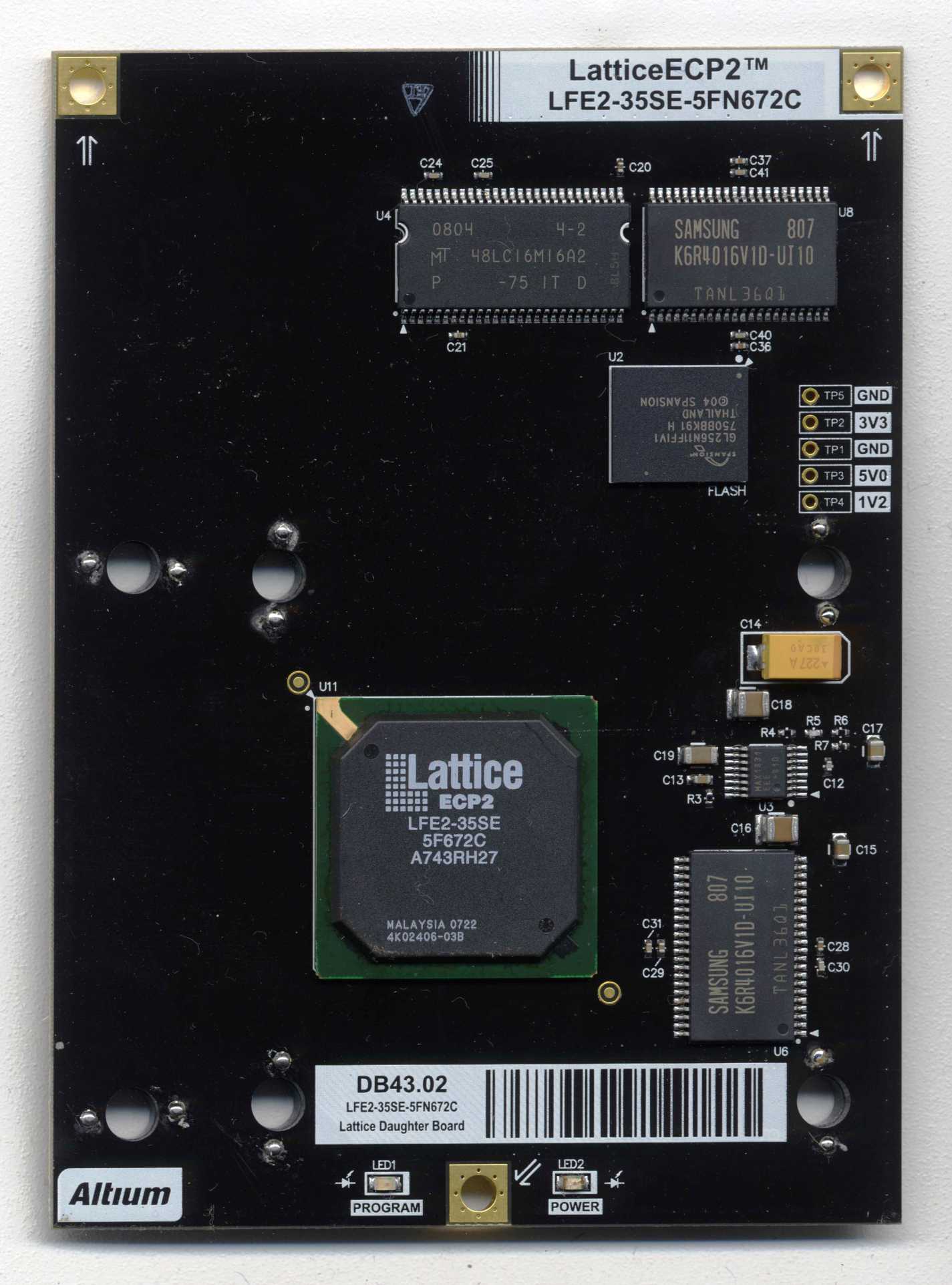

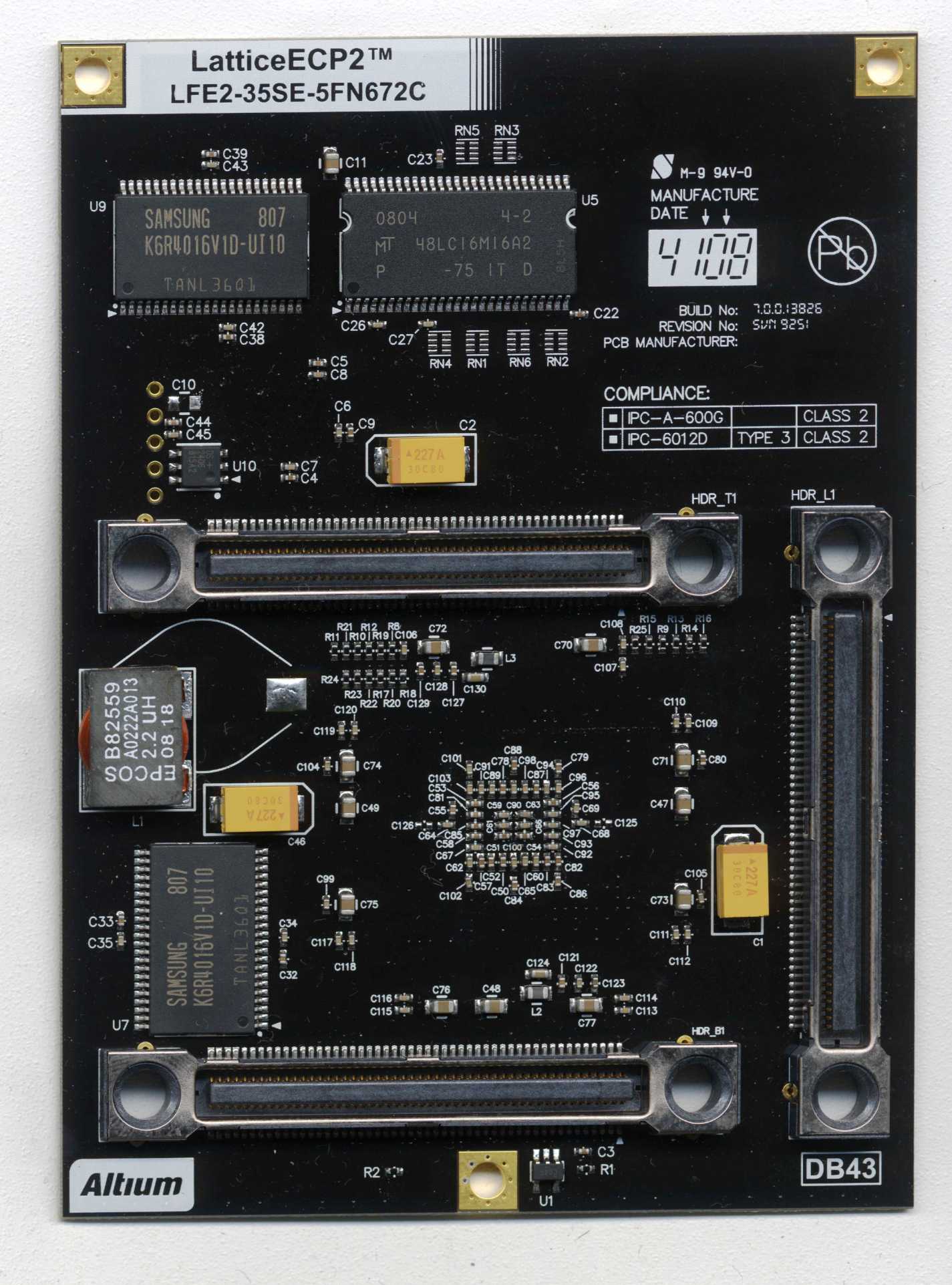

Lattice ECP2 FPGA Module
Assembly ID
DB43.01
Company
Function
FPGA with SRAM, DRAM and Flash Mem.
Primary Device
LFE-35SE-5F672C
Technology
5 track/5 space/24 via

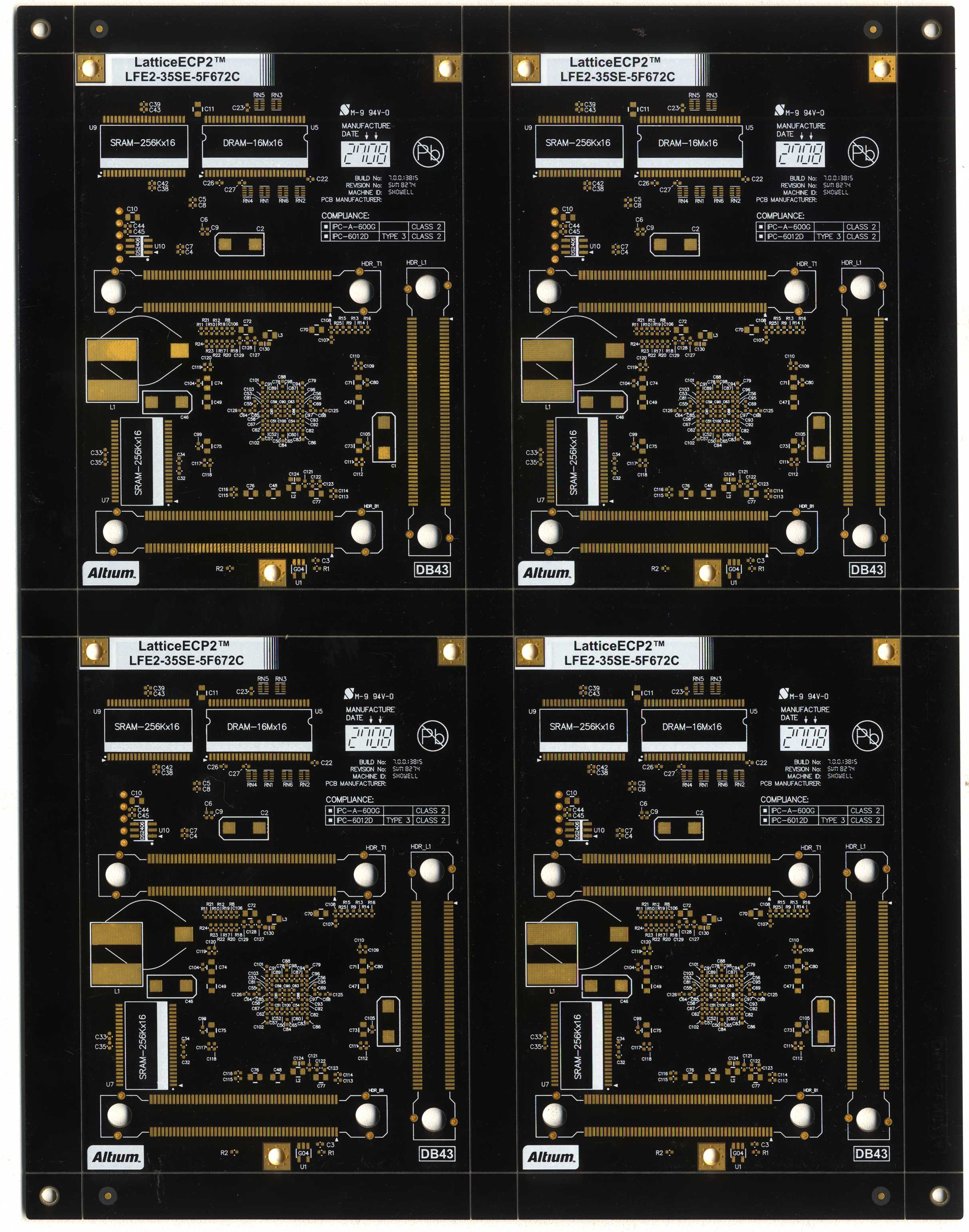

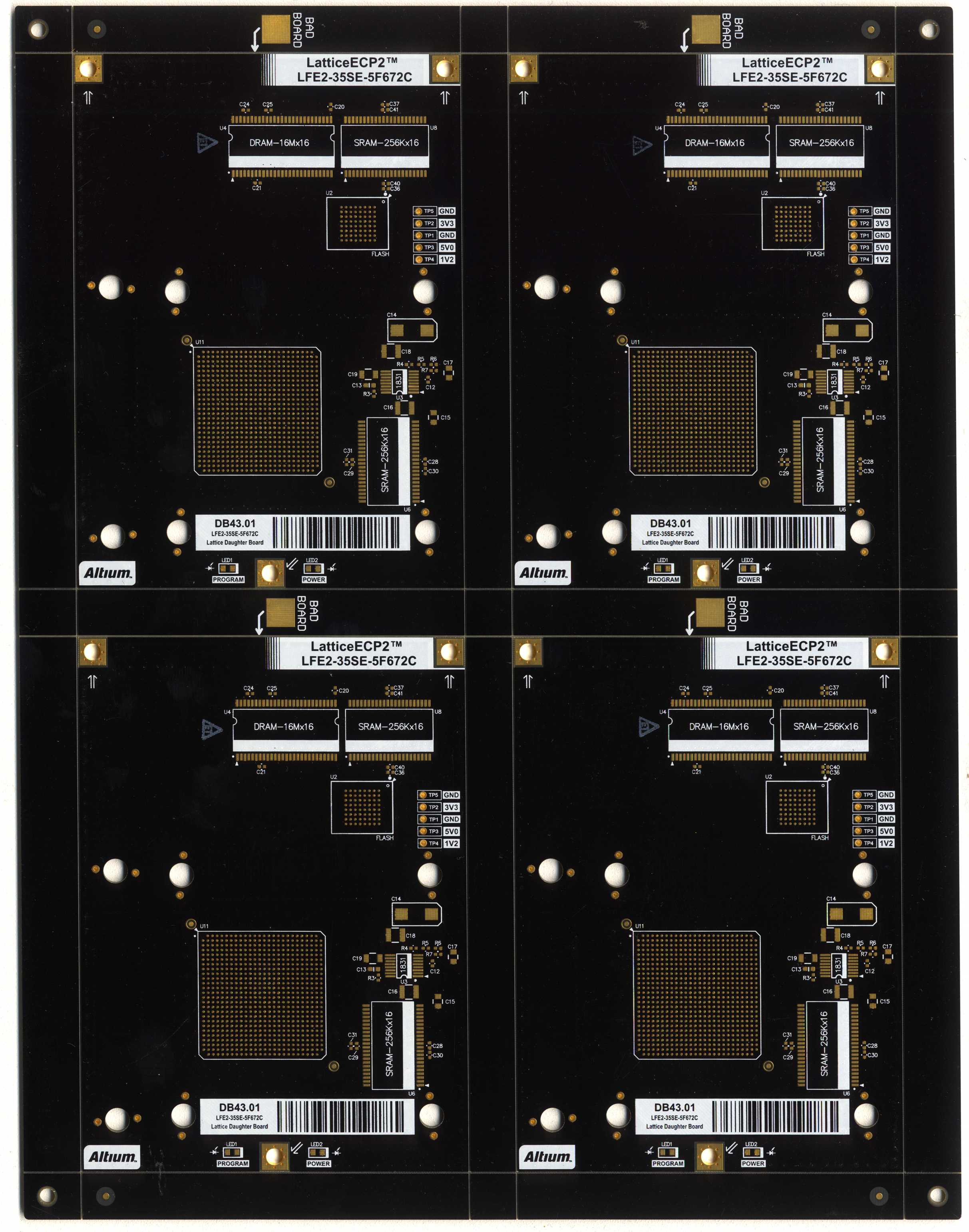

PCB Build Specification
8 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)

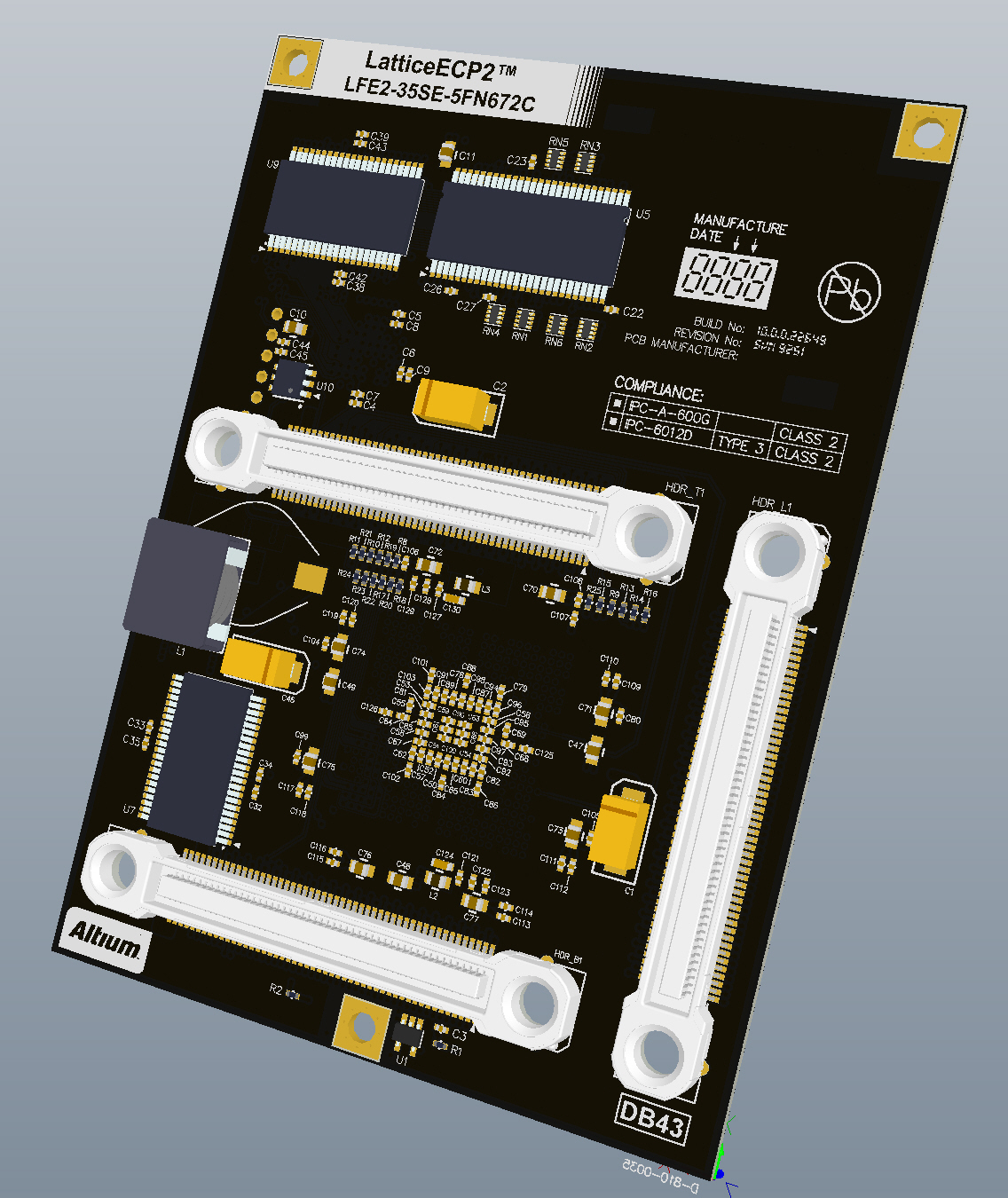

CAD Application
Altium Designer 6.9
Prototype Availability
Yes
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
