Date of Design
2008
Product

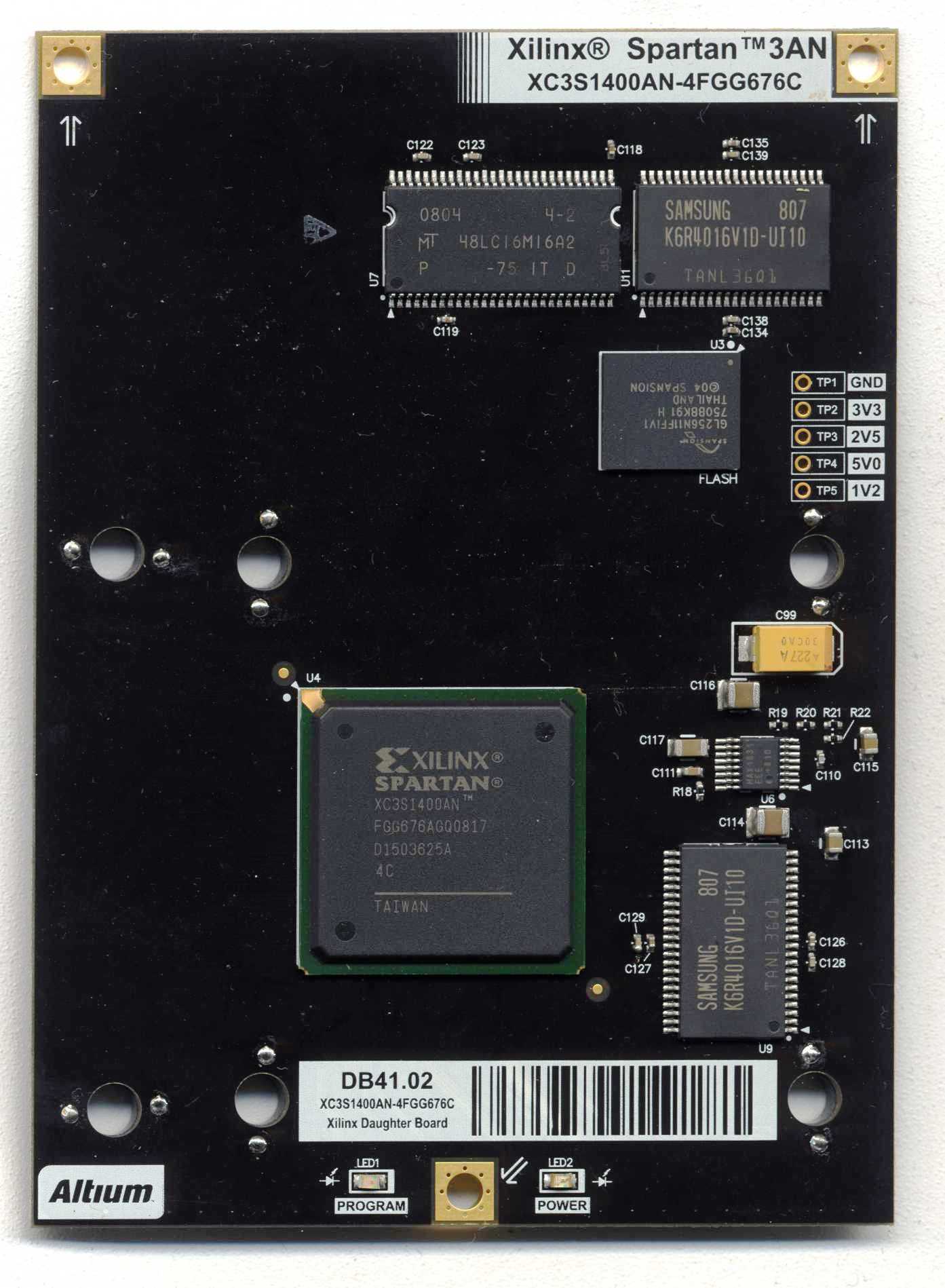

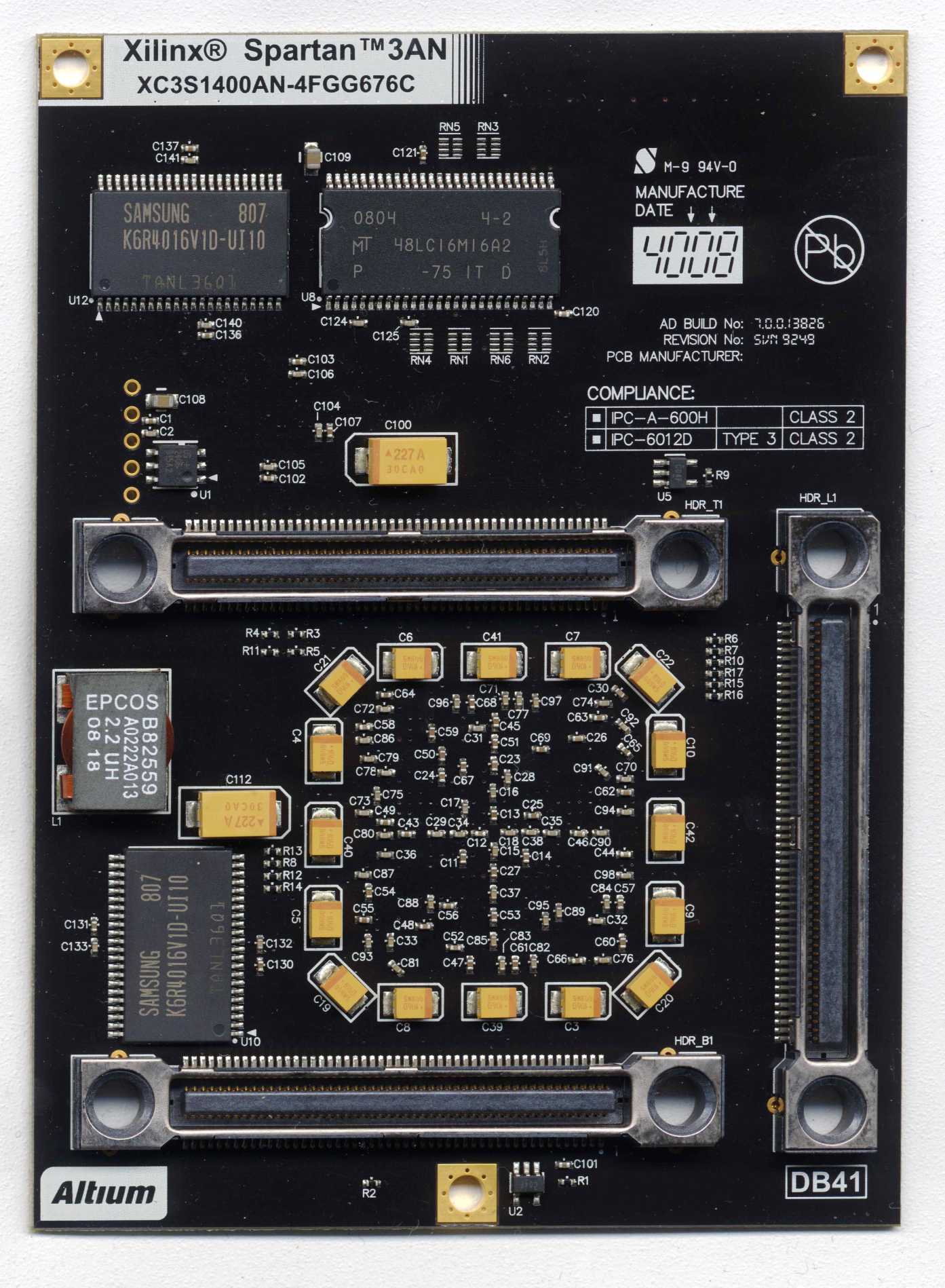

Xilinx XC3S1400AN FPGA Module
Assembly ID
DB41.02
Company
Function
FPGA with SRAM, DRAM and Flash Mem.
Primary Device
XC3S1400AN-4FGG676C
Technology
5 track/5 space/24 via

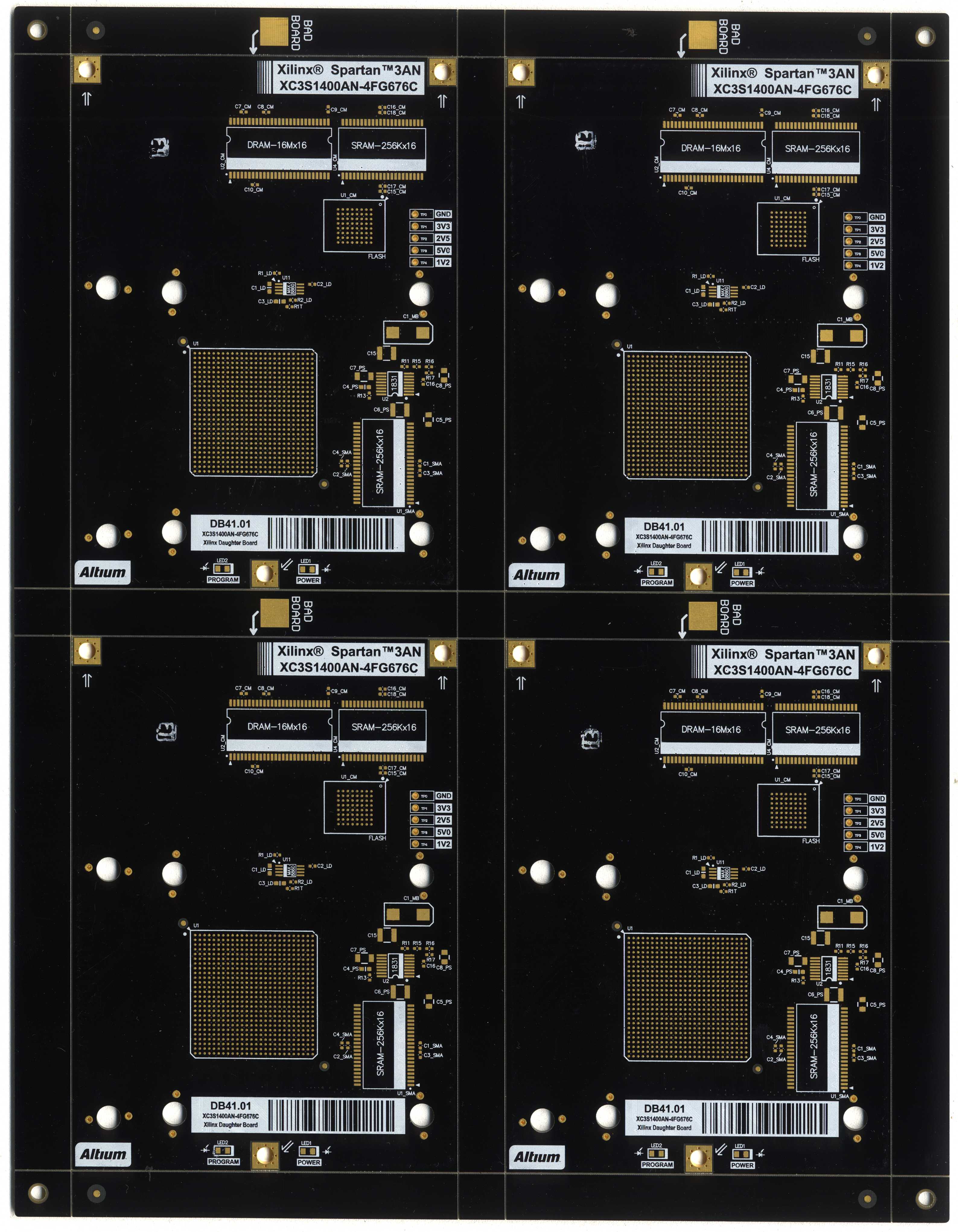

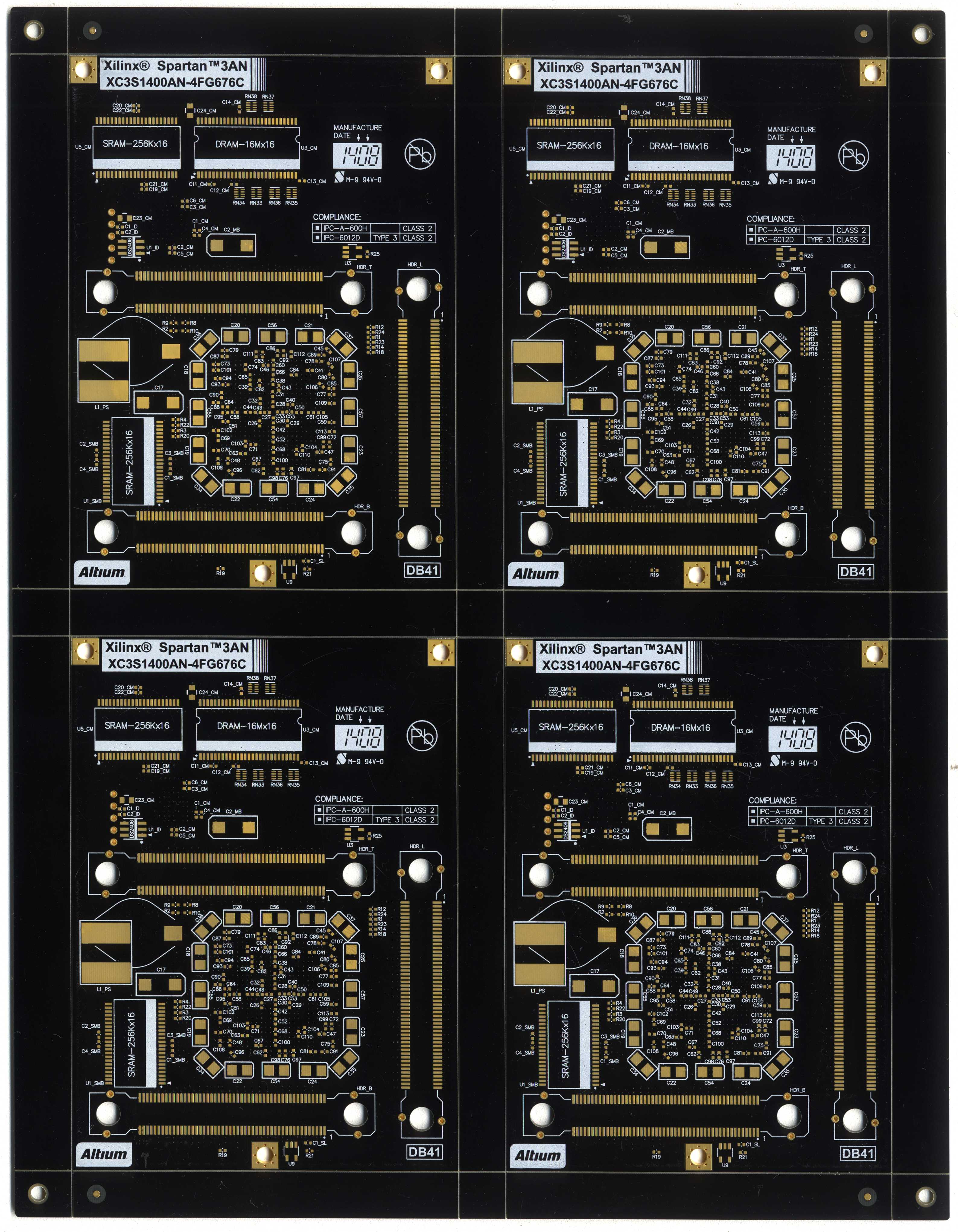

PCB Build Specification
8 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)
CAD Application
Altium Designer 6.9
Prototype Availability
Yes
