Date of Design
2008
Product

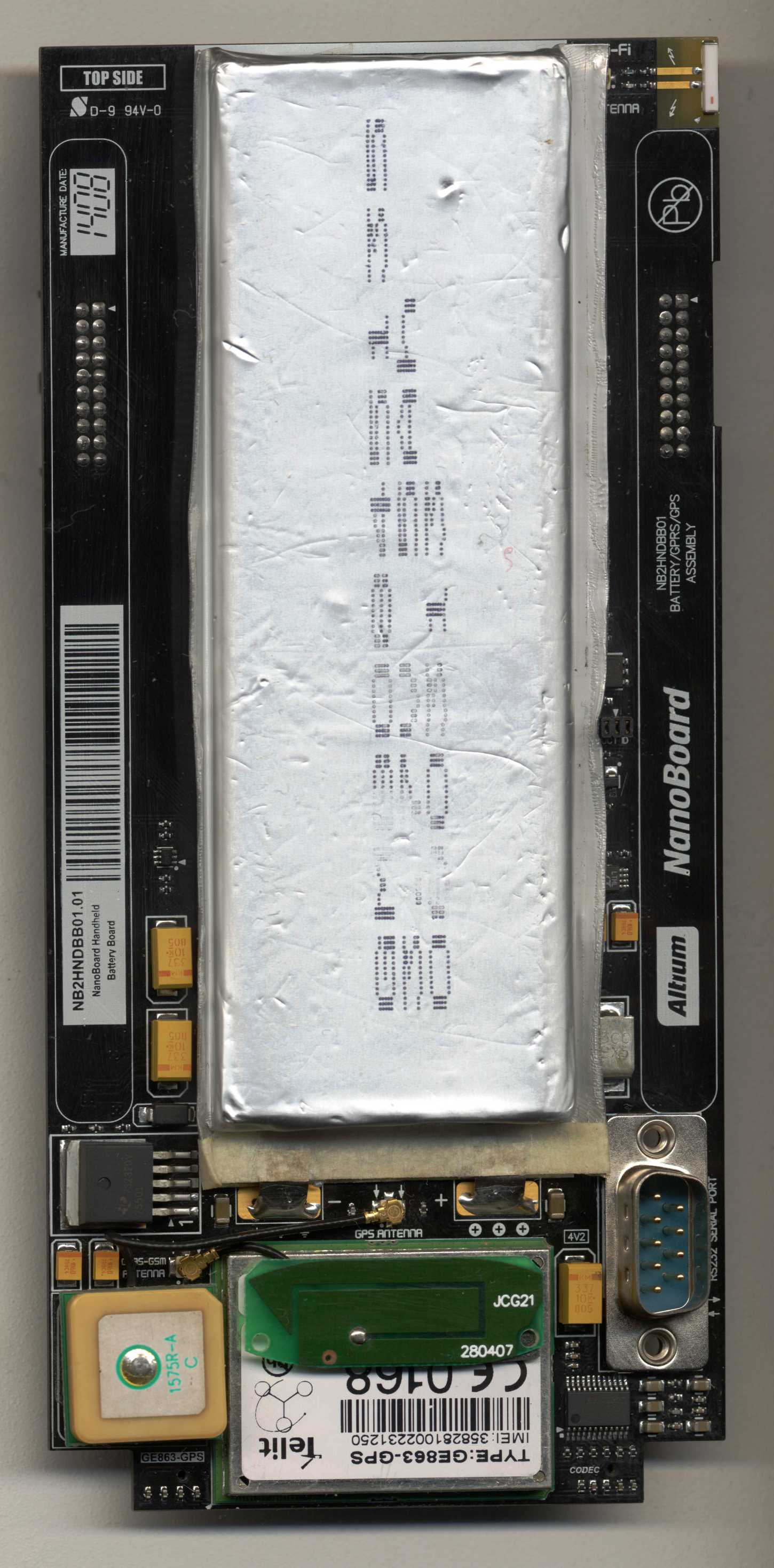

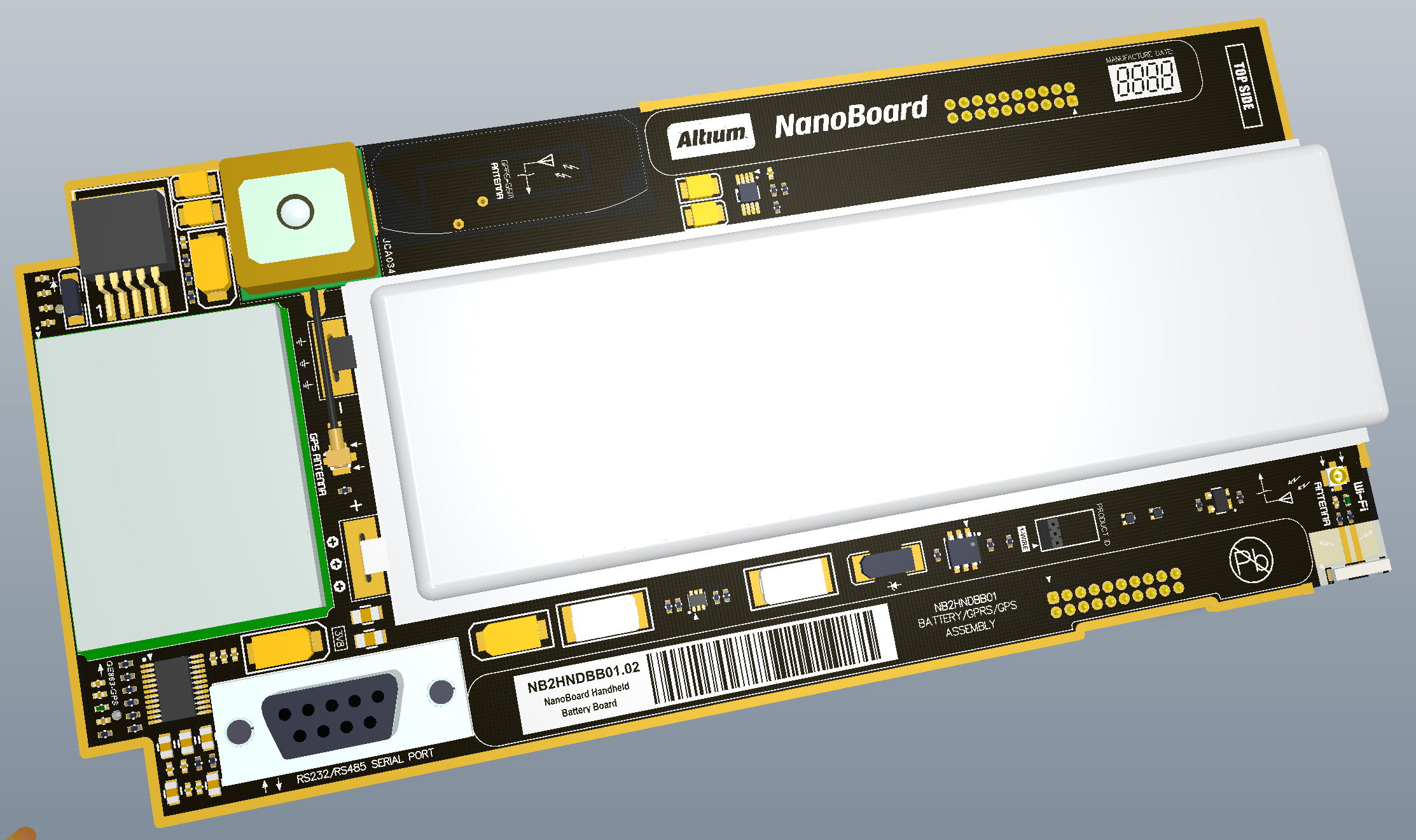

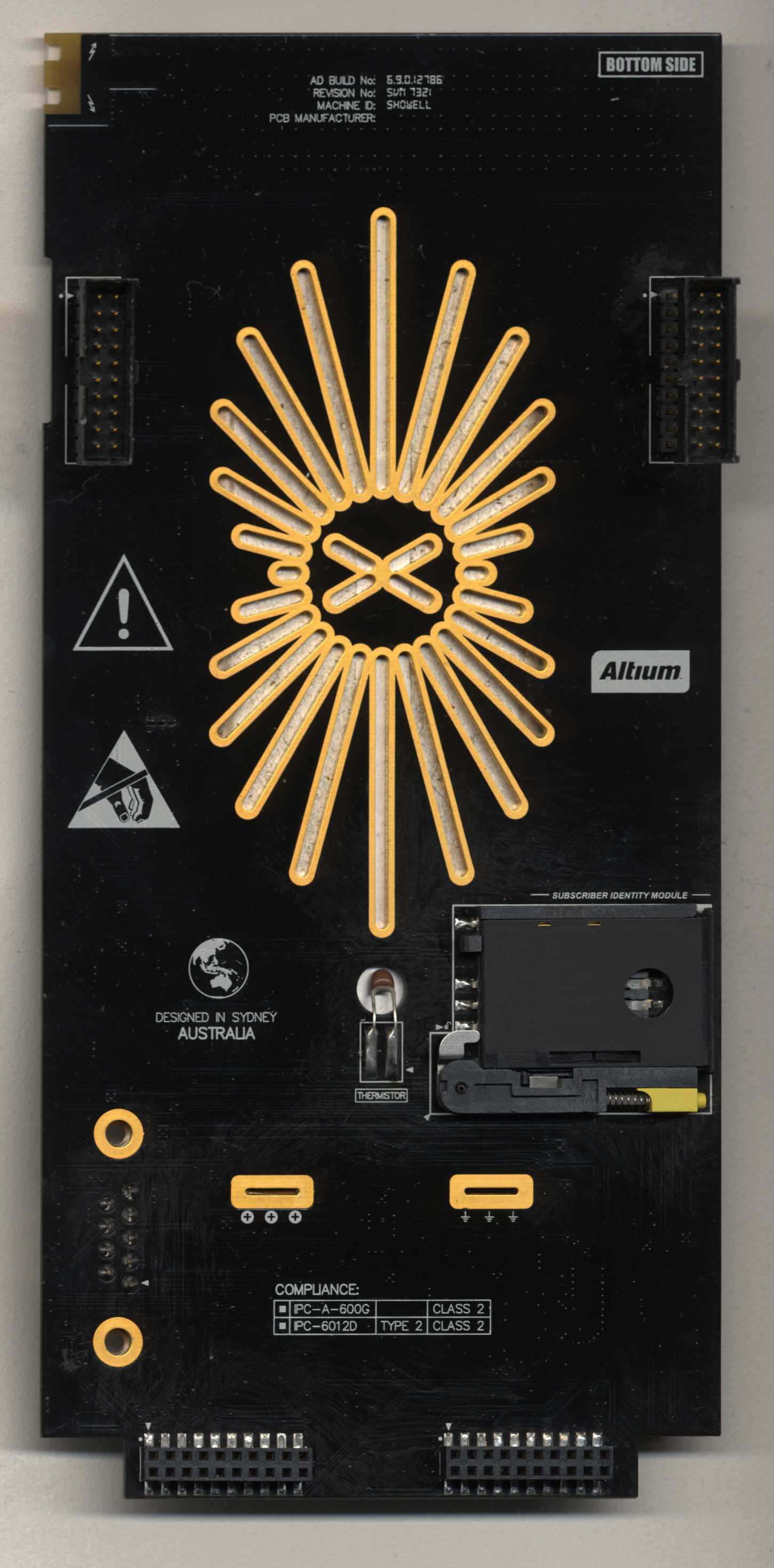

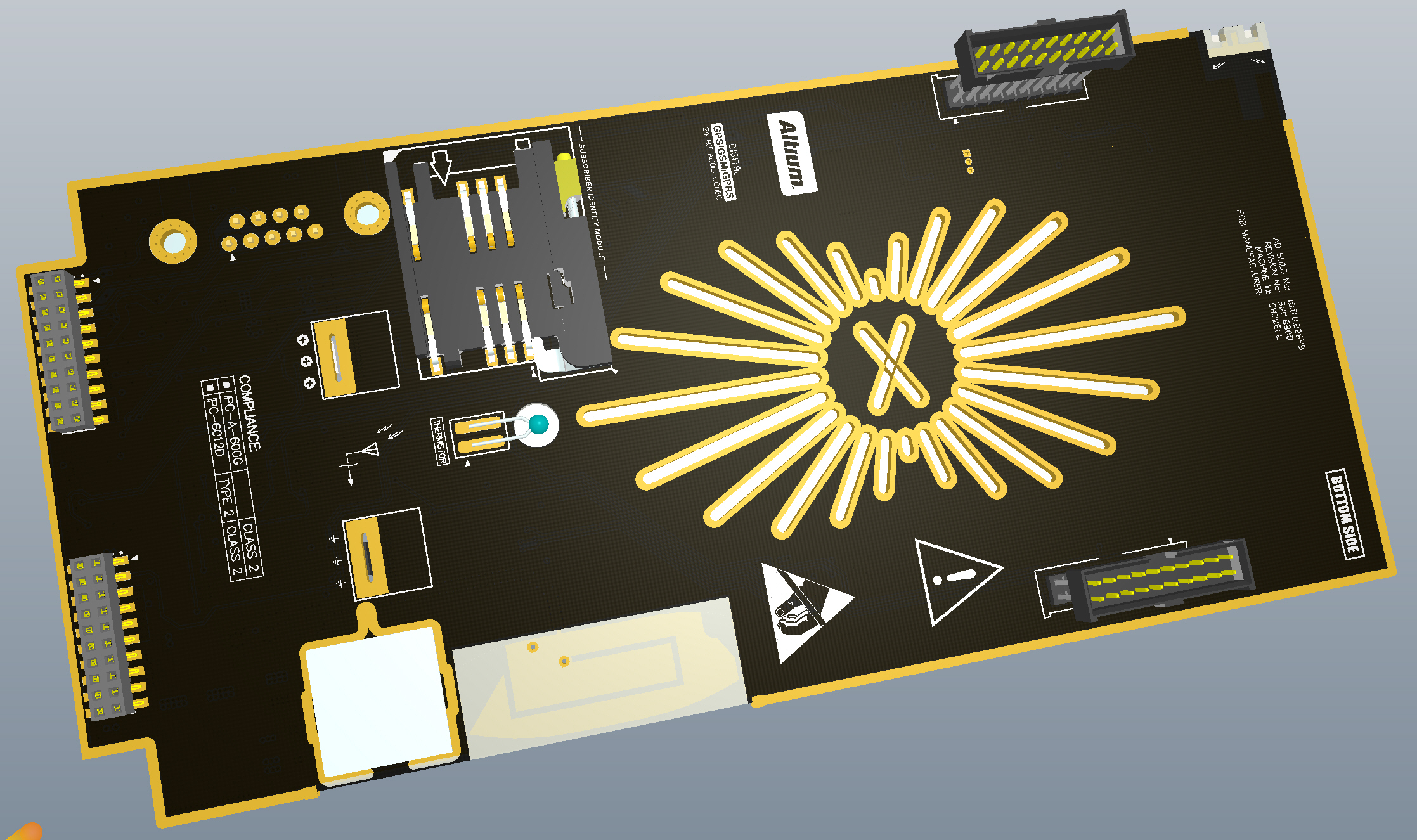

Lithium Ion Battery Pack
Assembly ID
NB2HNDBB01
Company
Function
FPGA Battery Power Supply
Primary Device
GMB0845135
Technology
5 Track/5 Space/28 Via

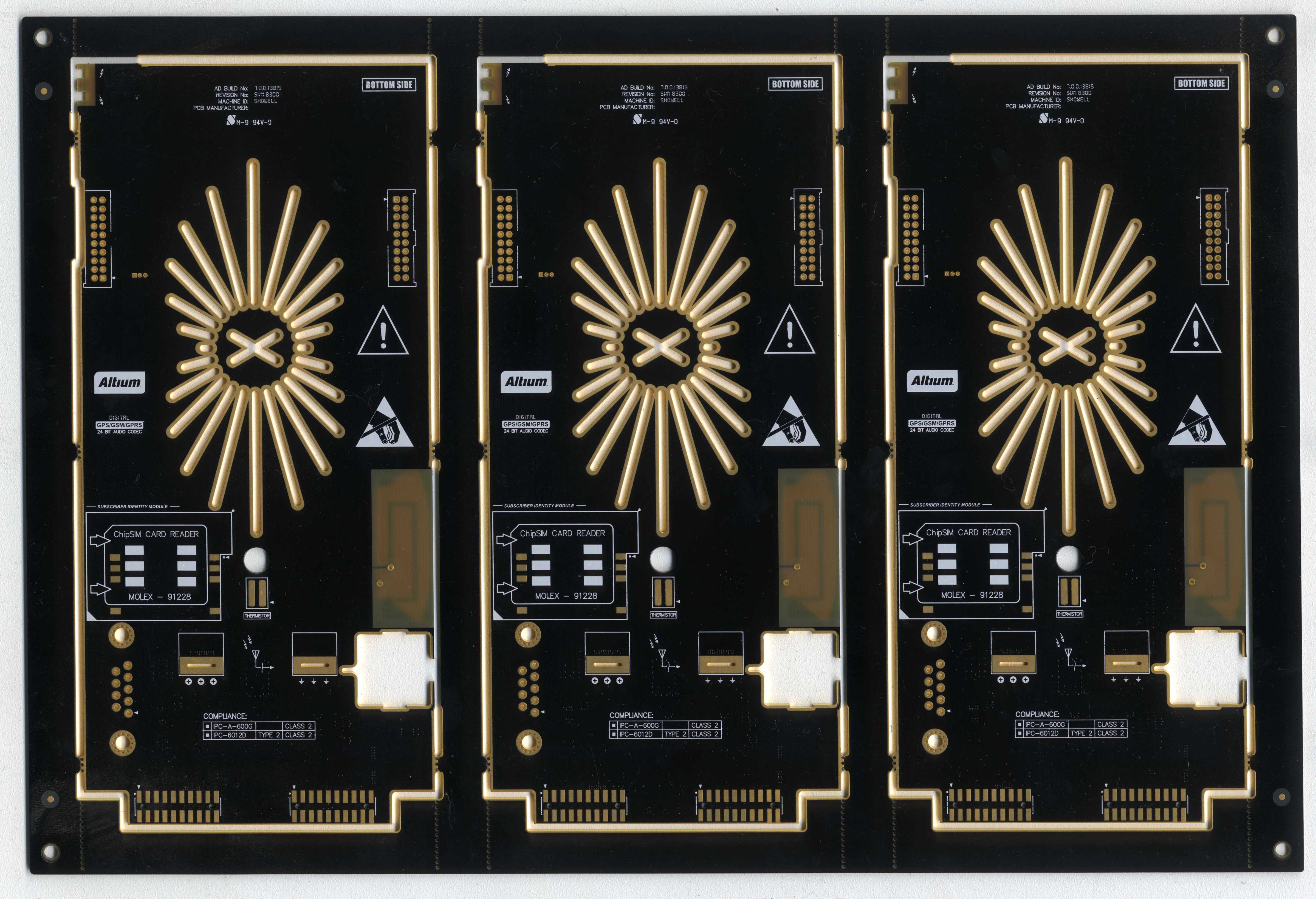

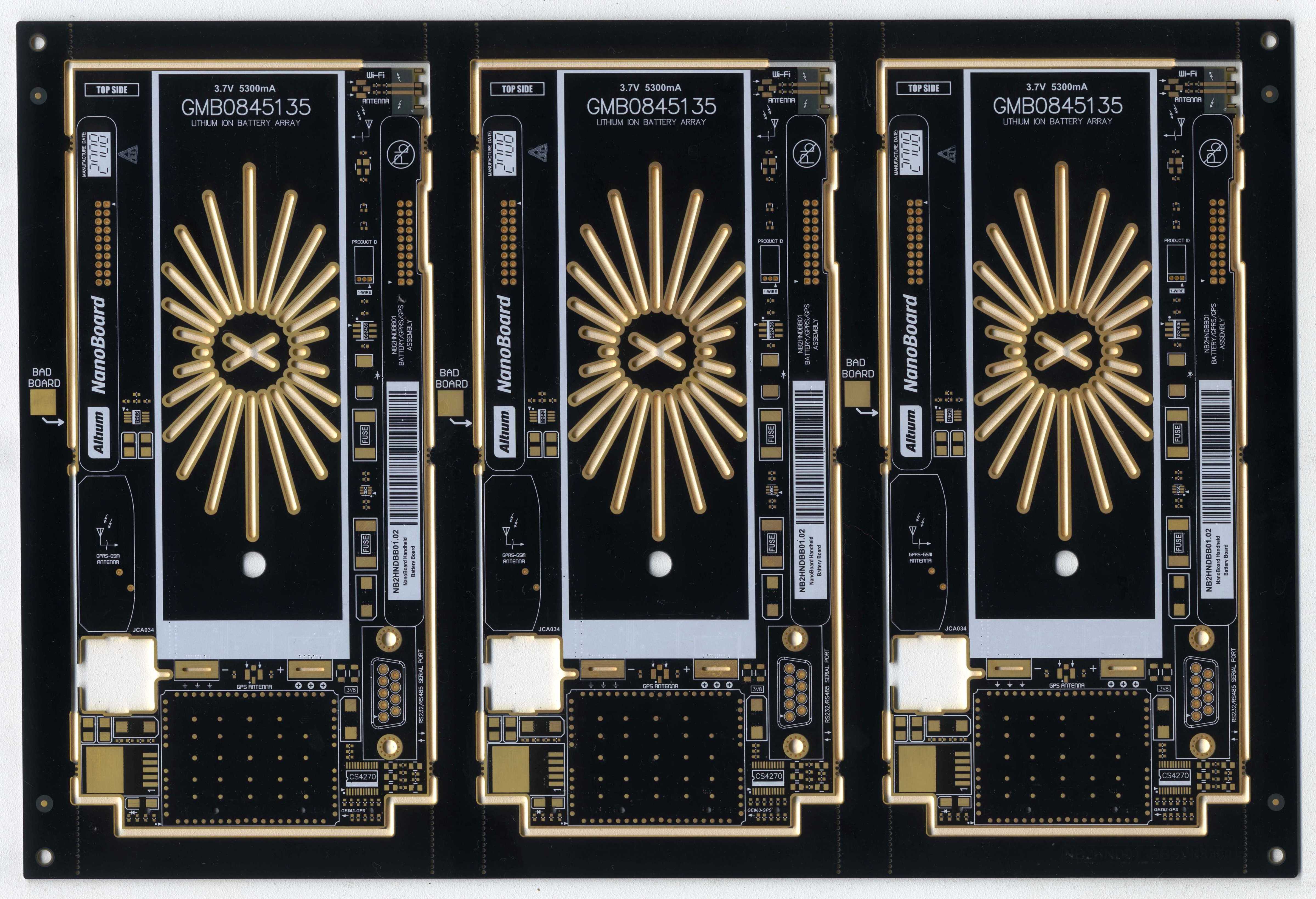

PCB Build Specification
2 Layer, 1oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (TAIWAN)
CAD Application
Altium Designer W09
Prototype Availability
Yes
