Date of Design
2008
Product

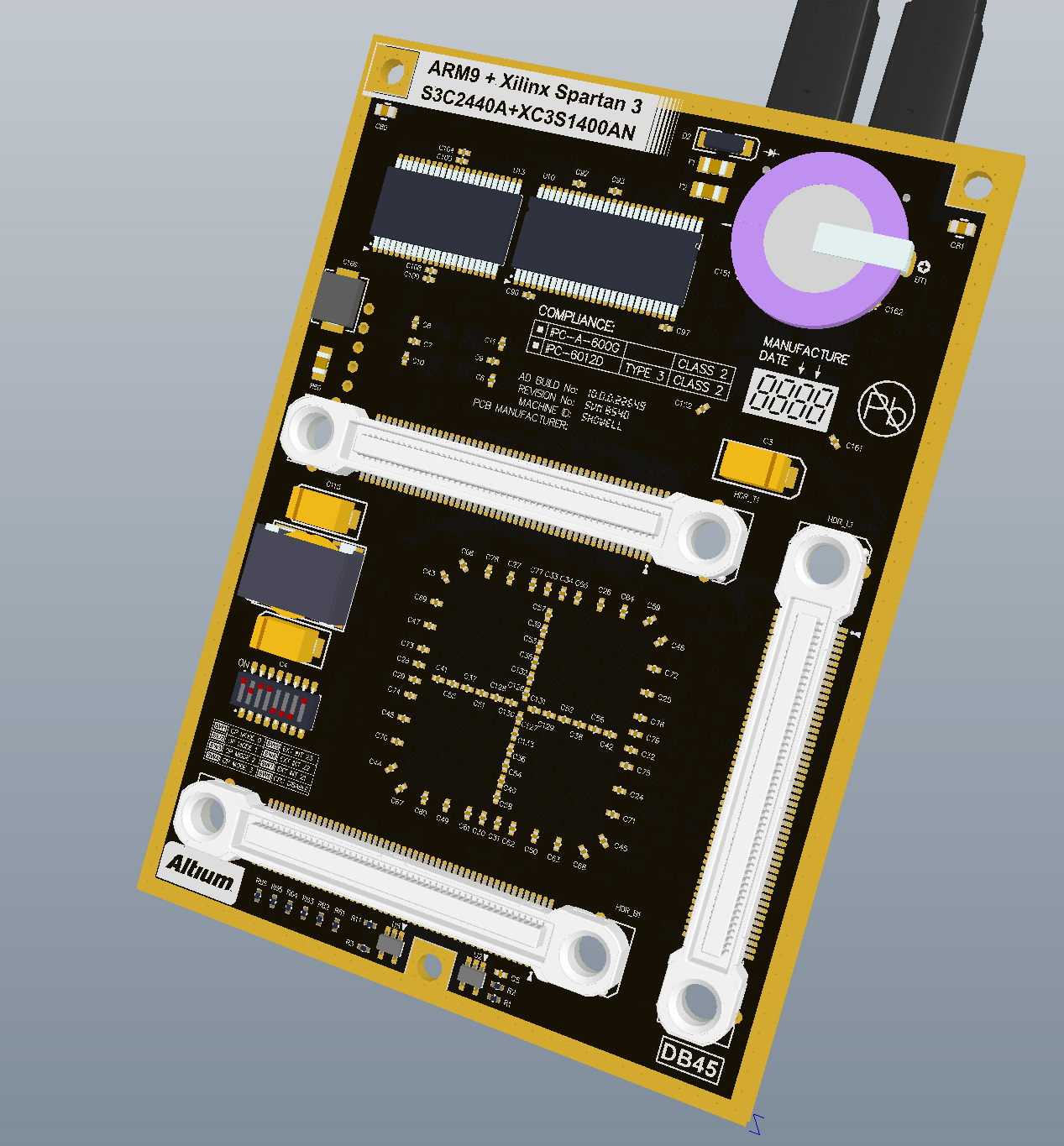

ARM9 FPGA Module
Assembly ID
DB45.01
Company
Function
ARM9 + Xilinx XC3S1400AN FPGA
Primary Device
Samsung S3C2440A ARM9 (400MHz)
Technology
5 track/5 space/24 via
PCB Build Specification
8 Layer, 1/2oz, MASK, ENIG, TUC04
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Yuan Circuits (TAIWAN)
CAD Application
Altium Designer 6.9
Prototype Availability
Yes
